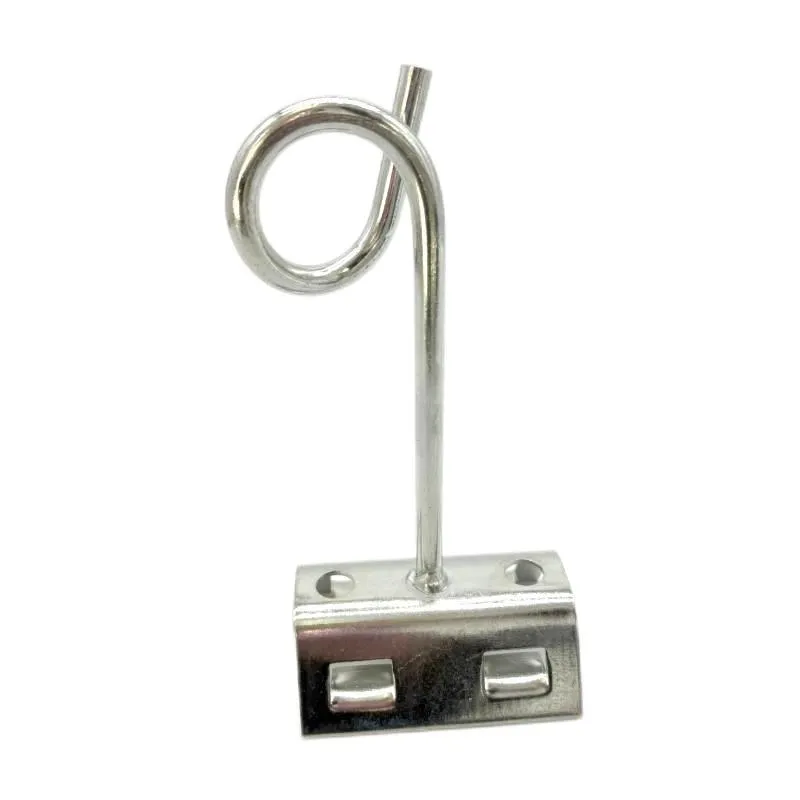

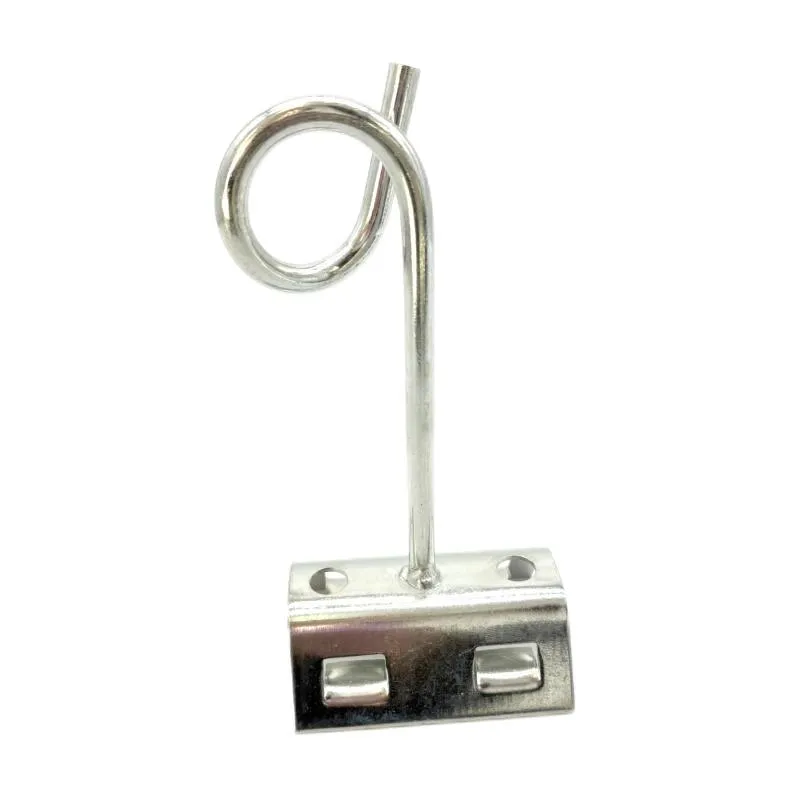

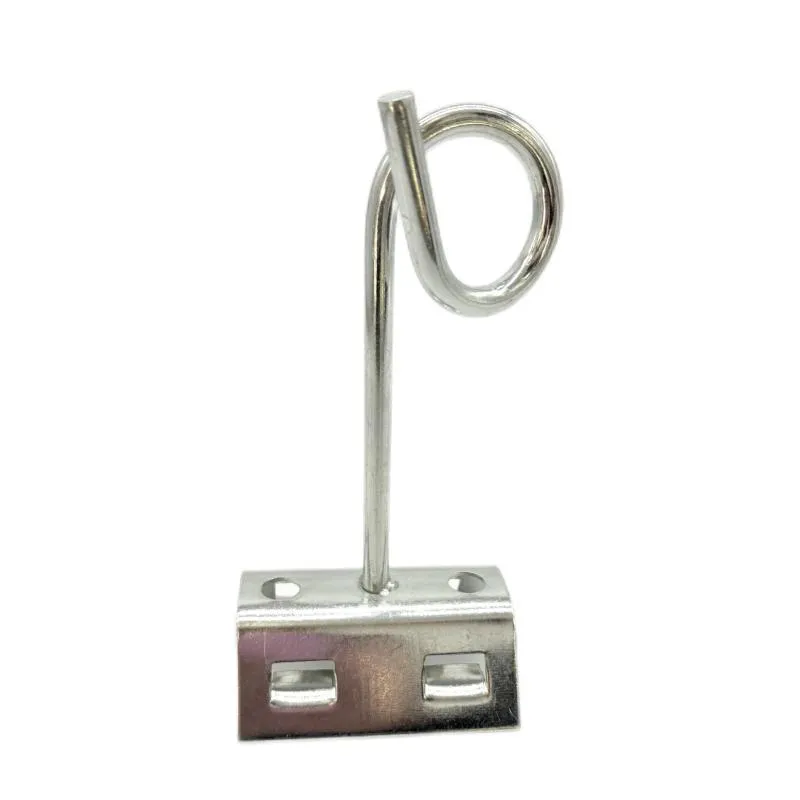

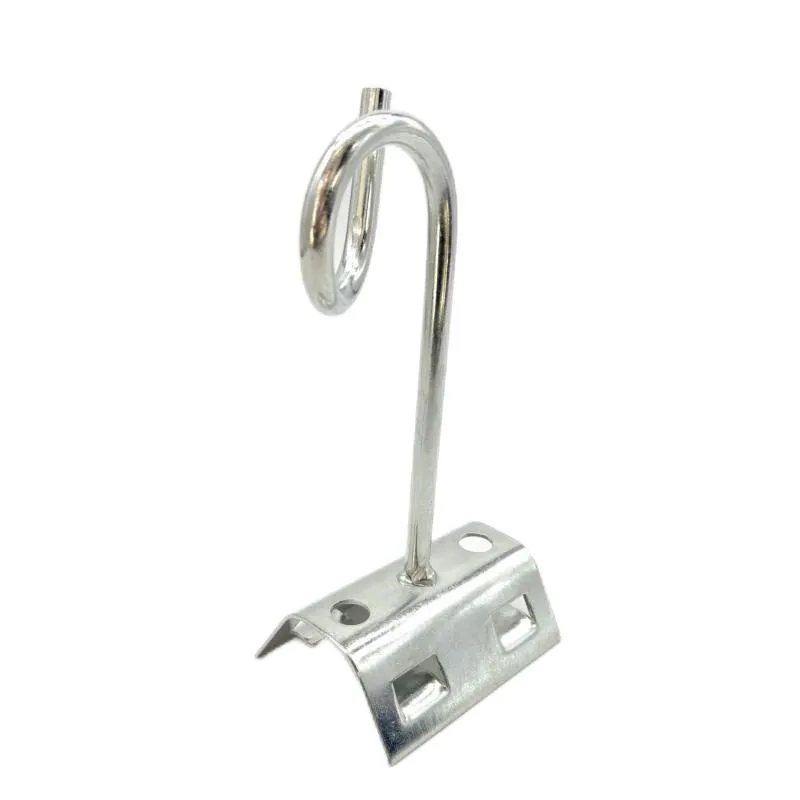

Adss Cable Suspension Bracket also called fiber optic cable bracket, is designed to tension or suspension drop cable wire clamps or preformed guy grips in outdoor overhead Adss, Ftth network deployment.
Share:
Convenient product design
Galvanized steel material for long time usage
Pole installation with stainless steel and buckle
Can be applied with all the suspension clamp we offer
Sufficient load can be applied with ADSS cable and suspension guy grips
Excellent environmental stability
Competitive price
Technical Parameter
| Parameter | Value |
| Bracket type | Tension bracket |
| Max Breaking load,KN | 4 |
| Diameter cable,mm | 10 |
| Material | Galvanized Steel |
| Operating temperature, ° C | -60 to 50 |
| Dimensions, mm | 90х71х166 |
| Mass, kg | 0.5 |
