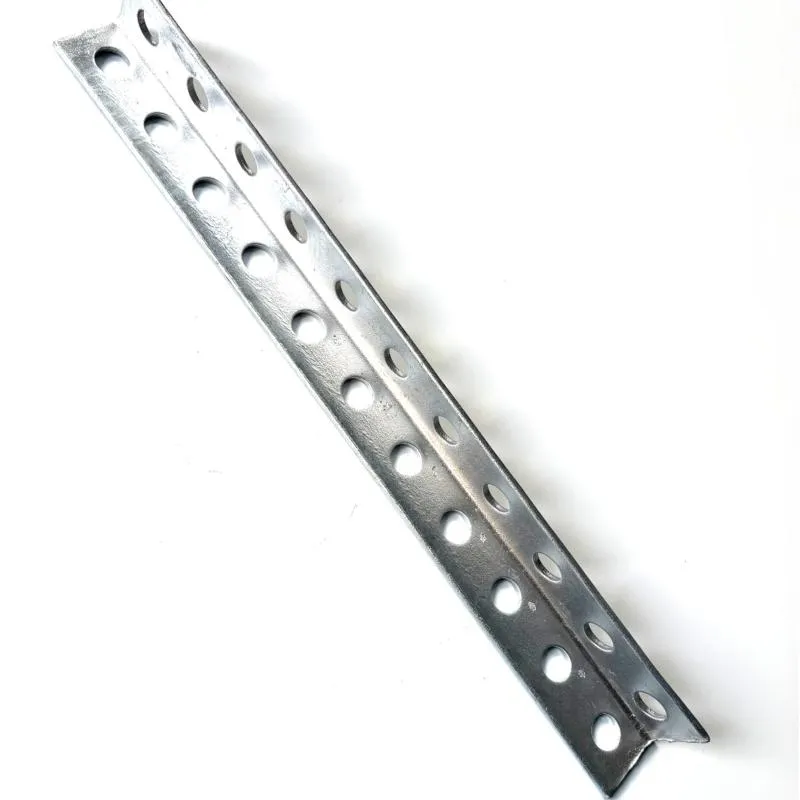

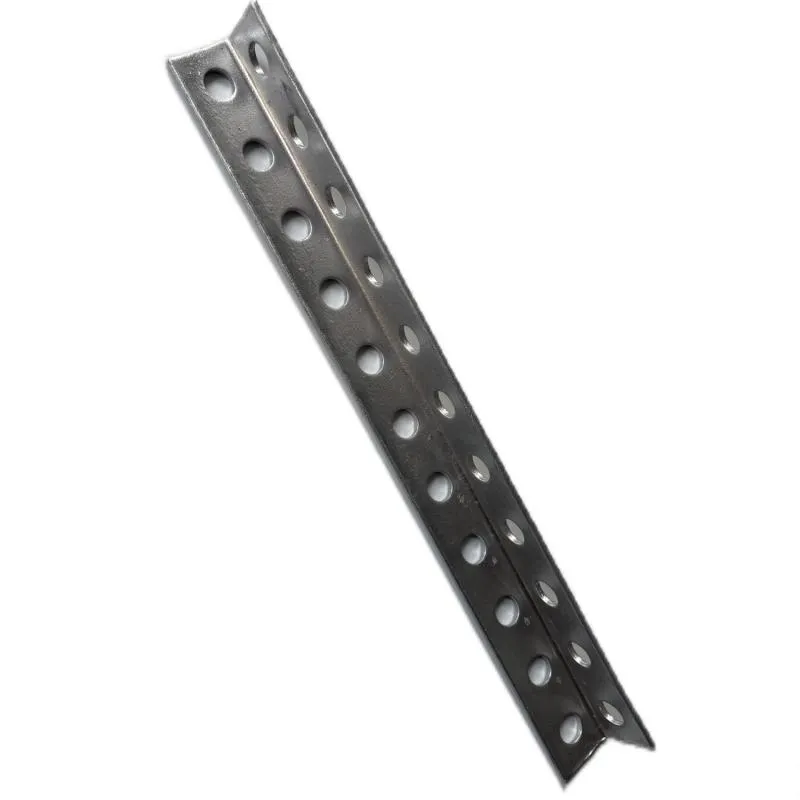

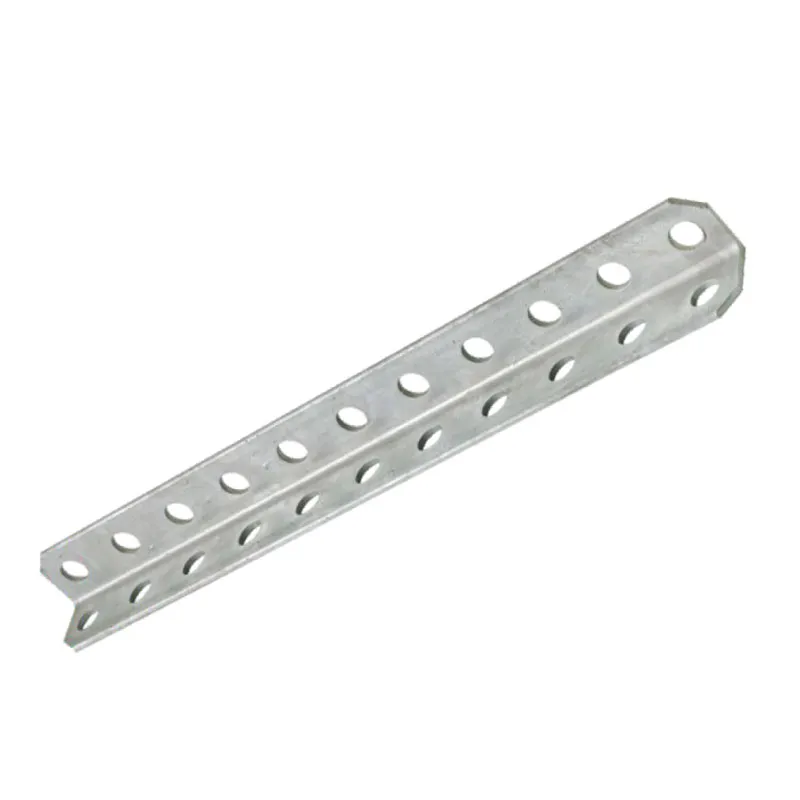

FTTH Cross arm YK-42×400 is also called console traverse which is a galvanized steel pole hardware fitting.It allows the securing of up to 11 parallel aerial distribution cables and drop wires on wood, metal or concrete poles during outdoor FTTH line constructions.
Bracket type: Tension
Application: Pole
Span:30-70 meters
MBL: 15 KN
Share:
Hot dip galvanized steel, durable.
Used together with UPB bracket attached on wooden, metal or concrete poles.
No sharp edges, won’t hurt operator during installation.
With 11 holes (17mm diameter) for aerial cable tension clamps.
Excellent environmental stability.
High mechanical strength.
Specifications
FTTH Cross arm YK-42x400
| Bracket type | Application | Material | Span | MBL |
| Tension | Pole | Hot dip galvanized steel | 30-70 meters | 15kN |
