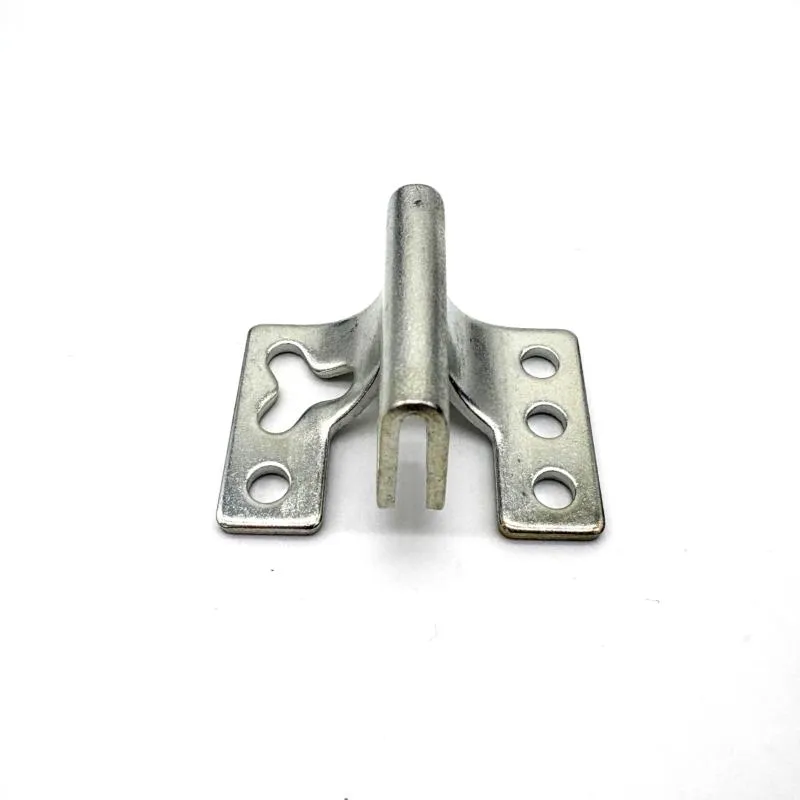

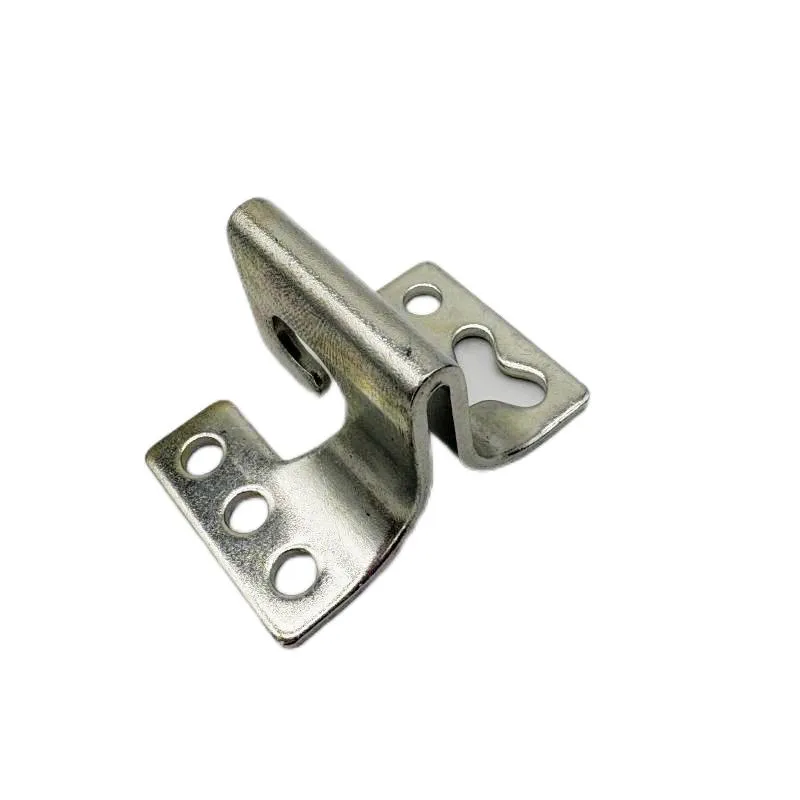

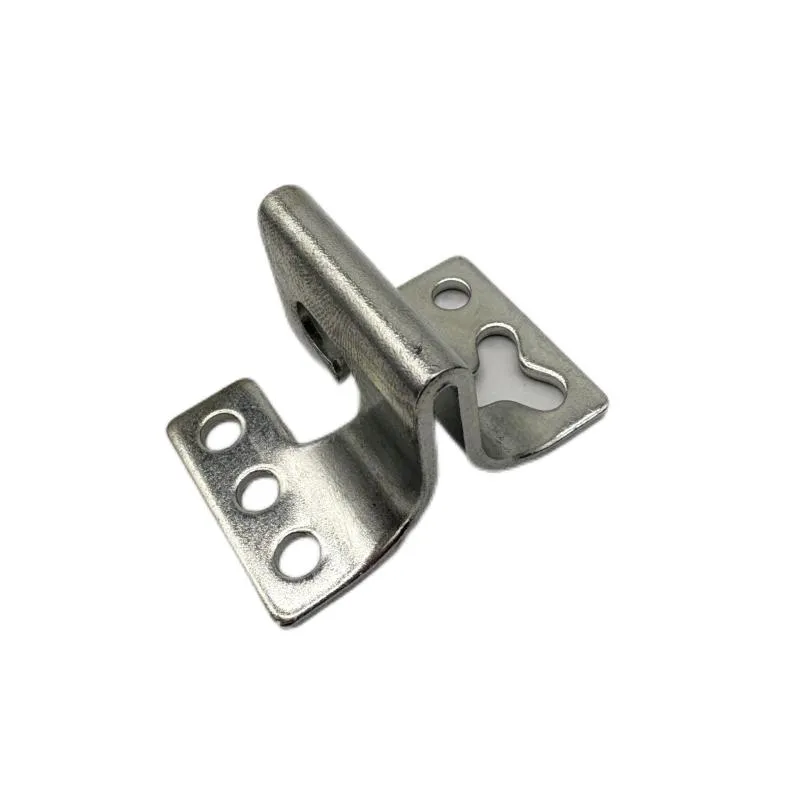

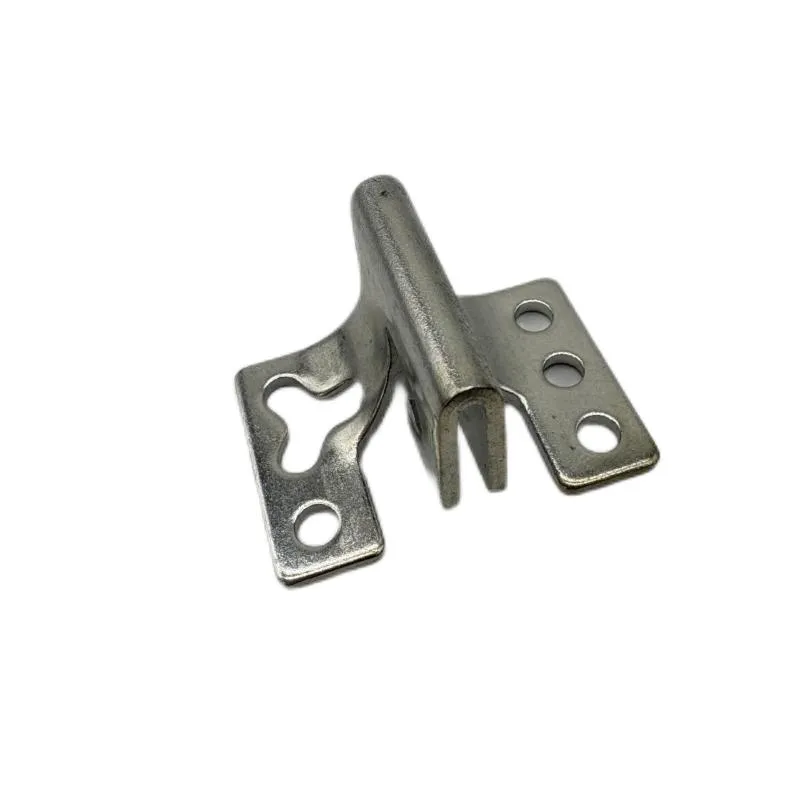

Stainless steel FTTH hook YK-04 also called Ftth cable bracket is designed to tension drop wire clamps. It is suitable for fiber optical cable in outdoor overhead FTTH network line.
Bracket type: Tension
Application: Pole/Wall
Span: 30-50 meters
MBL: 1.5 kN
Share:
Stainless steel material, durable
Wall or pole installation with screws or stainless steel band
FTTH drop clamp anti-drop design
Ligth weight, easy installation save time and labour cost
Perfect environmental stability
Competitive price
The drop cable metal hook is made of high strength stainless steel, by press forming production technology.The installation of this FTTH cable metal hook is very easy,it can be fixed on wooden.
Technical Parameter
| Parameter | Value |
| Breaking load,kN | 1.5 |
| Max breaking load,kN | 2.5 |
| Dimensions, mm | 70x65x60 |
| Material | Stainless steel |
| Steel thickness, mm | 2 |
| Weight, kg | 0.073 |
