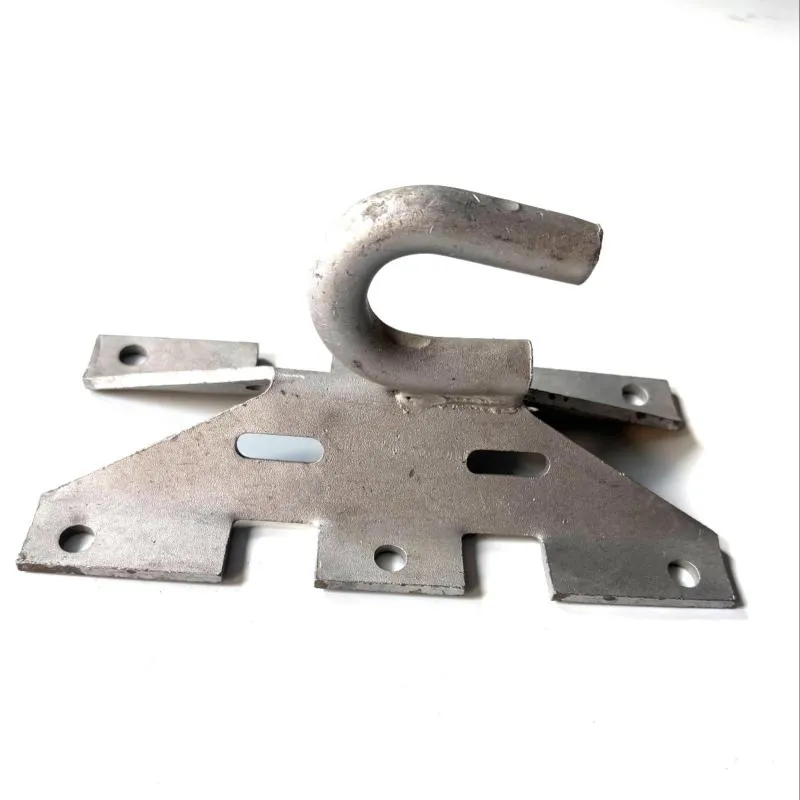

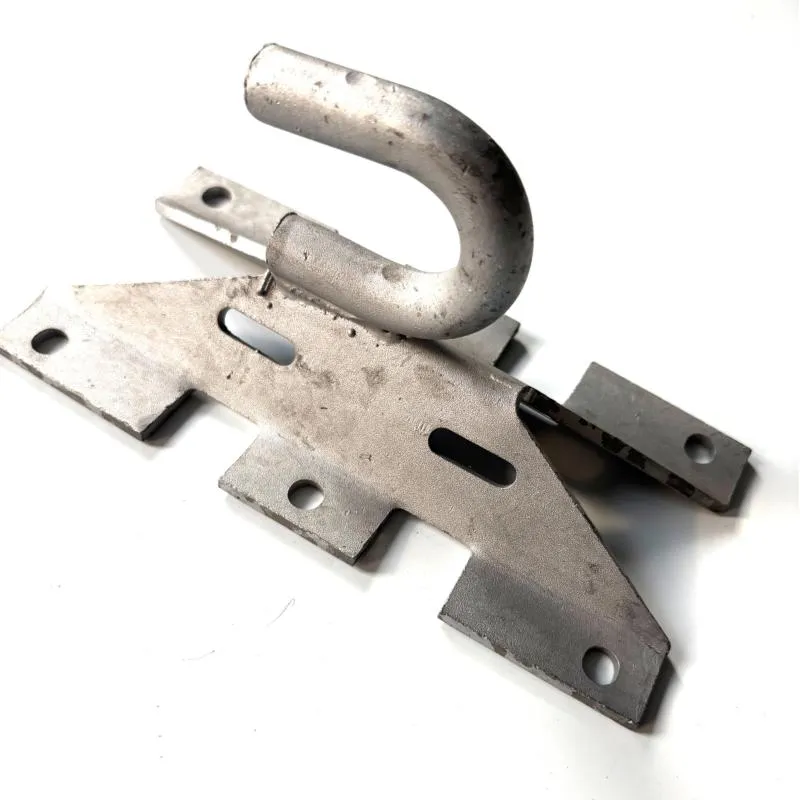

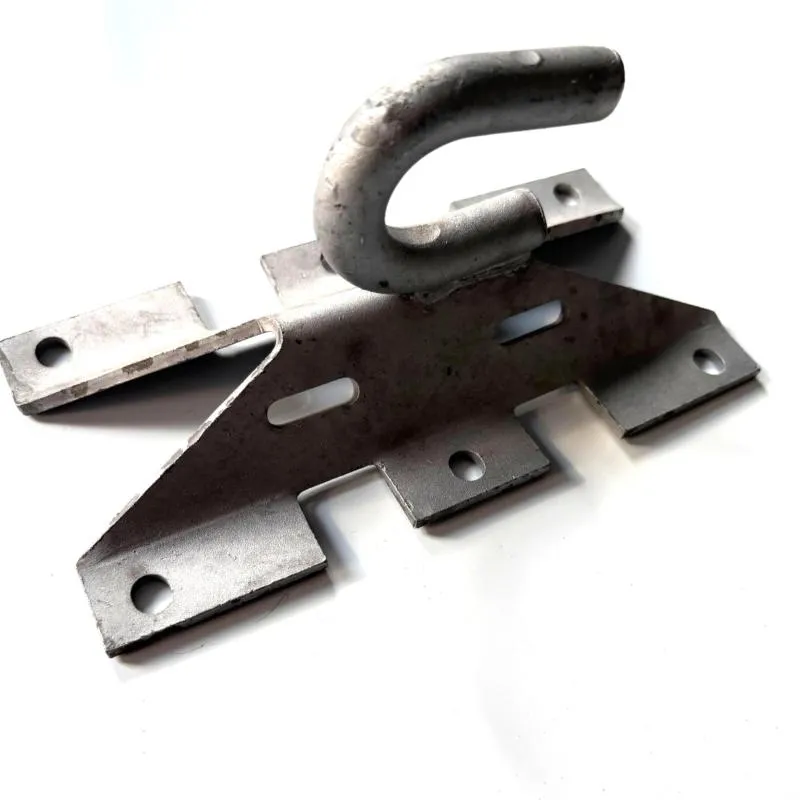

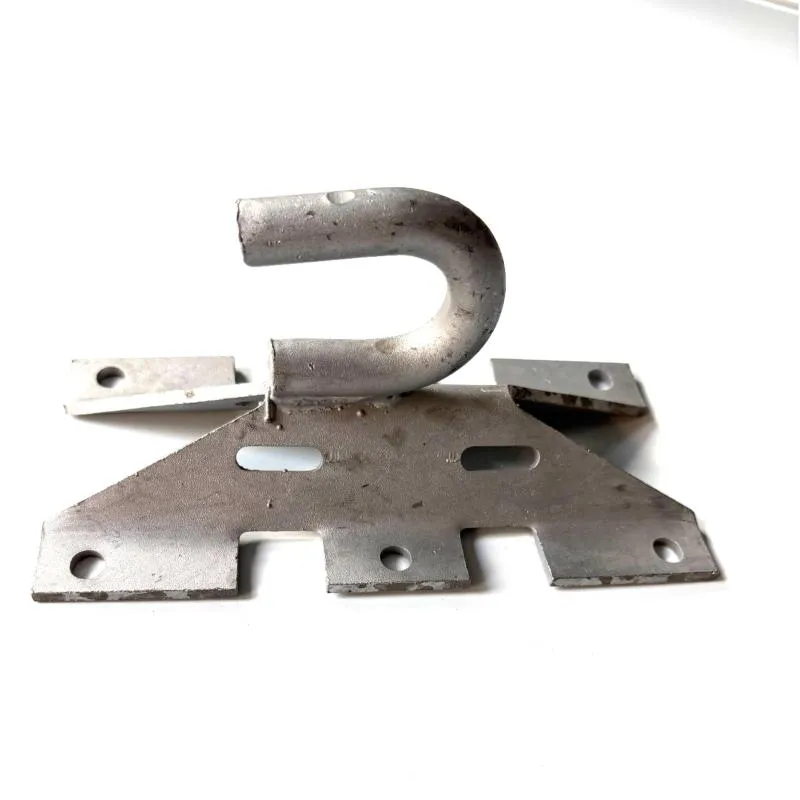

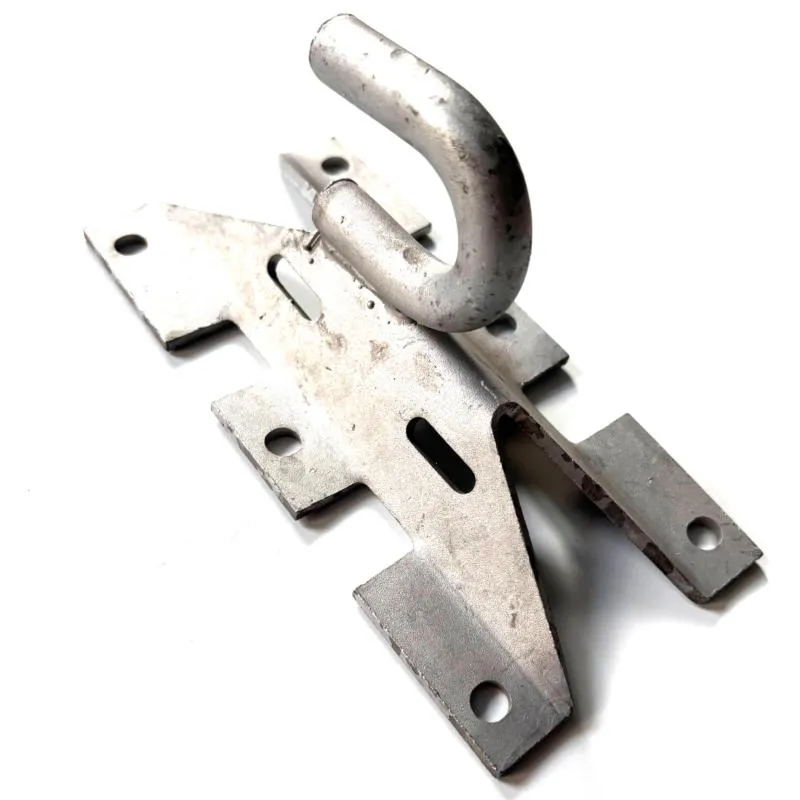

Hot dip galvanized steel OHL hook Bracket OPT-CS16 is also called OHL hook bracket. It is applied on main or end use electrical connections,up to 1 Kv on dead-end or intermediate routes with tension or suspension clamps.
Share:
Developed to be used on wooden, metal or concrete poles.
Installed by 2 stainless steel strap (20 mm) or 6 screws or bolts.
Hook brackets for LV-ABC line is made of hot dip galvanized steel.
The assembly have passed the voltage tests, tension test.
Meets the criteria of NF C 33042 and EN 50-483.
Good environmental stability.
Fair price.
Specifications
Hot dip galvanized steel OHL hook Bracket OPT-CS16
| Item No. | Dimension(mm) | MBL,kN | Material | ||||
| D | A | K | H | C | |||
| OPT-CS16 | 16 | 18 | 67 | 200 | 96 | 17.4 | Hot-dip galvanized steel |
