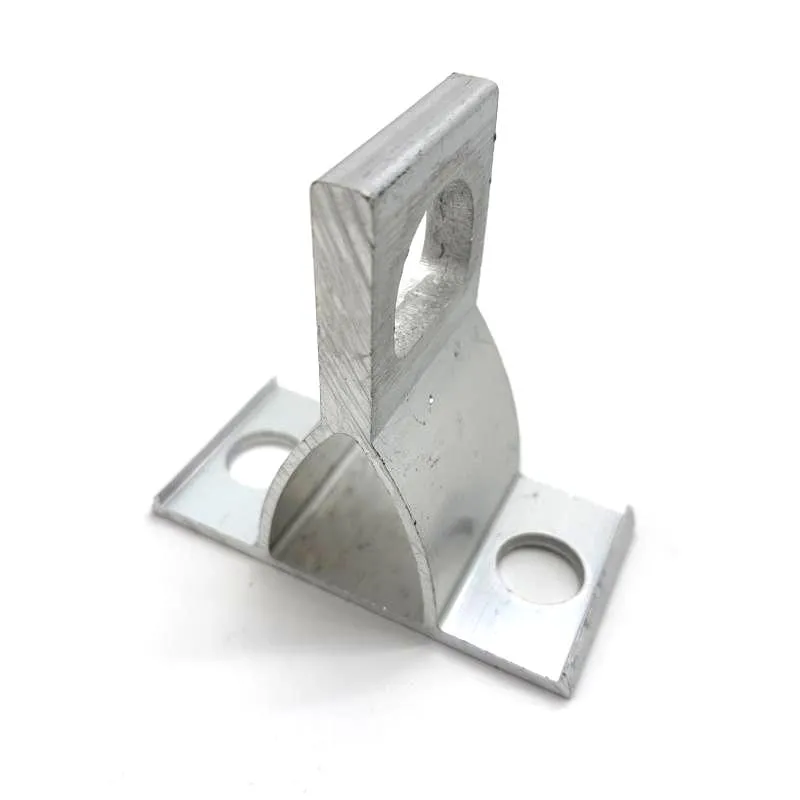

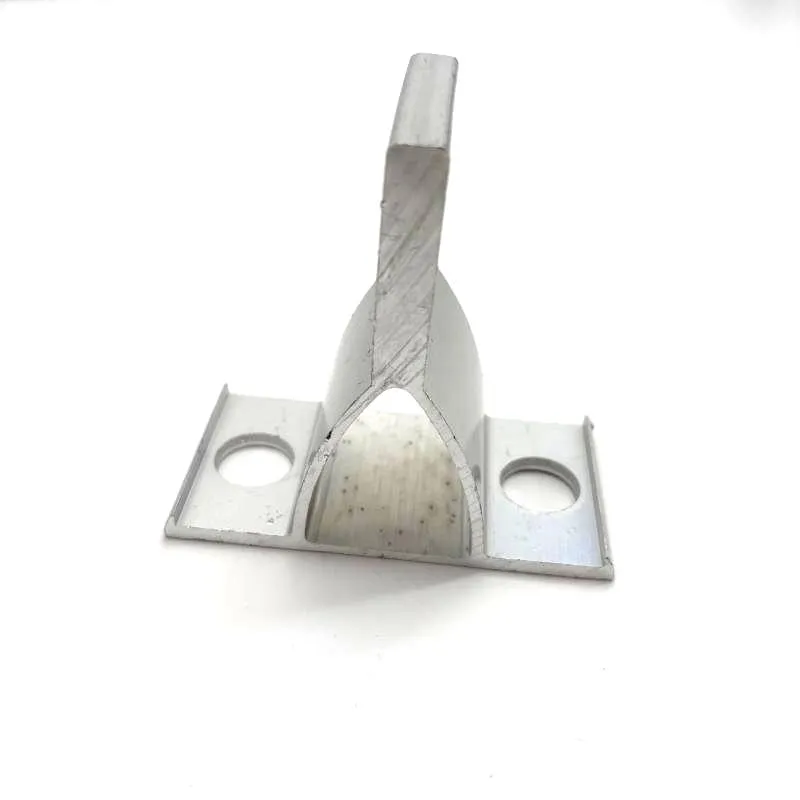

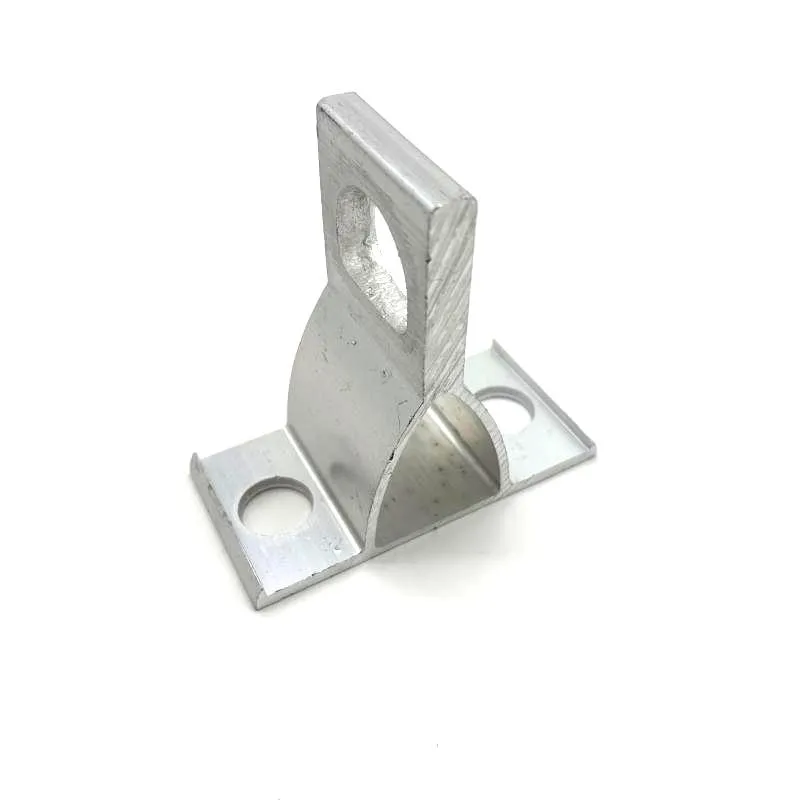

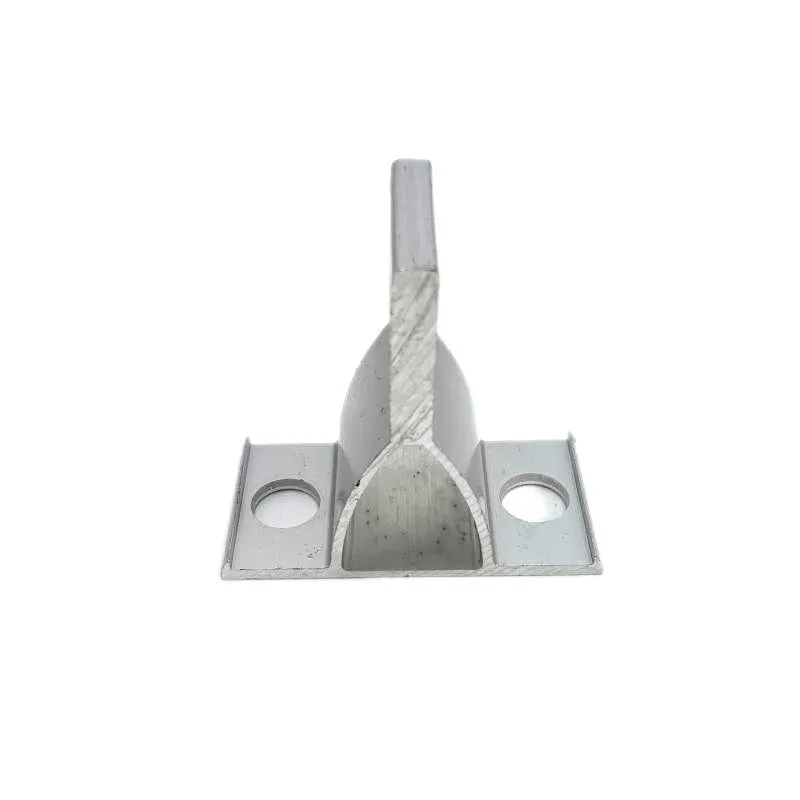

Fiber cable tension bracket CA-1500.1 that is also called aerial anchor bracket for tensioning the Adss cable clamps or Figure 8 optic cable.
Bracket type: Tension
Application: Pole
Span: 70-200 meters
MBL: 20 KN
Share:
Fiber cable tension bracket CA-1500.1 which is also called aerial anchor bracket developed for tensioning the Adss cable clamps or Figure 8 optic cable clamps in outdoor FTTH line constructions together with fiber optic cable.
The Adss cable bracket is made of high strength aluminum alloy, by die casting production technology, due to the material configuration this bracket is rust-proof and with good environment stability.
Technical Parameter
| Parameter | Value |
| Bracket type | Tension bracket |
| Type | СА-1500.1 |
| Span | 70-200m |
| Breaking load,KN | 20kN |
| Cable size,mm | 14–16 |
| Material | Aluminium |
| Mass, kg | 0.16 |
| Dimensions, mm | 100х95х50 |
