Anchor clamp PA -08 for figure 8 or self-supporting optical cable

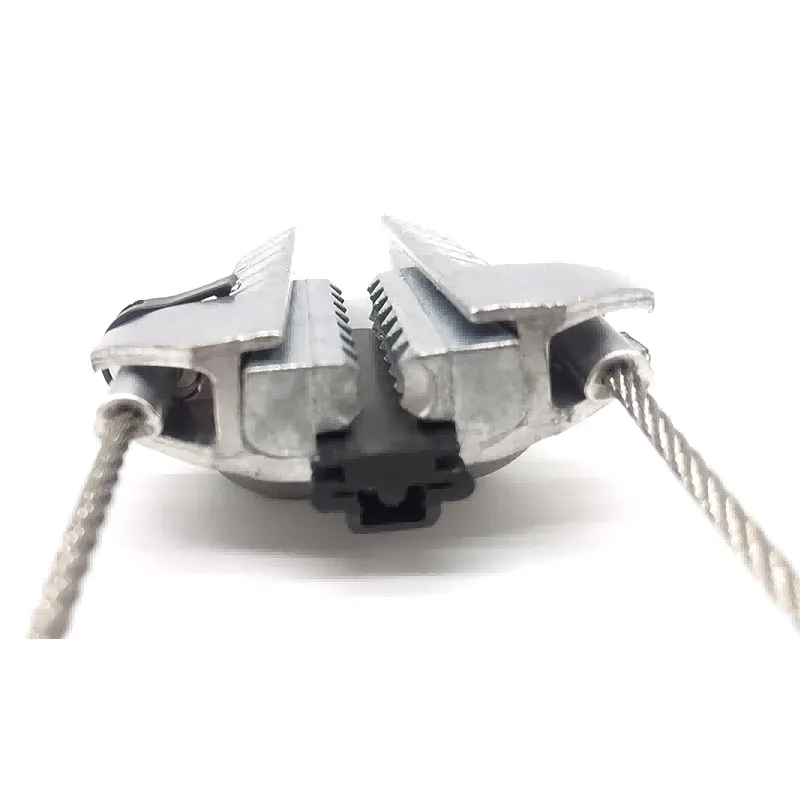

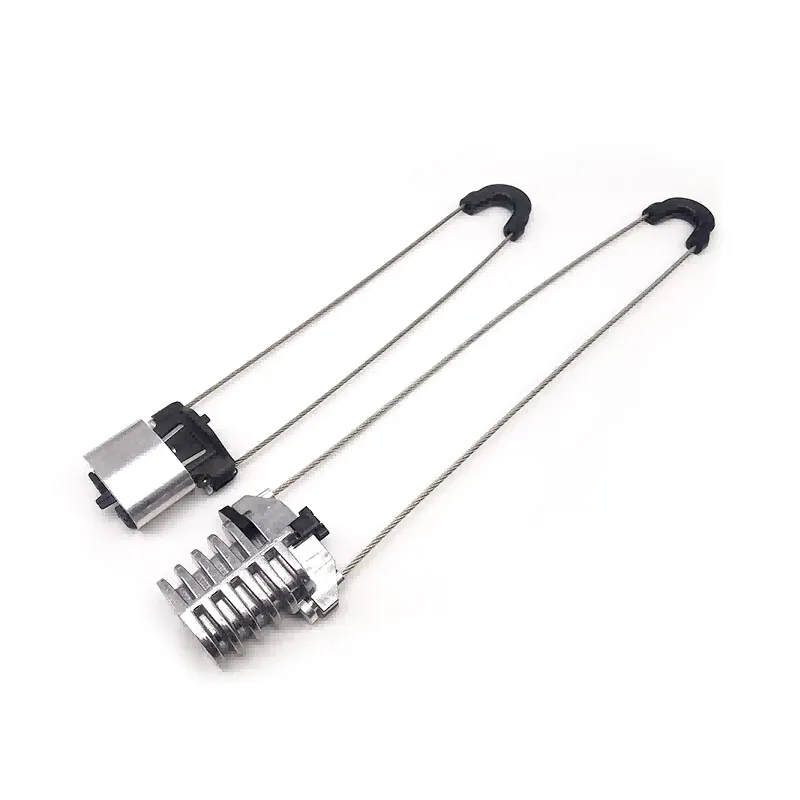

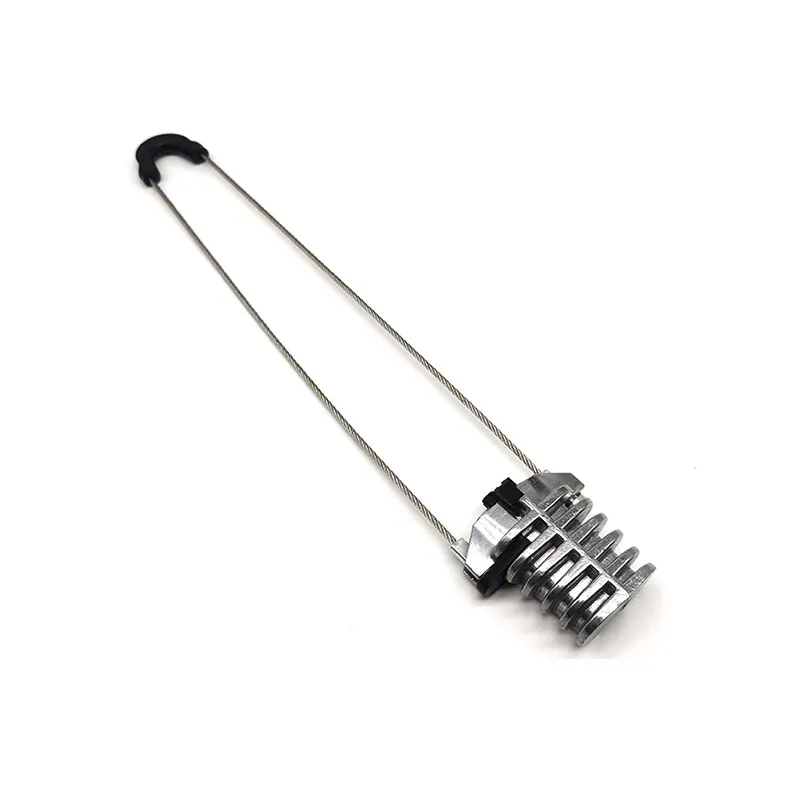

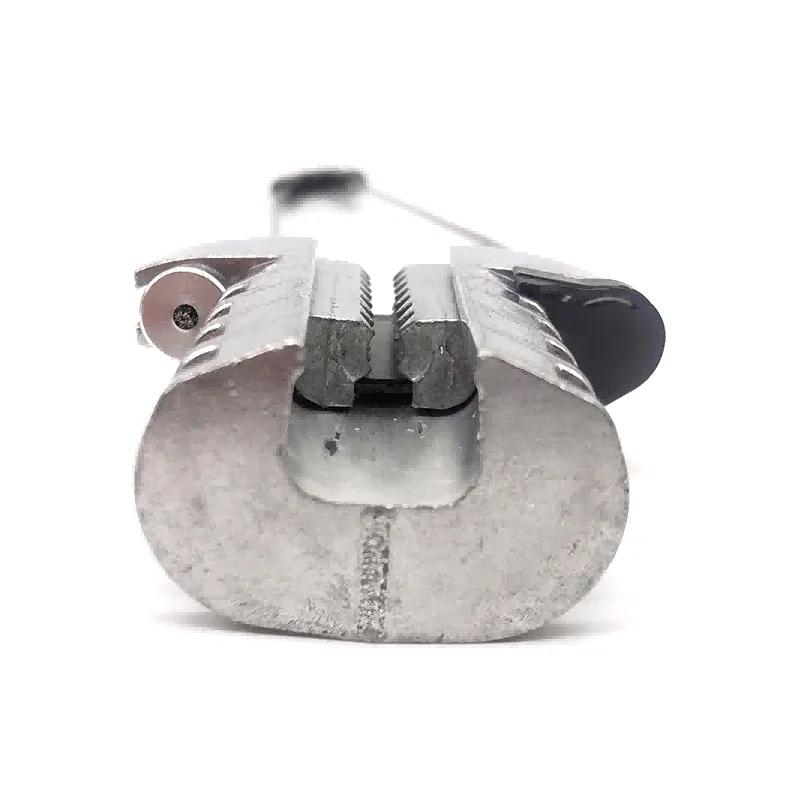

The PA-08 anchoring tension clamp is used to fix and suspend the "8" type suspension cable, with a power component diameter of 3 to 8 mm. It consists of a high-strength aluminum alloy shell, two clamped non drop wedges, and a stainless steel rope clamp. The maximum tensile force is 3kN.

Share:

Anchor clamp PA -08 for figure 8 or self-supporting optical cable.

Technical specifications

ParameterValue
ModelPA-08
Flexible ring length, m0.3
Diameter for cable, mm3-8MM
Mass, kg0.13
Body typeOpen cone gauge
Shell materialAluminium
Clamping deviceTooth wedge
Clamping device materialZinc alloy
Maximum tensile force, kN3
