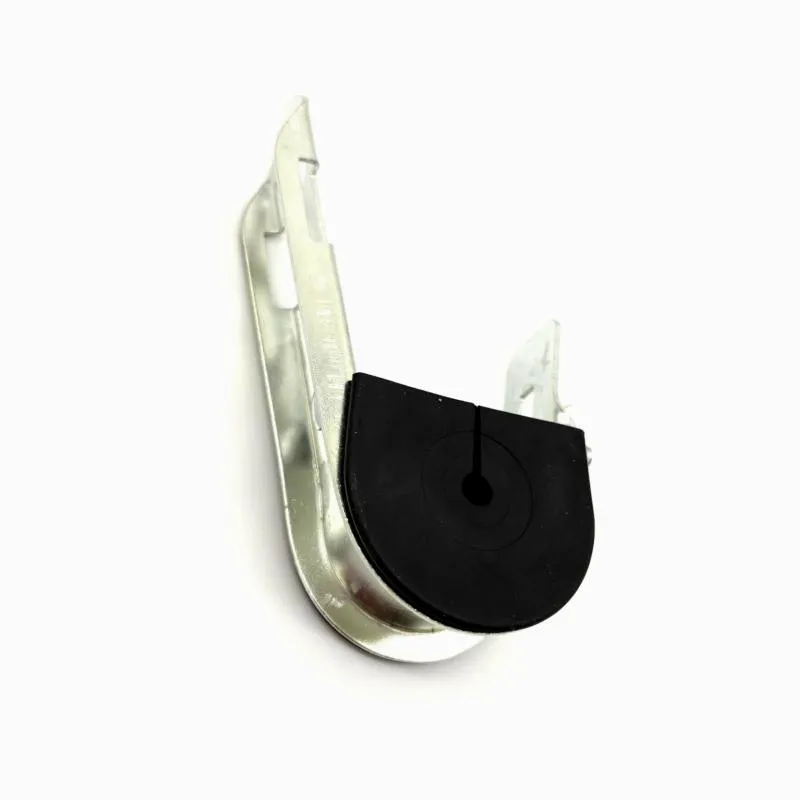

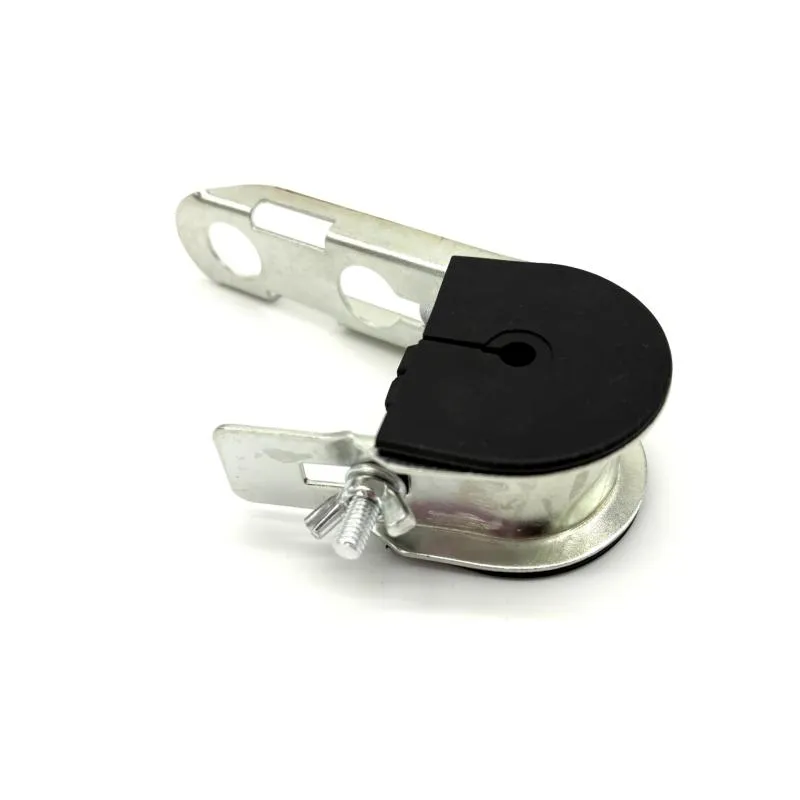

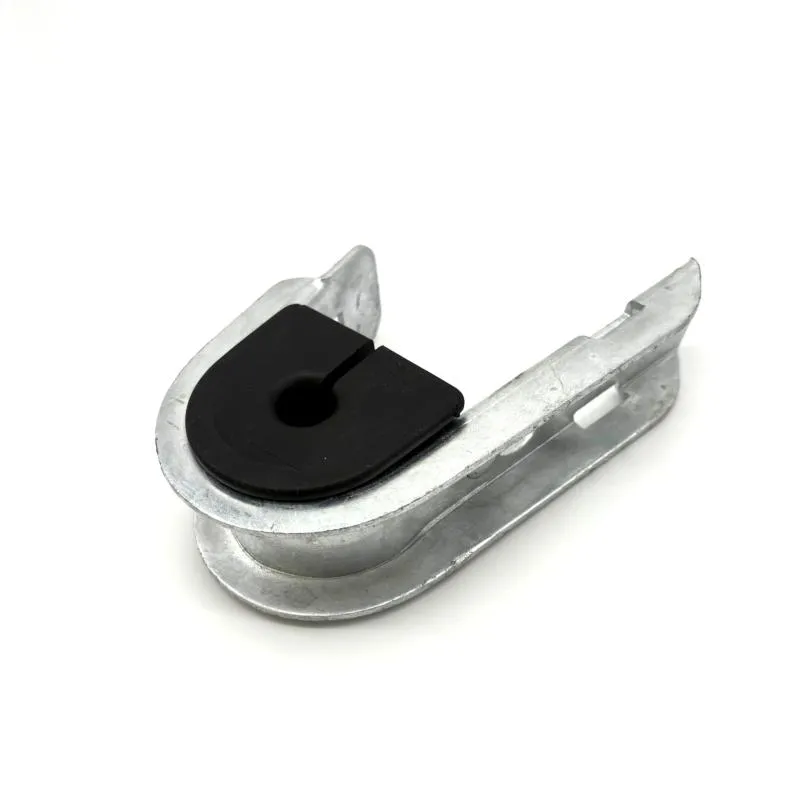

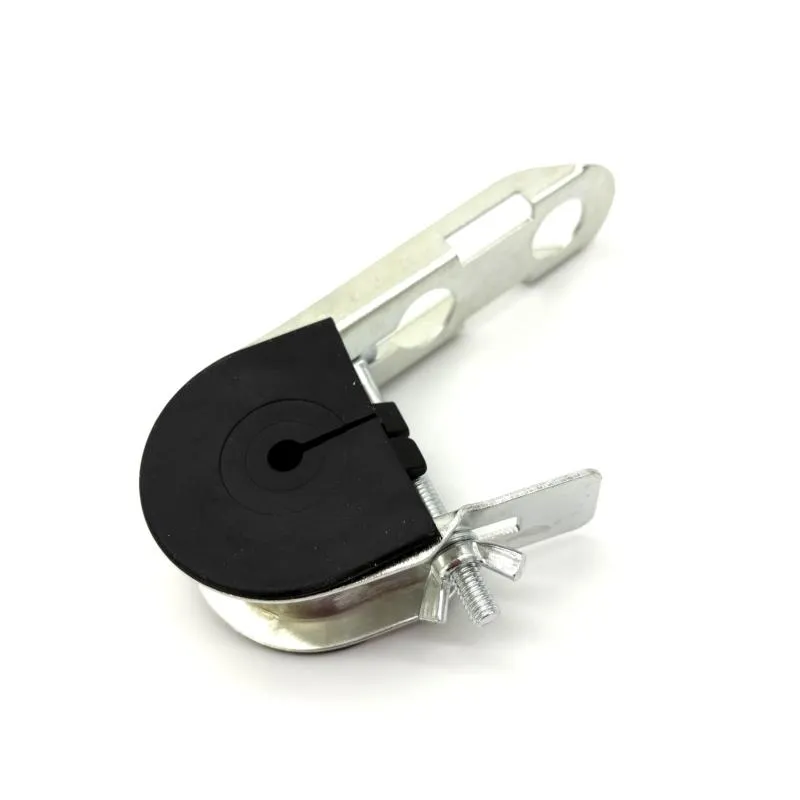

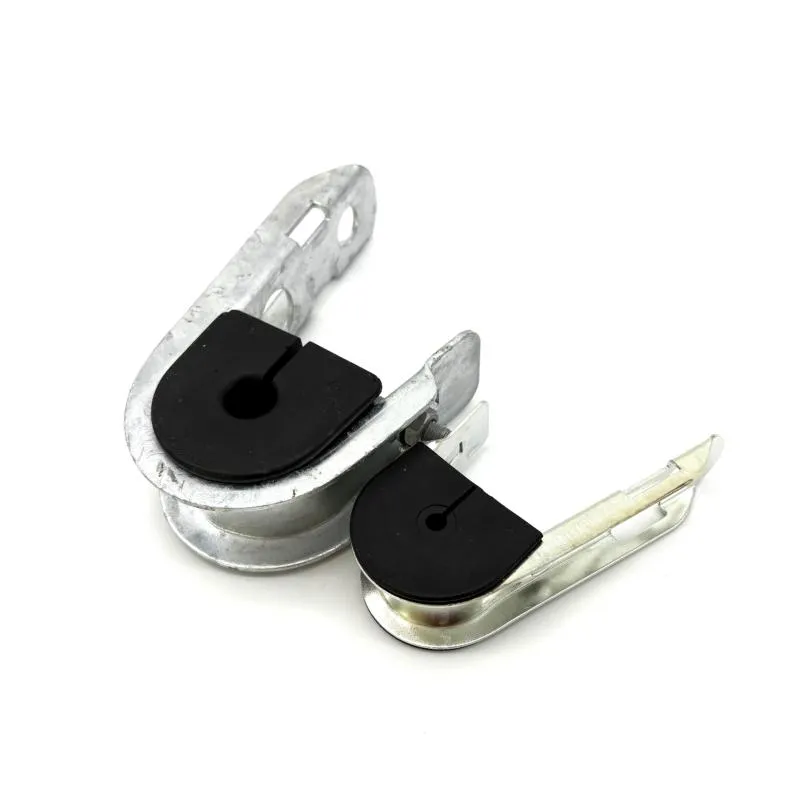

The HC-8-12 optical cable suspension clamp （ J BRACKET FOR ADSS FIBER OPTIC CABLE） is designed forunholdingof low voltage fully supported A.B.C(Aerial Bundled Conductors). It is suitable for angle poles up to 30°. The body, the tightening screw and the washer are made of hot dip galvanized steel.
Share:
Used to support short or medium length spans of ADSS fiber optic cable on utility poles.
The cushioned insert gently grips the cable without causing damage.
The maximum vertical load is 3,800 lbs.
Hand tighten wing nut to 25 inch pounds.
The UV resistant rubber insert provides longevity in all kinds of harsh environments.
Can be bolted to utility poles with a 5/8" thru bolts or banded using 3/4" banding.
Maximum one-sided angle: fifteen degrees.
Bracket is stamped manufactured from AISI 1018 Steel.
Bracket is hot dip galvanized to meet ASTM Specification A153.
Technical specifications
| Item | Parameter | |||

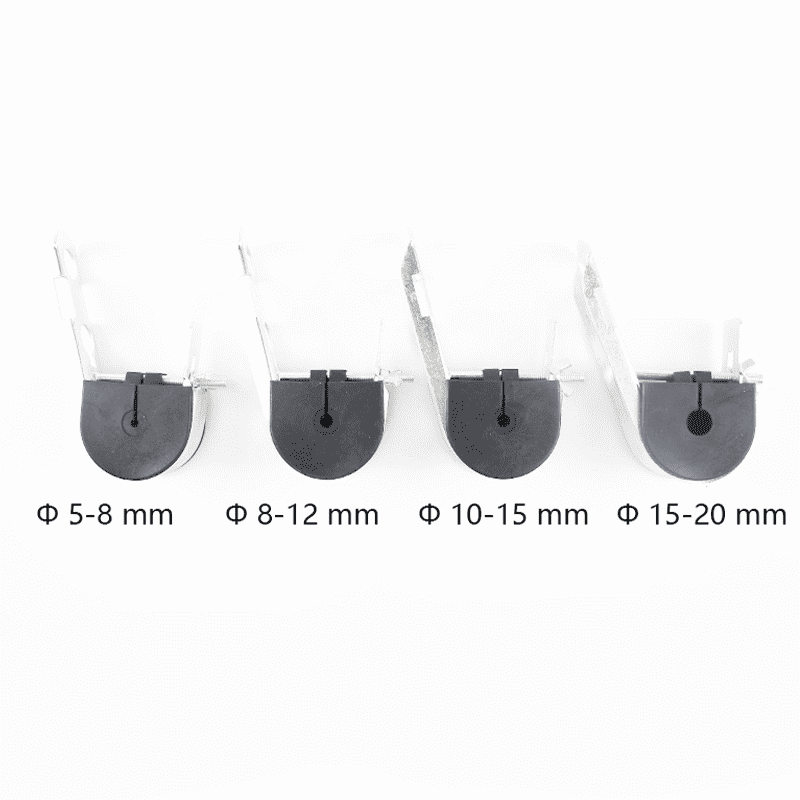

| Model | HC-5-8 | HC-8-12 | HC-10-15 | HC-15-20 |
| Material | TPR+GS | TPR+GS | TPR+GS | TPR+GS |
| Diameter for cable, mm | Φ5-8mm | Φ8-12mm | Φ10-15mm | Φ15-20mm |
| MaximumBreak Load, kN | 3.8 | 3.8 | 3.8 | 3.8 |
| Mass, kg | 0.161 | 0.158 | 0.158 | 0.156 |
| Size product,mm | 135*80*35 | 135*80*35 | 135*80*35 | 135*80*35 |
XI’AN OPT Communication Co.,Ltd is one of the largest and reliable Clamp manufacturers and suppliers with rich experience in China. OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can customized as your requirement.Also, free sample is also available if necessary.
