Clamp for ADSS and figure 8 cable

Suspension Clamp SSA
Suspension Clamp SSA
Suspension Clamp SSA
Suspension Clamp SSA
Suspension Clamp SSA
Suspension Clamp SSA

Suspension Clamp SSA

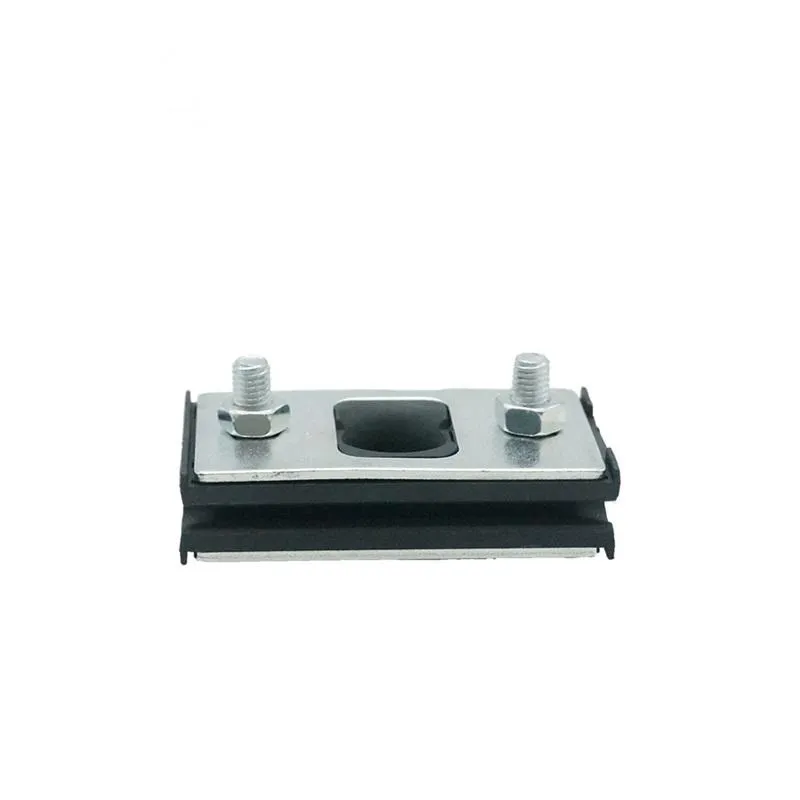

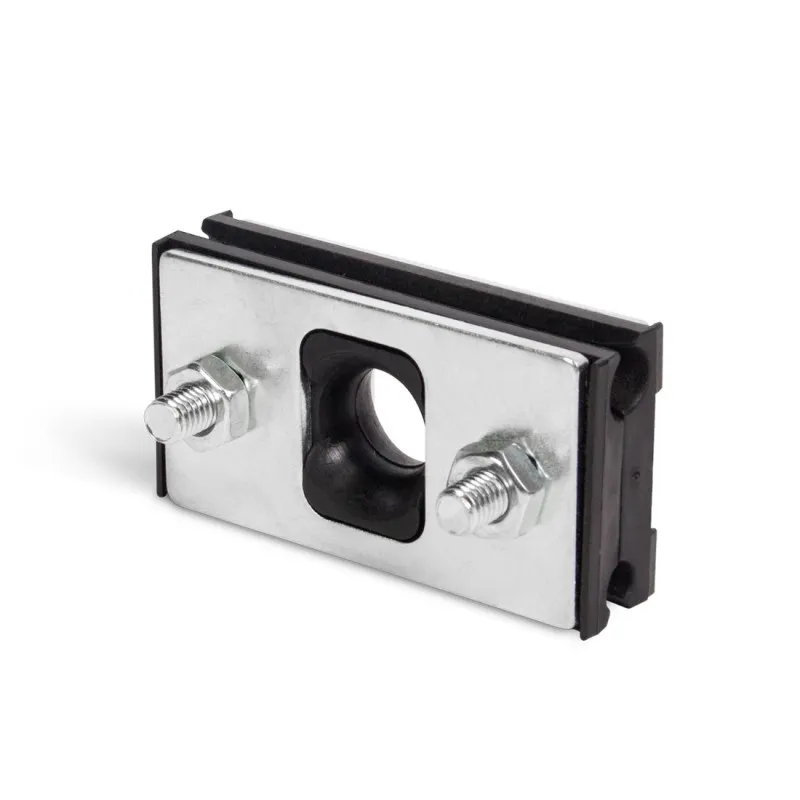

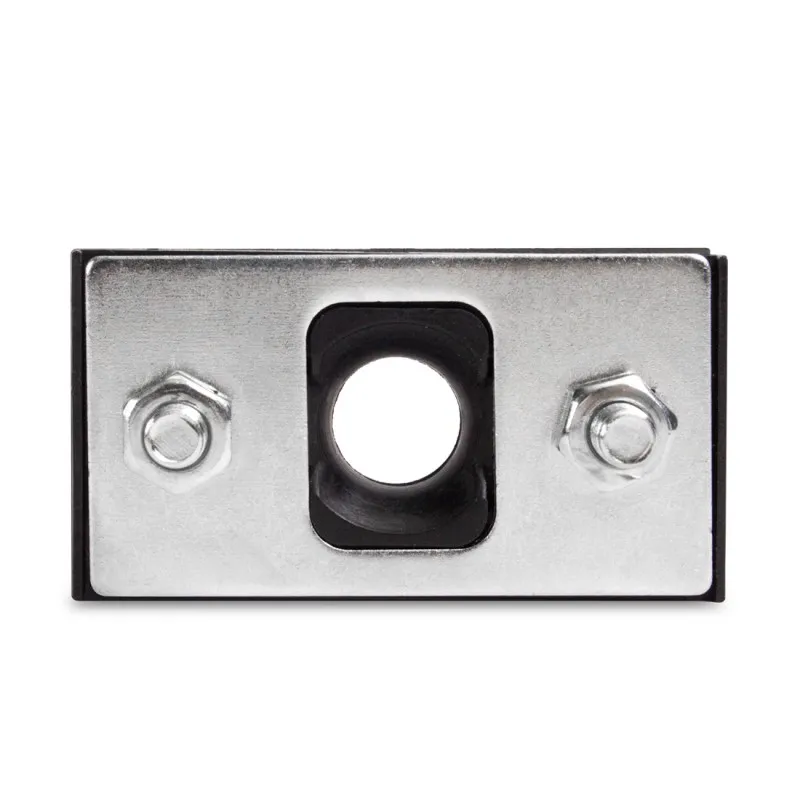

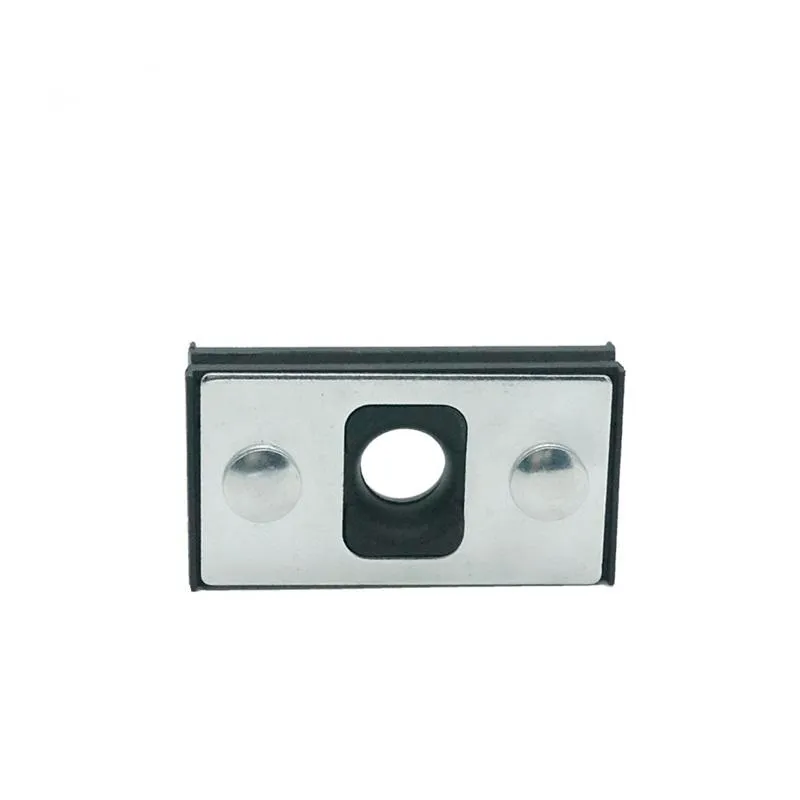

Suspension Clamp SSA is used for hanging self-supporting optical cables with an external diameter of 6-9 mm on brackets with a line span of up to 100 meters.

Share:

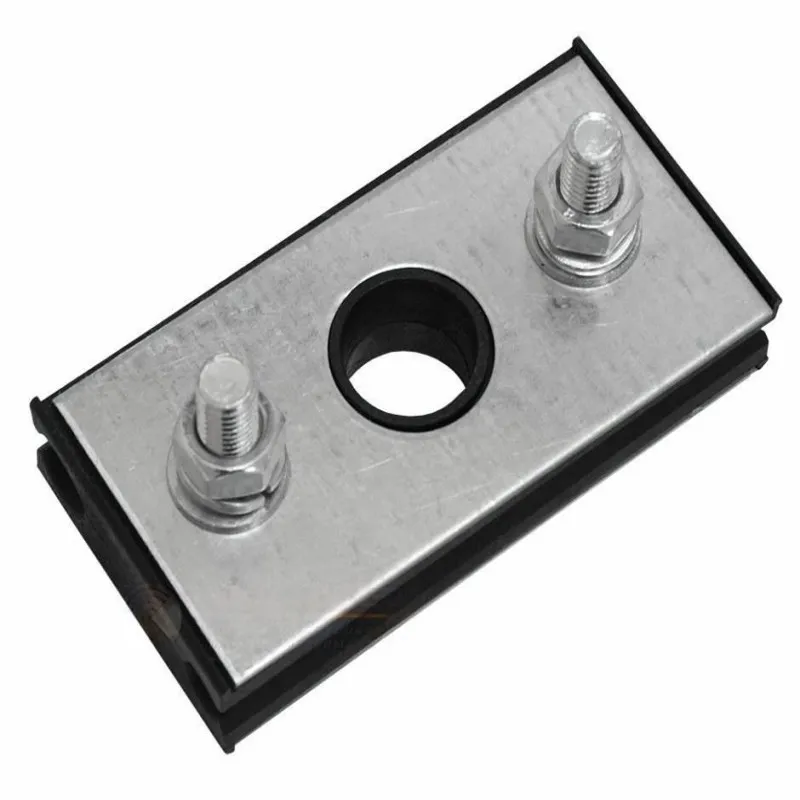

Suspension Clamp SSA for hanging "8" optical cables on the middle pole. It has twoplastic slots to prevent mechanical damage to the cable when in contact with the clamp, and allows for the fixation of cables with a diameter of 4-6 mm (small slot) and 6-9 mm (large slot) for the load-bearing element.

Suspension Clamp SSA

Specifications

Suspension Clamp SSA

ParametersValue
Diameter for loading cable, mm4-6 and  6-9
Type cable figure 8 cable
Mass, kg0.19
Maximum working load, kN4
Suggested span, m100
