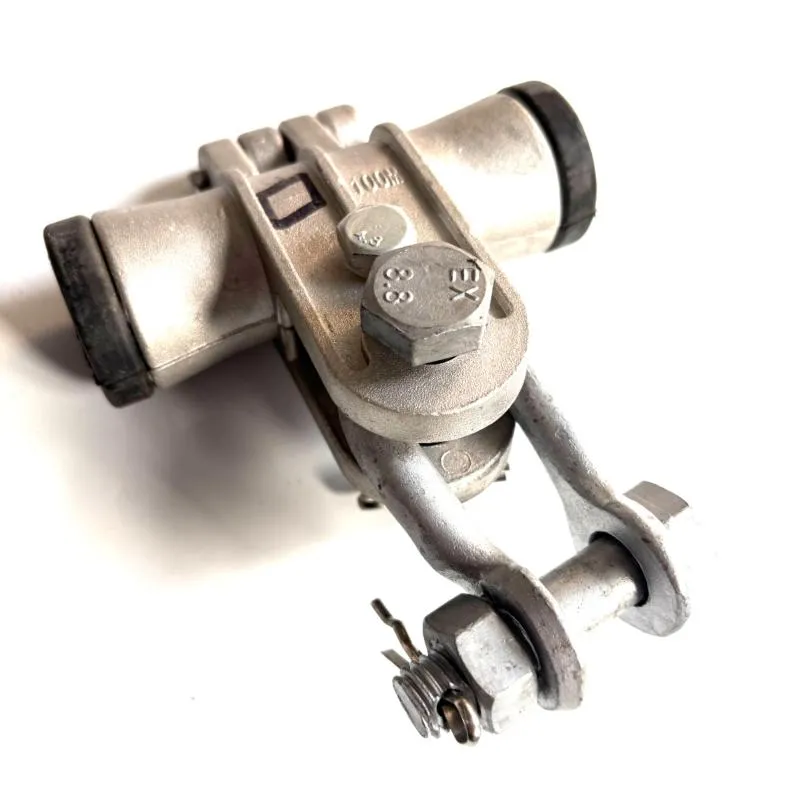

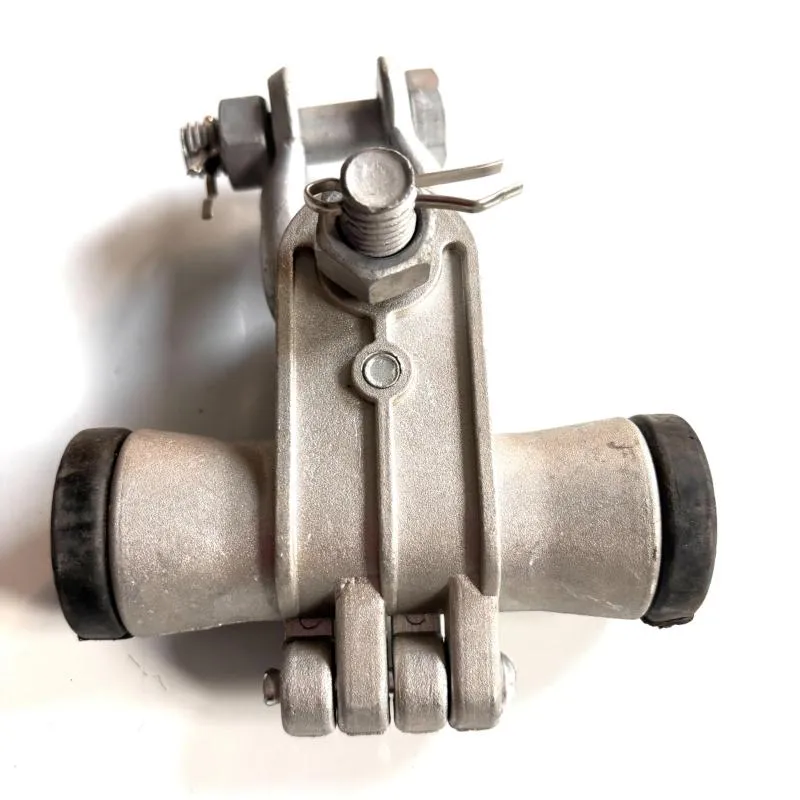

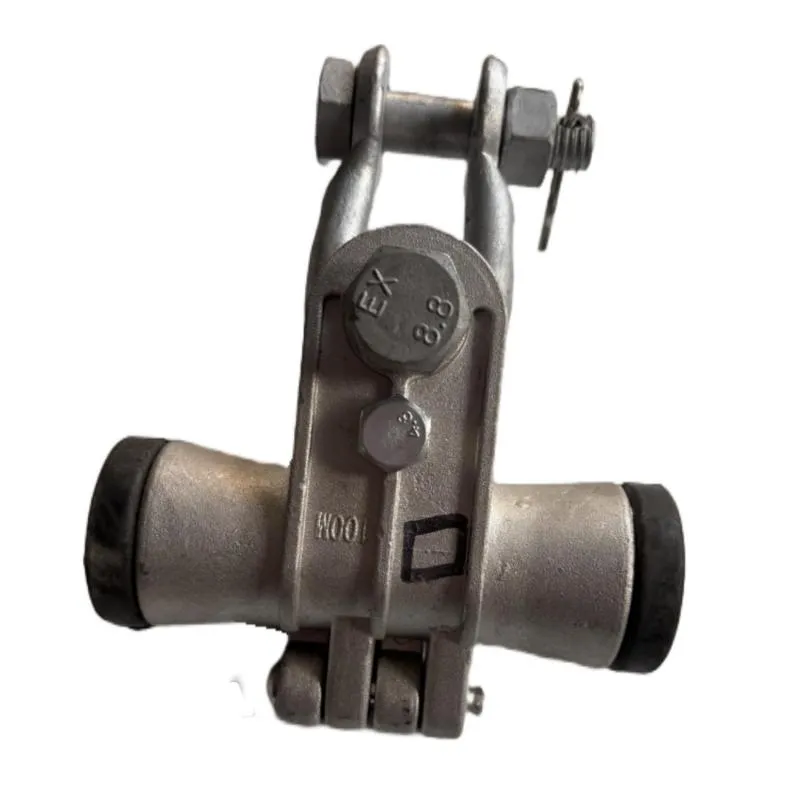

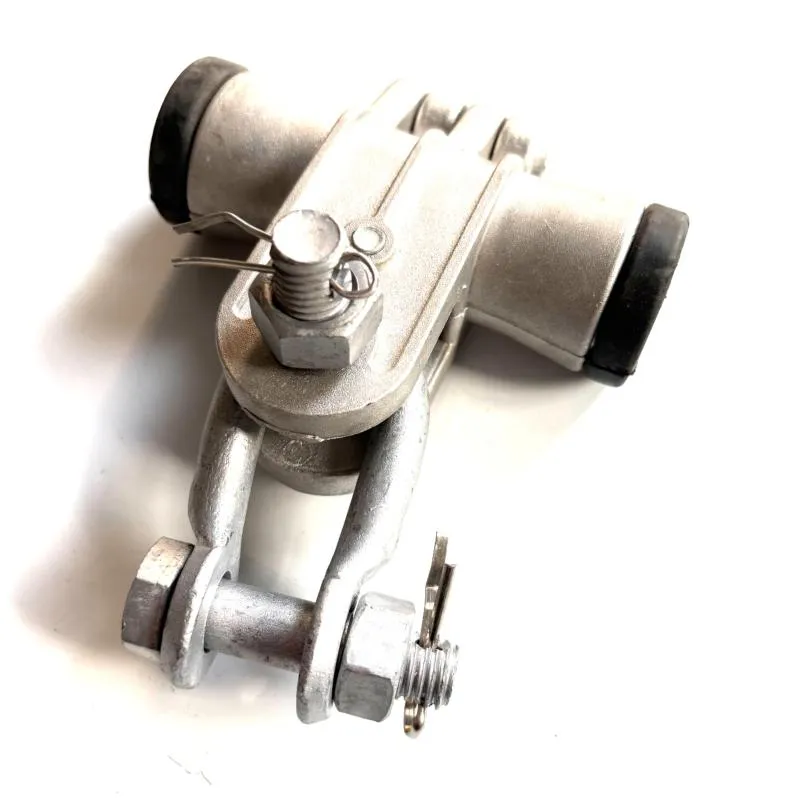

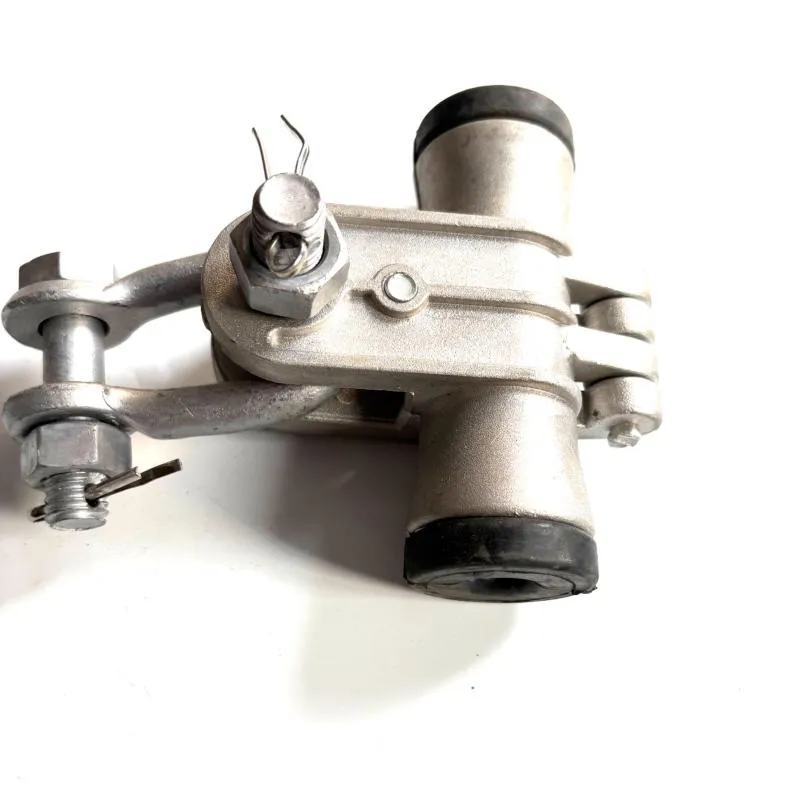

Clamp for ADSS and figure 8 cable
ADSS suspension clamps is a device used to support or clamp all dielectric self-supporting cables (ADSS) on the pole or towers during aerial FTTx line constructions. Usually these clamps can be installed on short spans at intermediate routes.
Share:
ADSS Cable Fittings Suspension Set.
The suspension set is used for the OPGW optic fiber cables.
Specification
Suspension Clamps For ADSS Cables
ltem | LJG/T1179-1983 | Length clamp(mm) | Weight (KG) | |||
Cross-section(mm²) | Outer OD(mm) | Single vibration damper | Double vibration damper | Single vibration damper | Double vibration damper | |
ADL-95 | 95 | 12.48 | 1020 | 1350 | 1.1 | 2.0 |
ADL-120 | 120 | 14.25 | 1120 | 1470 | 1.4 | 2.4 |
ADL-150 | 150 | 15.75 | 1270 | 1680 | 1.5 | 2.4 |
ADL-185 | 185 | 17.50 | 1380 | 1830 | 1.8 | 3.0 |
