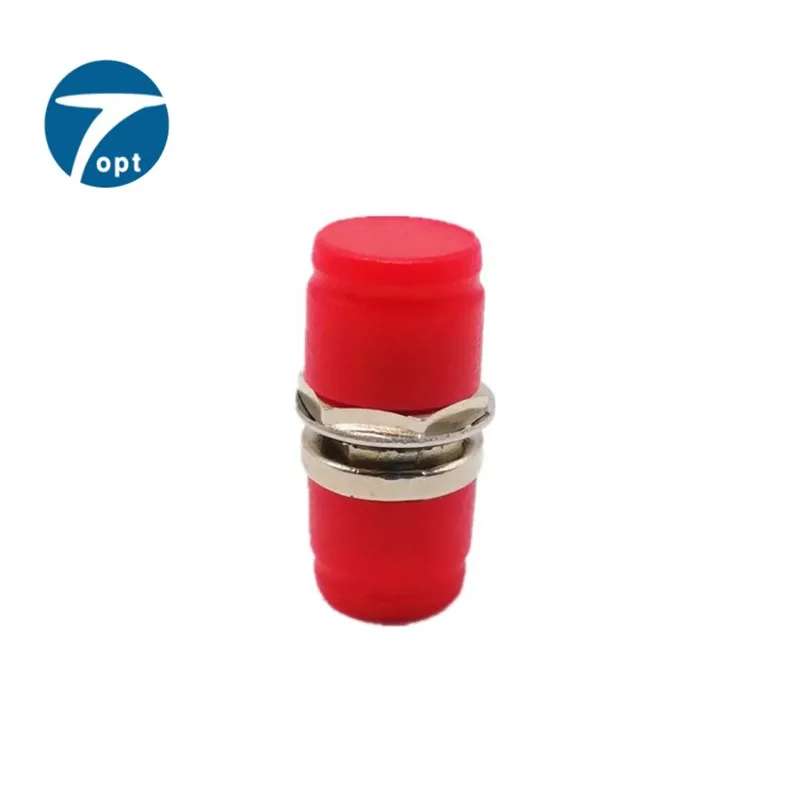

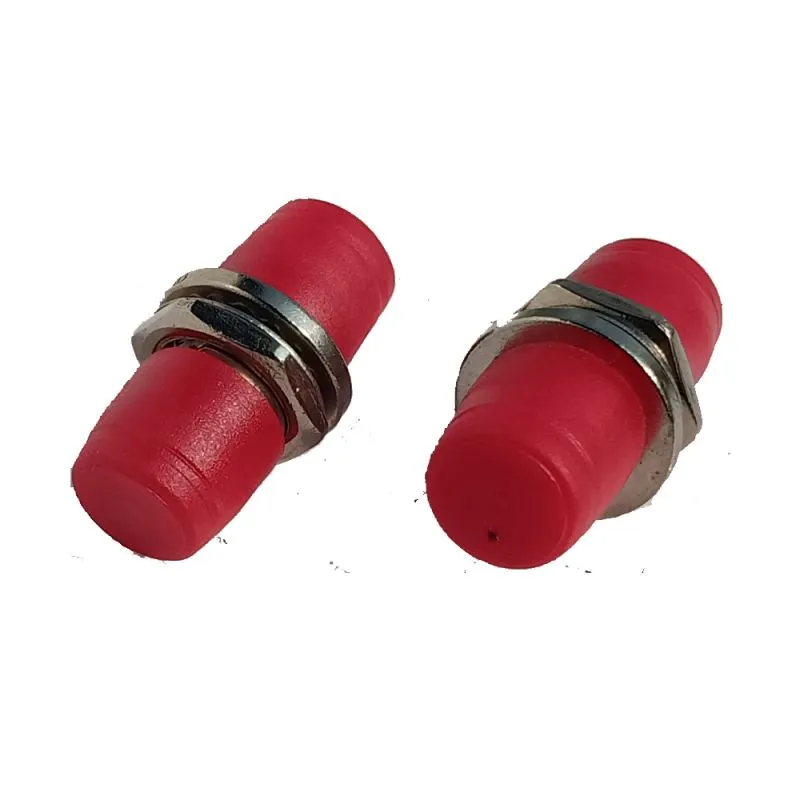

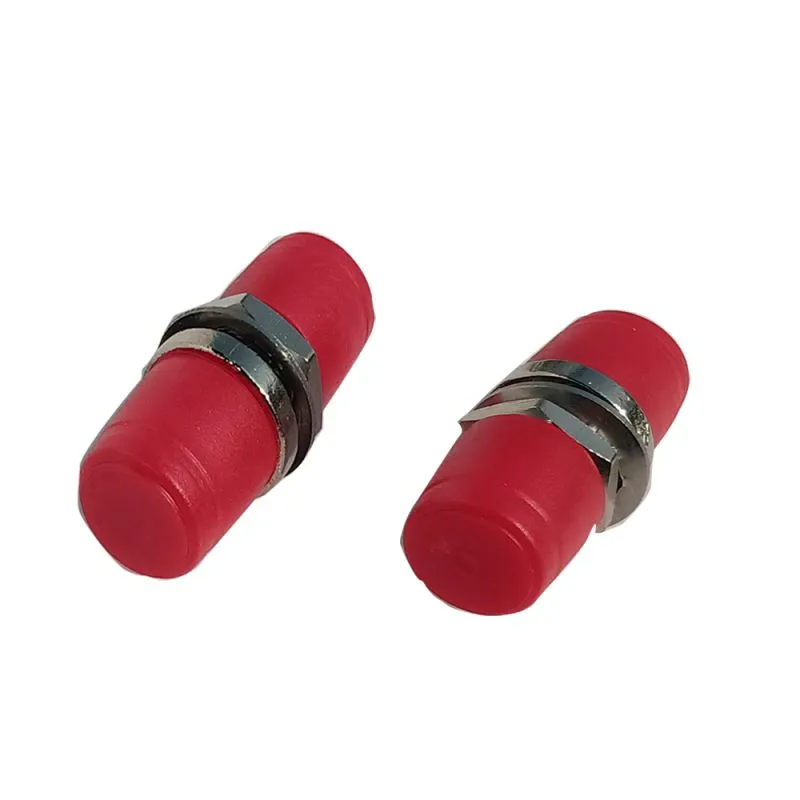

Fiber optic adapter FC PC has Big "D"Type 13mm, Small "D"type 11mm two type ,both have metal housing.
Singlemode and multimode ,UPC and APC all is available. These FC Fiber Optic mating sleeves have phos. Bronze or zirconia sleeves for customer choose.Our FC round D type adapter widely used in patch panel,fiber adapter plate,ODF, Wall mounted terminal box and so on.
Share:
FC/UPC-FC/UPC Simplex Round Small D Type Metal Fiber Optical Adapter
◆ Telecommunication
◆ Computer networks
◆ CATV networks
◆ Active device termination
◆ FTTH
Specification
FC/UPC-FC/UPC Simplex Round Small D Type Metal Fiber Optical Adapter
| Parameter | Specifications | |
| Connector Type | SC,LC,FC,ST | |
| Type Fiber | Single Mode | Multimode |
| Adapter Color | Blue,green,metallic | Begie,Metallic |
| Testing Wavelength | 1310nm,1550nm | 850nm,1300nm |
| Insert Loss | Max≤0.2dB | Max≤0.2dB |
| Repeatability | ≤0.10dB | |
| Exchangeability | ≤0.20dB | |
| Durability | 1000Mating ,max≤0.20dB | |
| Housing Material | Plastic or metal | |
| Operating Temperature | -40°C～+75°C | |
| Storage Temperature | -40°C～+85°C | |
| Alignment Sleeve | Ceramic (ZrO2) or customized | |
| Channel Number | Simplex,duplex,quad | |
