Splitter distribution box FTTH 8 port box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
Wall mounted fibre termination box intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX networkbuilding.
Share:
1.Total enclosed structure.
2. Material: ABS, wet-proof, water-proof,dust proof,anti-aging,rosh.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation,storage distribution ... etc all in one.
4.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy
maintenance.

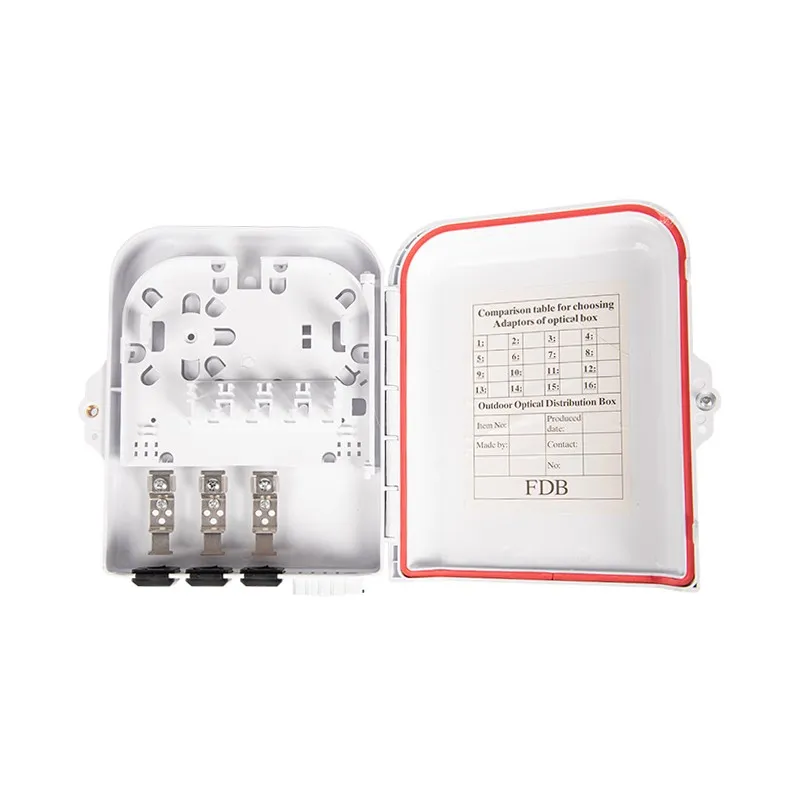

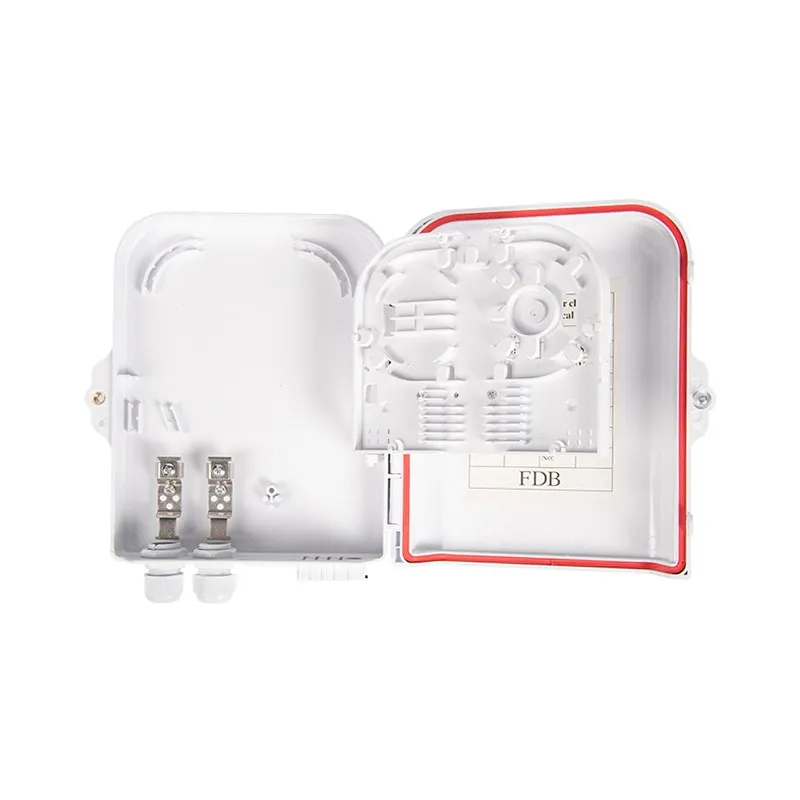

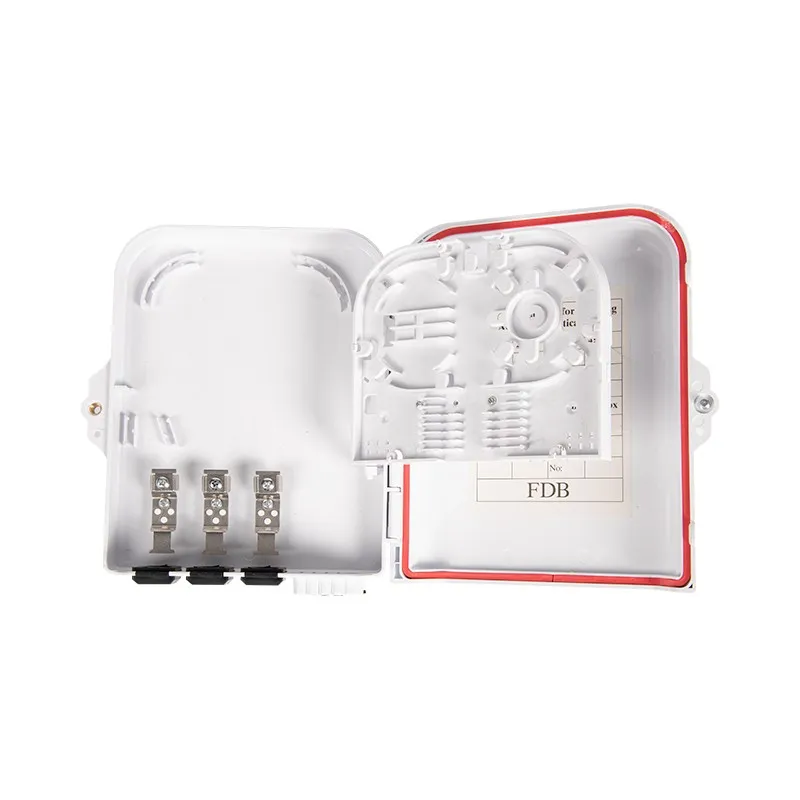

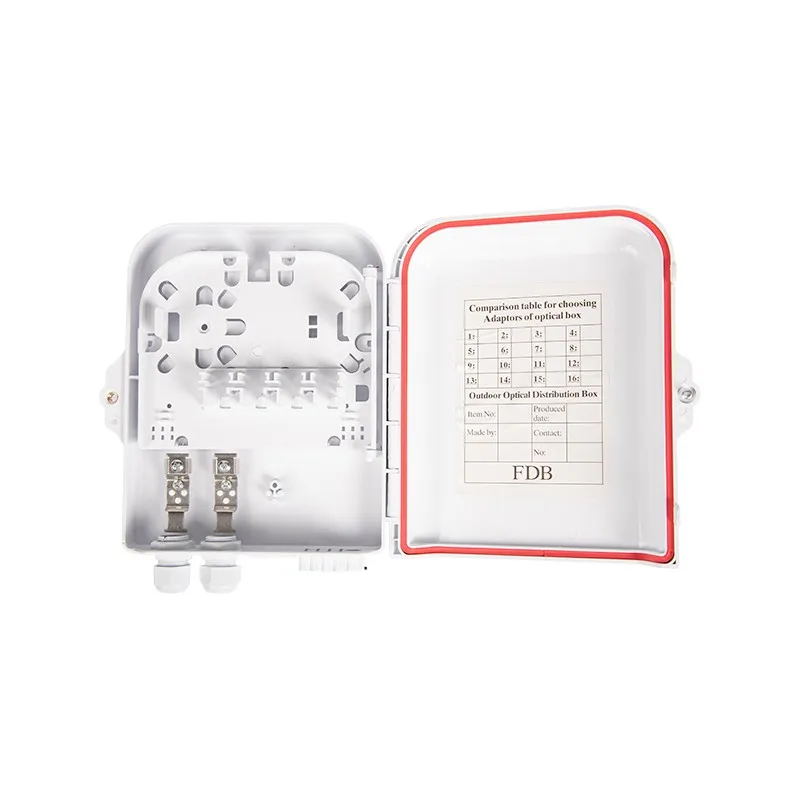

5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6.Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
Specifications
fdb fiber distribution box OPT-207C
| Material | Strengthen ABS |
| Size,mm | 230*195*55 |
| Max Capacity | Splice 8 Fibers(1trays,8 core/tray) |
| Qty of Adapter(SC type) | 8 pcs of SC(max) |
| Qty of PLC（PLC type） | 1pcs1x8 PLC Splitter |
| Weight,kg | 0.55 |
| Ports | 2 in 8 out;3 in 8 out |

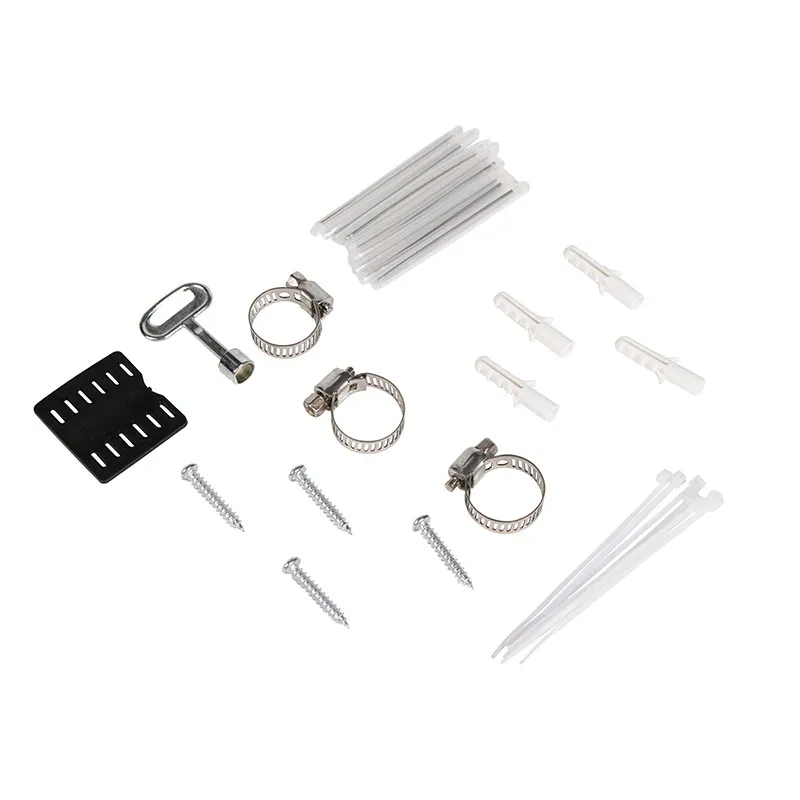

Standard Accessories
Screw: 4mm*40mm 4pcs
Expansion bolt: M6 4pcs
Cable tie:3mm*10mm 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs
Key:1pcs
hoop ring：3pcs
TPR black block：1 pcs（Optional Accessories ）
