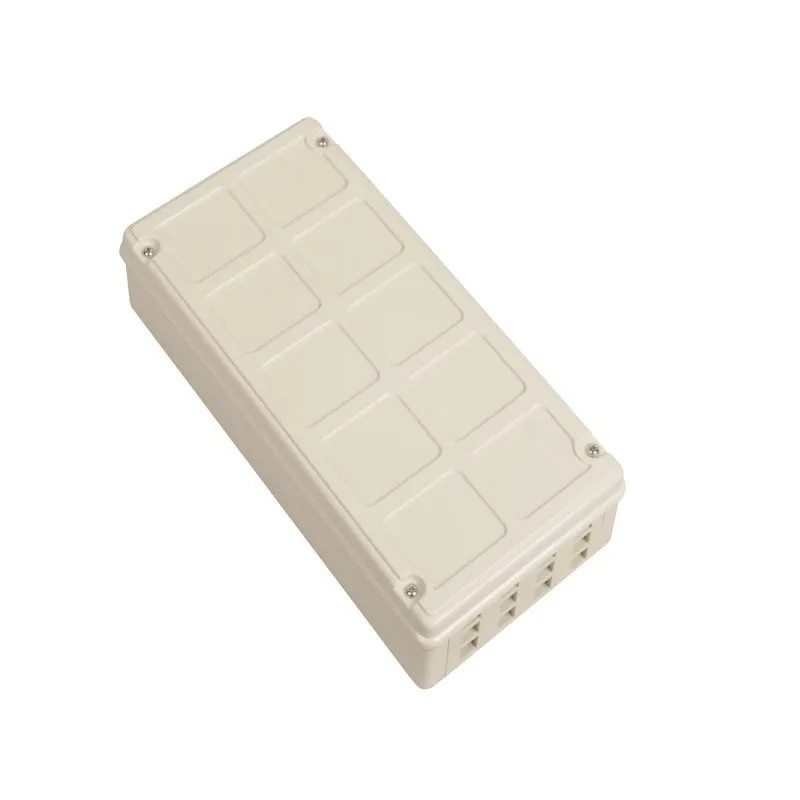

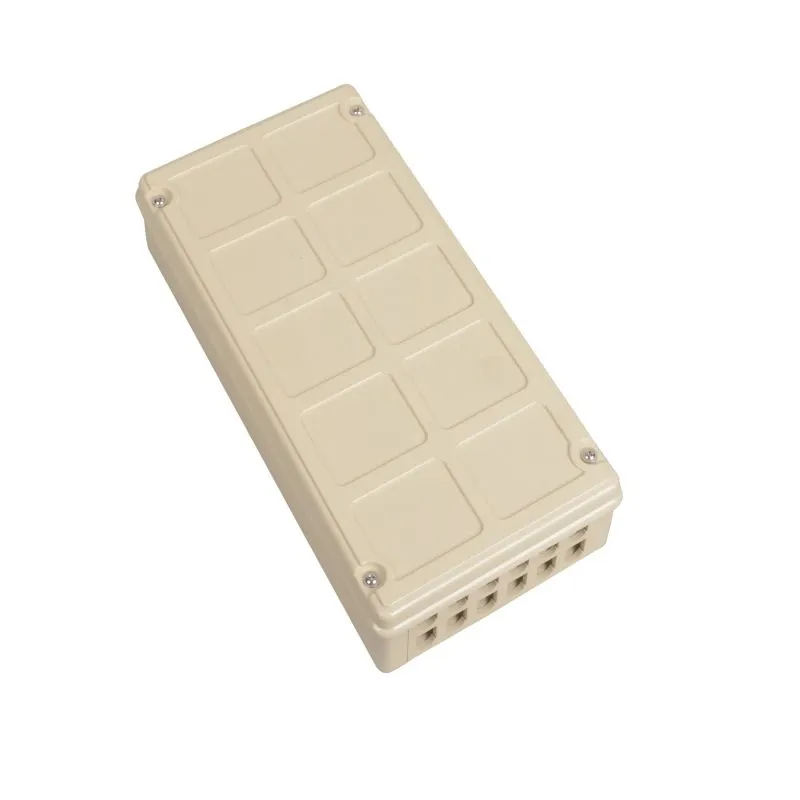

Fiber termination box OPT-315 is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

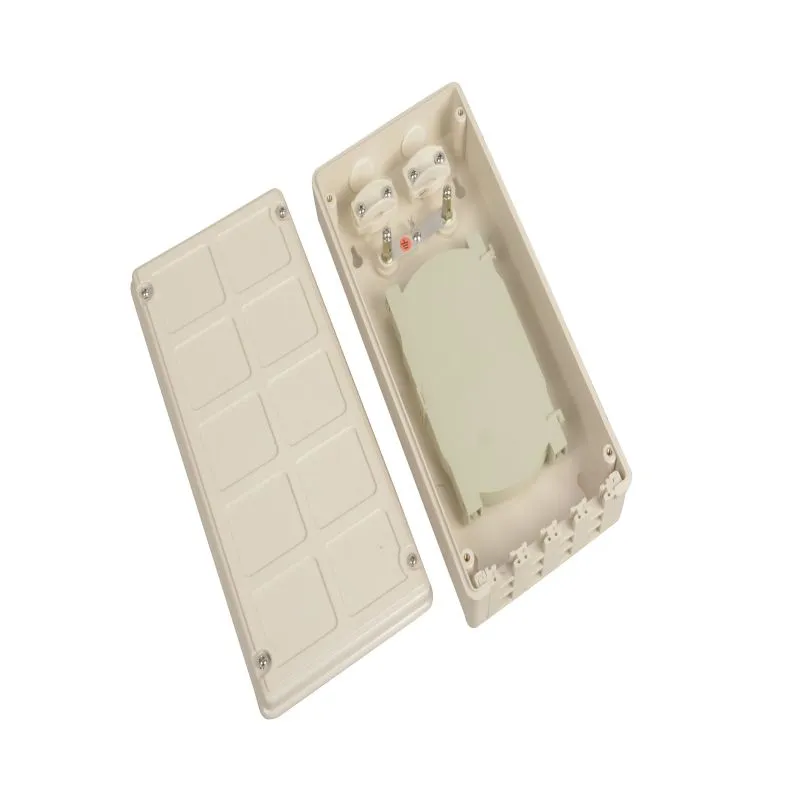

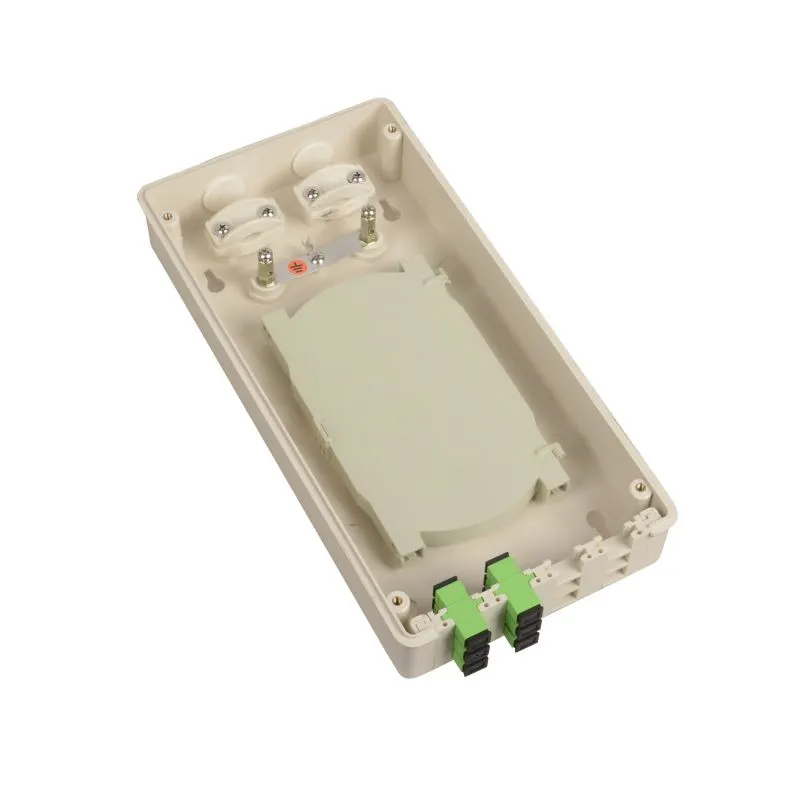

12 port fiber termination box intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:

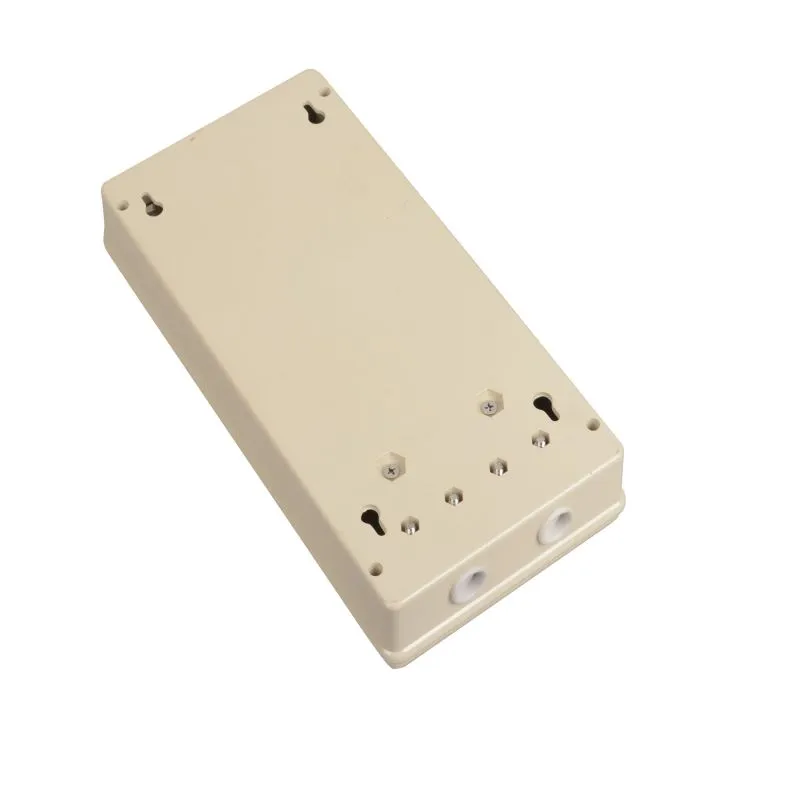

Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable.
Specifications
12 port fiber termination box OPT-315
| Material | Strengthen ABS |
| Size,mm | 300*210*55 |
| Max Capacity | Splice 48 Fibers(2 trays,24 core/tray) |
| Qty of PLC | 1 pcs of 1x 12 PLC splitter |
| Qty of Adapter | 12 pcs of duplex SC(max) |
| Weight,kg | 0.95 |
| Colour | White |
| Ports | 2 in 12 out |

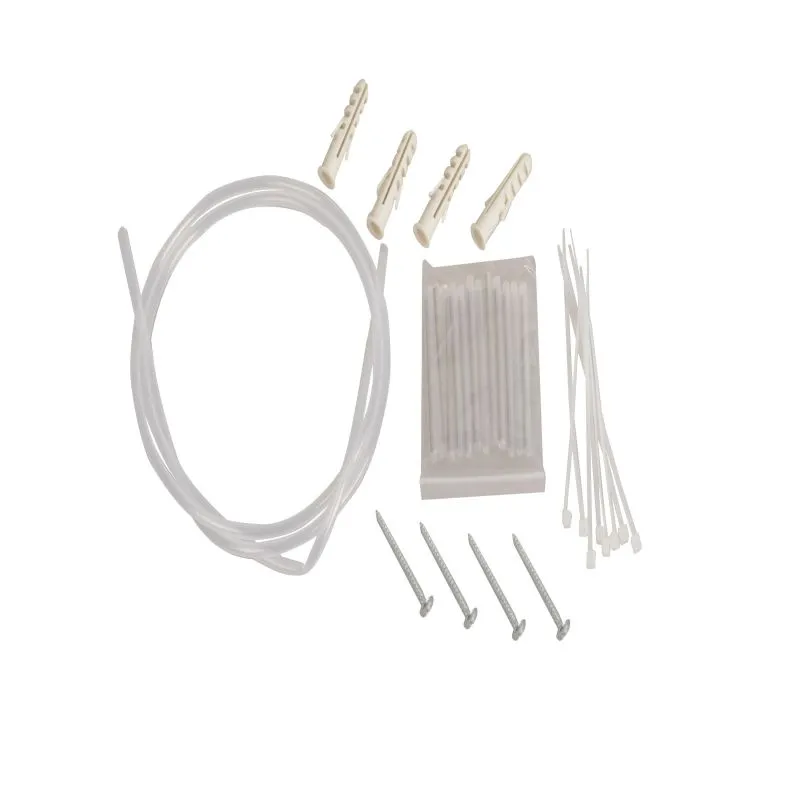

Standard Accessories
Screw: 4pcs
Expension bolt: 4pc
Heat-shrink sleeve: 12pcs
fiber protection tube：1pcs
Cable tie:3mm*10mm 4pcs
