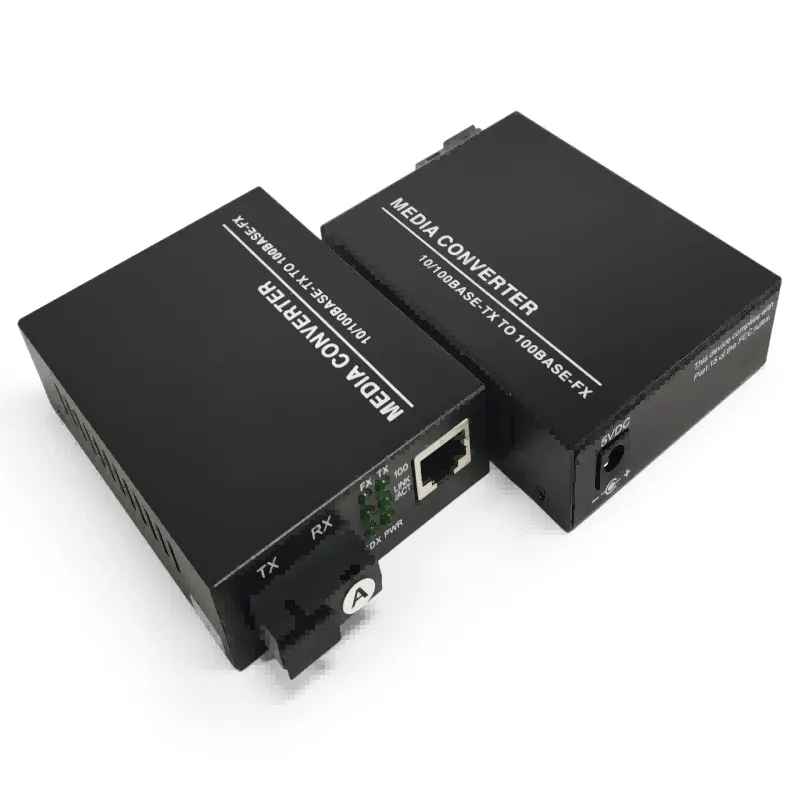

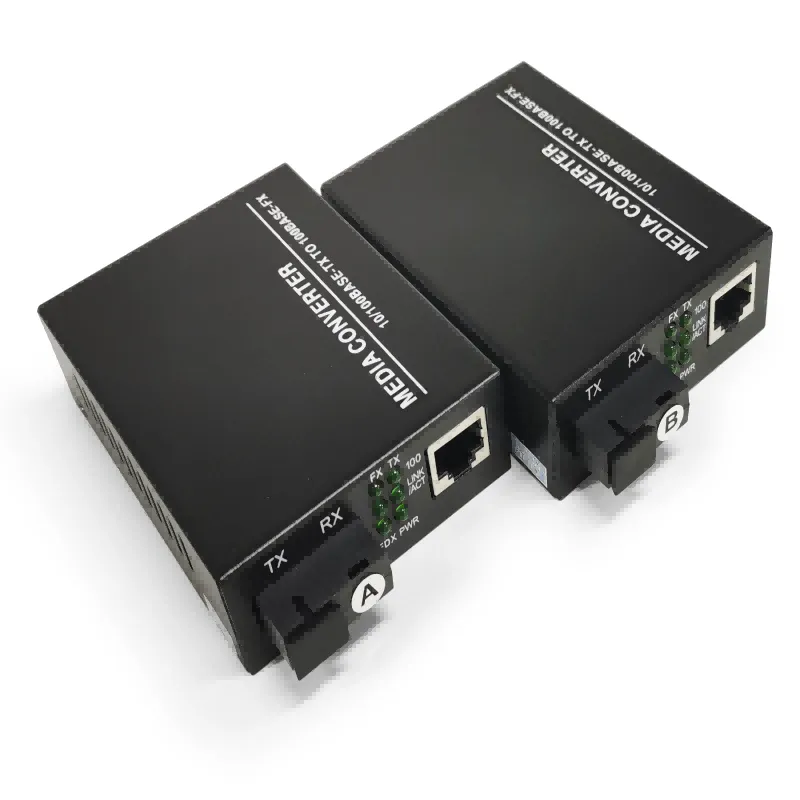

The fiber media converter, featuring 1-fiber transmission with Wavelength Division Multiplexing (WDM) technology, utilize fiber optics to extend the physical distance range of typical Ethernet link to 20km-120km. Gigabit ethernet to fiber converter is often applied in school, cyber bars, offices, and telecommunication networks.
Share:

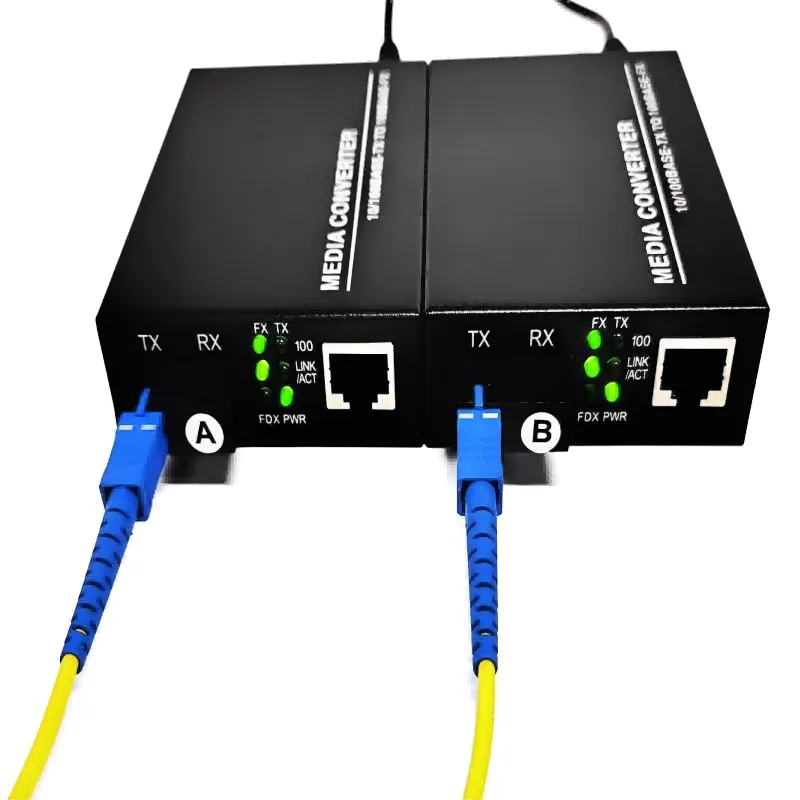

● Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber
● 100BASE-FXFIBER to 10/100BASE-T COPPER Ethernet conversion
● 1552byte super data packet transmission
● Full duplex-flow control, Half duplex-back pressure

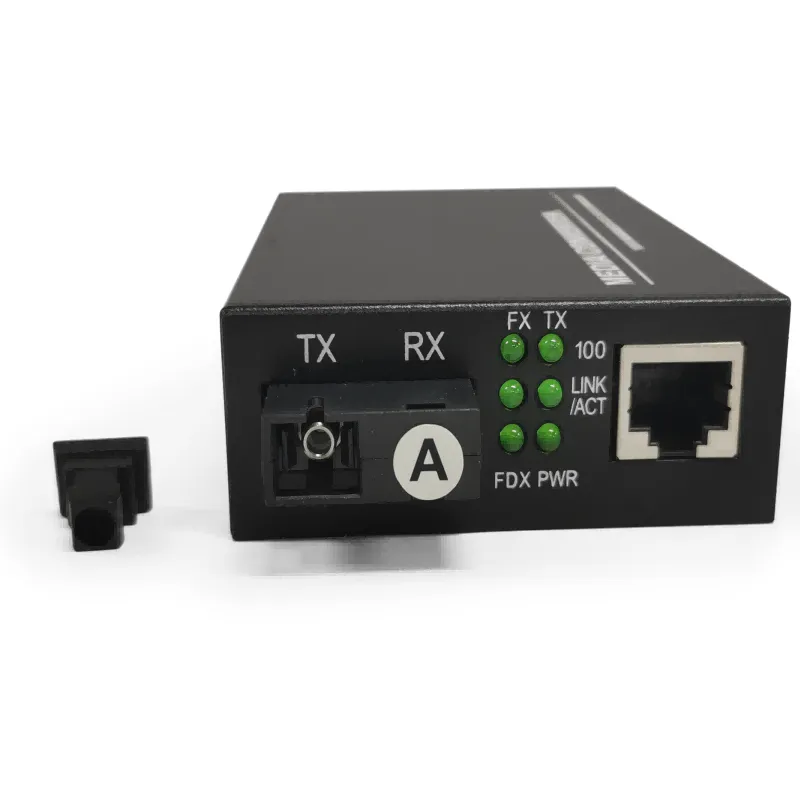

● Full- positioned LEDs to indicate power and network status
● Available for 14slots rack
Specification
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX | 9/125um singlemode fiber cable (20/40/60/80/100km) |
| Type fiber | Single mode SM |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Dimensions | 70mm(W) x 93mm(L) x 25mm(H) |
| Weight | Net weight : 0.20kg; Gross weight : 0.35kg |
| Input Voltage | DC 5V1A with External power adapter,max DC5V 2A |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| Distance | 20-120 km |
| Power supply | External |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
Factory show

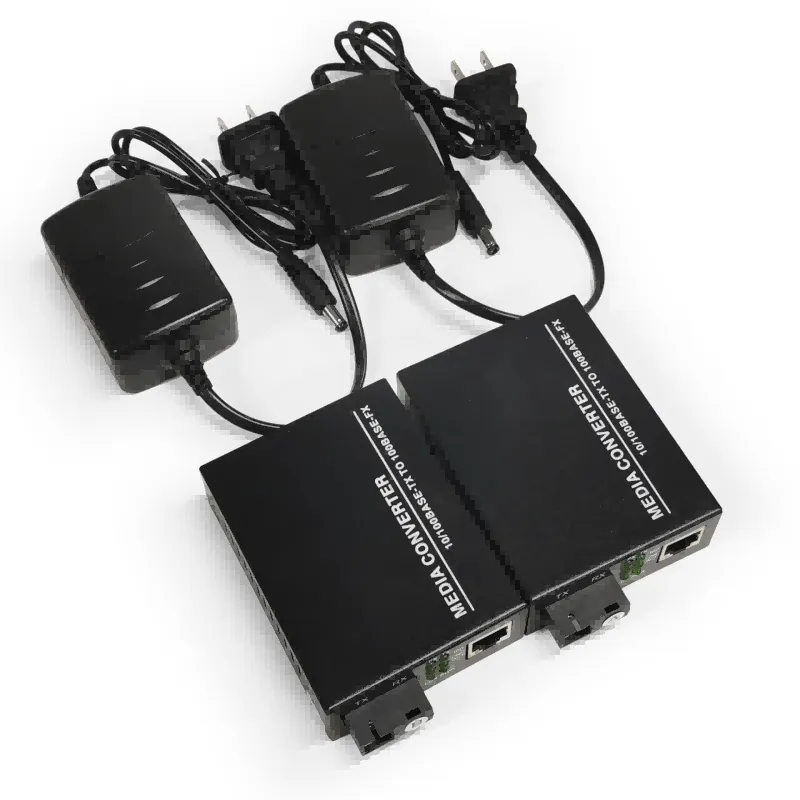

Power Supply
Ordering Details
| OPT 100-FE/SC-20 | 10/100M, Single fiber, Single mode, SC, 20km, external power supply |
| OPT100-FE/SC-40 | 10/100M, Single fiber, Single mode, SC, 40km, external power supply |
| OPT 100-FE/SC-60 | 10/100M, Single fiber, Single mode, SC, 60km, external power supply |
| OPT 100-FE/SC-80 | 10/100M, Single fiber, Single mode, SC, 80km, external power supply |
| OPT 100-FE/SC-100 | 10/100M, Single fiber, Single mode, SC, 100km, external power supply |
*Above listed are most frequently ordered items. Please contact us for other configurations.
