Fiber media converter is designed with a switch controller and buffer memory that connects two types segments operation smoothly. The fiber ethernet media converter can be used as standalone type or as card type to the 2U 19'' converter rack-mount chassis for centralized
power management.
Data Rate: 10/100Mbps.
Fiber Type: 20/40/60/80/100KM for Single mode.
Optic Connector: SC(optional)/ST/FC
Share:
1. Built-in efficient exchange kernel, Broadcasting filtration function,fIow control, CRC error check.
2.Supports SPANNING TREE to conduct fault-tolerant network.
3.Supports 10/100Mbps full/half duplex.
self-adaptive transmission and auto-negotiations ,easy upgrades.
4.Max.transmission distance can be 100km.
5.External power .
6.Standalone type can be installed into 14sIot 2U Rack.
7.Hot-swap ,High reliability.
8.Cache capacity: IM Bits.
9.Built-in MAC address butter space : 1K.
Specification

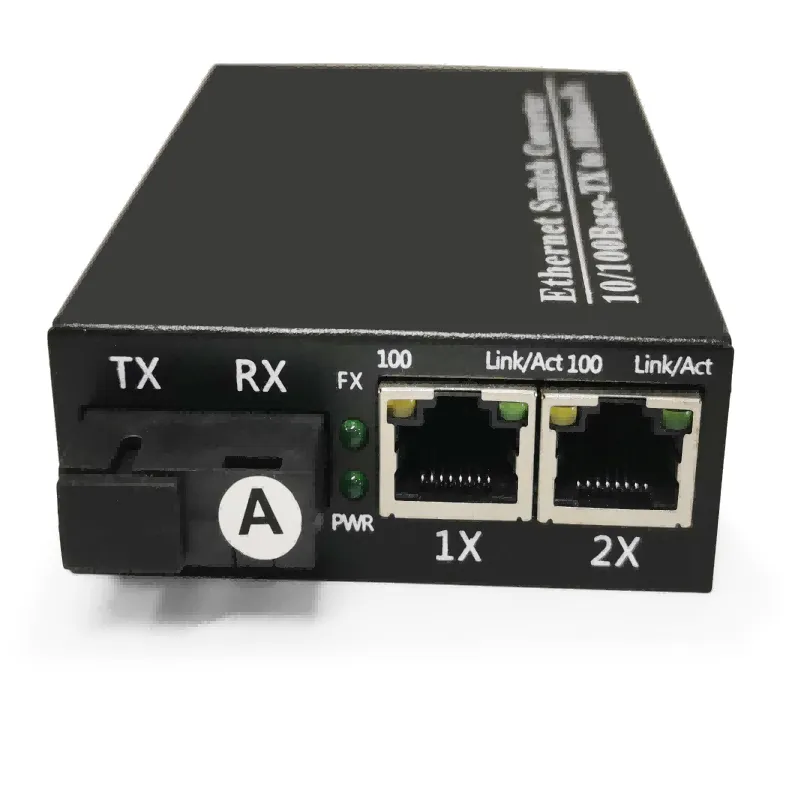

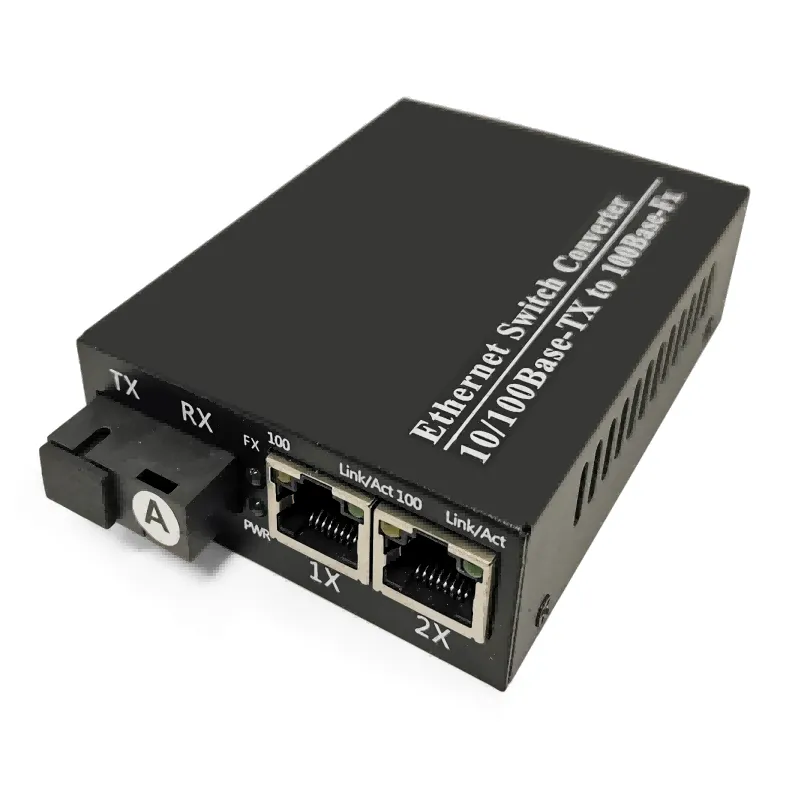

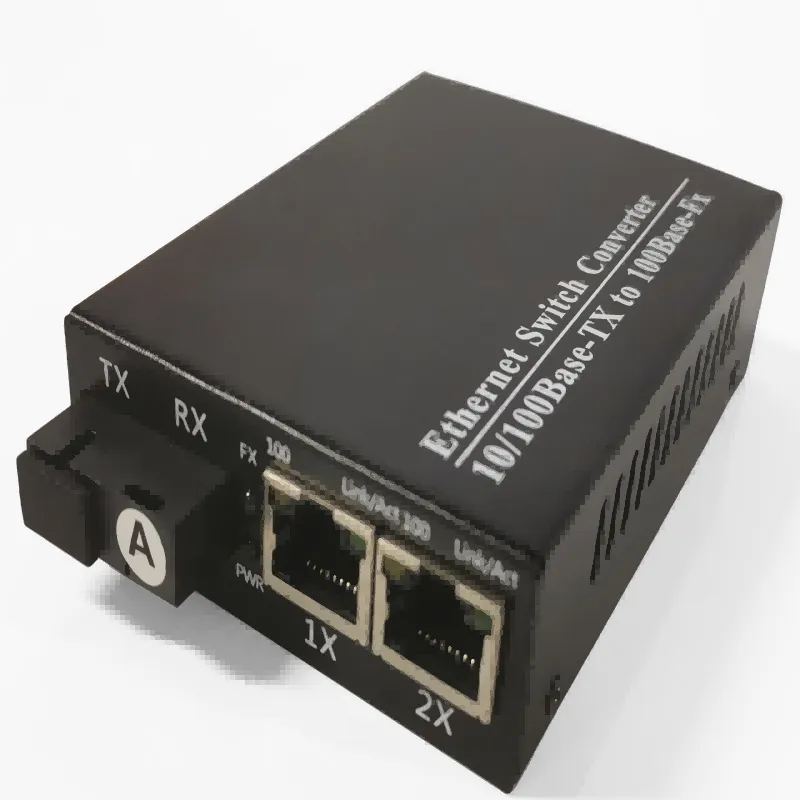

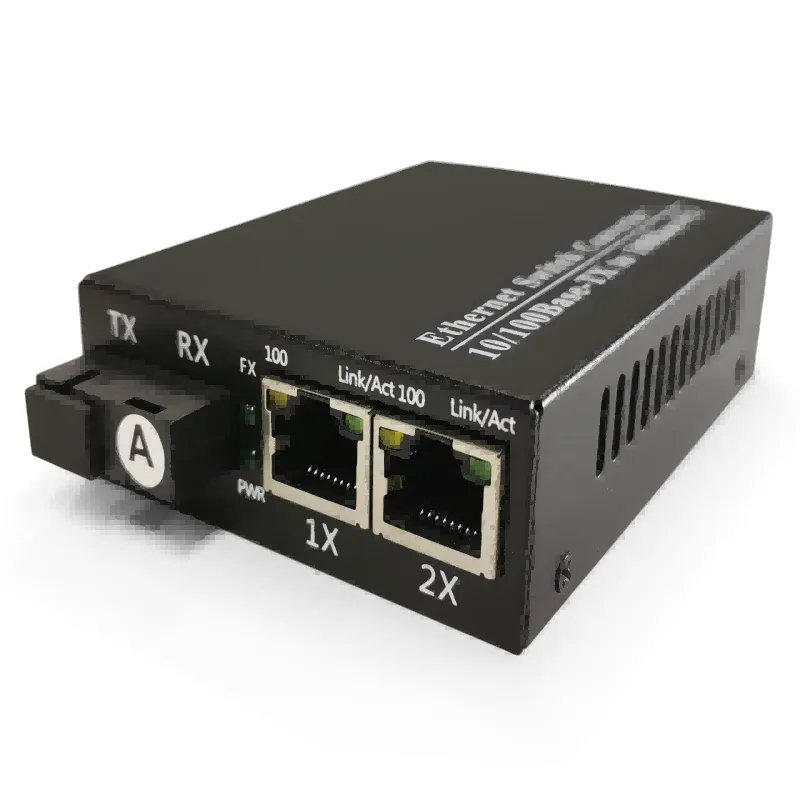

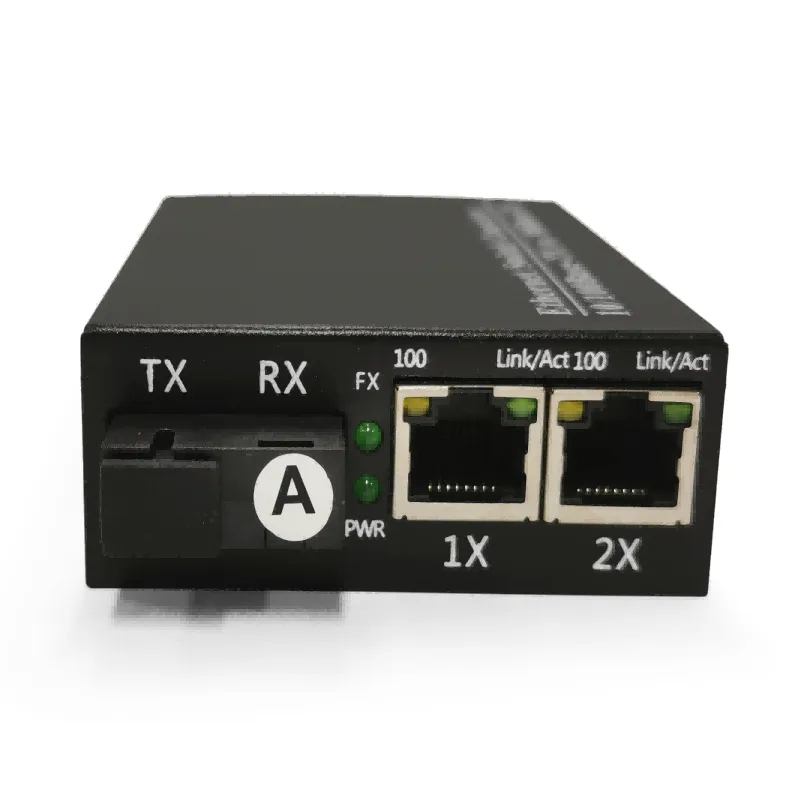

fiber media converter single mode 2x 10/100/Base-T RJ45 to 1x 100 Base-Single fiber SC 1550/1310nm
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX | 9/125um singlemode fiber cable 25 km |
| Type fiber | Single mode SM |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | 1XSC standard, ST/FC optional，2RJ45 |
| Wavelength | 1310/1550nm |
| Dimensions | 95mm(L) x 70mm(W) x 26mm(H) |
| Weight | Net weight : 0.20kg; Gross weight : 0.35kg |

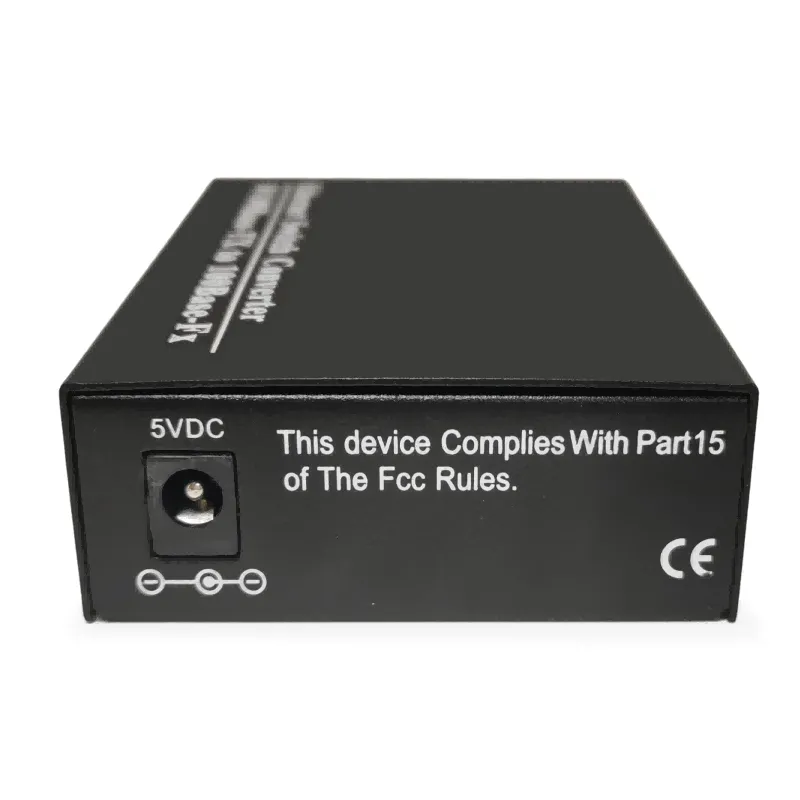

| Input Voltage | DC 5V1A with External power adapter,max DC5V 2A |
| Power Consumption | 2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| Distance | 20-120 km |
| Power supply | External |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
Factory show
Power Supply
Ordering Details
1 Fiber Port And 2 RJ45 Ports Unmanaged Fiber Switch, SC Connector
| Part Number | Description |
| OPT12-FE-SM-20 | 10/100Mbps, 1fiber+2rj45 ports, 20km, dual fiber, SC |
| OPT12-FE-SM-20A/B | 10/100Mbps, 1fiber+2rj45 ports, 20km, single fiber, SC |
| OPT12-GE-20 | 10/100/1000Mbps, 1fiber+2rj45 ports, 20km, dual fiber, SC |
| OPT12-GE-20A/B | 10/100/1000Mbps, 1fiber+2rj45 ports, 20km, single fiber, SC |
