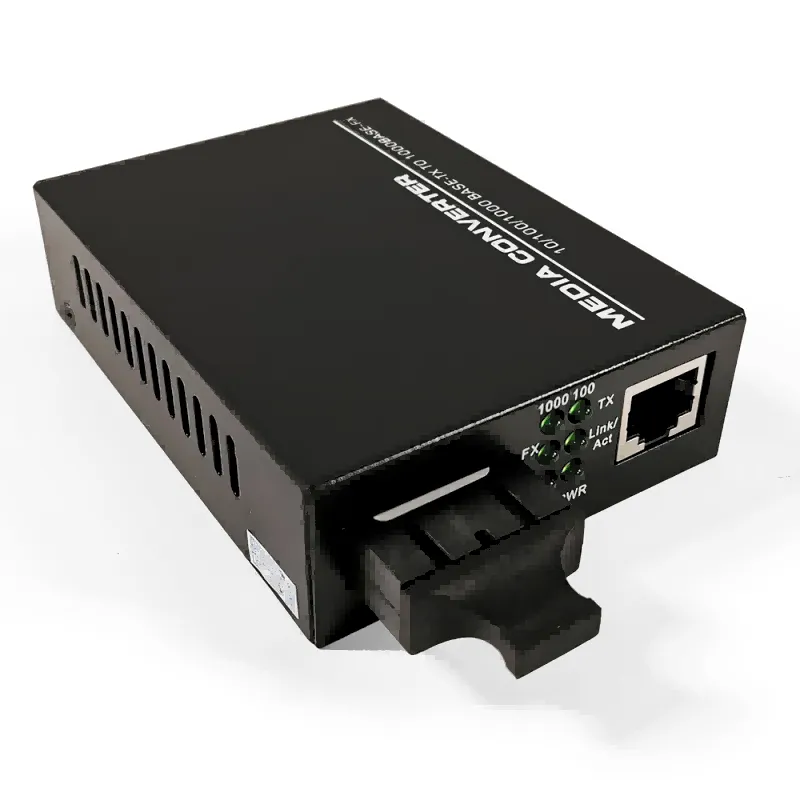

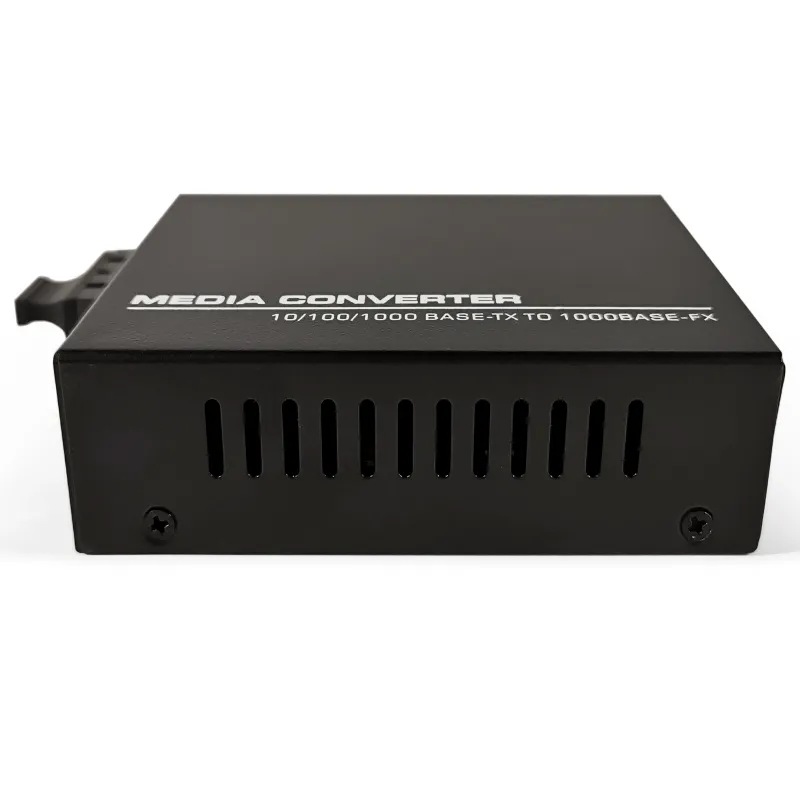

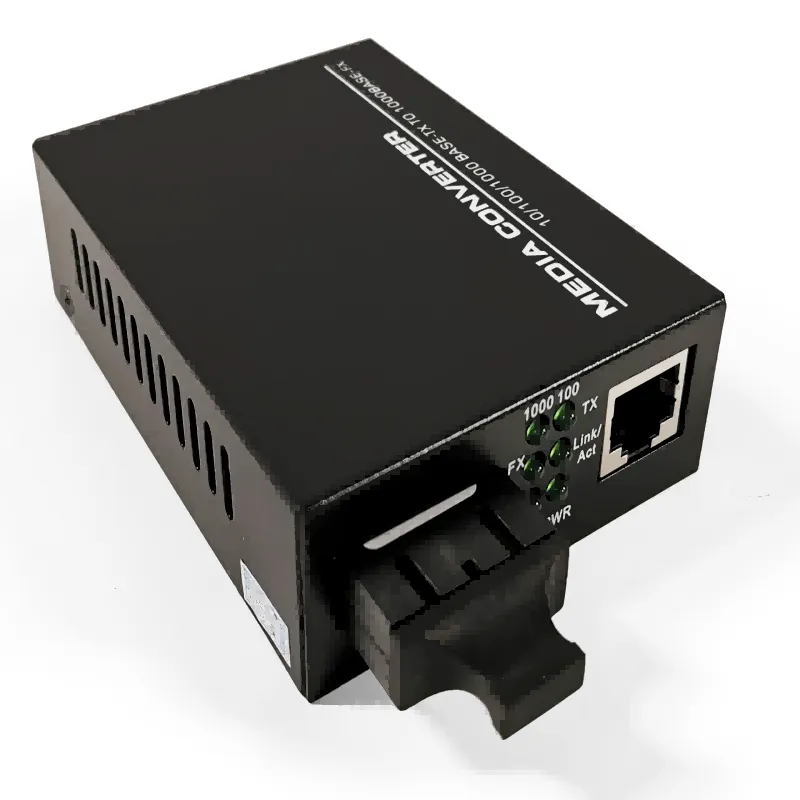

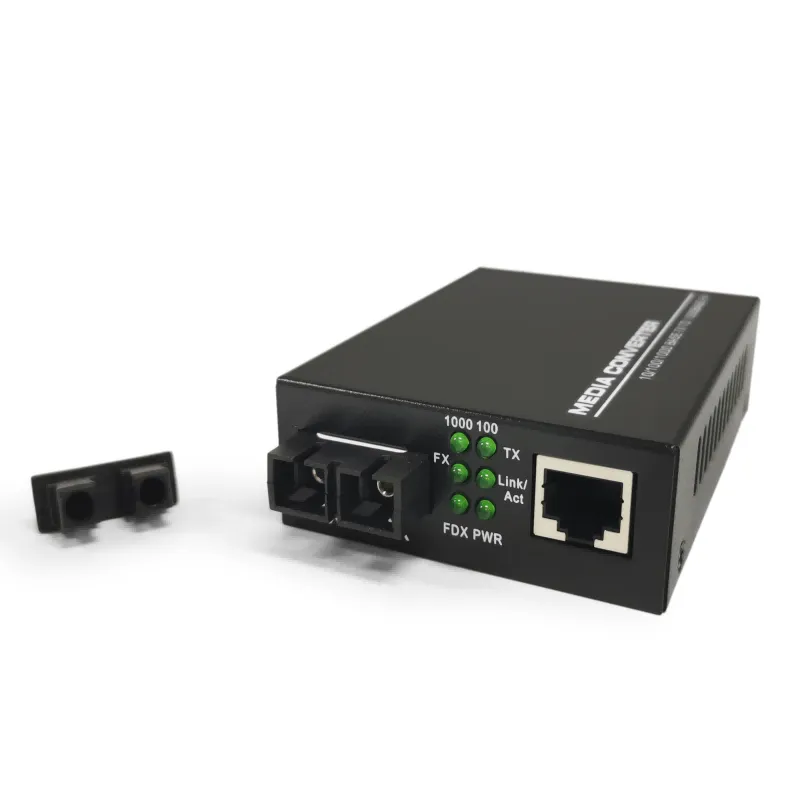

Gigabit ethernet to fiber converter is designed with a switch controller and buffer memory that connects two types segments
operation smoothly. The converter can be used as standalone type or as card type to the 2U 19'' converter rack-mount chassis for centralized
power management.
Data Rate: 10/100/1000Mbps.
Fiber Type: 20/40/60/80/100KM for Single mode.
Optic Connector: SC(optional)/ST/FC
Share:
1. Built-in efficient exchange kernel, Broadcasting filtration function,
fIow control, CRC error check.
2.Supports SPANNING TREE to conduct fault-tolerant network.
3.Supports 10/100/1000Mbps full/half duplex self-adaptive transmission and auto-negotiations ,easy upgrades.
4.Max.transmission distance can be 100km.
5.External power .
6.Standalone type can be installed into 14sIot 2U Rack;
7.Hot-swap ,High reliability.
8.Cache capacity: IM Bits.
9.Built-in MAC address butter space : 1K.
Specification
Media converter from fiber to ethernet 1x 10/100/1000/Base-T RJ45 to 1x 100/1000 Base Dual fiber 1310nm
| Items | 10/100/1000M Dual fiber Media Converter |
| Rate | 10/100/1000Mbps |
| Protocol supported | IEEE802.3/IEEE802.3U etc. |
| Connector | 1x 10/100/1000/Base-T RJ45 to 1x 100/1000 Base fiber port |
| Fiber type | Dual fiber |
| Optic mode | Single model/ Multimode |
| Transmission mode | half / full duplex |
| Ethernet interface | RJ-45 |
| Optic interface | SC/FC/ST |
| Optic wavelength | 850nm, 1310nm, 1550nm |
| BER | < 1/1000000000 |
| MTBF | 3 years |
| POWER | 2.5W |
| Power supply | AC220V/0.5A, DC48V/0.5A, DC5V/1A |
| Working temperature | normal 0~50℃ or industrial -40~85℃ |
| Working humidity | 5%-95% |
| Storage temperature | -40℃~70℃ |
| Storage humidity | 5%~95%(no-condensing) |
| Weight | 0.38KG |
| Dimensions | External: LxWxH 95 x 70x 26mm |
Factory show

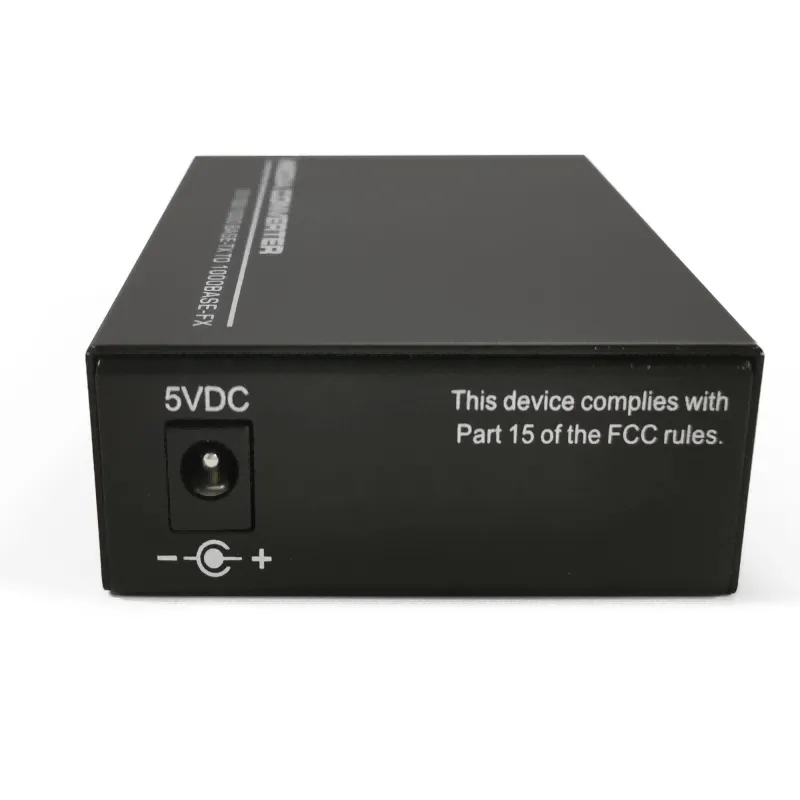

Power Supply
Ordering Details
1x 10/100/1000/Base-T RJ45 to 1x 100/1000 Base Dual fiber 1310 nm Media Converter
SC Connector, External Power Supply DC5V1A
Fiber Connector: SC,FC/ST Optional
| Part Number | Optic Fiber | Wavelength | Power | Rx Sensitivity | Reach | Loss Allowed |
| OPT-D-GE-550M | Multimode | 850nm | -9.5~4db | -17db | 550m | 8db |
| OPT-D-GE-2KM | Single mode | 1310nm | -9~-3db | -21db | 2km | 12db |
| OPT-D-GE-20KM | Single mode | 1310nm | -6~-1db | -21db | 20km | 15db |
| OPT-D-GE-40KM | Single mode | 1310nm | -5~0db | -24db | 40km | 20db |
| OPT-D-GE-60KM | Single mode | 1550nm | -5~0db | -25db | 60km | 20db |
| OPT-D-GE-80KM | Single mode | 1550nm | -2~3db | -25db | 80km | 25db |
