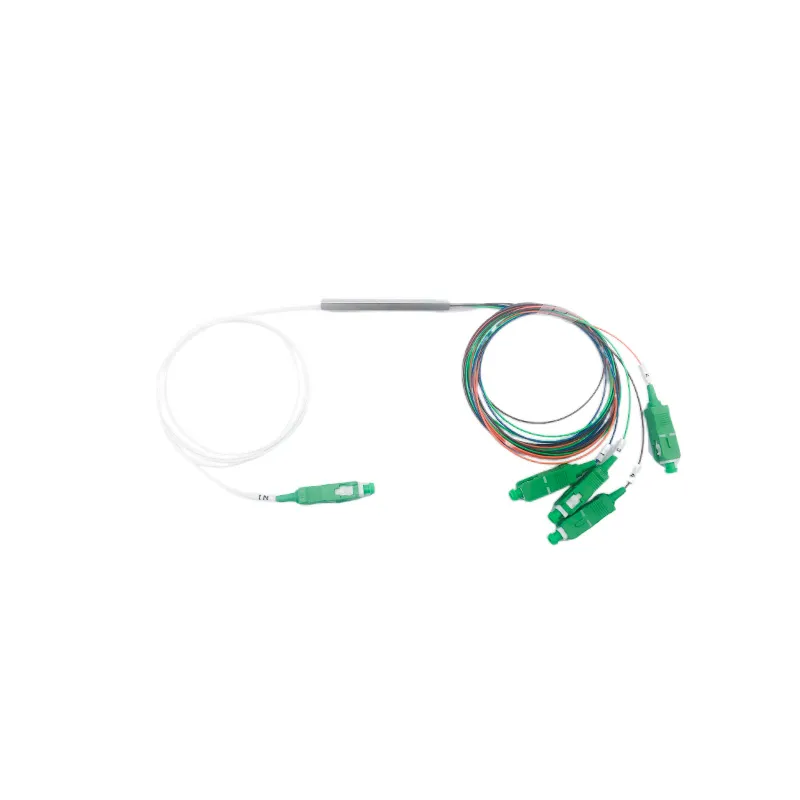

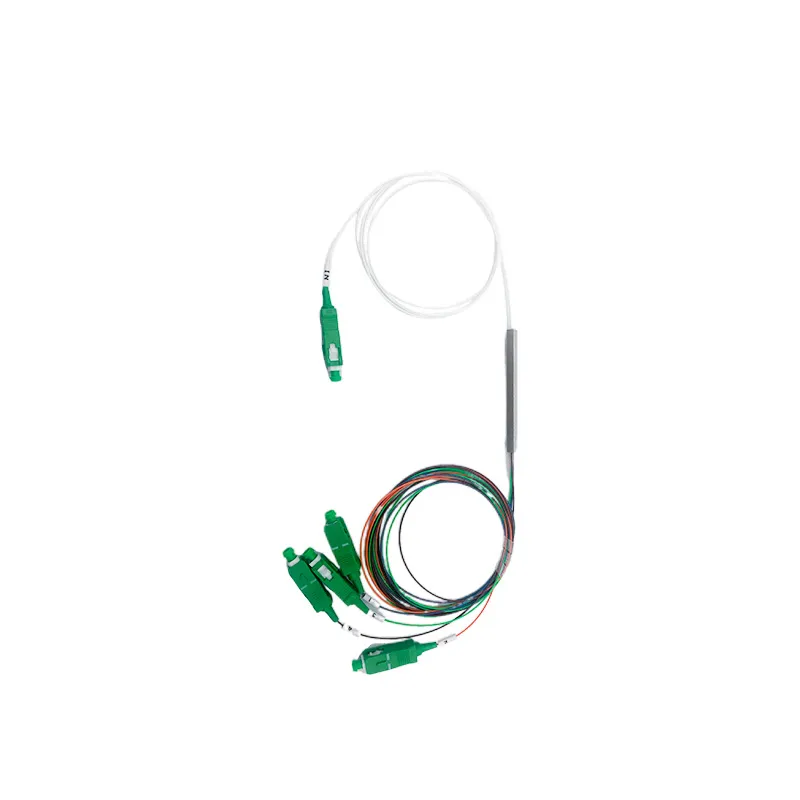

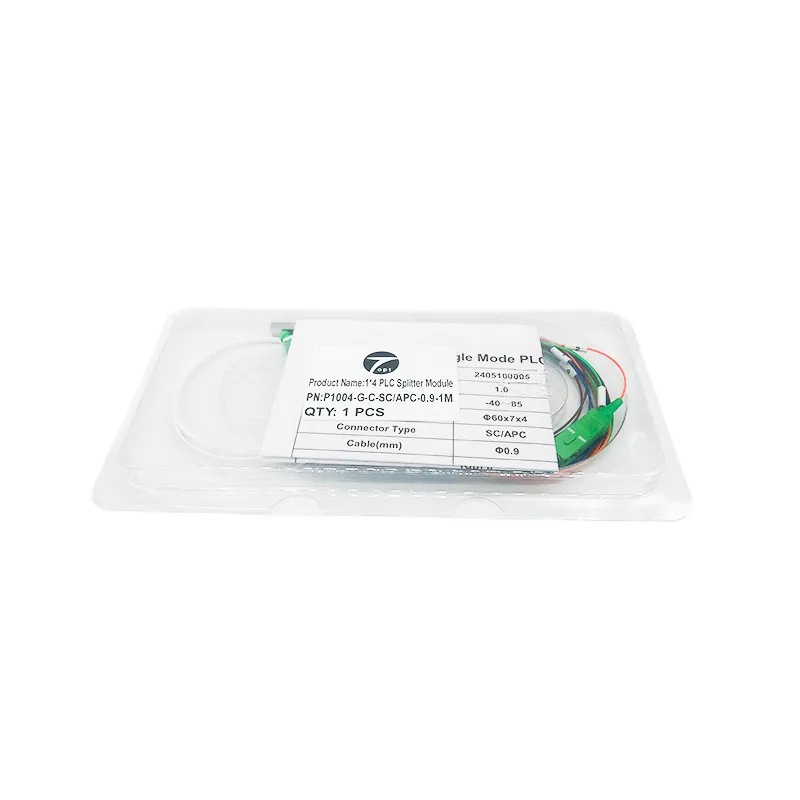

1x4 Blockless Fiber PLC Splitter, Singlemode, 900μm Fiber, SC/APC Connector
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
The PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for fiber optic distribution boxes or network cabinets.
PLC splitter is high-quality with low failure rates that offer precise equal splitting for 1260 nm to 1650 nm operating wavelengths. In addition, PLC splitters are available in a variety of split ratios.For example, 1x4, 1x8, 1x16, 1x32, and 1x64, etc. Ratios are selected depending on factors such as required speed, distance, and number of users.
Share:
Low excess loss
Excellent directivity
Good channel-to-channel uniformity
Low PDL
High cost-effectiveness
High environmental and mechanical stability
Applications
PLC splitter is widely Used in FTTX Projects and Data Communication Centers.Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers.
Specification
| Parameters | 1x4 |
| Operating Wavelengt(nm) | 1260-1650nm |
| Fiber Type | G657A1 or customer specified |
| Insertion Loss (dB) P/S Grade | 7.1 /7.3 |
| Loss Uniformity (dB) | 0.6 |
| Polarization Dependent Loss(dB) | 0.2 |
| Return Loss (dB) | ≥55 |
| Directivity (dB) | ≥55 |
| Wavelength Dependent Loss (dB) | 0.3 |
| Temperature Stability (-40- +85°C)(dB) | 0.4 |
| Operating Temperature | -40- +85°C |
| Storage Temperature | -40- +85°C |
Ordering Informaton
| Configuration | Connector | Ferrule Type | Fiber | Splitter | Jacket | Diameter(mm) | Length(m) |
| 1x2 | SC | UPC | SM | Tube type | Material | 0.9 | 0.5 |
| 1x4 | LC | APC | OM1 | Cassette Type | PVC | 2 | 1 |
| 1x8 | FC | 0M2 | Module Type | LSZH | 3 | 1.5 | |
| 1x16 | ST | 0M3 | ... | ... | |||
| 1x32 | 0M4 | ||||||
| 1x64 |
XI'AN OPT Communication Co.,Ltd. is one of the largest and reliable optical component manufacturers and suppliers with rich experience in China. OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can customized as your requirement.Also, free sample is also available if necessary.
