XI'AN OPT Communication Co.,Ltd. is one of the largest and reliable optical component manufacturers and suppliers with rich experience in China. OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can customized as your requirement.Also, free sample of PLC splitter is also available if necessary.

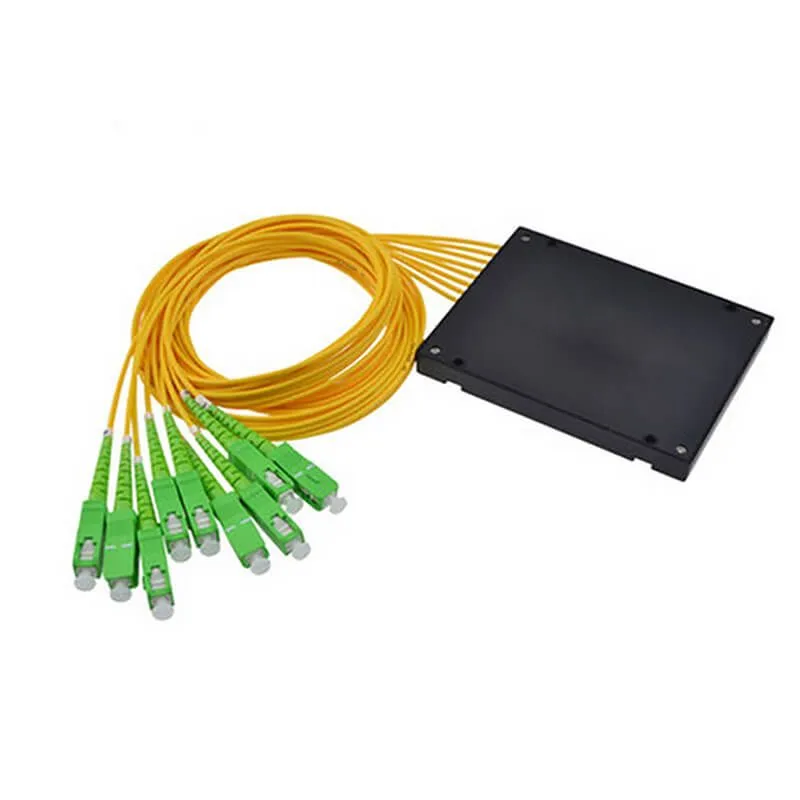

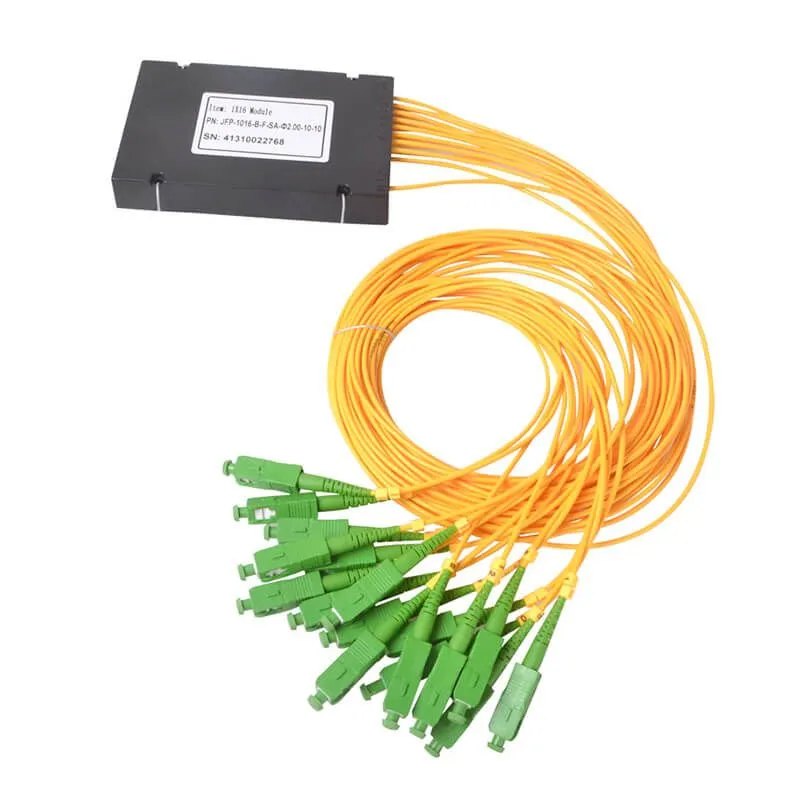

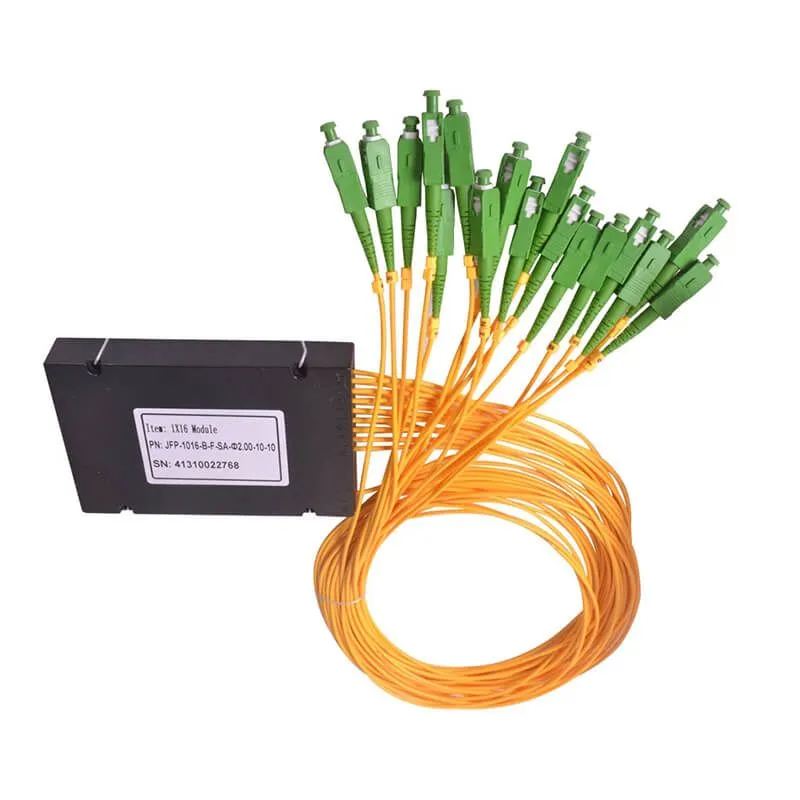

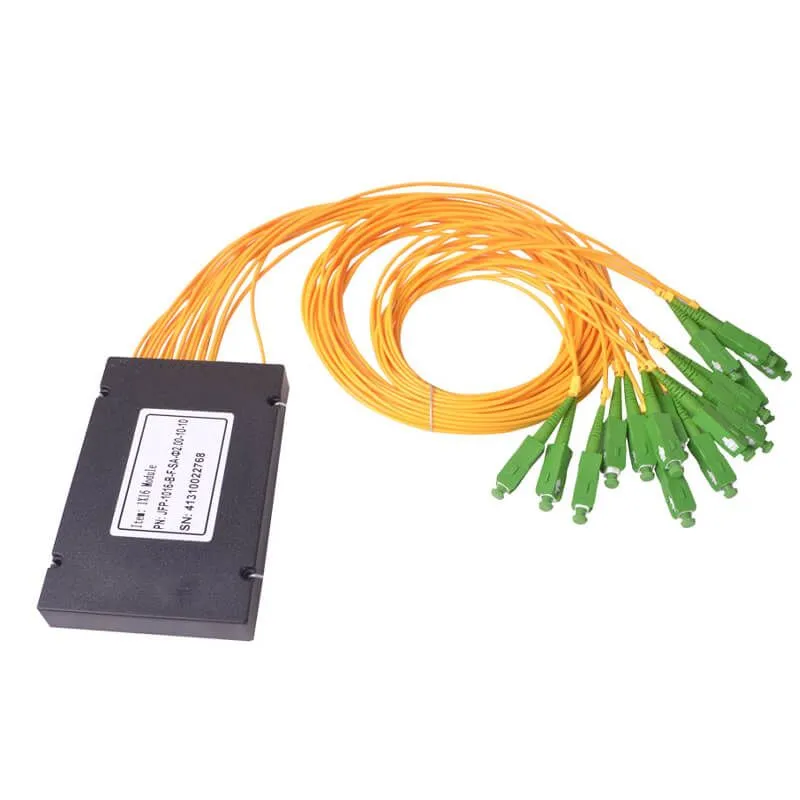

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It is designed for splitting a single input signal at 1260-1650nm equally into16 output signals, and is available with SC/APC connector, and it all use bend insensitive fiber (BIF) with a 10 mm bend radius to minimize loss.
Share:
Features of optical splitter：
Fiber optic splitter(also called fiber optic splitters) is passive components that evenly divide or distribute optical signals in FTTH, PON, and CATV systems. Our PLC (Planar Lightwave Circuit) splitters deliver low insertion loss, high reliability, and industry-leading uniformity for seamless network performance.
Wide Range of Configurations: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits.Sometimes splitters PLC come with two incoming signals, such as 2x8, 2x16, etc. These splitters are used for redundancy where the two incoming signals come from separate OLTs or line cards within an OLT.
Low Insertion Loss: ≤3.6 dB @ 1310/1490/1550 nm
High Uniformity: ≤1.5 dB for consistent signal distribution

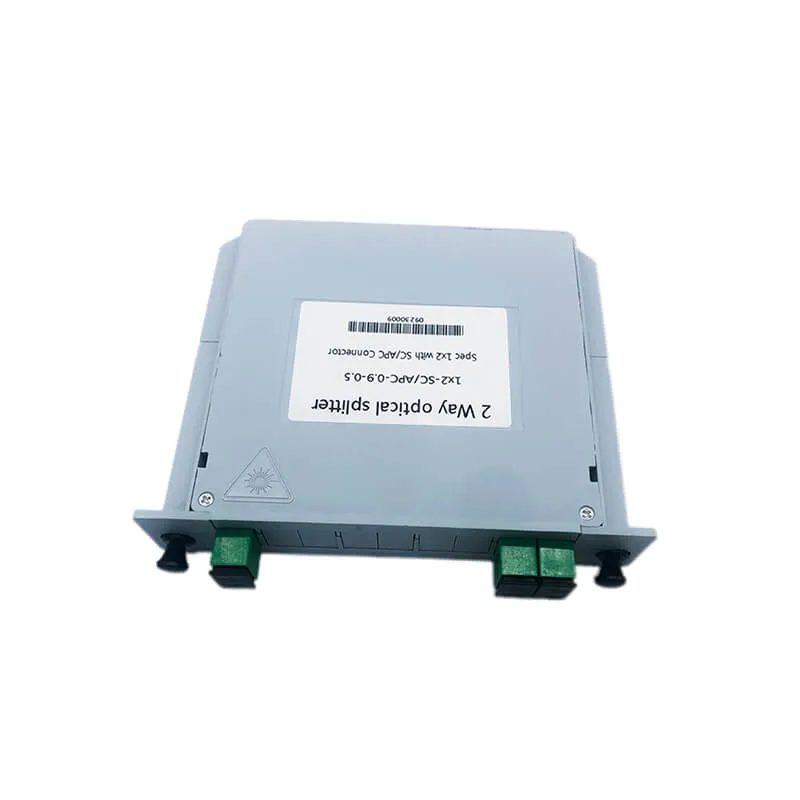

Compact Design: ABS box, steel tube, or rack-mountable options
Operating Temperature: -40°C to +85°C (ideal for harsh environments)
Advantages of fiber optic splitter：
Suitable for multiple operating wavelengths (1260nm - 1650nm).
Equal splitter ratios for all branches.
Compact configuration, smaller size, small occupation space.
Good stability across all ratios.
High quality, low failure rate.
Applications
Use of PLC splitter is varied in fiber optic telecommunication:
Fiber optical communication system
Data center
Measuring instruments
CATV System
LAN System
WAN System
Specification
Technical Data for fiber optic PLC splitter:
| Type | Mini fiber optic Splitter | Model Number | 1x16 PLC splitter SC/APC |
| Place of Origin | XI'AN China | Brand Name | OPT |
| Wavelength | 1260-1650nm | Certificate | ISO9001 |
| Fiber Type | G657A1 | Operating temperature | -40℃~85℃ |
| Fiber Color | White or colors | Fiber length | 1 m 1.5 m or Customized |
| Cable Diameter | 2.0 mm | Package Type | ABS box |
Ordering Informaton
Ordering information for fiber optic splitter：
| Configuration | Connector | Ferrule Type | Fiber | Splitter | Jacket | Diameter(mm) | Length(m) |
| 1x2 | SC | UPC | SM | Tube type | Material | 0.9 | 0.5 |
| 1x4 | LC | APC | OM1 | Cassette Type | PVC | 2 | 1 |
| 1x8 | FC | 0M2 | Module Type | LSZH | 3 | 1.5 | |
| 1x16 | ST | 0M3 | ... | ... | |||
| 1x32 | 0M4 | ||||||
| 1x64 |
