XI'AN OPT Communication Co.,Ltd. is one of the largest and reliable fiber optic splitter manufacturers and suppliers with rich experience in China.
Fiber optic splitters to meet your specific requirements. Available in PLC splitters, it is also called Planar Lightwave Circuit. PLC splitters are designed to split one input signal into several output signals or combine several signals. As well as FBT splitters Fused Biconical Taper splitters, which are two or more pieces of optical fibers that are fused/tapered together fiber devices. Splitters are method of splitting a single fiber optic transmission from a 100% input, into multiple fiber at a specific % of the signal（for example 10/90,30/70）, fiber splitter is a passive optical device.
We can customized as your requirement.Also, free sample is also available if necessary. High-end technologies helps us ensure High Quality Optical Splitter PLC 1x32 SC/APC Mini Module 0.9mm with Connector SC APC connectors, improve manufacturing efficiency, and reduce manpower input.
Share:

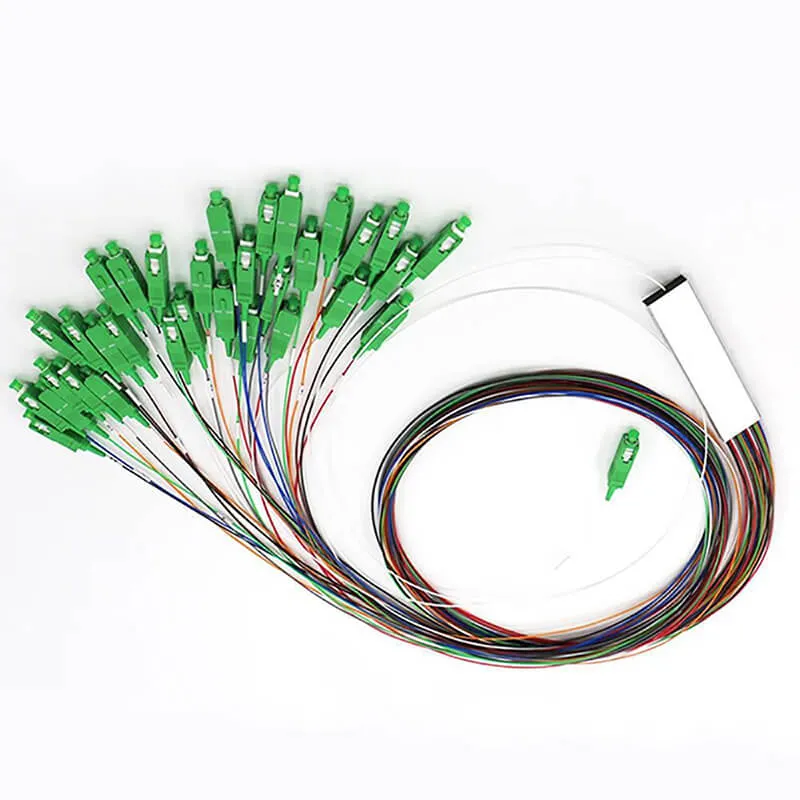

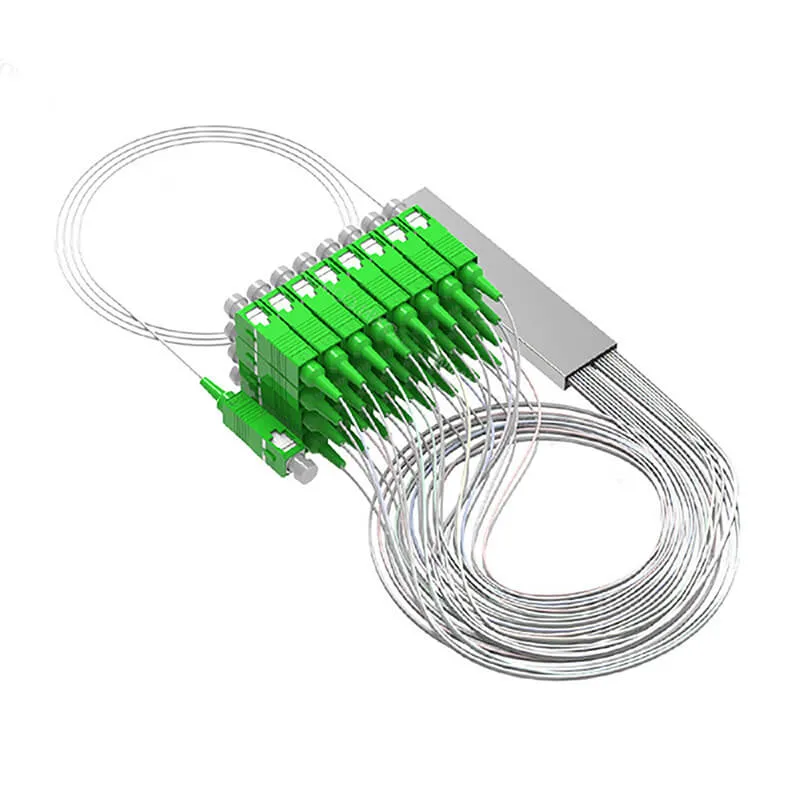

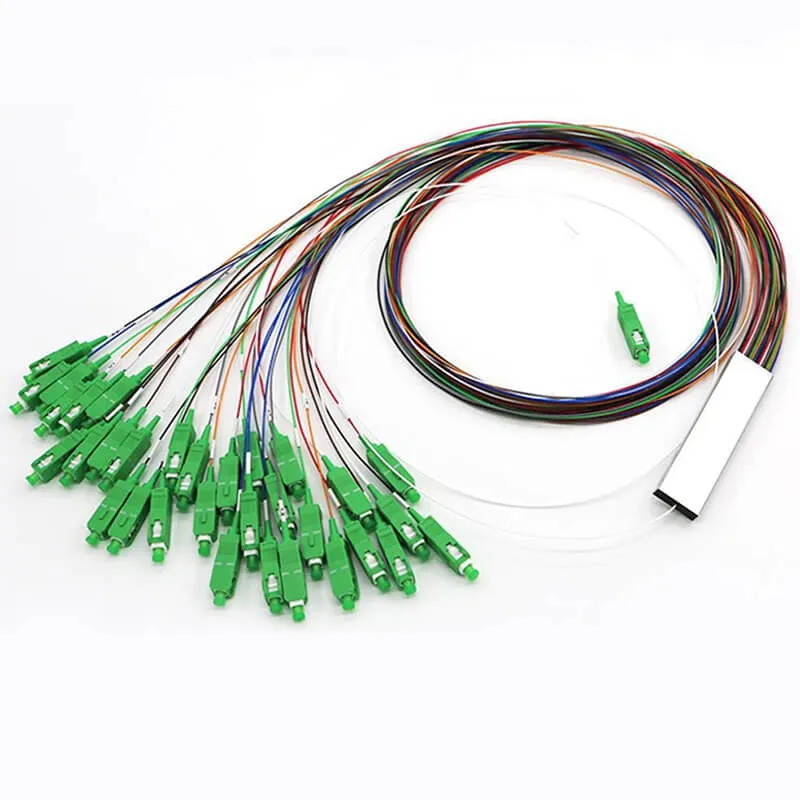

Fiber Optic PLC Splitter 1x32 Mini Module 0.9mm with Connector SC APC
Low excess loss
Excellent directivity
Good channel-to-channel uniformity
Low PDL
High cost-effectiveness
High environmental and mechanical stability
Applications
Fiber optical communication system
Fiber optical sensors
CATV System
LAN System
WAN System
Specification
| Type | Mini Fiber Optical PLC Splitter | Model Number | 1*32 SC/APC |
| Place of Origin | XI'AN China | Brand Name | OPT |
| Wavelength | 1260-1650nm | Certificate | ISO9001 |
| Fiber Type | G657A1 | Operating temperature | -40℃~85℃ |
| Fiber Color | White or colors | Fiber length | 1 m 1.5 m or Customized |
| Cable Diameter | 0.9mm | Housing Material | Stainless Steel |
Ordering Informaton
| Configuration | Connector | Ferrule Type | Fiber | Splitter | Jacket | Diameter(mm) | Length(m) |
| 1x2 | SC | UPC | SM | Tube type | Material | 0.9 | 0.5 |
| 1x4 | LC | APC | OM1 | Cassette Type | PVC | 2 | 1 |
| 1x8 | FC | 0M2 | Module Type | LSZH | 3 | 1.5 | |
| 1x16 | ST | 0M3 | ... | ... | |||
| 1x32 | 0M4 | ||||||
| 1x64 |
