Optical spllitter，also called PLC splitter, is based on Planar Lightwave Circuit technology. It divides signals equally and is denoted with a 1xN or 2xN split ratio, where the first number is the number of inputs and N is the number of outputs. PLC splitters are high-quality with low failure rates that offer precise equal splitting for 1260 nm to 1650 nm operating wavelengths. In addition, PLC splitters are available in a variety of split ratios, for example, 1x4, 1x8, 1x16, 1x32, and 1x64, etc. Ratios are selected depending on factors such as required speed, distance, and number of users.
Share:
As demand for higher bandwidth continues to grow, PLC splitters provide fiber optic links to an increasing number of users. PLC splitters allow a single PON network interface to be utilized by multiple users, maximizing a fiber network’s user capacity in increasing ROI. The split ratios of PLC splitters is up to 1:64 .In addition,PLC splitters have a variety of form factors and packaging.By package, there are several types, such as bare PLC splitter, blockless PLC splitter, ABS module PLC splitter, LGX splitter PLC, PLC splitter 19-in rack,and universal splitter module (USM). You can read the article “How much do you know about fiber optic splitter?” for more information about optical splitters.
Applications
Applications of 1x8 PLC splliter：
Fiber optical communication system
Fiber optical sensors
CATV System
LAN System
WAN System
Specification

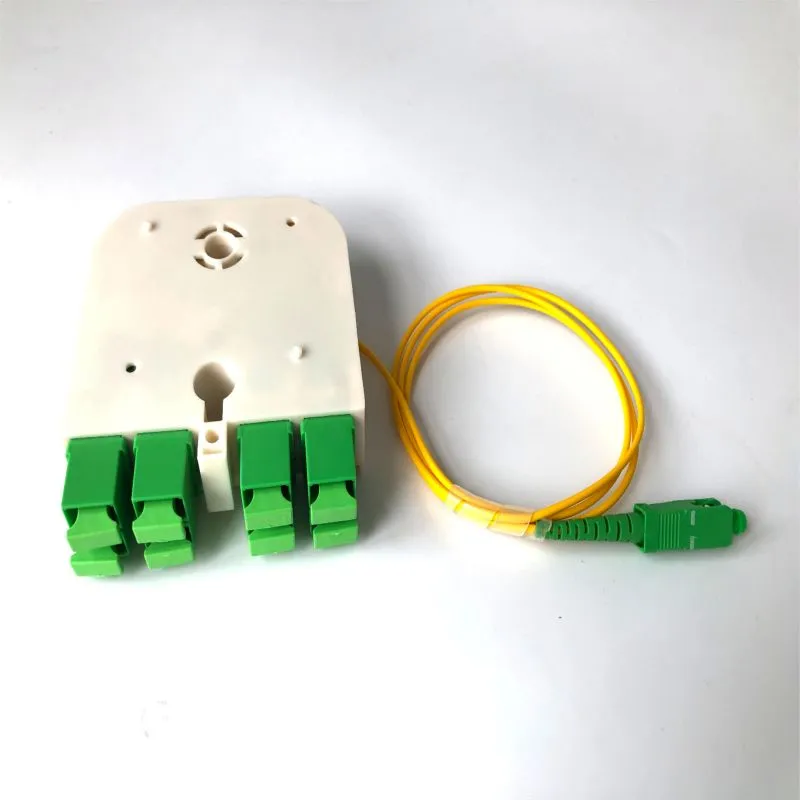

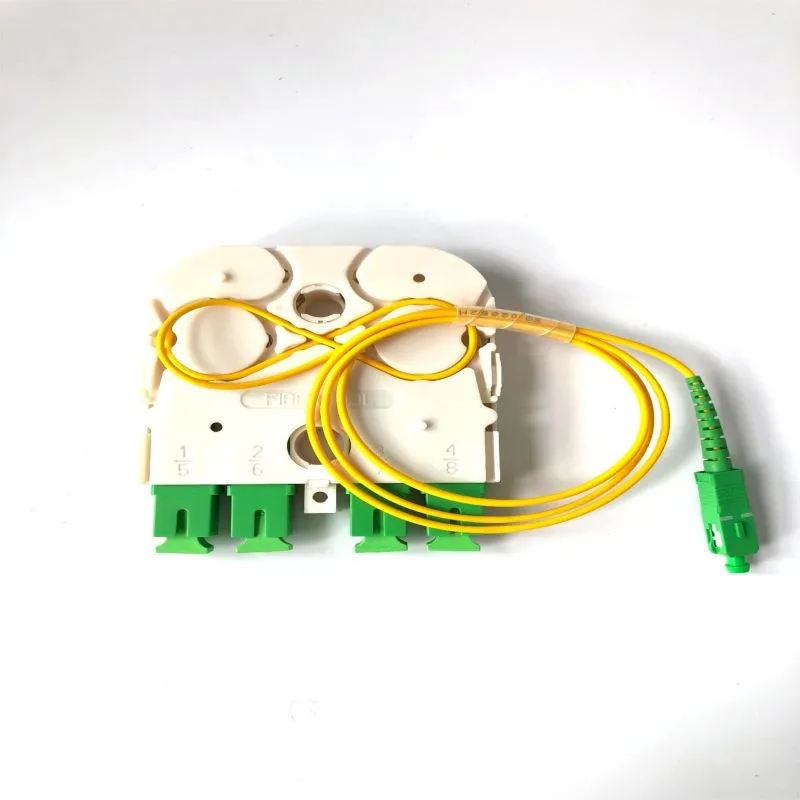

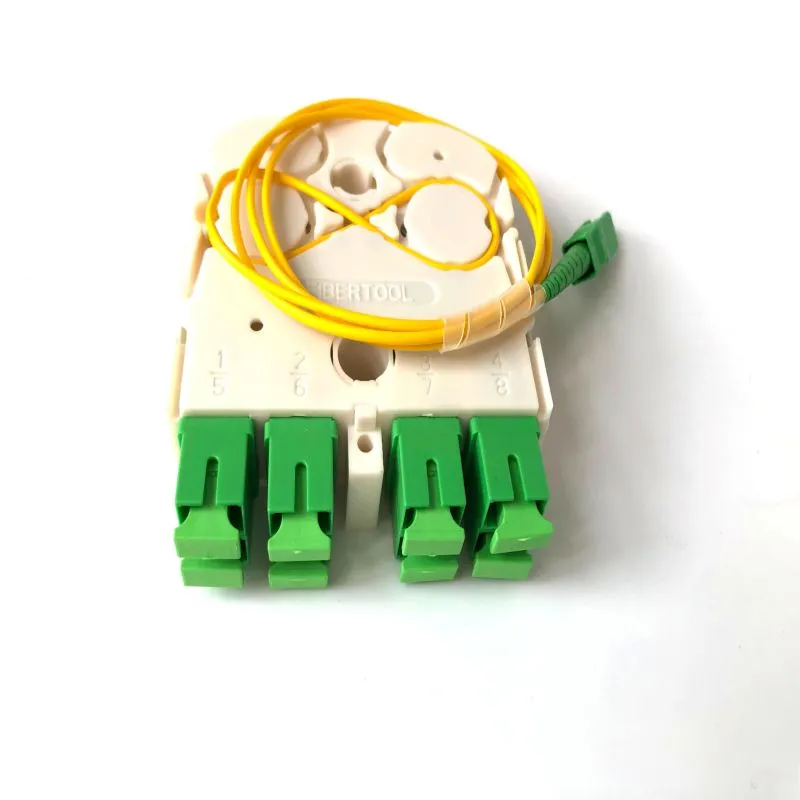

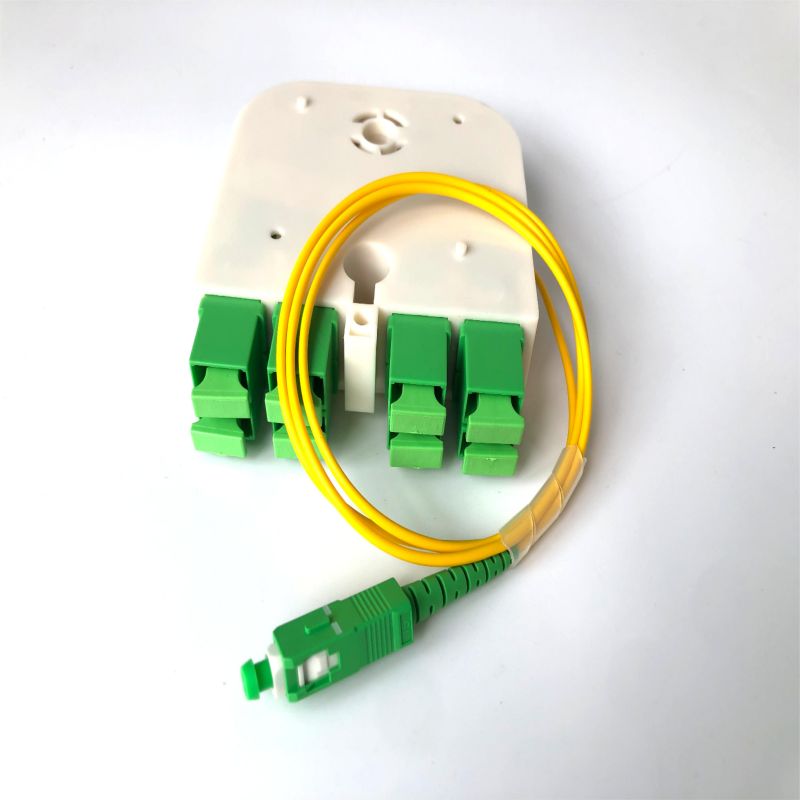

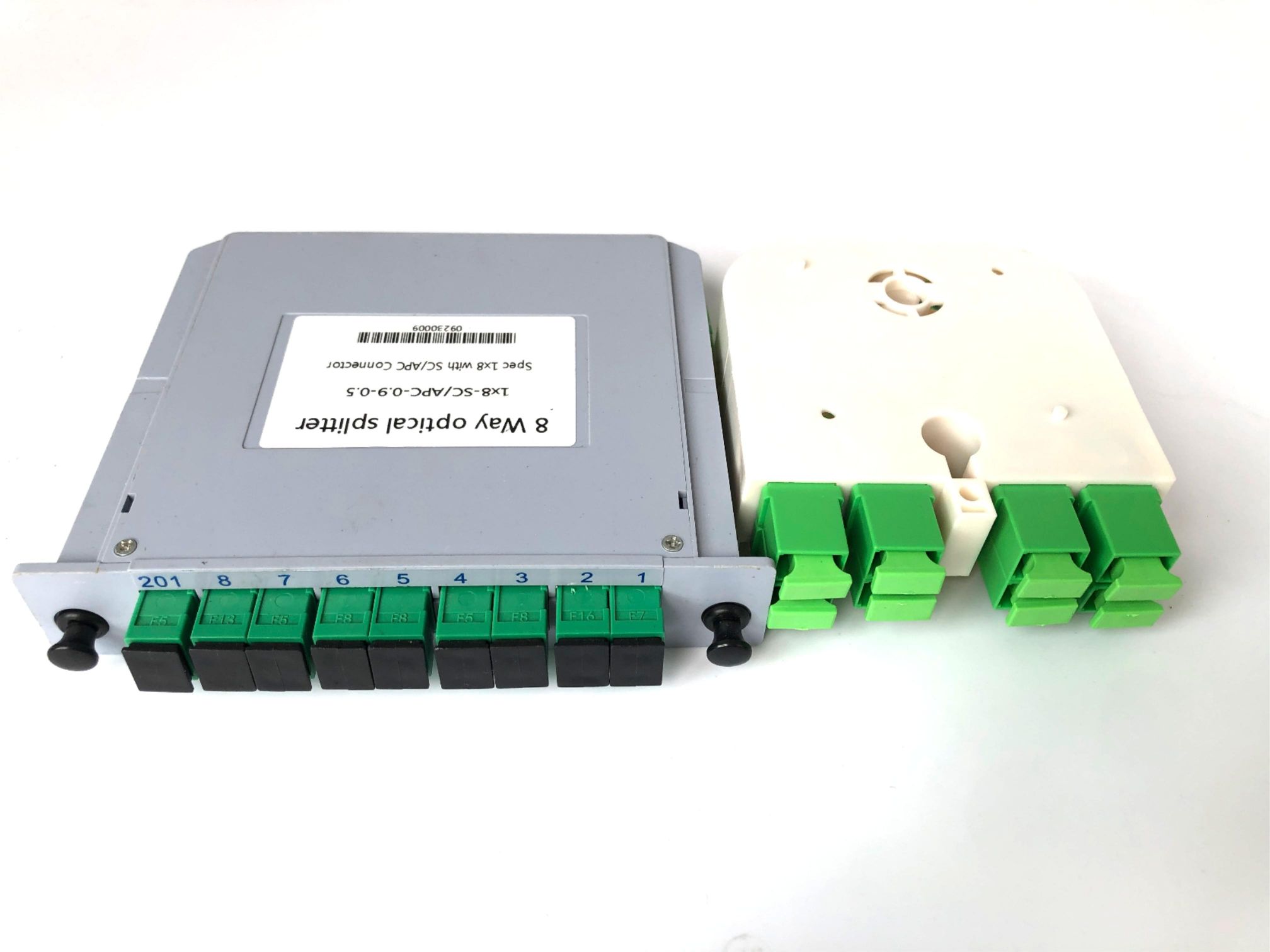

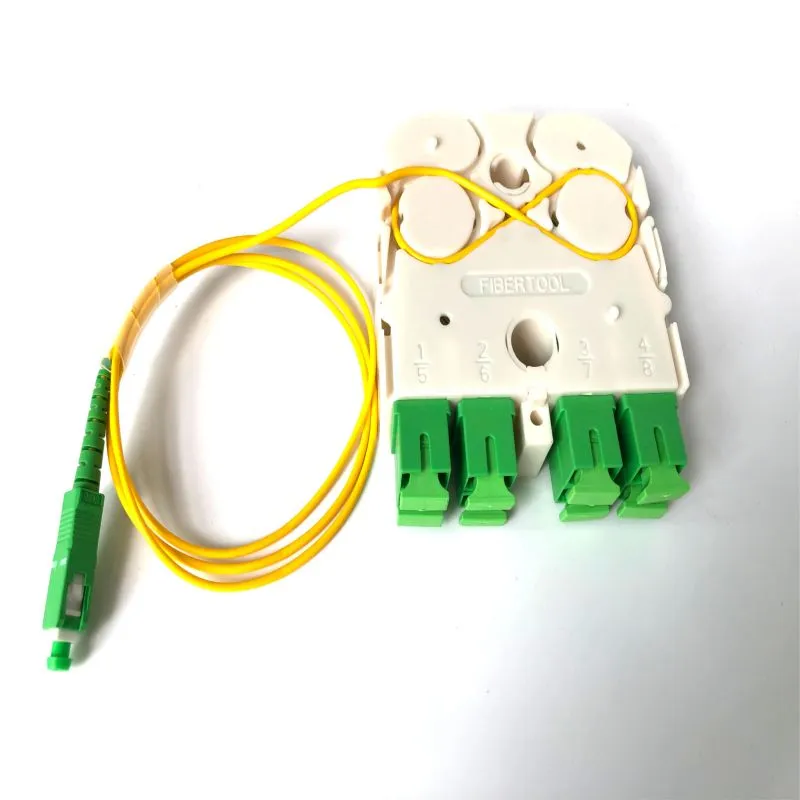

fiber optic splitter LGX PLC 1x8 SC/AP for market Russian
| Package Style | LGX Cassette | Configuration Type | 1x 8 PLC splitter |
| Fiber Type | G.657A1 | Operating Wavelength | 1260~1650nm |
| Connector Type | SC/APC | Fiber Mode | Singlemode |
| Input/Output Fiber Diameter | 3.0mm | Input/Output Fiber Length | 1.5m |
| Insertion Loss | ≤ 10.5dB | Return Loss | 55dB |
| Insertion Loss Uniformity | ≤ 1.5dB | Directivity | ≥ 55dB |
| Wavelength Dependent Loss | ≤ 0.3dB | Polarization Dependent Loss | ≤ 0.3dB |
| Temperature Dependent Loss | <0.5dB | OperatingTemperature | -40 to 85°C |
XI'AN OPT Communication Co.,Ltd is one of the largest and reliable fiber optic splitter manufacturers and suppliers with rich experience in China. OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can customized as your requirement.Also, free sample is also available if necessary.
