FTTH Drop Cable

Optical drop cable FTTH 1 cores G657 2FRP and steel wire 1.0mm,GJYXFCH OPT-FTTHS1-1
Optical-drop-cable-GJYXFCH-01
Optical-drop-cable-GJYXFCH-02

Optical drop cable FTTH 1 cores G657 2FRP and steel wire 1.0mm,GJYXFCH OPT-FTTHS1-1

OPT-GJYXCH  optical cable is used for installation in buildings, attics, and cable ducts. 50 meter optical cable can be laid between buildings and utility poles. Fiber optic cables are widely used in FTTX networks.

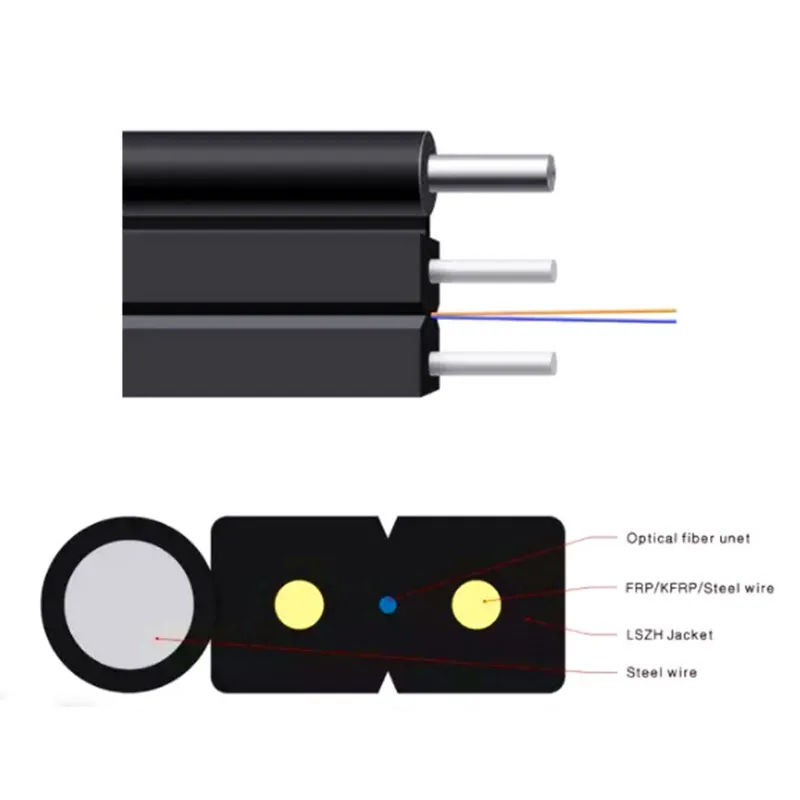

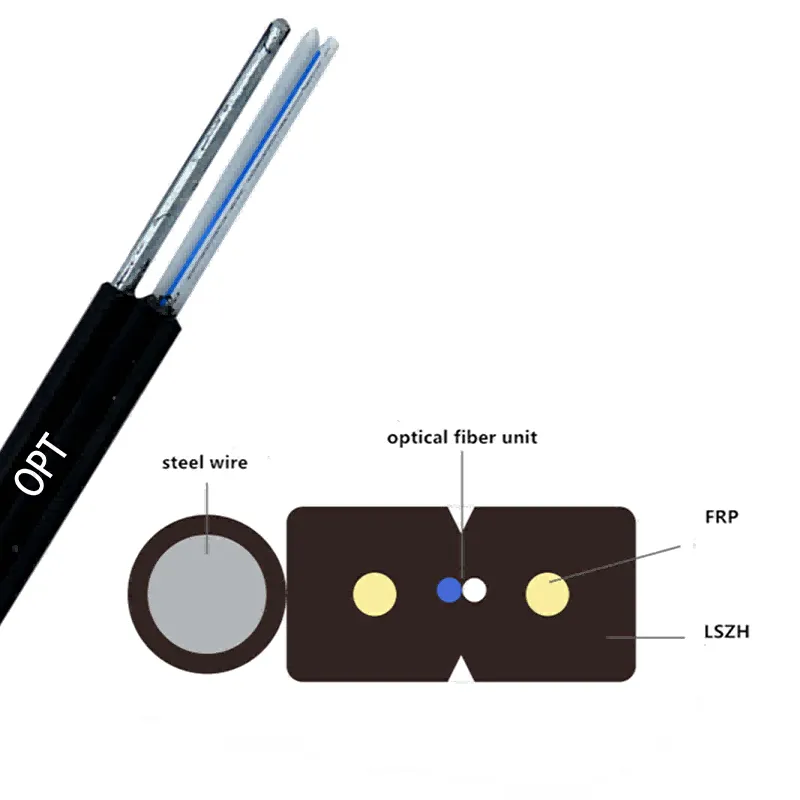

The drop cable includes one G.657 standard. The cable casing is made of halogen-free low smoke material LSZH. Two dielectric power components and a 1.0 millimeter diameter wire provide stability in the longitudinal tension of the cable. Install fiber optic cables that comply with the ITU-T G.657 standard.

Share:

FTTH

Characteristics

Fiber-to-the-home broadband connections promise the next generation in connectivity to consumers.

Technical Parameters

ParameterValue
Power components2 FRP  Ø 0.5 мм
Additional power componentsSteel wire Ø 1.0 мм
Cable Diameter(H*D), мм5.0(±0.2)х2.0(±0.1)
Gross, kg/km17
Max Short term tensile load, N900
Drum cable length (km)1 or 2
Outside JacketLSZH
Max Short compression load, N/100 mm2200
Working temperature, º C-40...+70

XI’AN OPT Communication Co.,Ltd  is one of the largest and reliable  optical cable manufacturers and suppliers with rich experience in China. OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can customized as your requirement.Also, free sample is also available if necessary.
