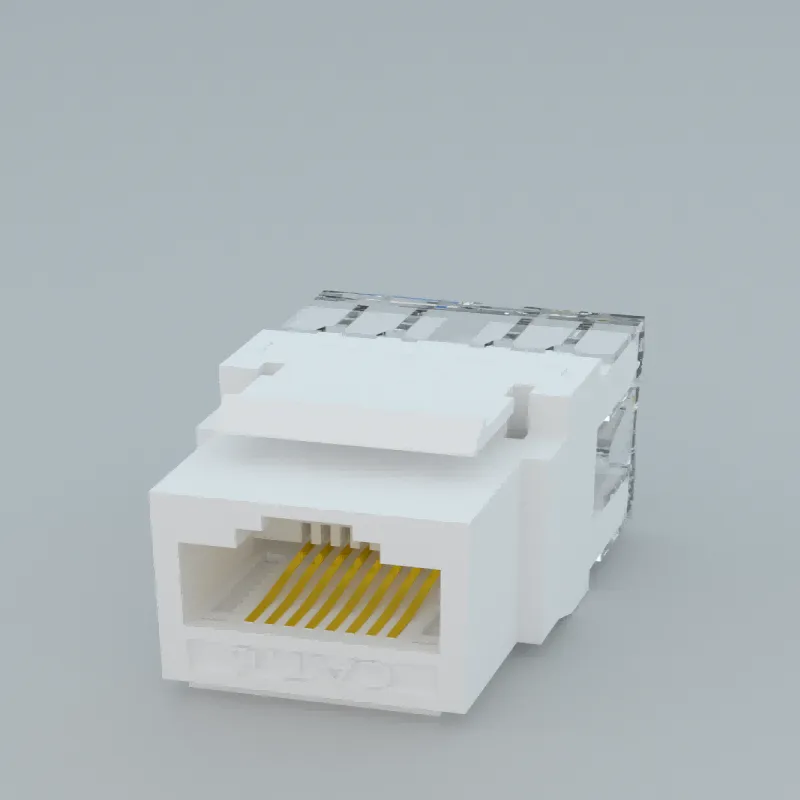

Cat5e UTP RJ45 Punch Down Keystone Jack Module is designed to terminate 4-pair, 23-26 AWG twisted pair cable. Each module is factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as faceplates, modular patch panels and surface mount boxes.
Share:
Support IEEE 802.3af/at/bt, HDBaseT Power Standards, Up To 100w.
Verified IEC 60512-99-001 & IEC60512-99-002 Test.

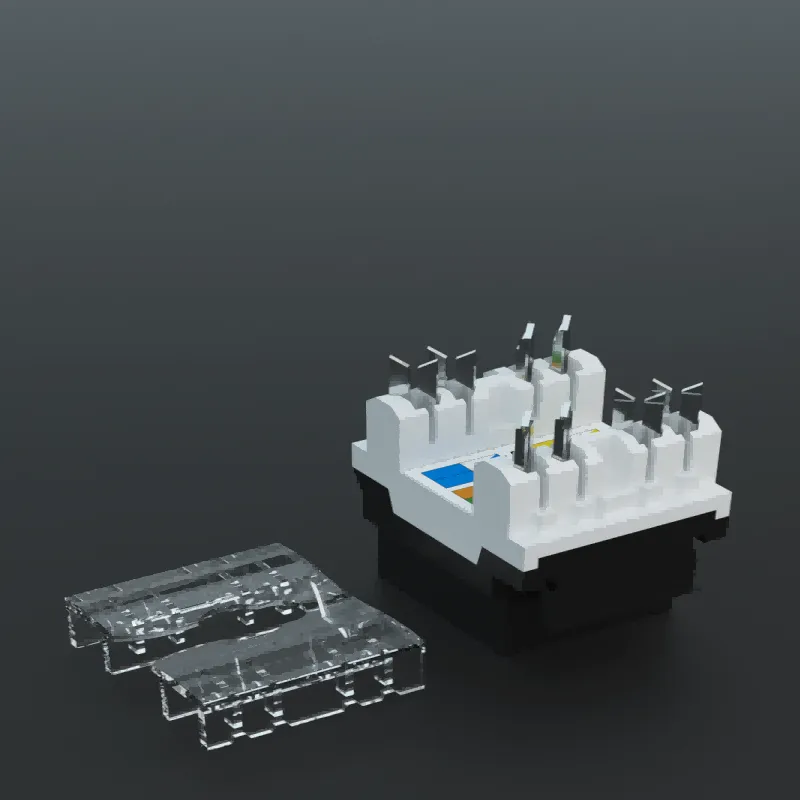

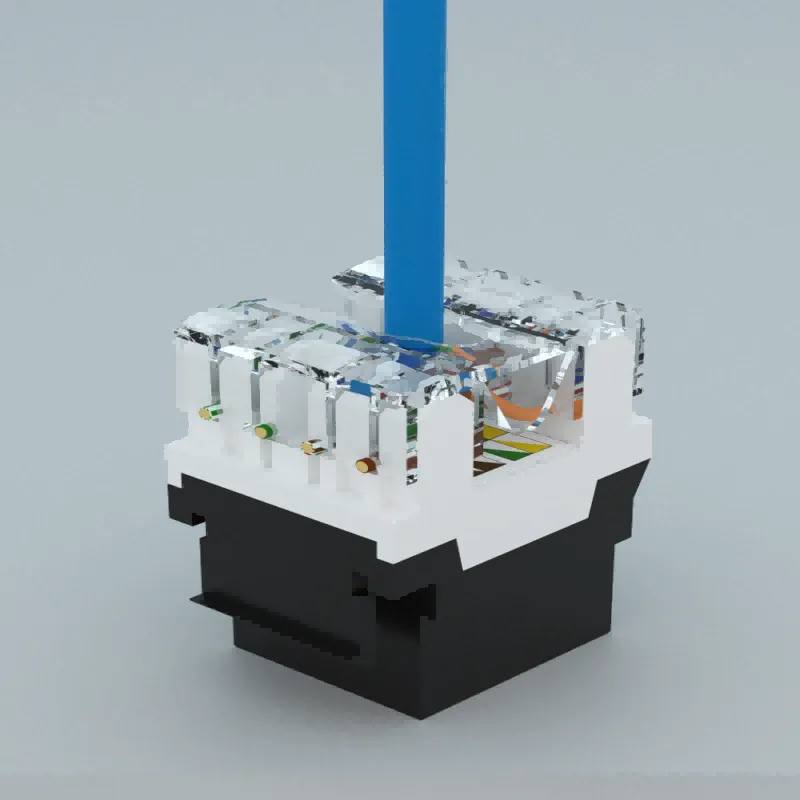

Fast Installation with Special Punch Tool or Crimping Tool.
To Be Used with Keystone Wall Plate or Panel.
Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes.
Meets All TIA CAT6/6A Requirements.
Specifications

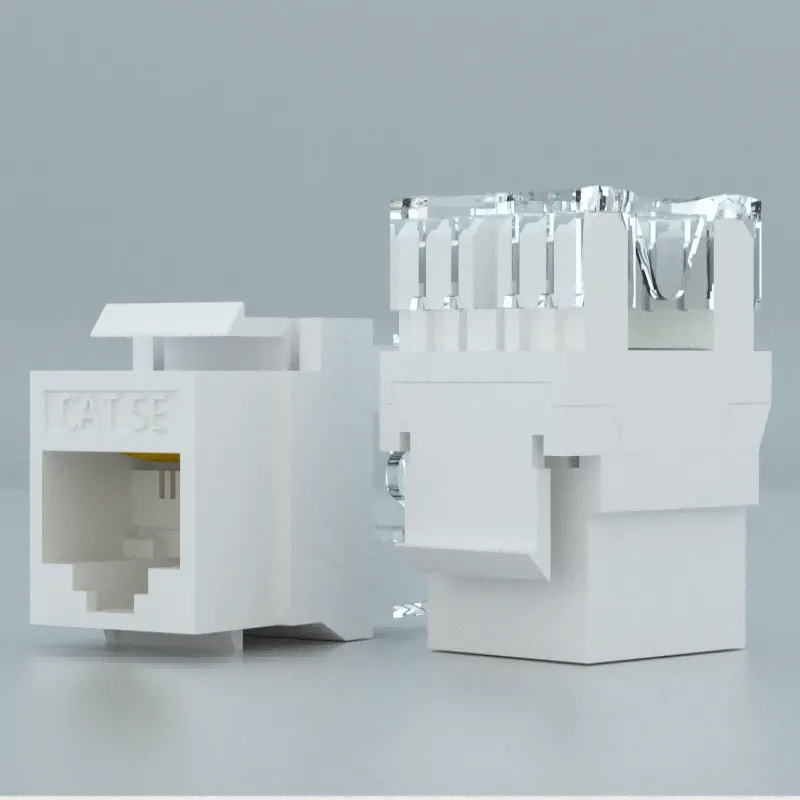

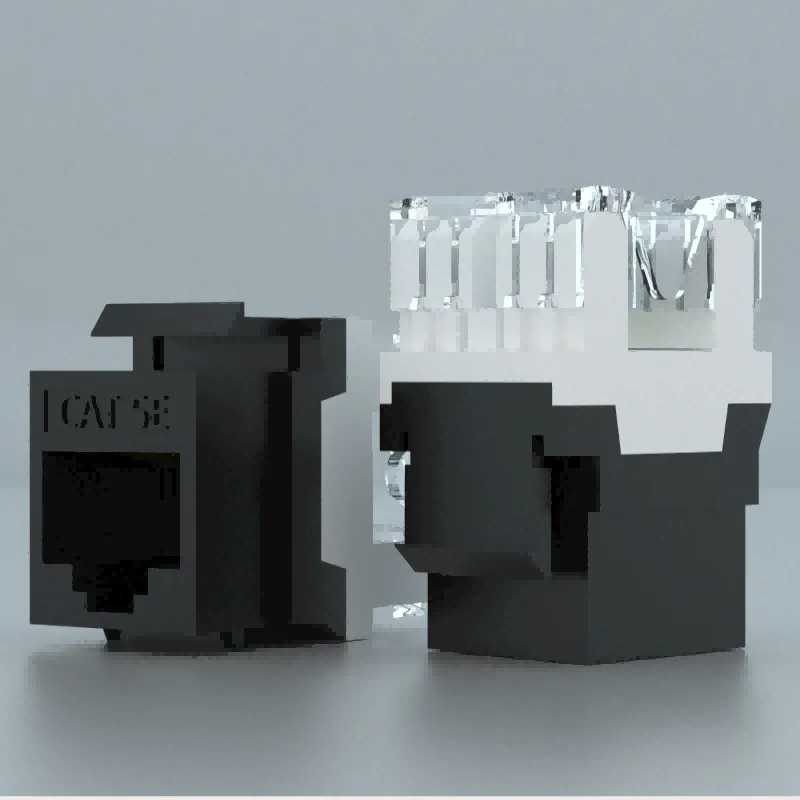

Cat5e (8P8C) 180 degrees unshielded Punch Down Keystone Jack Module,white or black
| Product Type | Cat5e Keystone Jack | Connector | RJ45 Female |
| Termination Type | Punch Down | Conductor Material | Pure copper |
| Shielding Type | Unshielded | Housing Material | ABS |
| Wiring Scheme | T568A/T568B | Wire Gauge Supported | 22-26AWG Cable |
| Plug and unplug times | 1000 | Operating Temperature | -20°C to 75°C |
