The connector provides network connections for Cat5e structured cabling systems and supports high megabit applications and meets channel-rated performance according to TIA Cat5e standards. It also features dual-color-coded labeling made for both 568A and 568B (258A) wiring schemes. Mountable either at 90 degrees (straight) or 45 degrees (angled) in RJ45 wallplate or faceplate.
Share:
Meet ISO/IEC 11801 ClassE and ANSI/TIA-568.2-D Category 5eStandards.
Mountable Either at 90 Degrees (Straight) or 45 Degrees (Angled) in RJ45 Wallplate or Faceplate.

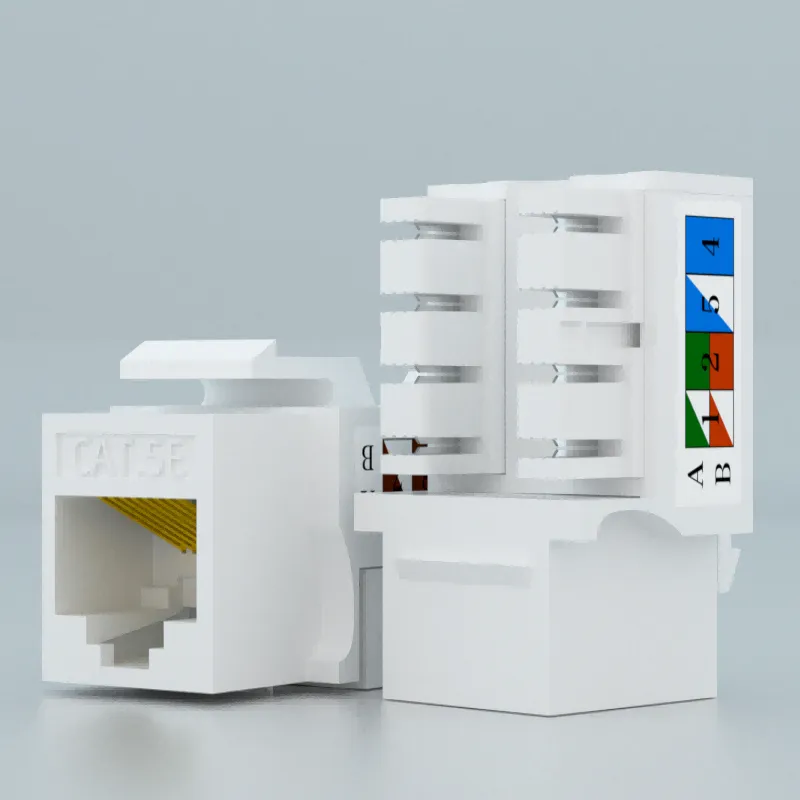

Dual-color Coded Labeling Made for Both 568A & 568B Wiring Schemes.
Compact Casing Fits into Any Conventional Faceplate, Outletbox, or Panel.
Dust Cover Effectively Protects the Crimped Portion of the Wire.
Specifications

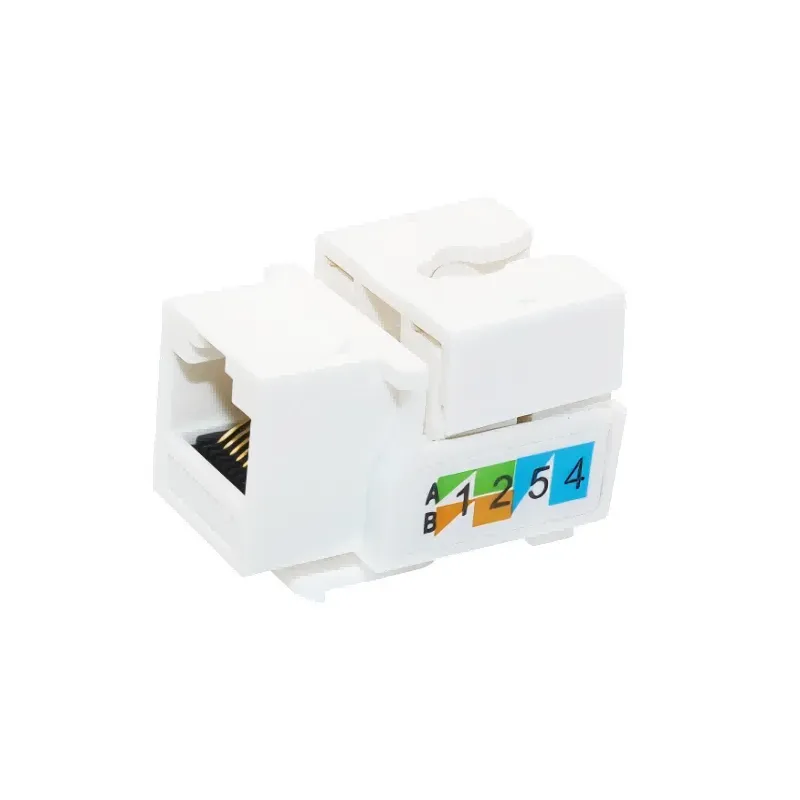

Cat5e (8P8C) 90 degrees unshielded Punch Down Keystone Jack Module,white or black
| Product Type | Cat5e Keystone Jack | Connector | RJ45 Female |
| Termination Type | Punch Down | Conductor Material | Pure copper |
| Shielding Type | Unshielded | Housing Material | ABS |
| Wiring Scheme | T568A/T568B | Wire Gauge Supported | 22-26AWG Cable |
| Plug and unplug times | 1000 | Operating Temperature | -20°C to 75°C |
