Keystone Jack

Cat5e unshielded Toolless Keystone Jack Module, orange or black
Cat5e unshielded Toolless Keystone Jack Module, orange or black
Cat5e unshielded Toolless Keystone Jack Module, orange or black(1)
Cat5e unshielded Toolless Keystone Jack Module, orange or black(2)
Cat5e unshielded Toolless Keystone Jack Module, orange or black(3)

Cat5e unshielded Toolless Keystone Jack Module, orange or black

The Cat5e keystone toolless style connectors make for a simple installation without the need for a punch down tool. Toolless keystone jacks are an ideal solution for terminating and connecting network cable, such as Cat5e premise wiring, the RJ45 keystone jack snaping into wall plates, patch panels and surface-mount boxes.

Share:

  • Support IEEE 802.3af/at/bt, Verified IEC 60512-99-001 & IEC 60512-99-002 Test.

  • Fast Installation without Any Special Punch Tool or Crimping Tool.

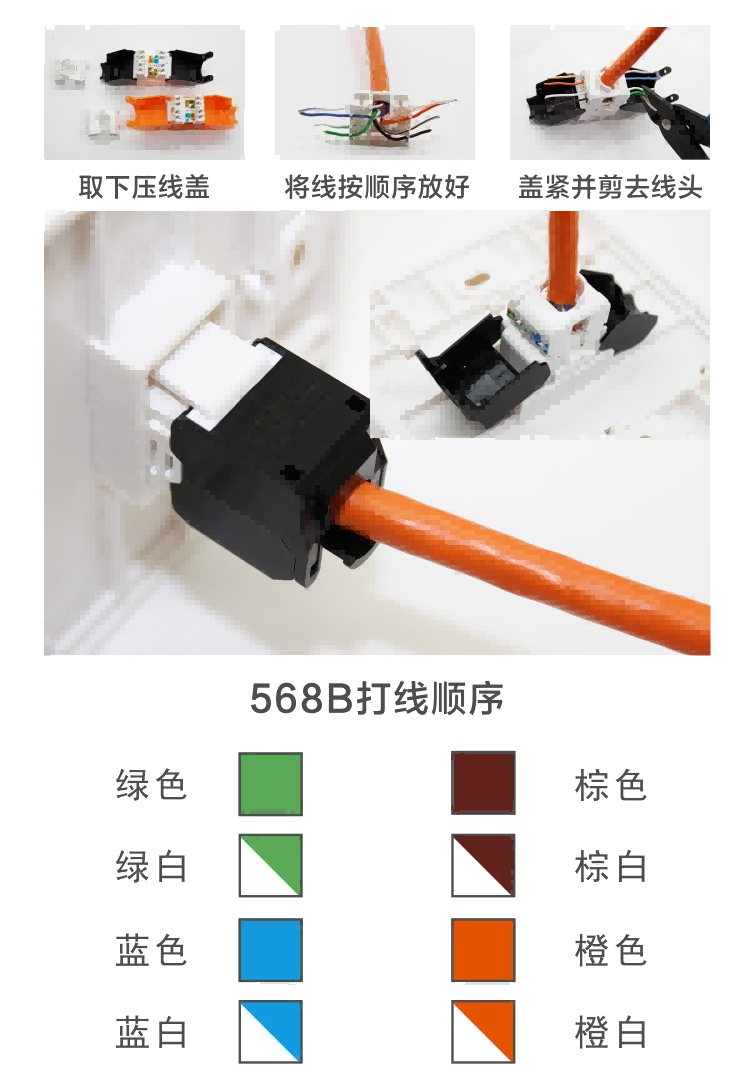

  • Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes.

  • Gold-plated RJ45 Contacts for Optimal Conductivity.

  • To Be Used with Keystone Wall Plate or Panel.

Cat5e unshielded Toolless Keystone Jack Module, orange or black

Specifications

Cat5e unshielded Toolless Keystone Jack Module, orange black

Product TypeCat5e Keystone JackColororange or black
ConnectorRJ45 FemaleTermination StyleToolless
Conductor TypeSolid/StrandedTermination TypeIDC
Shielding TypeUnshieldedData Rate Support1000 Mbps
Wire Gauge Supported22-26AWG CableWiring SchemeT568A/T568B
Transmission StandardsANSI/TIA 568-C.2, ISO/IEC 11801Flammability RatingUL 94 V-0
Housing Material PC or ABSPlug and unplug times1000
Operating Temperature-20°C to 75°CContact Plating Thickness3 Microinches
