Keystone Jack

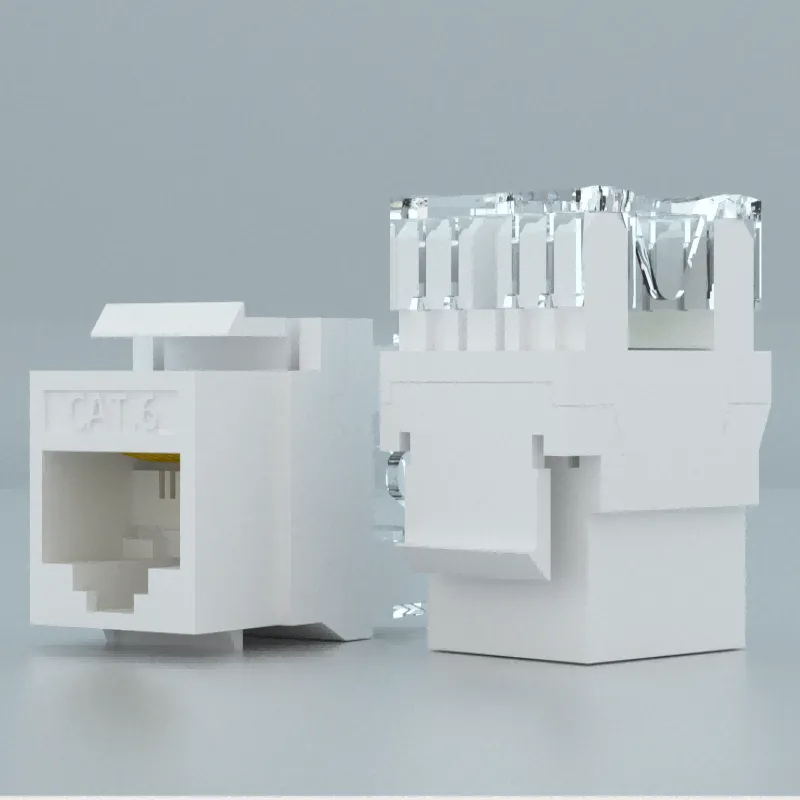

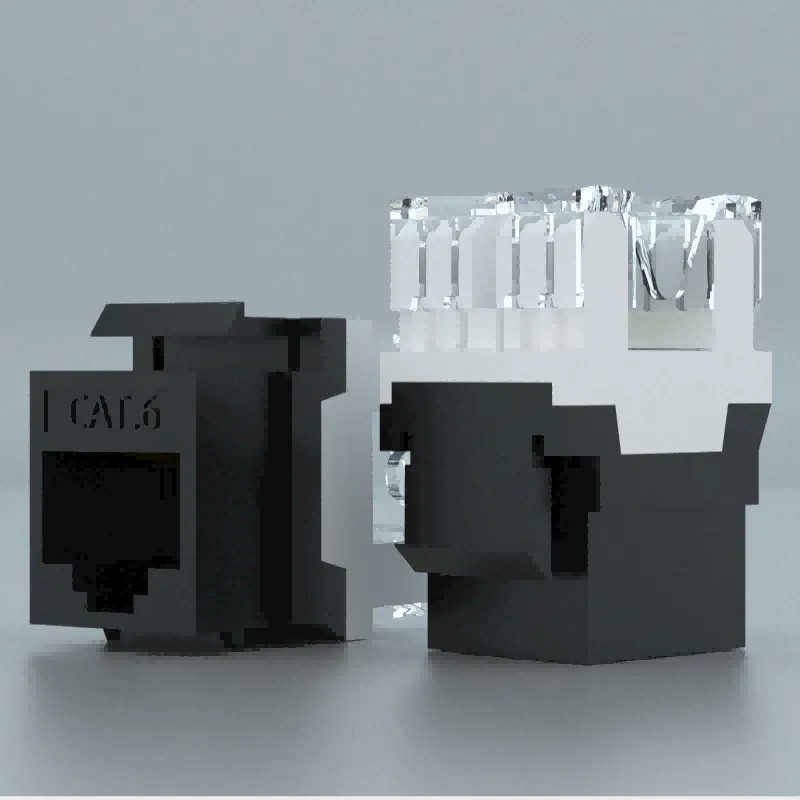

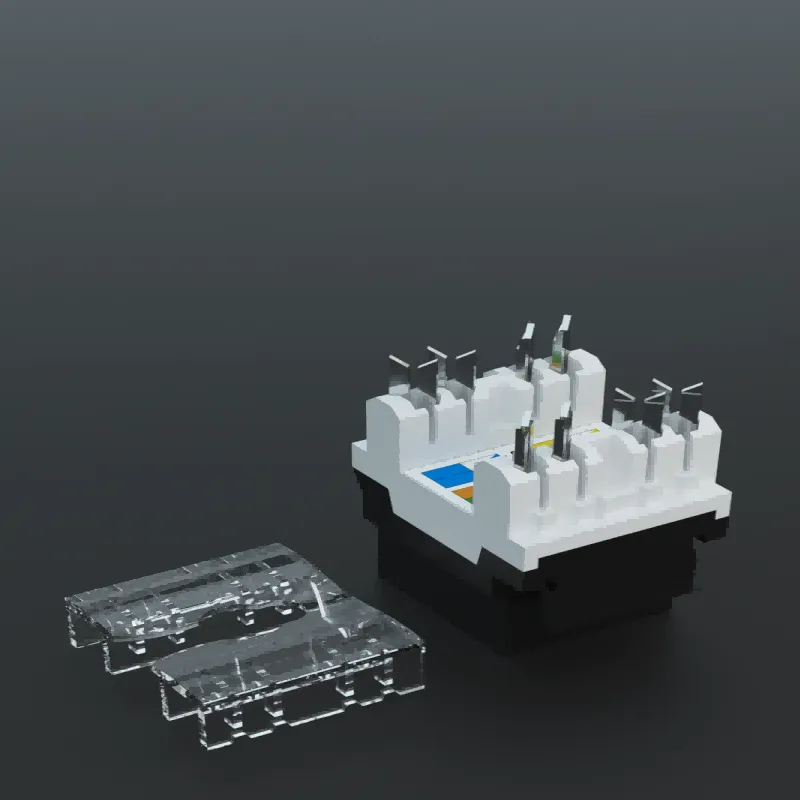

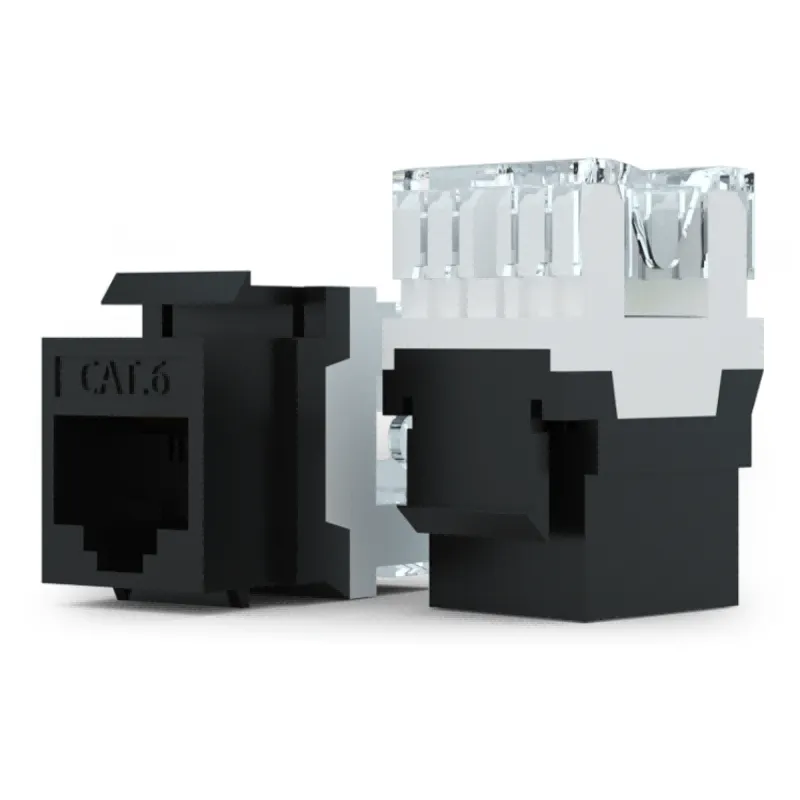

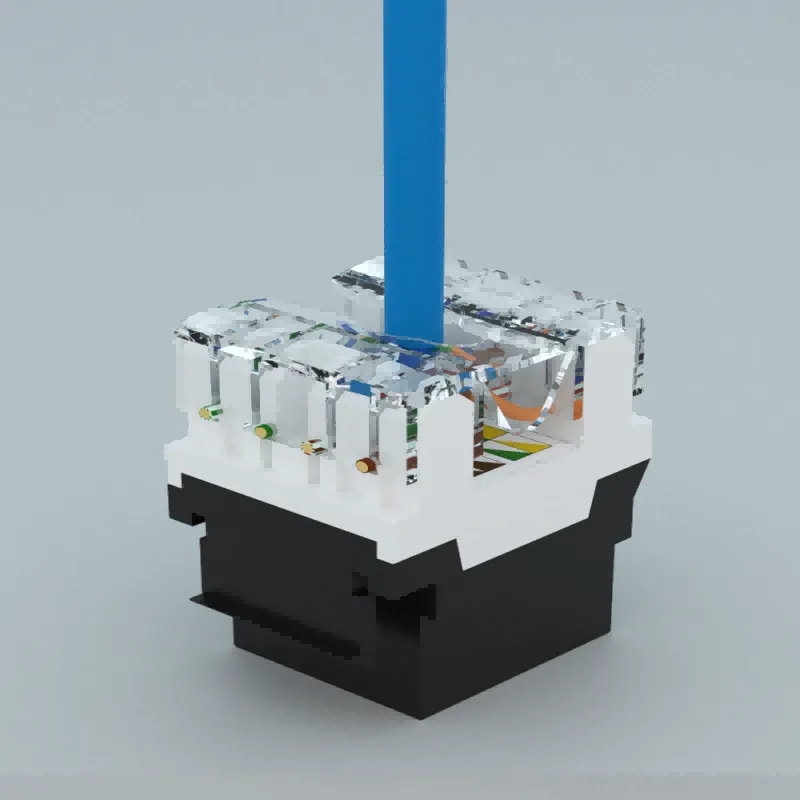

Cat6 RJ45 (8P8C) 180 degrees unshielded Punch Down Keystone Jack Module,white or black
Cat6 RJ45 (8P8C) 180 degrees unshielded Punch Down Keystone Jack Module,white or black-03
Cat6 RJ45 (8P8C) 180 degrees unshielded Punch Down Keystone Jack Module,white or black-02
Cat6 RJ45 (8P8C) 180 degrees unshielded Punch Down Keystone Jack Module,white or black-04
Cat6 RJ45 (8P8C) 180 degrees unshielded Punch Down Keystone Jack Module,white or black
Cat6 RJ45 (8P8C) 180 degrees unshielded Punch Down Keystone Jack Module,white or black-01

Cat6 RJ45 (8P8C) 180 degrees unshielded Punch Down Keystone Jack Module,white or black

Cat6 UTP RJ45 Punch Down Keystone Jack Module is designed to terminate 4-pair, 23-26 AWG twisted pair cable. Each module is factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as faceplates, modular patch panels and surface mount boxes.

Share:

  • Support IEEE 802.3af/at/bt, HDBaseT Power Standards, Up To 100w.

  • Verified IEC 60512-99-001 & IEC60512-99-002 Test.

  • Fast Installation with Special Punch Tool or Crimping Tool.

  • To Be Used with Keystone Wall Plate or Panel.

  • Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes.

  • Meets All TIA CAT6/6A Requirements.

Specifications

Cat6 (8P8C) 180 degrees unshielded Punch Down Keystone Jack Module,white or black

Product TypeCat6 Keystone JackConnectorRJ45 Female
Termination TypePunch DownConductor MaterialPure copper
Shielding TypeUnshieldedHousing MaterialABS
Wiring SchemeT568A/T568BWire Gauge Supported22-26AWG Cable
Plug and unplug times1000Operating Temperature-20°C to 75°C
