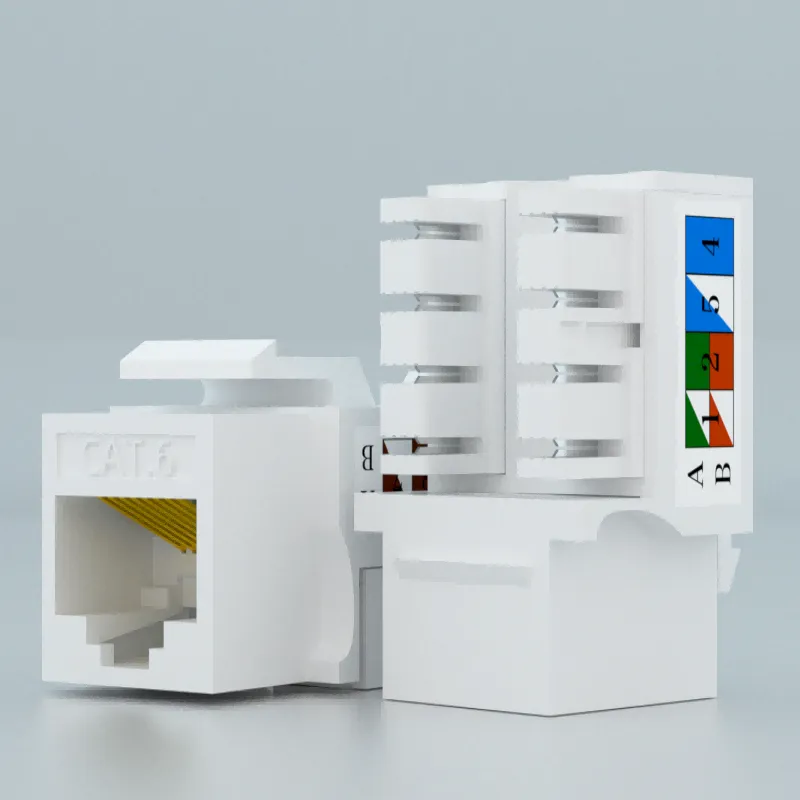

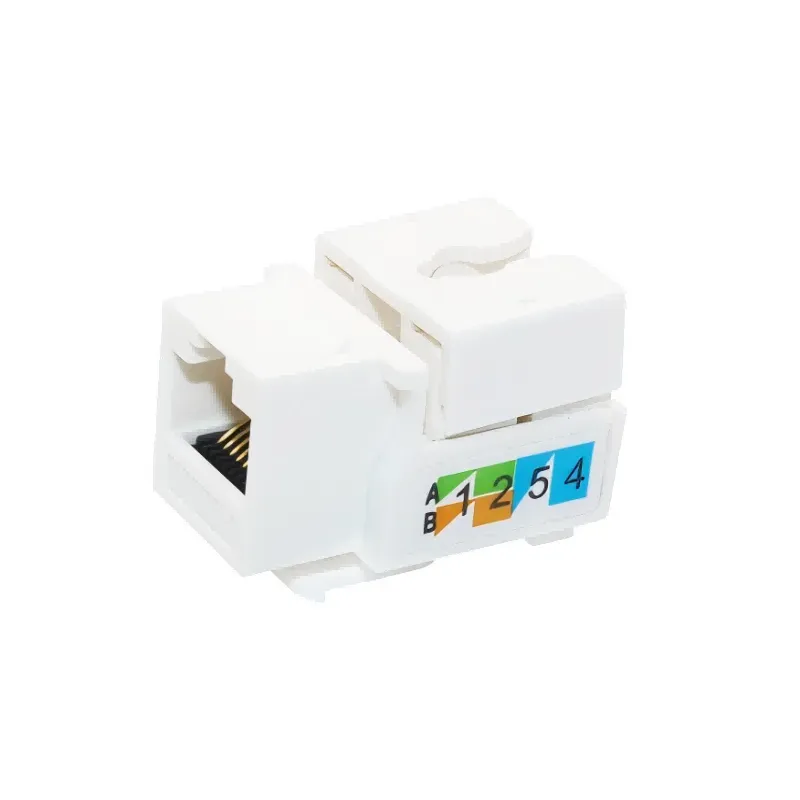

Cat6 (8P8C) 90 degrees unshielded Punch Down Keystone Jack Module,white or black
Cat6 (8P8C) 90 degrees unshielded Punch Down Keystone Jack Module,white or black
Cat6 (8P8C) 90 degrees unshielded Punch Down Keystone Jack Module,white or black-01
Cat6 (8P8C) 90 degrees unshielded Punch Down Keystone Jack Module,white or black-02

Cat6 (8P8C) 90 degrees unshielded Punch Down Keystone Jack Module,white or black

The connector provides network connections for Cat6 structured cabling systems and supports high megabit applications and meets channel-rated performance according to TIA Cat6 standards. It also features dual-color-coded labeling made for both 568A and 568B (258A) wiring schemes. Mountable either at 90 degrees (straight) or 45 degrees (angled) in RJ45 wallplate or faceplate.

Share:

  • Meet ISO/IEC 11801 ClassE and ANSI/TIA-568.2-D Category 6 standards.

  • Mountable Either at 90 Degrees (Straight) or 45 Degrees (Angled) in RJ45 Wallplate or Faceplate.

  • Dual-color Coded Labeling Made for Both 568A & 568B Wiring Schemes.

  • Compact Casing Fits into Any Conventional Faceplate, Outletbox, or Panel.

  • Dust Cover Effectively Protects the Crimped Portion of the Wire.


Specifications

Cat6 (8P8C) 90 degrees unshielded Punch Down Keystone Jack Module,white or black

Product TypeCat6 Keystone JackConnectorRJ45 Female
Termination TypePunch DownConductor MaterialPure copper
Shielding TypeUnshieldedHousing MaterialABS
Wiring SchemeT568A/T568BWire Gauge Supported22-26AWG Cable
Plug and unplug times1000Operating Temperature-20°C to 75°C
