The Cat6a keystone toolless style connectors make for a simple installation without the need for a punch down tool. Toolless keystone jacks are an ideal solution for terminating and connecting network cable, such as Cat6a premise wiring, the RJ45 keystone jack snaping into wall plates, patch panels and surface-mount boxes.
Share:
Support IEEE 802.3af/at/bt, Verified IEC 60512-99-001 & IEC 60512-99-002 Test.
Fast Installation without Any Special Punch Tool or Crimping Tool.
Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes.
Gold-plated RJ45 Contacts for Optimal Conductivity.
To Be Used with Keystone Wall Plate or Panel.
Specifications

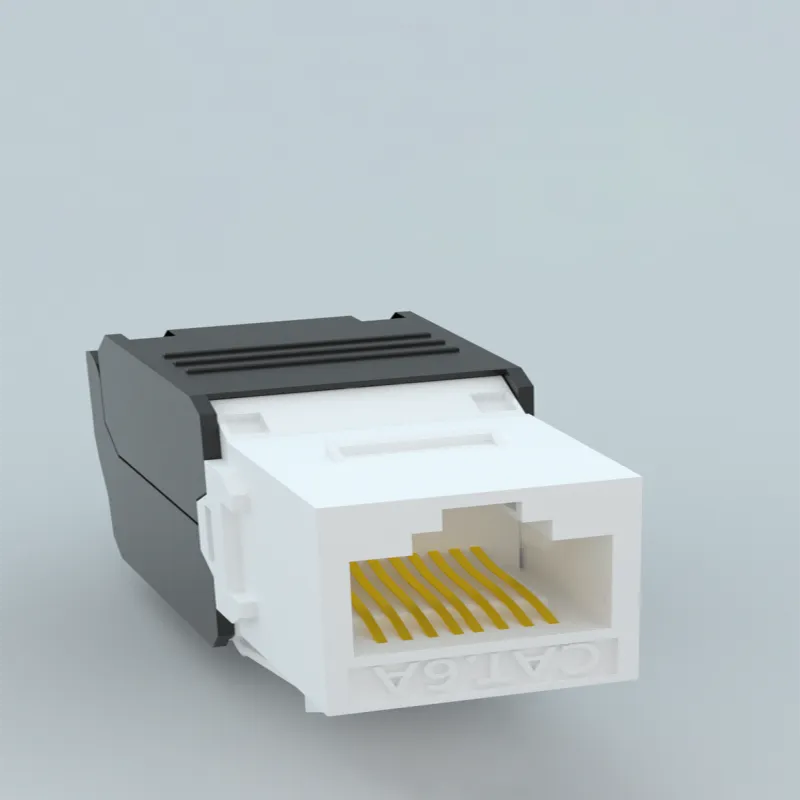

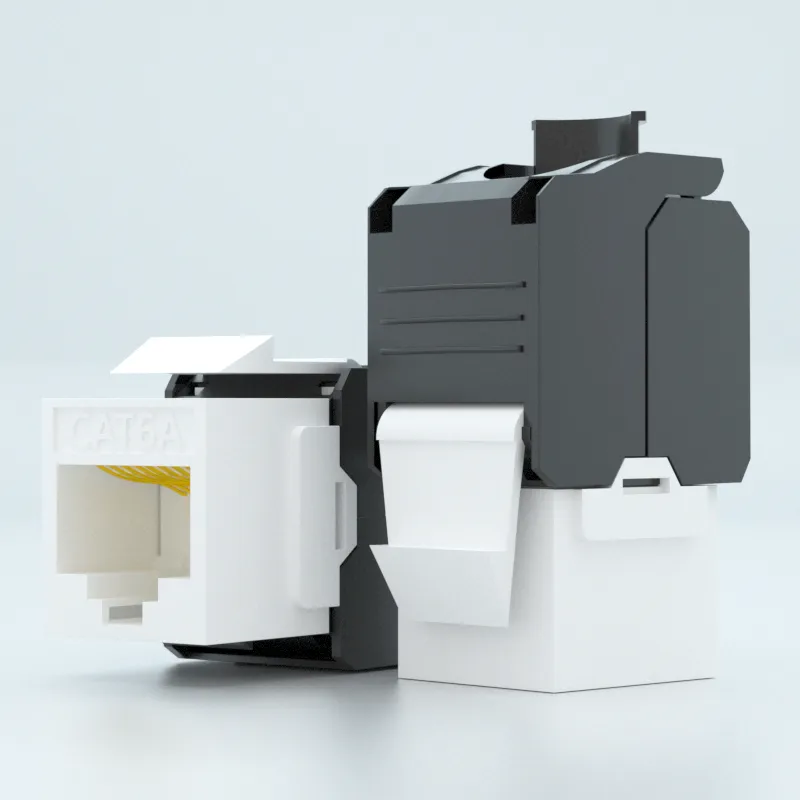

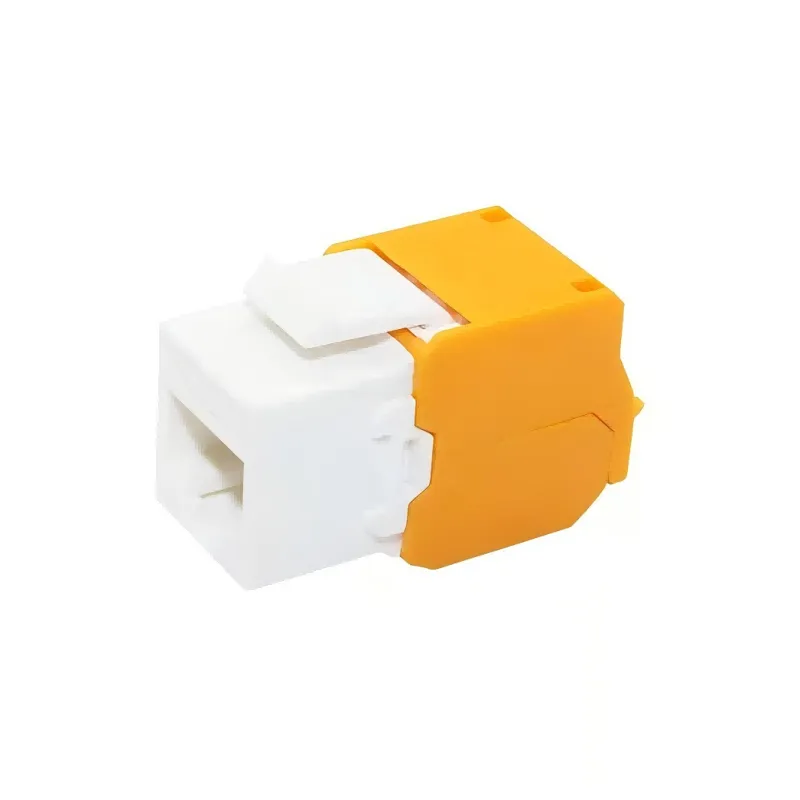

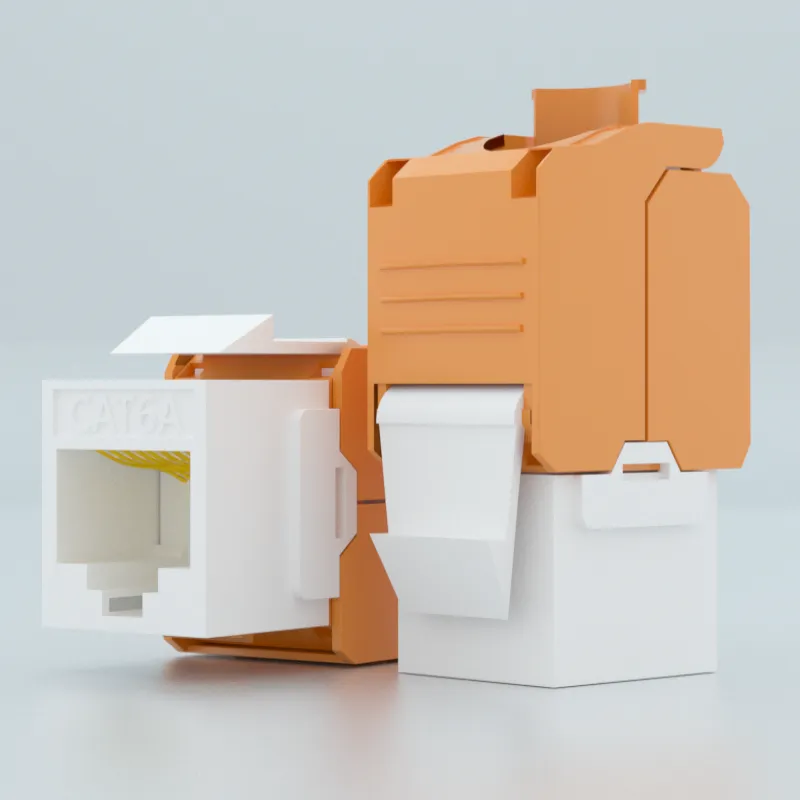

Cat6a unshielded Toolless Keystone Jack Module, orange black
| Product Type | Cat6a Keystone Jack | Color | orange or black |
| Connector | RJ45 Female | Termination Style | Toolless |
| Conductor Type | Solid/Stranded | Termination Type | IDC |
| Shielding Type | Unshielded | Data Rate Support | 1000 Mbps |
| Wire Gauge Supported | 22-26AWG Cable | Wiring Scheme | T568A/T568B |
| Transmission Standards | ANSI/TIA 568-C.2, ISO/IEC 11801 | Flammability Rating | UL 94 V-0 |
| Housing Material | PC or ABS | Plug and unplug times | 1000 |
| Operating Temperature | -20°C to 75°C | Contact Plating Thickness | 3 Microinches |
