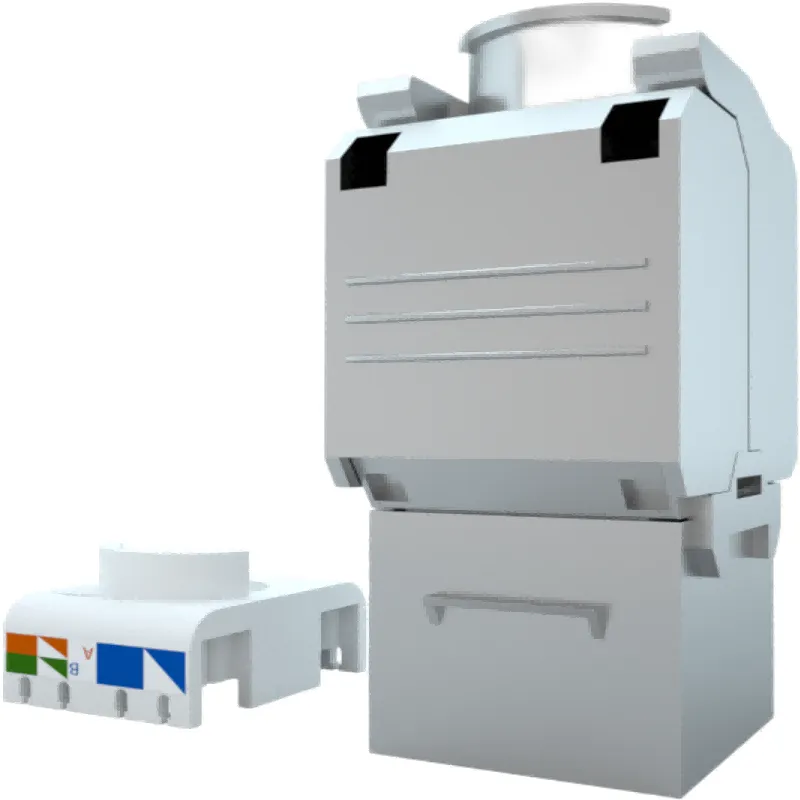

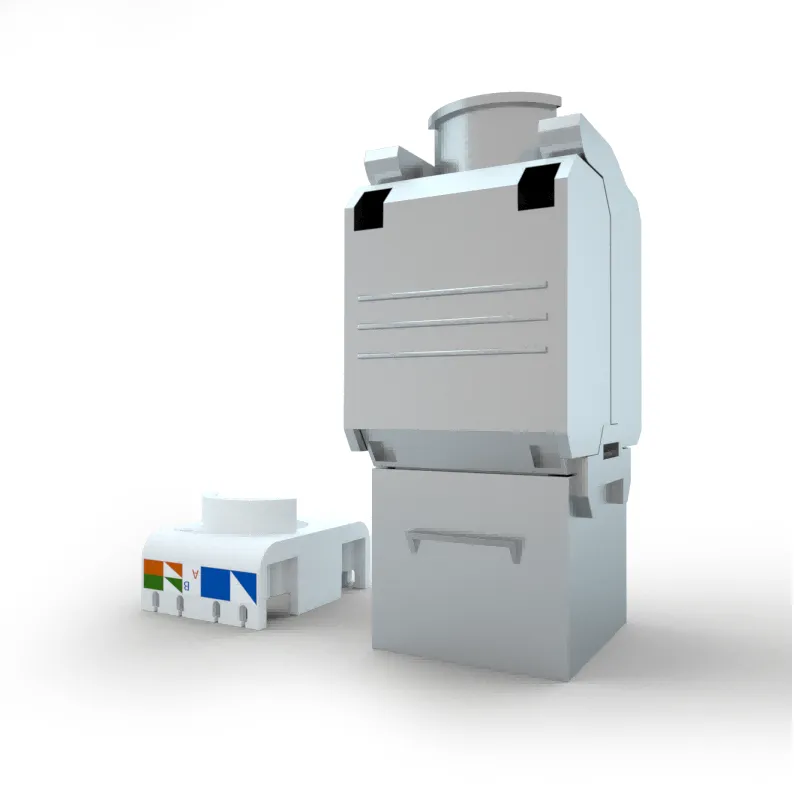

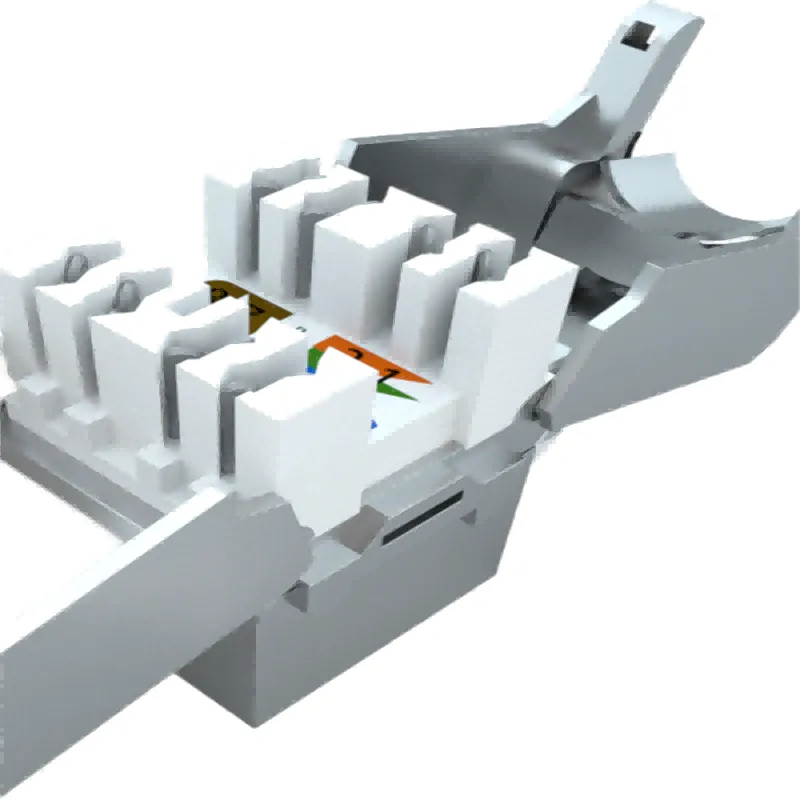

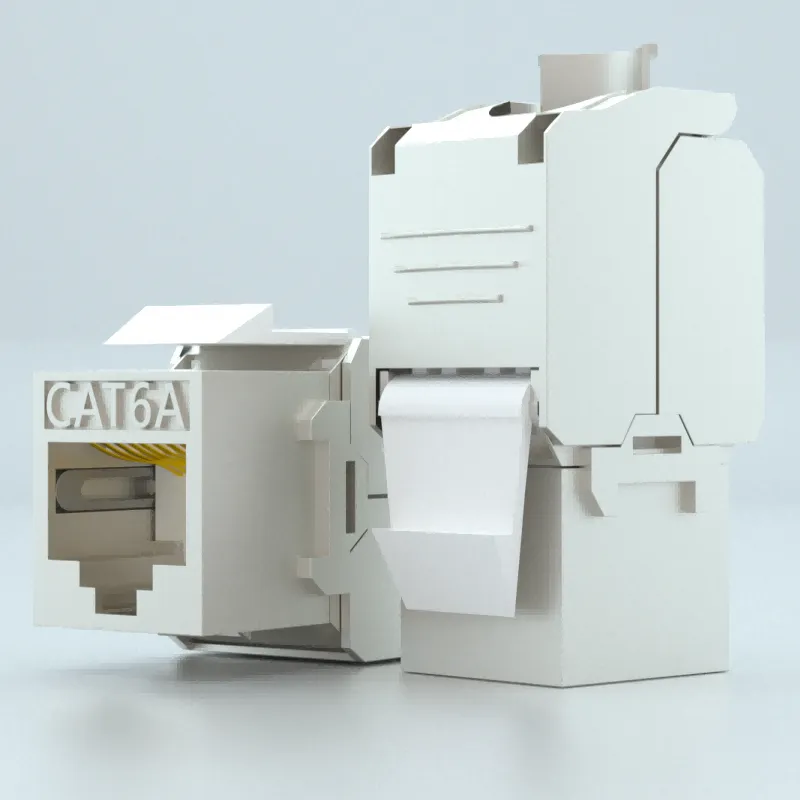

Cat6a STP RJ45 Toolless Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable with convenient wire separation for easy installation. Each module is factory tested to exceed industry standard performance requirements and support IEEE 802.3af/at/bt. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized and are compatible with keystone interfaces such as faceplates, modular patch panels and surface mount boxes. The metal keystone jacks are designed for gigabit and 10G copper Ethernet network applications such as enterprise office, home decoration, data center, intelligent park and other types of environment network cabling project, eliminating EMI and crosstalk to ensure peak performance and data integrity.
Share:
Verified IEC 60512-9-3 & IEC 60512-99-002 Test.
The Shielded Keystone Jack, Against EMI/RFI, NEXT, and AXT.
Fast Installation Without Any Special Punch Tool or Crimping Tool.
Dual-color-coded Labeling for 568A/B Wiring Schemes.
24K 50μ”Gold-plated RJ45 Contacts for Optimal Conductivity.
Specifications
Cat 6a RJ45 (8P8C) 180 degrees Shielded Toolless Keystone Jack
| Product Type | Cat6a Keystone Jack | Color | Metal silver |
| Connector | RJ45 Female | Termination Style | Toolless |
| Conductor Type | Solid/Stranded | Termination Type | IDC |
| Shielding Type | Shielded | Data Rate Support | 10G |
| Wire Gauge Supported | 22-26AWG Cable | Wiring Scheme | T568A/T568B |
| Transmission Standards | ANSI/TIA 568-C.2, ISO/IEC 11801 | Flammability Rating | UL 94 V-0 |
| Housing Material | Zinc Alloy, PC | Plug and unplug times | 1000 |
| Operating Temperature | -20°C to 75°C | Contact Plating Thickness | 50 Microinches |
