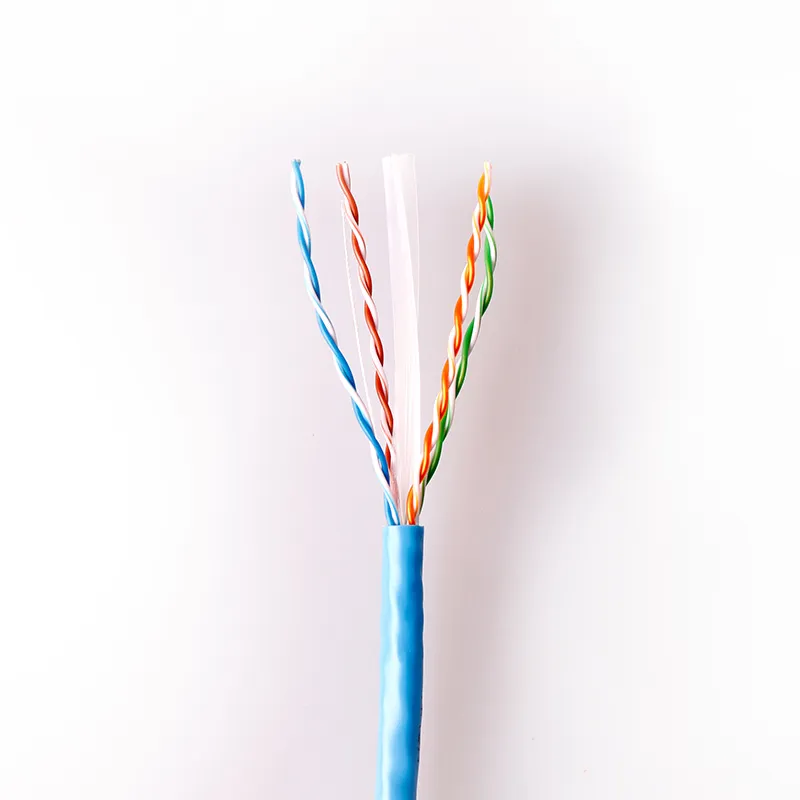

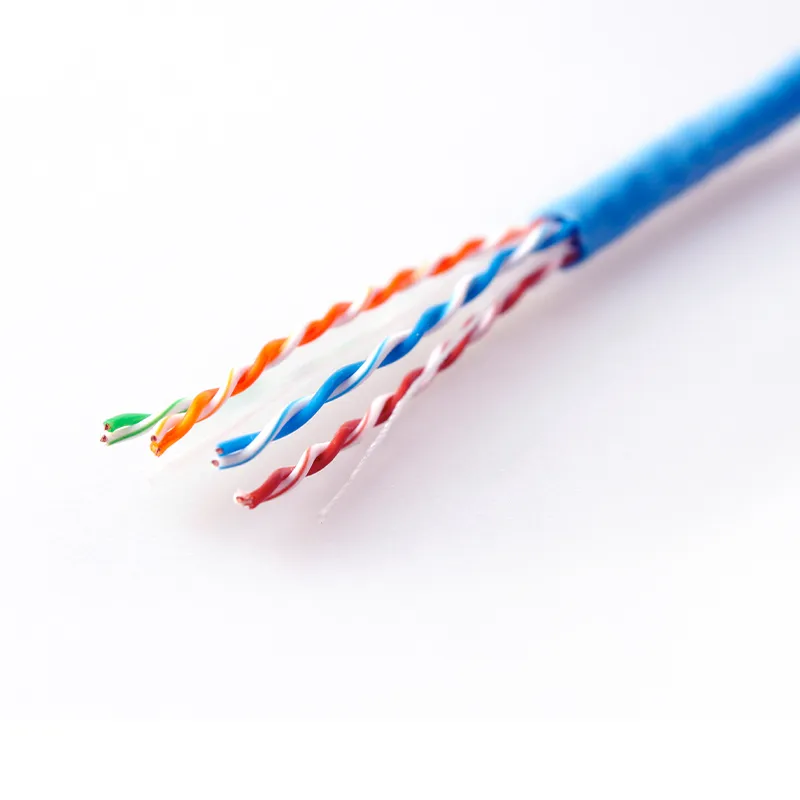

U/UTP CAT 5E PVC 4x2 AWG24 indoor cable is used to organize cable sections at data transmission speeds of up to 1Gbit/s. The UTP cable is composed of 4 pairs of copper twisted wires with a diameter of 0.51 mm and adopts a Class 5E unshielded design for indoor installation.
Share:
U/UTP CAT 5E PVC 4x2 AWG24 indoor cable is used to organize cable sections at data transmission speeds of up to 1Gbit/s. The UTP cable is composed of 4 pairs of copper twisted wires with a diameter of 0.51 mm and adopts a Class 5E unshielded design for indoor installation.
Specification
Parameter | Value |
Type | UTP |
Qty pair | 4 |
Packaging quantity, m | 305 |
Maximum tensile force, kN | 0.05 |
Bandwidth, MHz | До 100 |
Conductor material | 100% new oxygen free copper |
Conductor diameter, mm | 0.51 |
Outer diameter, mm | 5.0 |
Packaging size, cm | 46*38*38 |
Mass, kg/Packaging | 20 |
Shell material | PVC |
Installation type | Indoor |
Test Fluke | Yes |
XI’AN OPT Communication Co.,Ltd is one of the largest and reliable manufacturers and suppliers of copper system with rich experience in China. OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can customized as your requirement.Also, free sample is also available if necessary.
