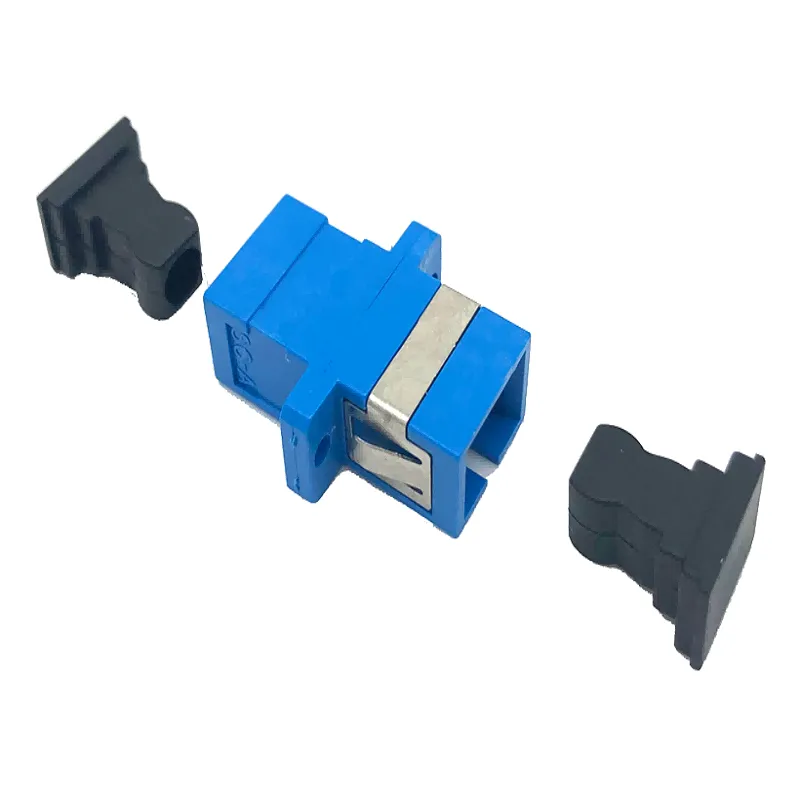

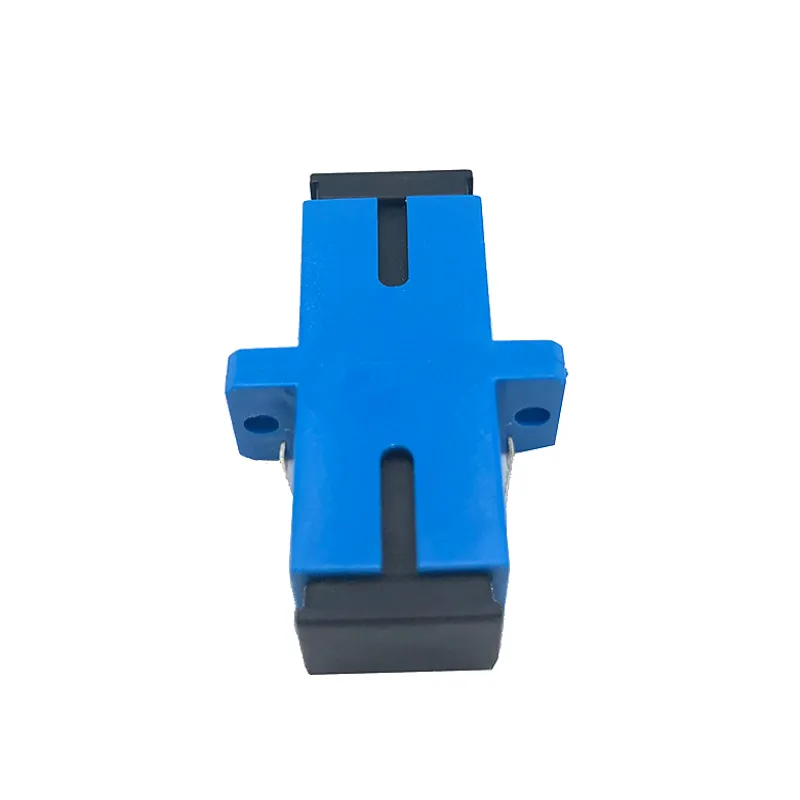

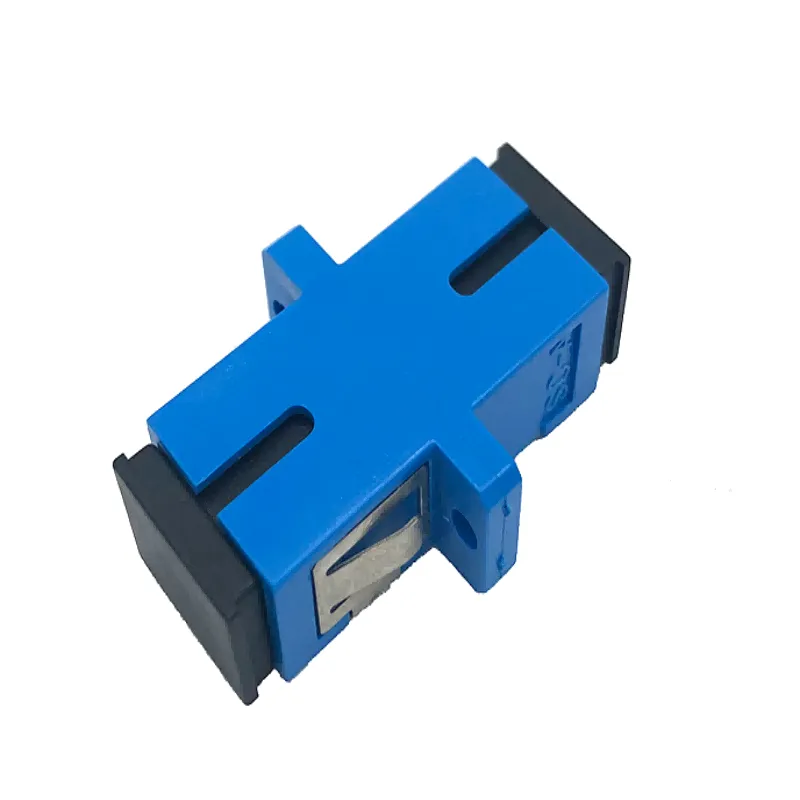

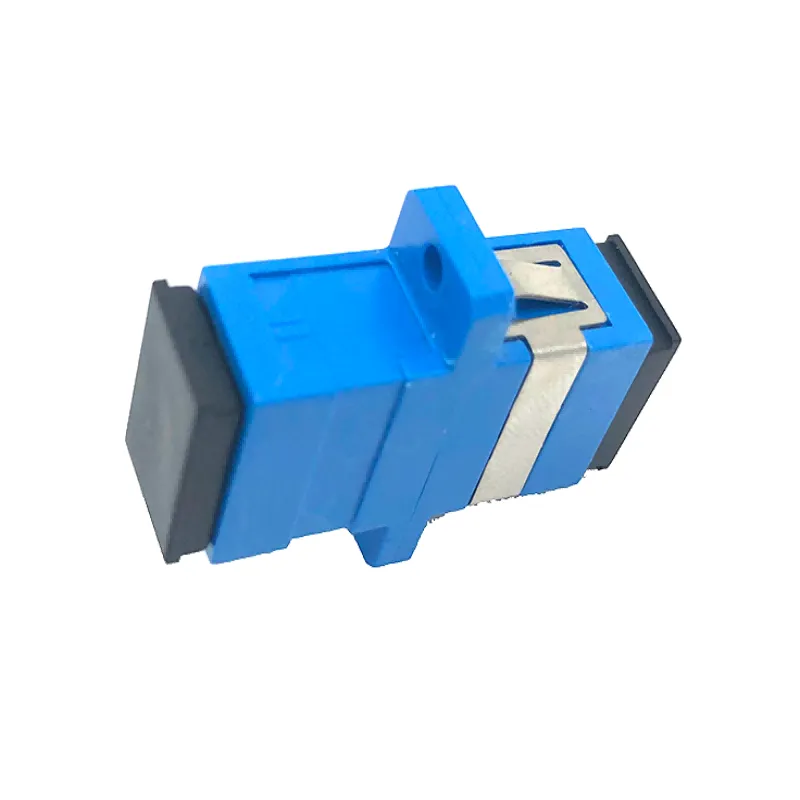

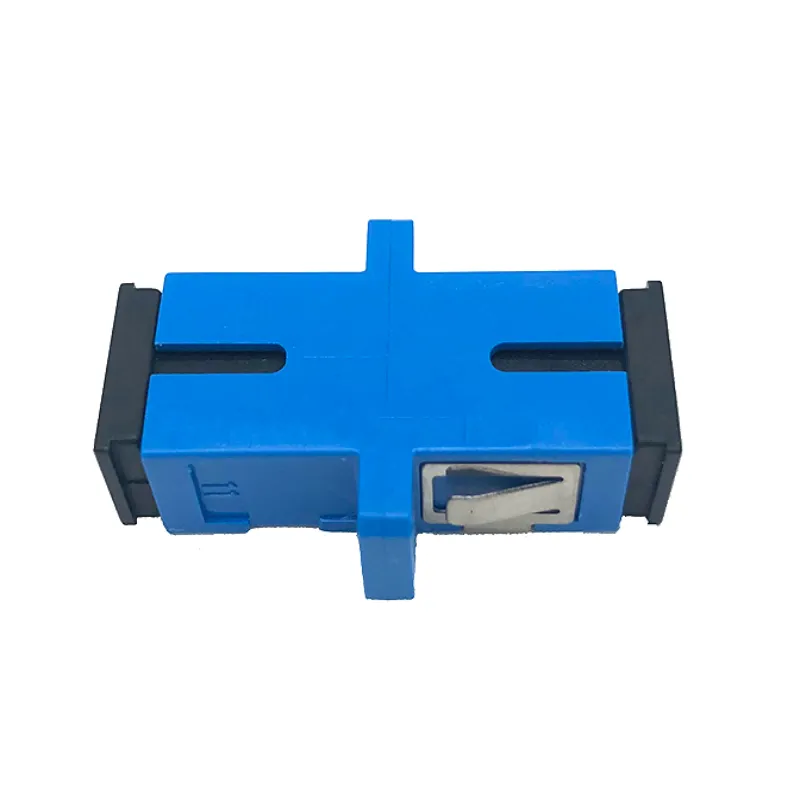

Fiber Optical Adapters SC/UPC
Fiber optic adapter fiber optic adapter pdoduce diversfied types of adaptersincluding FC,SC,ST,LC,MU,MTRJ,E2000,DIN,D4,MPO,FC-SC,FC-ST,SC-ST,LC-FC,LC-SC etc.Integrative construction of connector,good and low insertion loss and high returnloss can satify the requirements of fast,exact,lastingand stable connection in different environments!
Share:
◆ Low insertion loss, high return loss
◆ Good compatibility
◆ High precision of mechanical dimensions
◆ High reliability & stability
◆ Ceramic or Bronze Sleeve
◆ APC,UPC optional
◆ Simplex / Duplex
Application
◆ Telecommunication
◆ Computer networks
◆ CATV networks
◆ Active device termination
◆ Instrumentation
Specification
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, | MTRJ | E2000 | ||||||
| SM | MM | SM | MM | SM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥55 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Durability | Time | ＞1000 | ＞1000 | ＞1000 | ||||||
| Operating Temperature | ℃ | -40~75 | -40~75 | -40~75 | ||||||
| Storage Temperature | ℃ | -45~85 | -45~85 | -45~85 | ||||||
XI'AN OPT Communication Co.,Ltd. is a professional supplier one-stop for fiber optic communication in FTTX. We devoted to constant technology innovation and breakthroughs, OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can supply all kinds of optic products.Also, free sample is also available if necessary.
