SC optical adapter is of flange type, single mode adapters are with zirconia sleeve . implements connection of SC fiber optic connectors in the fiber optic lines.It only produce a little loss for implementing optical path smooth. SC optical adapter makes two end face precision docking, which can make light energy from transmitter optical fiber coupled to receiver optical fiber efficiently and will reduce impact to a minimum because of intervention optical link of system.We can do SM,MM,OM4 SC Adapter,also Simplex ,duplex adapters .Metal SC adapter and shutter adapter is hot sell in the market.
Share:

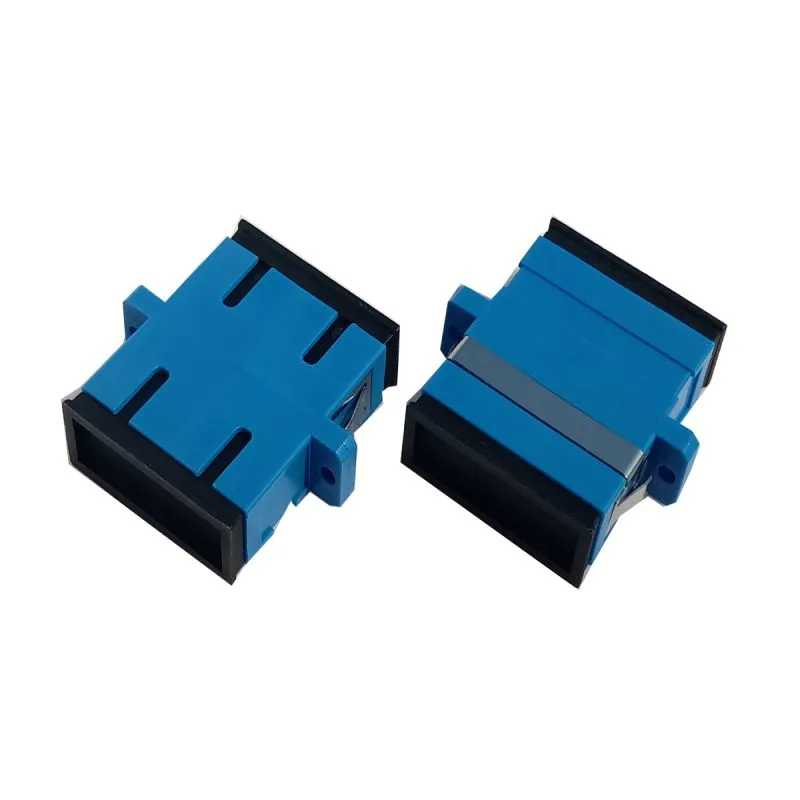

Fiber Optical Adapter SC UPC Single mode Duplex with flange
◆ Low insertion loss, high return loss
◆ Good compatibility
◆ High precision of mechanical dimensions
◆ High reliability & stability
◆ Ceramic or Bronze Sleeve
◆ APC,UPC optional
◆ Simplex / Duplex
Option products
Description | Picture |
SC/APC SM Duplex optical Adapter with flange | |
SC/UPC SM Duplex optical Adapter with flange | |
SC/UPC MM Duplex optical Adapter with flange | |
SC/UPC OM3 Duplex optical Adapter with flange | |
Metal SC/UPC Duplex optical adapter |
Specification
Parameter | Specifications | |
Connector Type | SC,LC,FC,ST | |
Type Fiber | Single Mode | Multimode |
Adapter Color | Blue,green,metallic | Begie,Metallic |
Testing Wavelength | 1310nm,1550nm | 850nm,1300nm |
Insert Loss | Typecal≤0.15dB,max≤0.2dB | Typecal≤0.15dB,max≤0.2dB |
Repeatability | ≤0.10dB | |
Exchangeability | ≤0.20dB | |
Durability | 1000Mating ,max≤0.20dB | |
Housing Material | Plastic or metal | |
Operating Temperature | -40°C~+75°C | |
Storage Temperature | -40°C~+85°C | |
Alignment Sleeve | Ceramic (ZrO2) or customized | |
Channel Number | Simplex,duplex,quad |
XI'AN OPT Communication Co.,Ltd. is a professional supplier one-stop for fiber optic communication in FTTX. We devoted to constant technology innovation and breakthroughs, OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can supply all kinds of optic products.Also, free sample is also available if necessary.
