LC/APC Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.LC duplex adapter fits standard SC Simplex cutout,can be match with adapter plates ,patch panels and wall mount terminal box and more .These adapters have the most common footprint,and as such will fir universlly into any company's product that adheres to fiber optic standards. These adapters come with flange for added stability by screw-mounting the adapter to your adapter plate.Reduced flange models are also available.Adapters ship with standard plug-style dust caps.
Share:

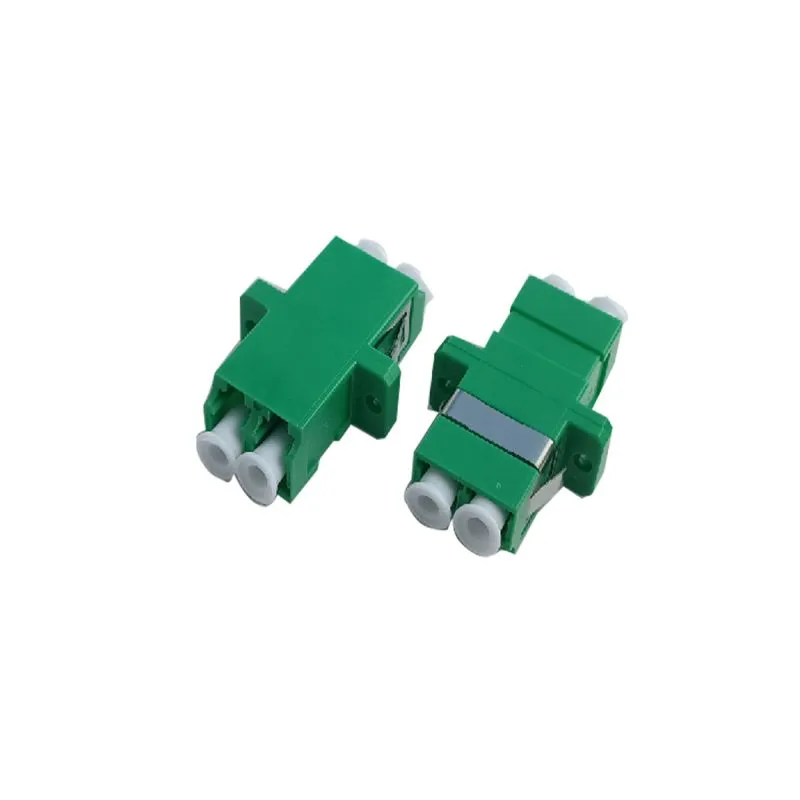

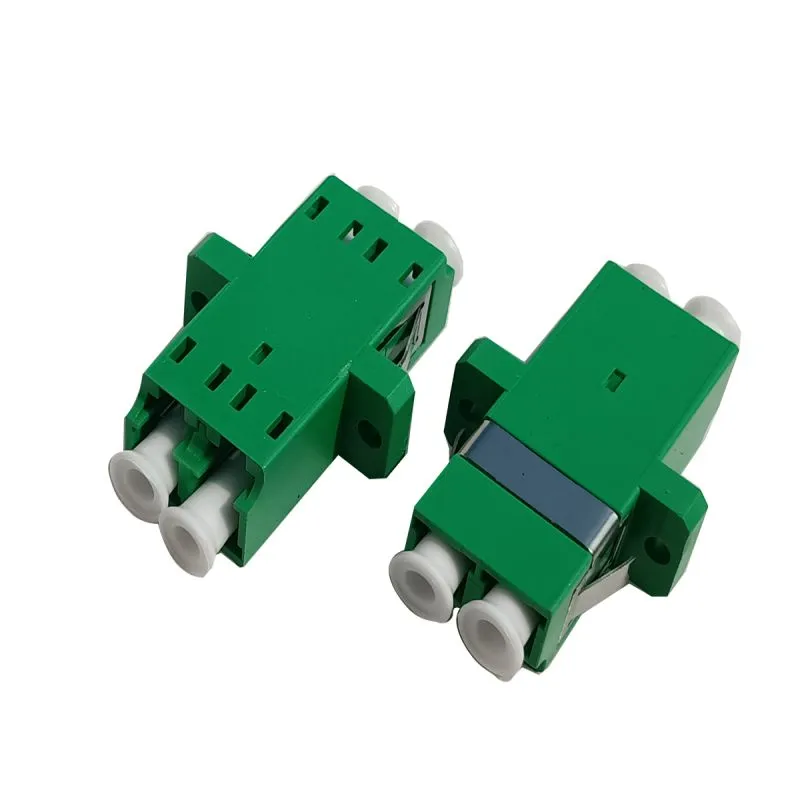

Optical Adapter LC/APC SM Duplex with flange
◆ Low insertion loss, high return loss
◆ Good compatibility
◆ High precision of mechanical dimensions
◆ High reliability & stability
◆ Ceramic or Bronze Sleeve
◆ APC,UPC optional
◆ Simplex / Duplex
We XI'AN OPT Communication CO.,Ltd can product varies type adapter,include SM MM OM3 OM4 ,SM color is blue ,MM color is begie,OM3 color is aqua ,OM4 Color is pink .also we can do Simplex ,Duplex ,Quad type adapters .Shutter type adapter and metal materials adapter is also available. The adapters can be with flange and without flange ,if there is special request please inform us [email protected].
Option products
| Description | Picture |
| LC/APC SM Duplex optical Adapter with flange |
|
| LC/UPC SM Duplex optical Adapter with flange |
|
| LC/UPC MM Duplex optical Adapter with flange grey colour |
|
| LC/UPC MM Duplex optical Adapter with flange black colour |
|
| LC/UPC OM3 Duplex optical Adapter with flange |
|
| LC/UPC OM4 Pink Duplex optical Adapter with flange black colour |
|
Specification
| Parameter | Specifications | |
| Connector Type | SC,LC,FC,ST | |
| Type Fiber | Single Mode | Multimode |
| Adapter Color | Blue,green,metallic | Begie,Metallic |
| Testing Wavelength | 1310nm,1550nm | 850nm,1300nm |
| Insert Loss | Typecal≤0.15dB,max≤0.2dB | Typecal≤0.15dB,max≤0.2dB |
| Repeatability | ≤0.10dB | |
| Exchangeability | ≤0.20dB | |
| Durability | 1000Mating ,max≤0.20dB | |
| Housing Material | Plastic or metal | |
| Operating Temperature | -40°C～+75°C | |
| Storage Temperature | -40°C～+85°C | |
| Alignment Sleeve | Ceramic (ZrO2) or customized | |
| Channel Number | Simplex,duplex,quad | |
XI'AN OPT Communication Co.,Ltd. is a professional supplier one-stop for fiber optic communication in FTTX. We devoted to constant technology innovation and breakthroughs, OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can supply all kinds of optic products.Also, free sample is also available if necessary.
