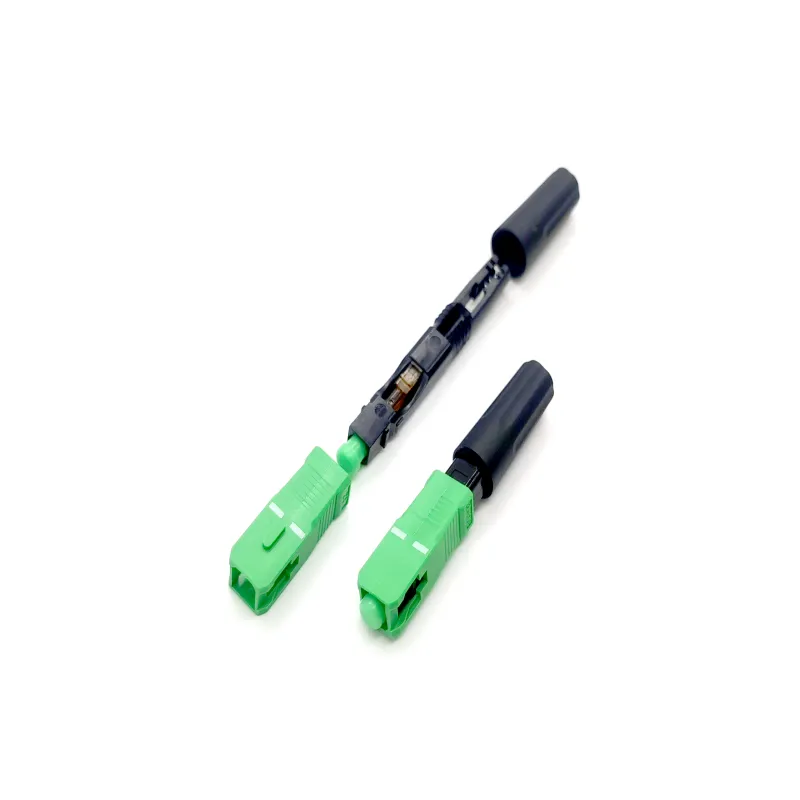

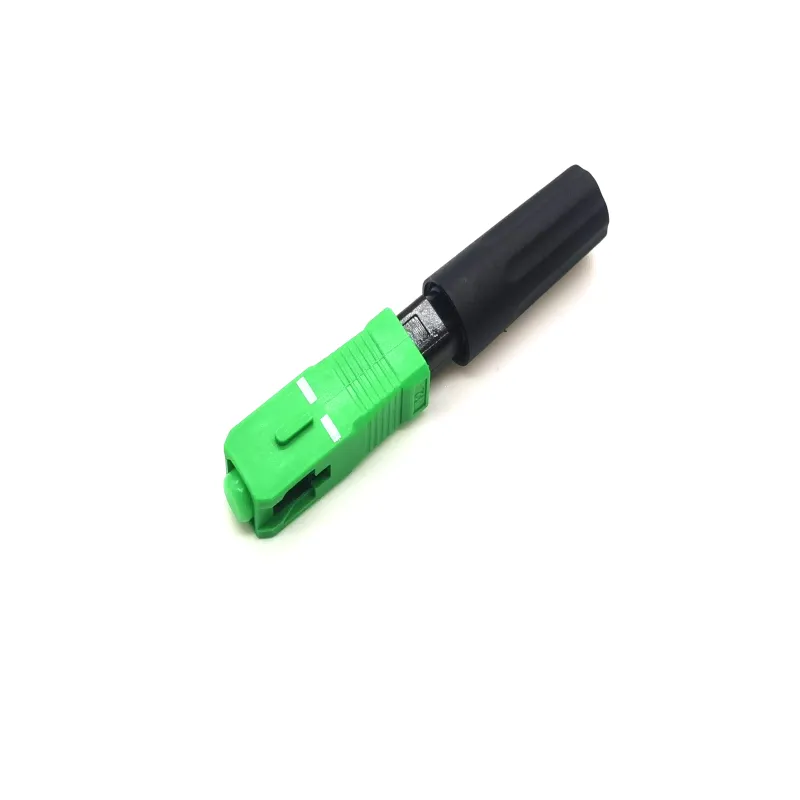

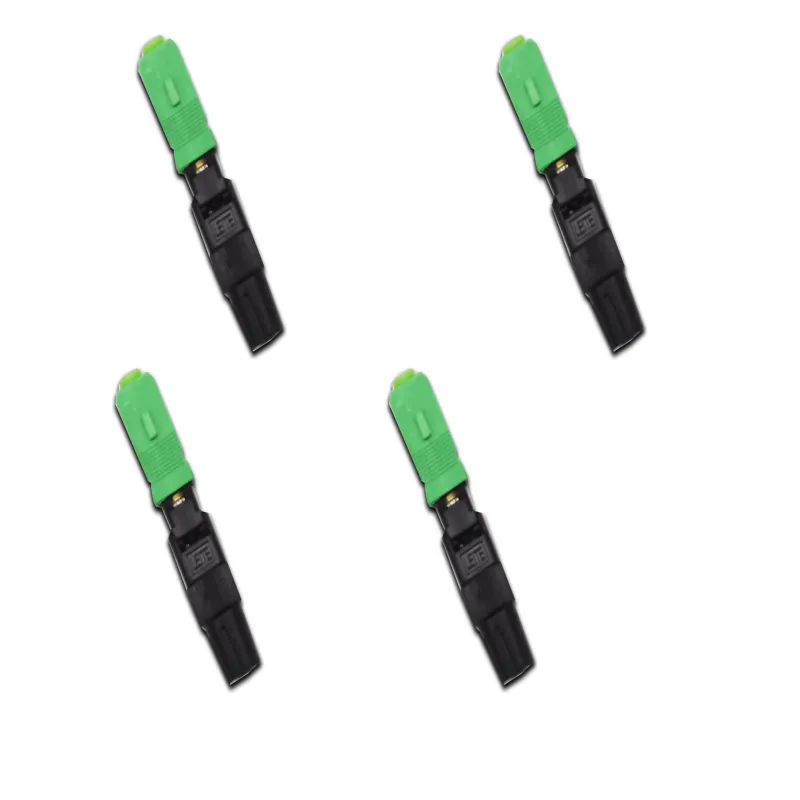

FTTH fast connector SC/APC for fiber optic drop cable
Fast connector sc apc for on-site assembly, facilitating quick installation and connection while offering good stability. This product is easy to use and convenient to transport.
Share:
1.Allows stable, reliable connection of optical fibre with devices to provide excellent technical performance.
2.Applicable cables: 2.0 mm × 3.0 mm drop cables, 2.0 mm × 1.6 mm drop cables, 2.0 mm round cable, 3.0 mm round cable, 0.9 mm cable.
3.Easy operation, fast assembly, high installation success rate, long lifespan, easy maintenance.
Specification
Fiber optic fast connector SC/APC for FTTH
| Item | Parameter |
| Application | Drop cable: 2.0x3.0 mm and 2.0x1.6mm ; Indoor cable:2.0 and 3.0 mm round cable, 0.9 mm cable |
| Fiber mode | Single mode |
| Operation time (s) | About 50 |
| Insertion Loss (dB) | ≤0.3dB(MA*0.5dB) |
| Insertion Loss Typical value(dB) | 0.3 |
| Return Loss(dB) | APC ≥60/,UPC ≥50 |
| Fastening strength of naked fiber(N) | ≥5 |
| Tensile strength(N) | ≥50 |
| Reusable (Times) | ≥10 times |
| Operating Temperature(℃) | -40~+85 |
| On-line tensile strength(20N)-dB | ΔIL≤0.3 |
| Mechanical durability(500 times)-dB | ΔIL≤0.3 |
| Drop-off test(drop-off height4m, | ΔIL≤0.3 |
| once per direction, totally 3 times)-dB | |
| Operating Environment | -40°C to +85°C |
| Environmental Protection | Compliant with RoHS standard |
