Fusion Type Fiber Optic Fast ConnectorSC/UPC

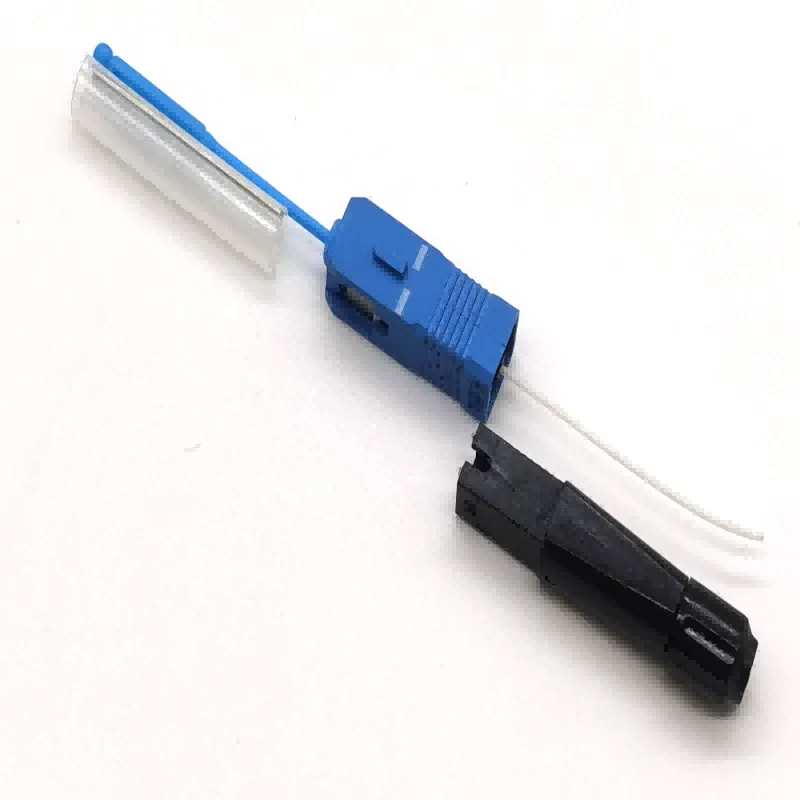

Fusion Type Fiber Optic Fast Connector SC UPC-01

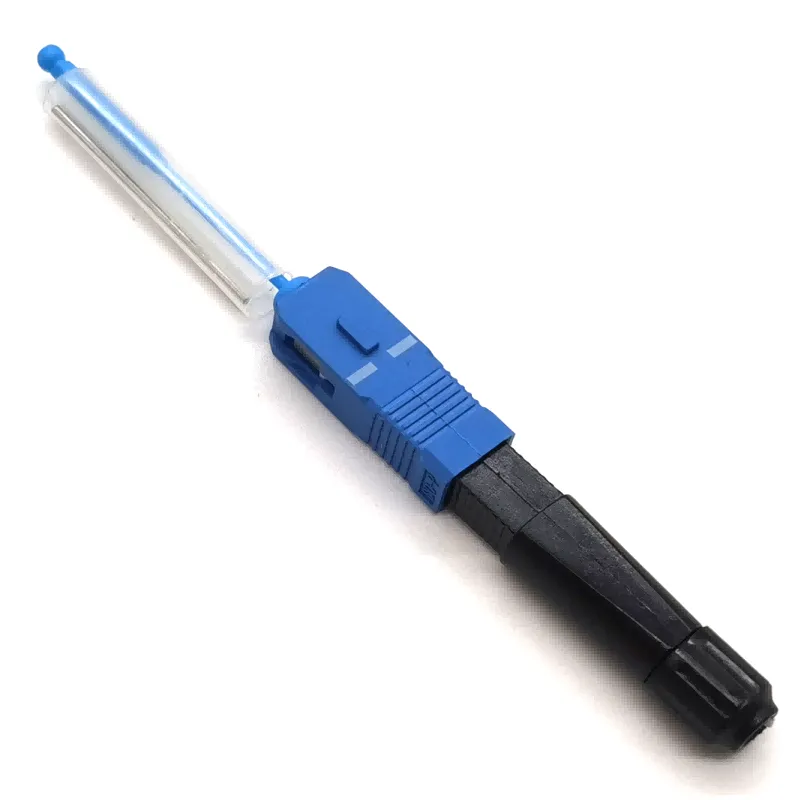

Fusion Type Fiber Optic Fast Connector SC UPC-02

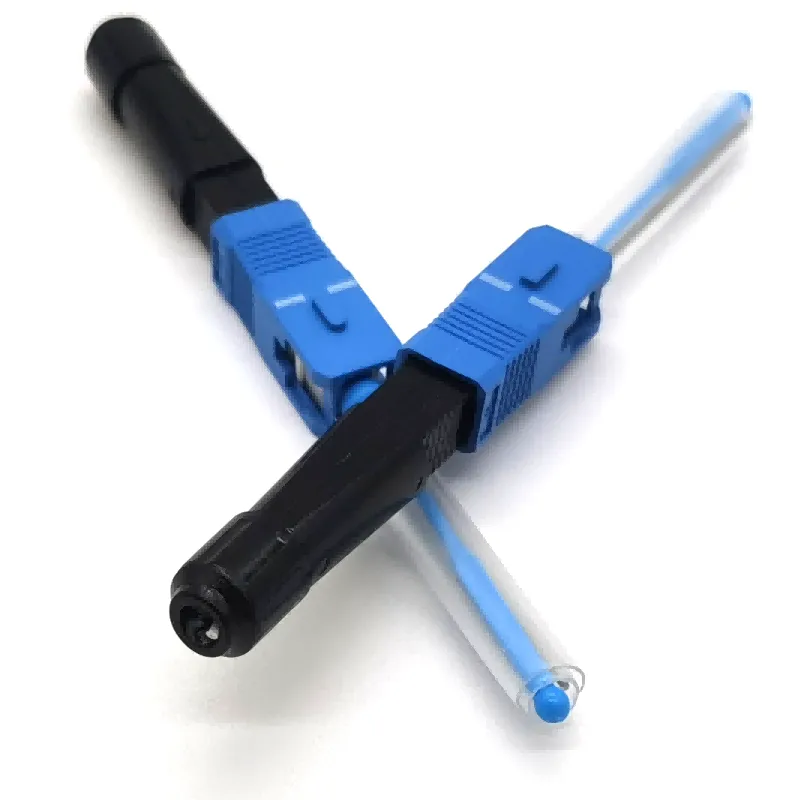

Fusion Type Fiber Optic Fast Connector SC UPC-03

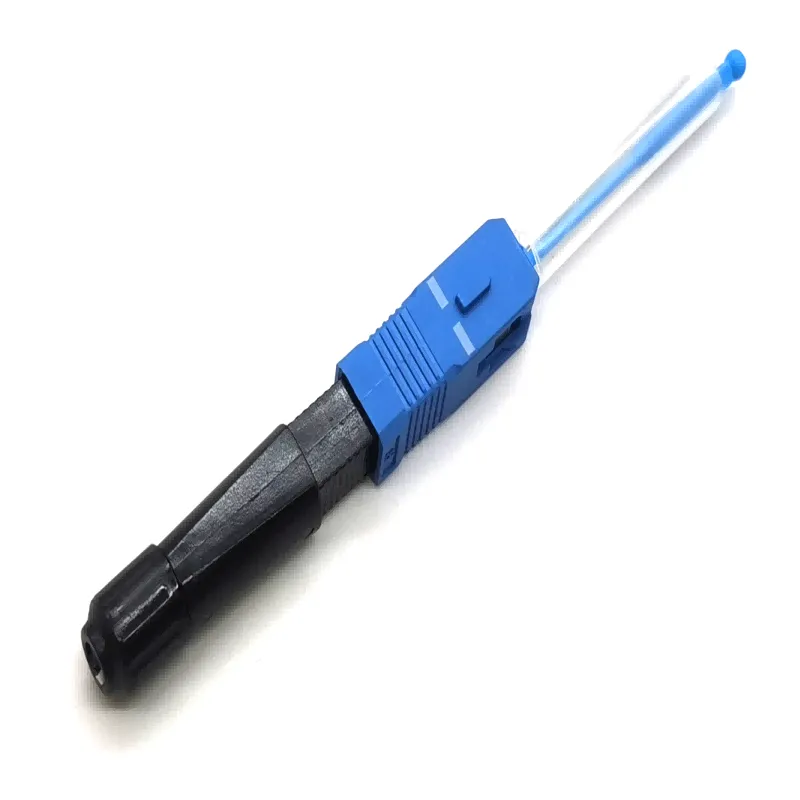

Fusion Type Fiber Optic Fast Connector SC UPC-04

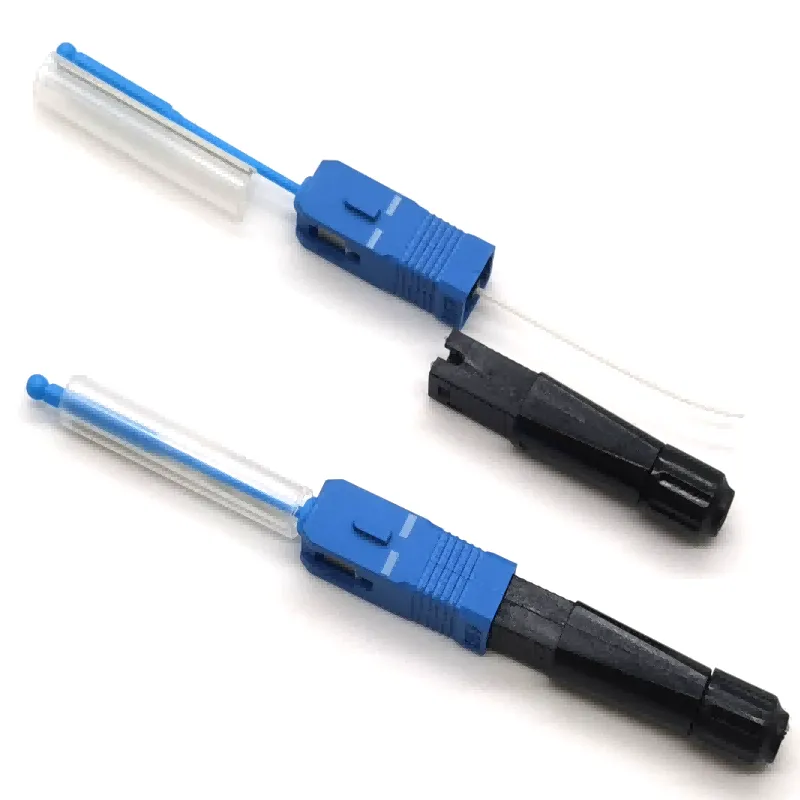

Fusion Type Fiber Optic Fast Connector SC UPC-05

Fusion Type Fiber Optic Fast ConnectorSC/UPC

  Fusion Type Fiber Optic Fast Connector SC/UPC

Field Mechanical Connector (FMC) features pre-embedding for on-site assembly, facilitating quick installation and connection while offering good stability. This product is easy to use and convenient to transport.

The quick SC / UPC connector incorporates a new disposable wedge tool system, eliminating the need for specialized expansion tools. SC/ UPC quick connector, also called SC/UPC fiber optic fast connector,  Welcome to order.


Share:

1.Allows stable, reliable connection of optical fibre with devices to provide excellent technical performance.

2.Applicable cables: 2.0 mm × 3.0 mm drop cables, 2.0 mm × 1.6 mm drop cables, 2.0  mm round cable, 3.0 mm round cable, 0.9 mm cable.

3.Easy operation, fast assembly, high installation success rate, long lifespan, easy maintenance.

Specification

Fusion Type Fiber Optic quick Connector SC /UPC

ItemFusion Type Fiber Optic Fast Connector SC/UPC
ApplicationDrop cable: 2.0x3.0 mm and 2.0x1.6mm ; Indoor cable:2.0 and 3.0 mm round cable, 0.9 mm cable
Fiber modeSingle mode
Operation time (s)About 50
Insertion Loss (dB)≤0.3dB(MA*0.5dB)
Insertion Loss Typical value(dB)0.3
Return Loss(dB)APC ≥60/,UPC ≥50
Fastening strength of naked fiber(N)≥5
Tensile strength(N)≥50
Reusable (Times)≥10 times
Operating Temperature(℃)-40~+85
On-line tensile strength(20N)-dBΔIL≤0.3
Mechanical durability(500 times)-dBΔIL≤0.3
Drop-off test(drop-off height4m,ΔIL≤0.3
once per direction, totally 3 times)-dB
Operating Environment-40°C to +85°C
Environmental ProtectionCompliant with RoHS standard
