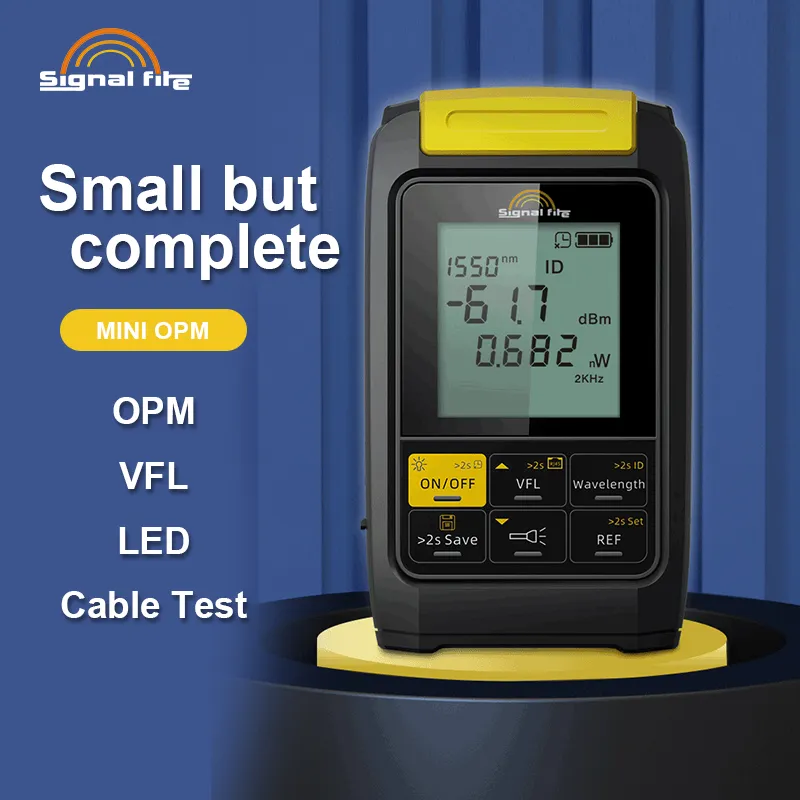

4.7 inch compact body,

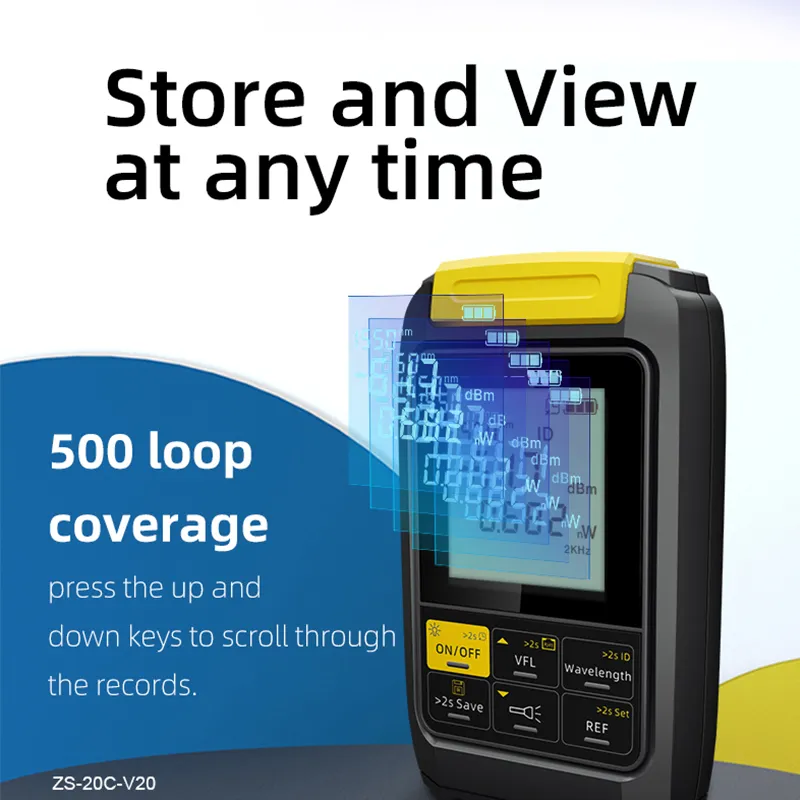

500 data storage

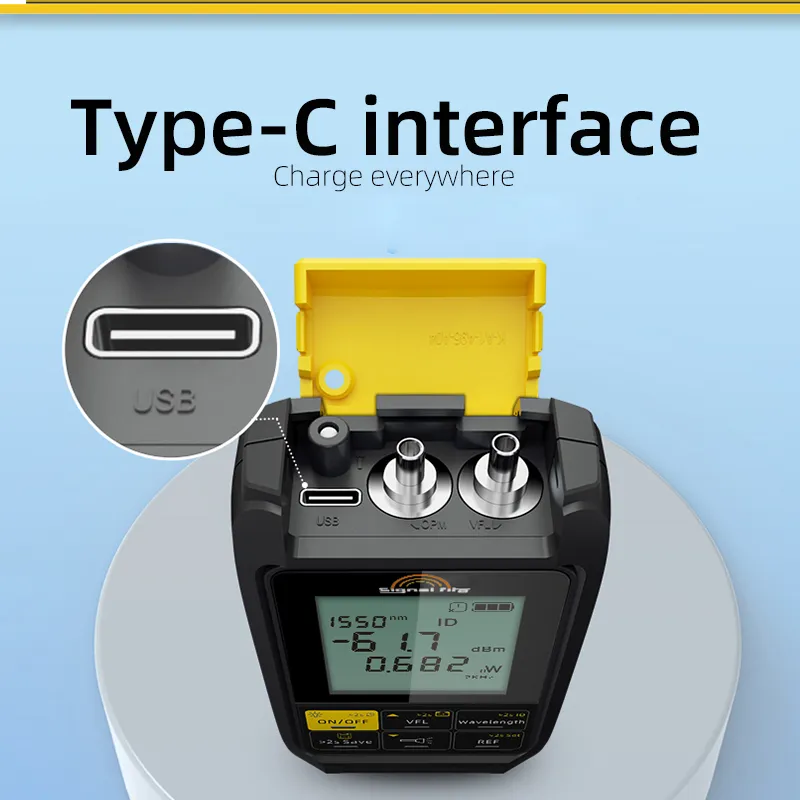

type C interface
Backlight screen function,
450Mah lithium battery
Specification
| Parameter | Value |
| PD type | InGaAs |
| OPM connector | 2.5mm |

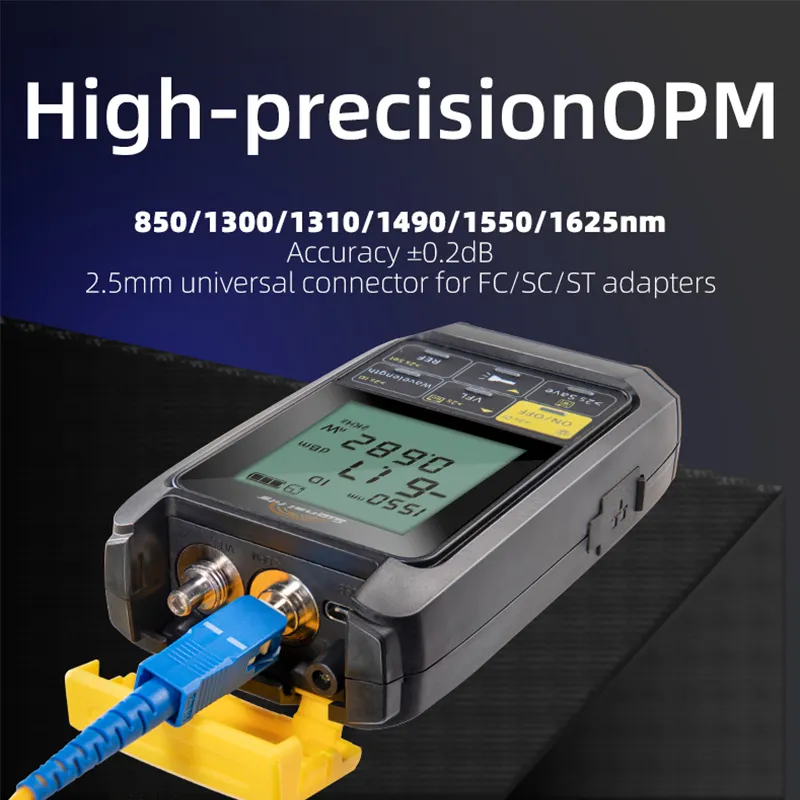

| Wavelength | 850/1300/1310/1490/1550/1625nm |
| Measurement range | -50dbm ~+30dBm |
| Resolution | 0.01dB |
| Accuracy | ±0.2dB |
| Modulation Test | 270/330/1k/2kHz |
| VFL connector | 2.5mm |

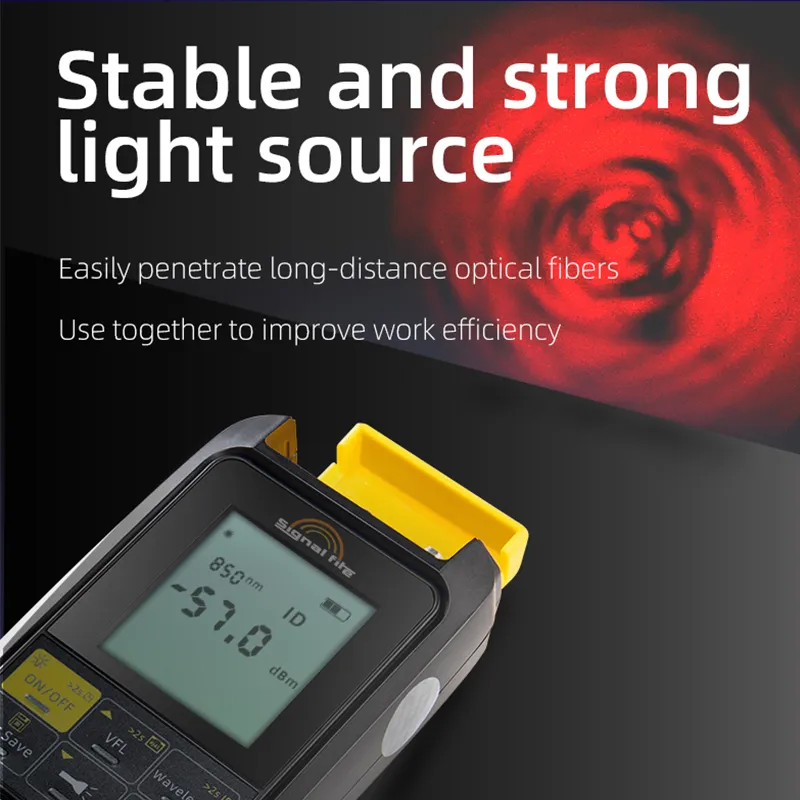

| VFL power | 20mW |
| LED | Yes |
| RJ-45 cable test | Yes |
XI’AN OPT Communication Co.,Ltd is one of the largest and reliable optical component manufacturers and suppliers with rich experience in China. OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can customized as your requirement.Also, free sample is also available if necessary.
Inquiry
