Optical Distribution Box

FTTH-16 Fiber  steel Optic Distribution Box
FTTH-16 Fiber  steel Optic Distribution Box
FTTH-16 Fiber  steel Optic Distribution Box
FTTH-16 Fiber  steel Optic Distribution Box
FTTH-16 Fiber  steel Optic Distribution Box
FTTH-16 Fiber  steel Optic Distribution Box

FTTH-16 Fiber steel Optic Distribution Box

Designed for use in fiber-optic networks with deep penetration of optics (FTTH, PON, etc.). It can be used as a cross-connection unit for the implementation of input distribution devices and telecommunication cross-connections. This cross allows you to fuse up to 16 optical fibers. Designed for use in networks of residential buildings, offices and business centers and cottage communities.

Share:

  • Beautiful and convenient design.

  • Possibility of quick access to the cable.

  • Front panel with lock to prevent unauthorized access.

  • Possibility of transit cable laying.

  • The box can be installed indoors and outdoors.

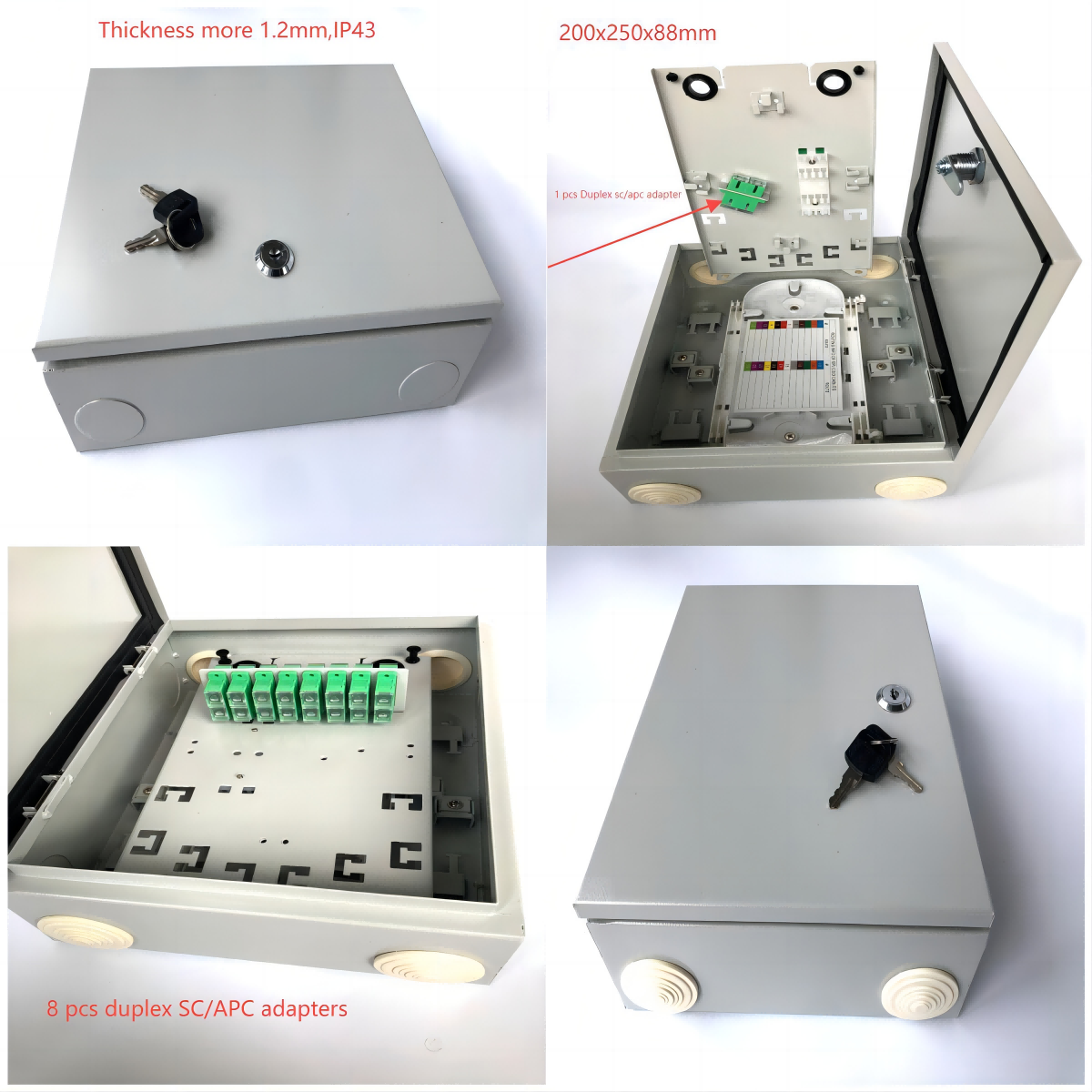

  • Manufactured in anti-vandal design from 1.2mm steel. Protection class IP-43.

FTTH-16 Fiber  steel Optic Distribution Box

Specifications

FTTH-16 Fiber steel Optic Distribution Box Wall Mounted IP43

ItemParameter
Size,mm200х250х88
Max Capacity24 fiber
Max adapters SC9 pcs duplex or 16 simplex+1 duplex adapters
Maximum number of input cables12
Maximum number of output cables24 for drop cable
ThicknessMore 1.2mm
MaterialStainless steel
WaterproofIP-43
ColourGrey

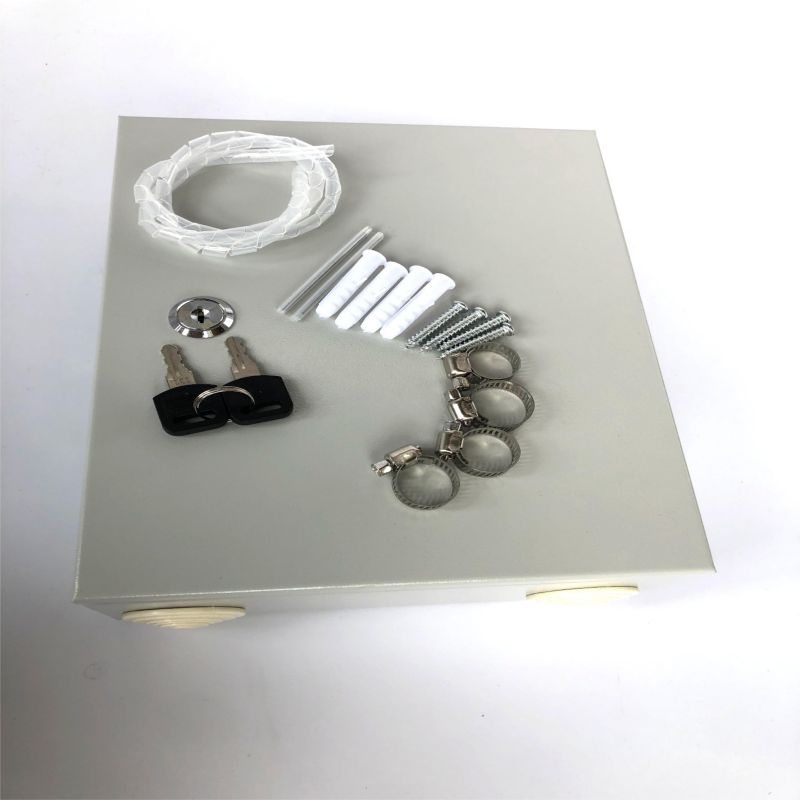

Standard Accessories

Wall box with lock and keys.

Hinged steel panel with SC type adapters.

Splice cassette Secondary module (serpentine).

Fastening materials Rubber seals for cable entries.

FTTH-16 Fiber  steel Optic Distribution Box
