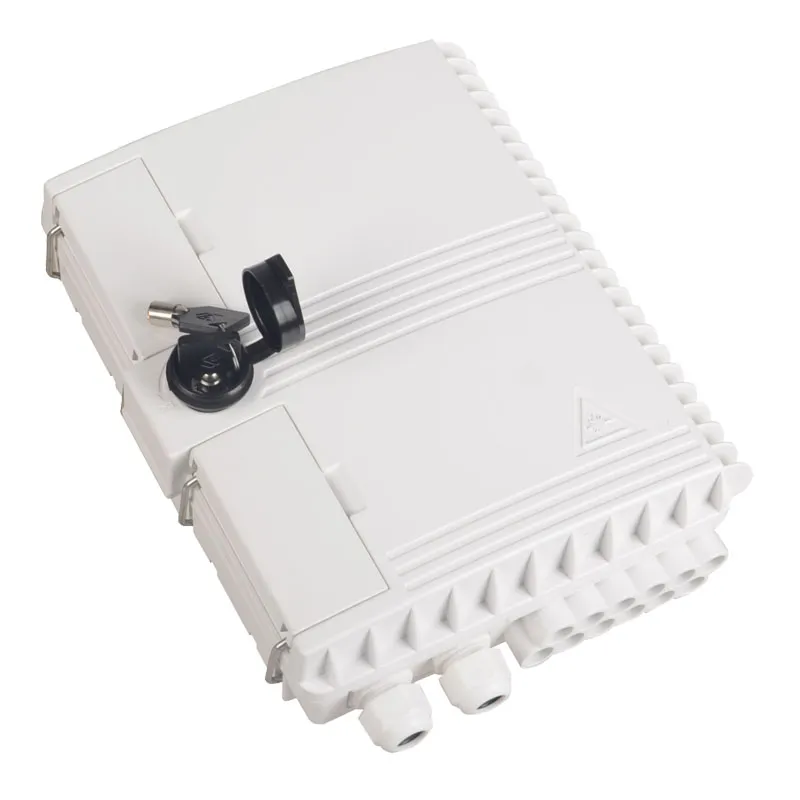

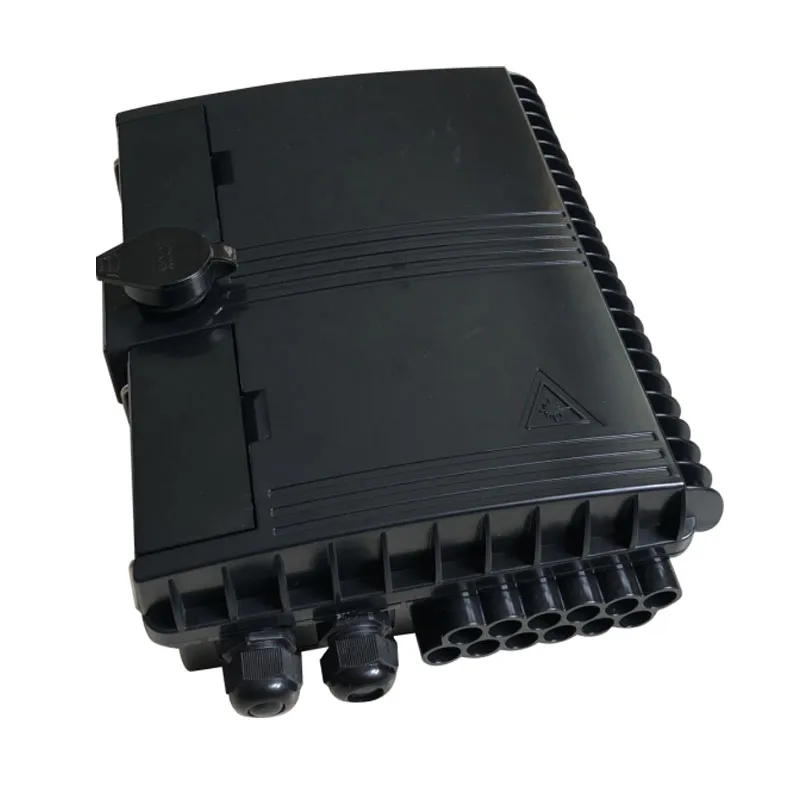

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
1. Total enclosed structure.
2. Material: ABS or ABS+PC, wet-proof, water-proof, dust proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4. Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor, installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled mounted, suitable for both indoor and outdoor uses.
Specification
| Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
| Strengthen ABS or ABS+PC | A*B*C(mm) 300*245*100 | Splice 16 Fibers (1trays,16 core/tray) | 2pcs of 1x81pcs of 1x16 | 16 pcs SC(max) | 1.35kg | 2 in 16 out |
XI'AN OPT Communication Co.,Ltd is one of the largest and reliable optical component manufacturers and suppliers with rich experience in China. OPT has invested a large amount of resources in product R&D, quality control, professional technical support in networking solutions, to provide customers with higher-performance and the most cost-effective products. We can customized as your requirement.Also, free sample is also available if necessary.
