OPT-308 FTTH 4 cores Fiber Termination Box

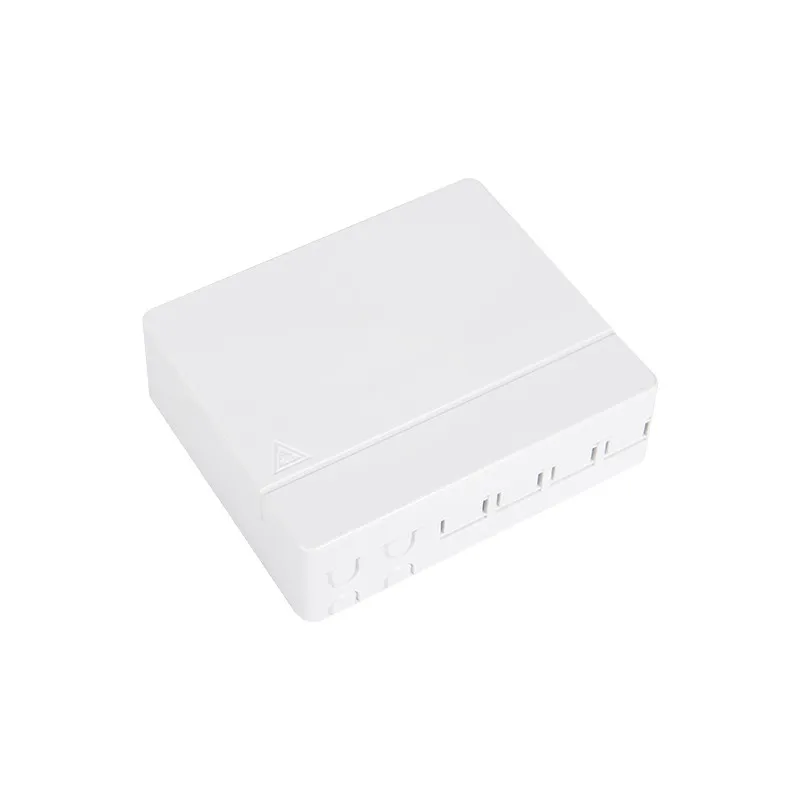

OPT-308 FTTH 4 cores Fiber Termination Box-01

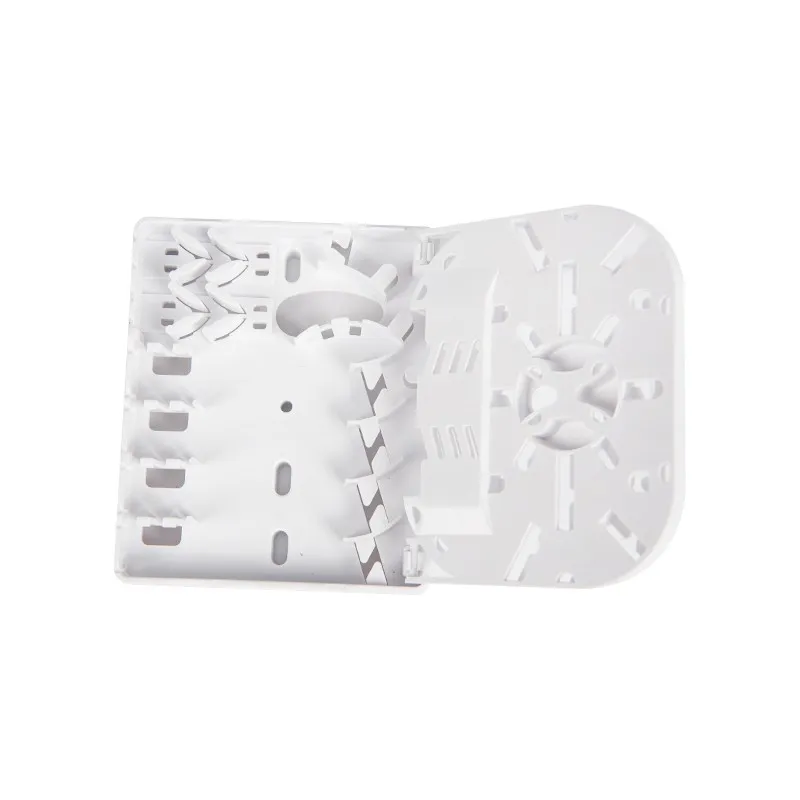

OPT-308 FTTH 4 cores Fiber Termination Box-02

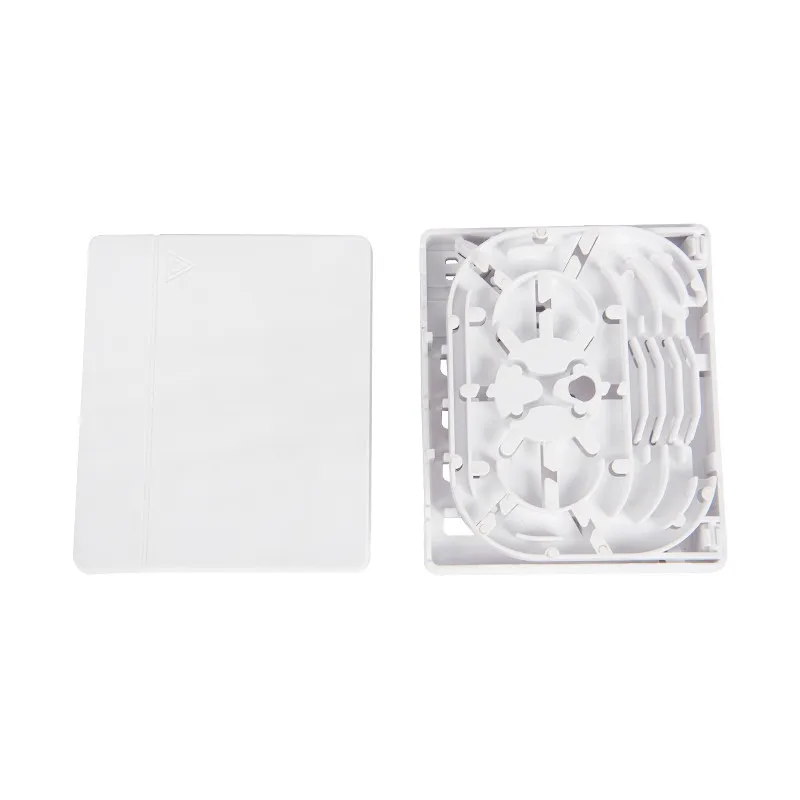

OPT-308 FTTH 4 cores Fiber Termination Box-03

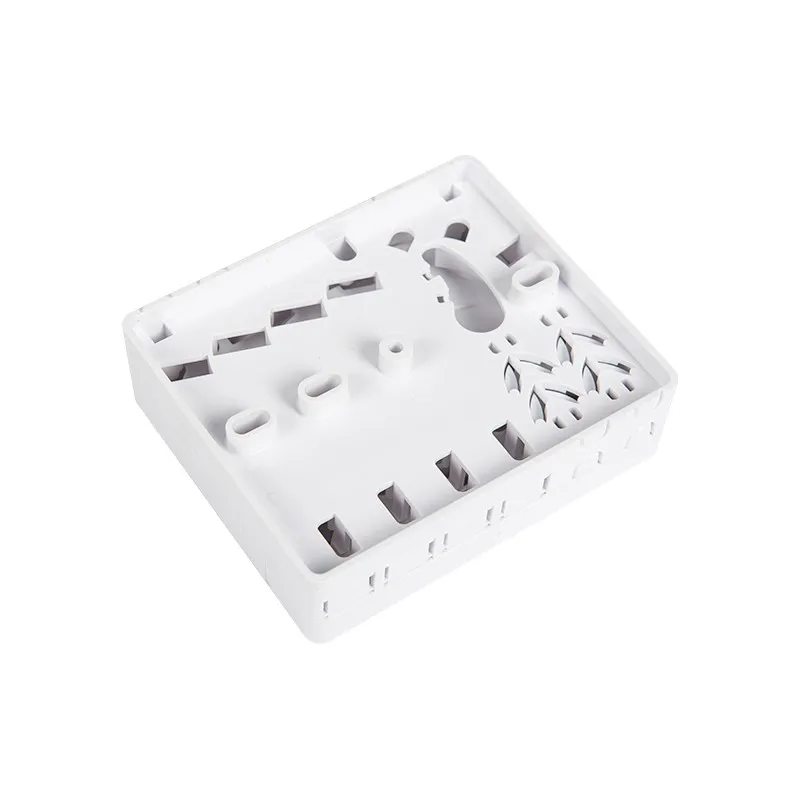

OPT-308 FTTH 4 cores Fiber Termination Box-04

OPT-308 FTTH 4 cores Fiber Termination Box

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.

Share:

Wall mounting and pole mounting installtion

FTTH pre-installation and filed installation

5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable.

Specifications

OPT-308  FTTH 4 cores Fiber Termination Box

MaterialStrengthen ABS
Size,mm100*84*30
Max CapacitySplice 4 Fibers(1trays,4 core/tray)
Qty of PLC1 pcs of 1x4 PLC splitter
Qty of Adapter4 pcs of SC(max)
Weight,kg0.1
ColourWhite
Ports4 ports


Standard Accessories

Screw: 2pcs

Expension bolt: 2pcs

Heat-shrink sleeve: 4pcs

OPT-307  FTTH 4 cores Fiber Termination Box
