This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable.
Specifications

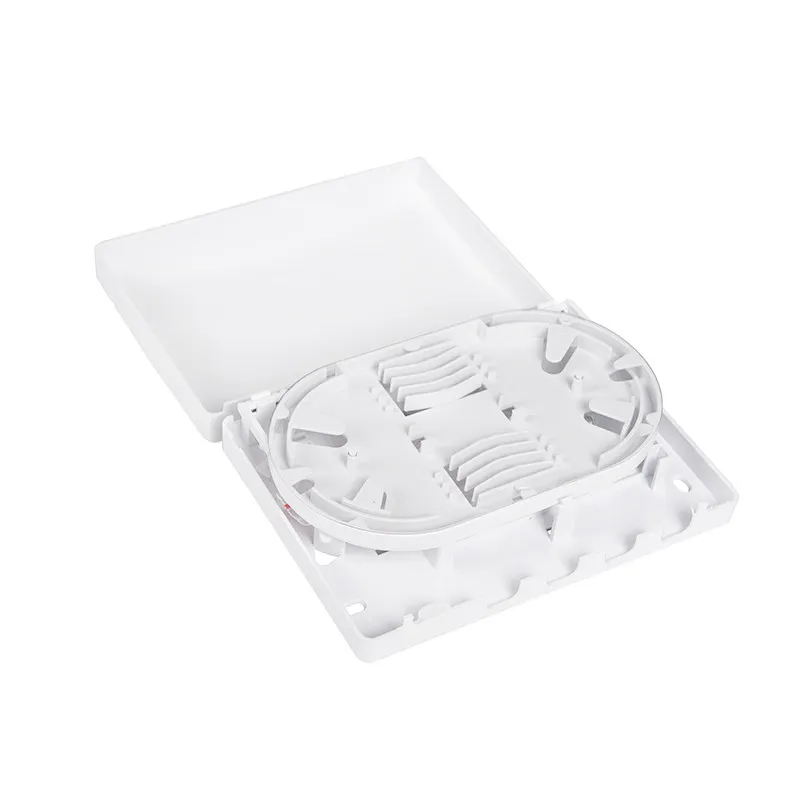

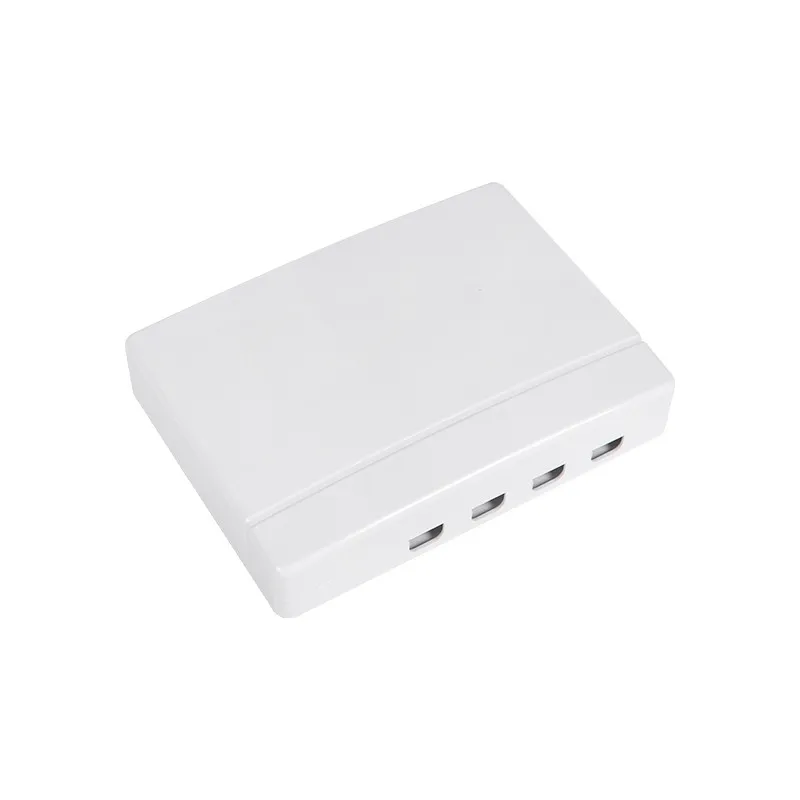

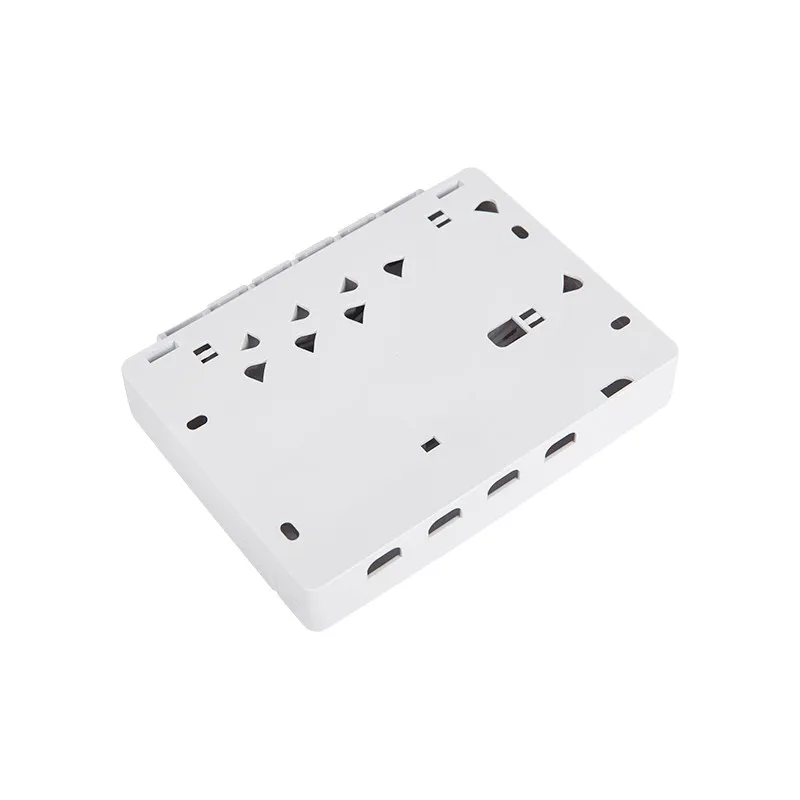

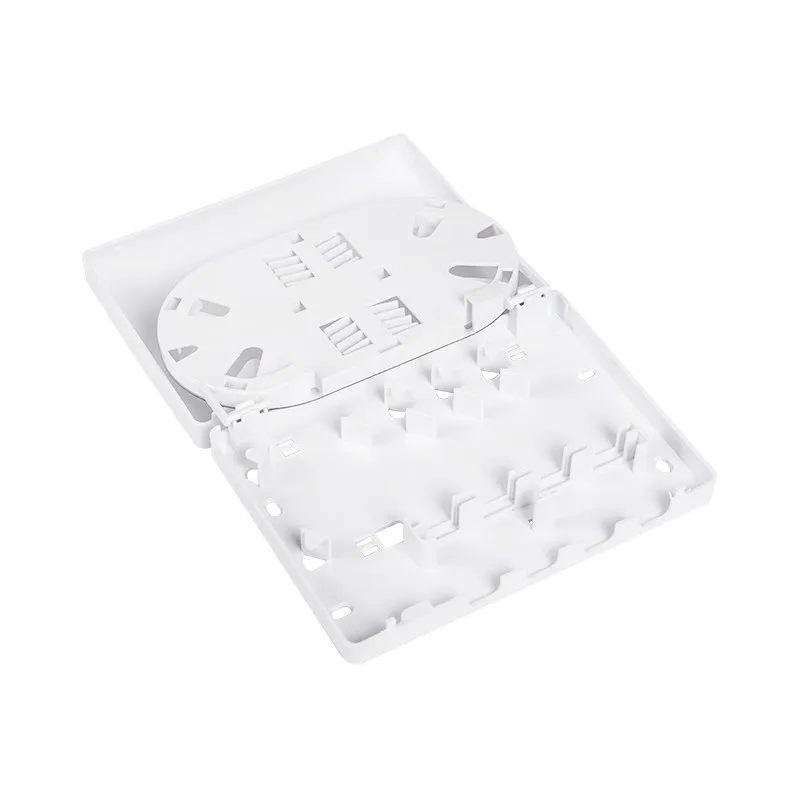

OPT-309 FTTH 4 cores Fiber Termination Box
| Material | Strengthen ABS |
| Size,mm | 150*120*30 |
| Max Capacity | Splice 4 Fibers(1trays,4 core/tray) |
| Qty of PLC | 1 pcs of 1x4 PLC splitter |
| Qty of Adapter | 4 pcs of SC(max) |
| Weight,kg | 0.15 |
| Colour | White |
| Ports | 4 ports |
Standard Accessories
Screw: 4pcs
Expension bolt: 4pcs
Heat-shrink sleeve: 4pcs
