This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

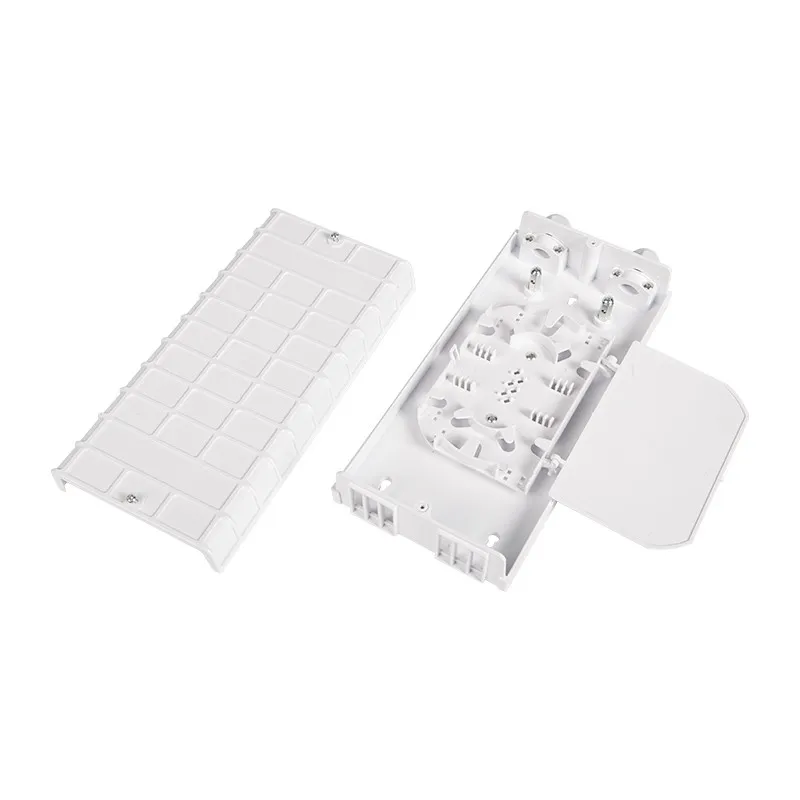

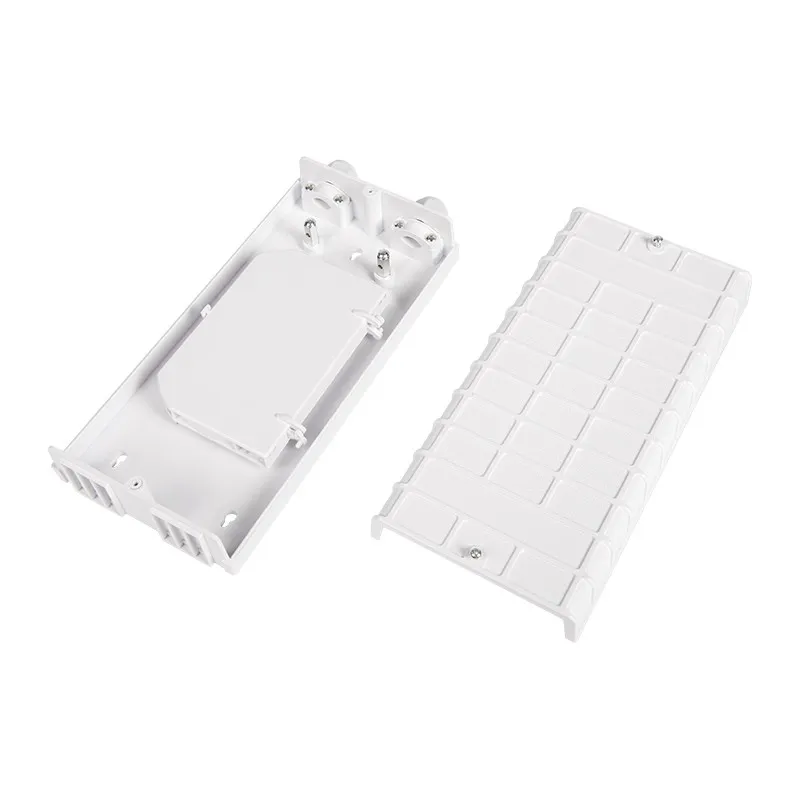

It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Share:

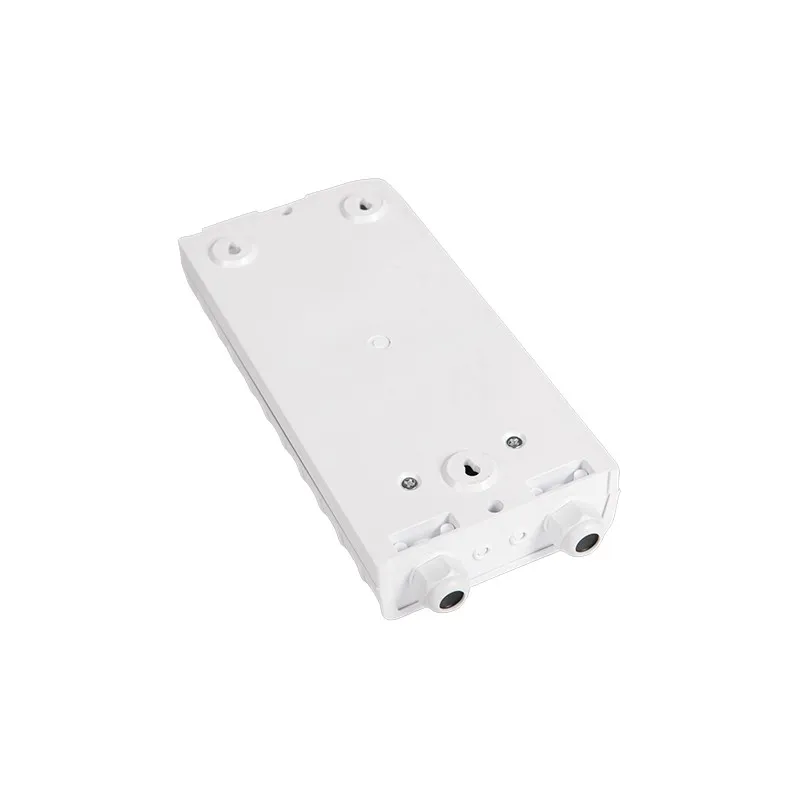

Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation

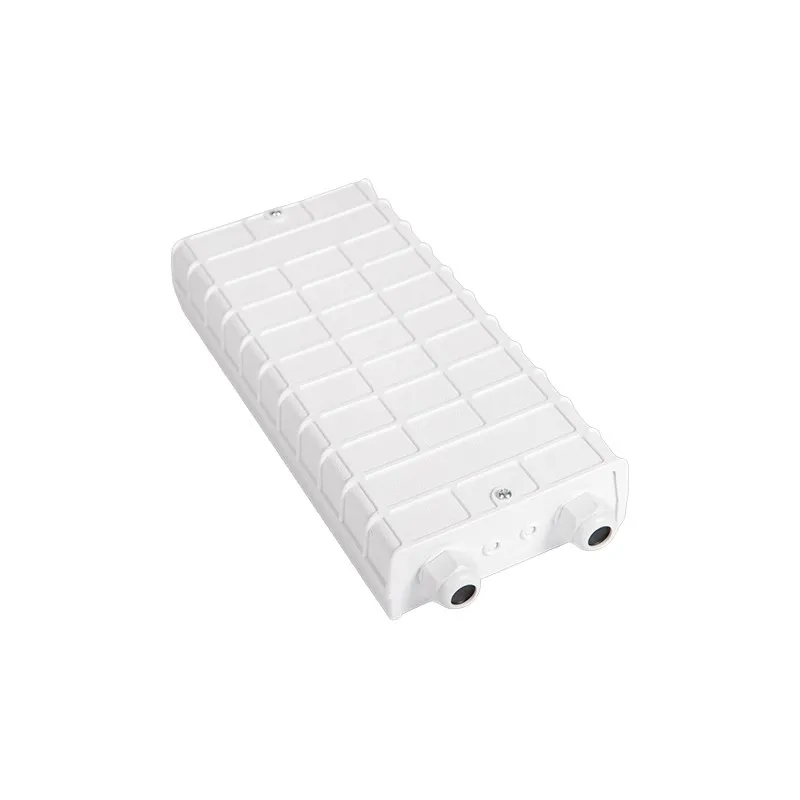

5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable.
Specifications

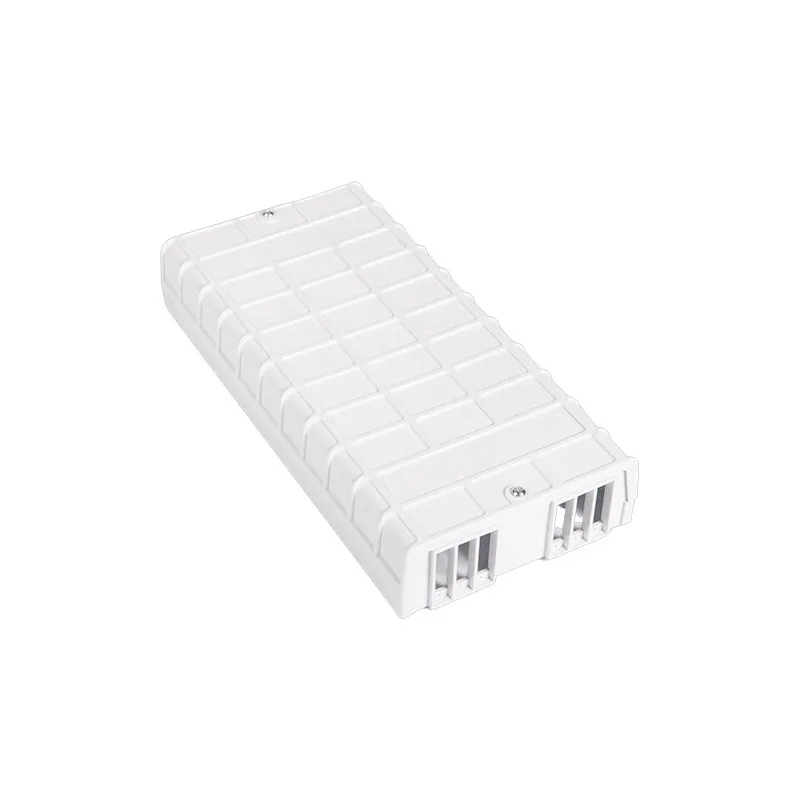

OPT-314 12 Core Fiber Optic Splicing Plastic Box
| Material | Strengthen ABS |
| Size,mm | 280*127*45 |
| Max Capacity | Splice 12 Fibers(1trays,12 core/tray) |
| Qty of PLC | 1 pcs of 1x 12 PLC splitter |
| Qty of Adapter | 6 pcs of duplex SC(max) |
| Weight,kg | 0.35 |
| Colour | White |
| Ports | 2 in 12 out |

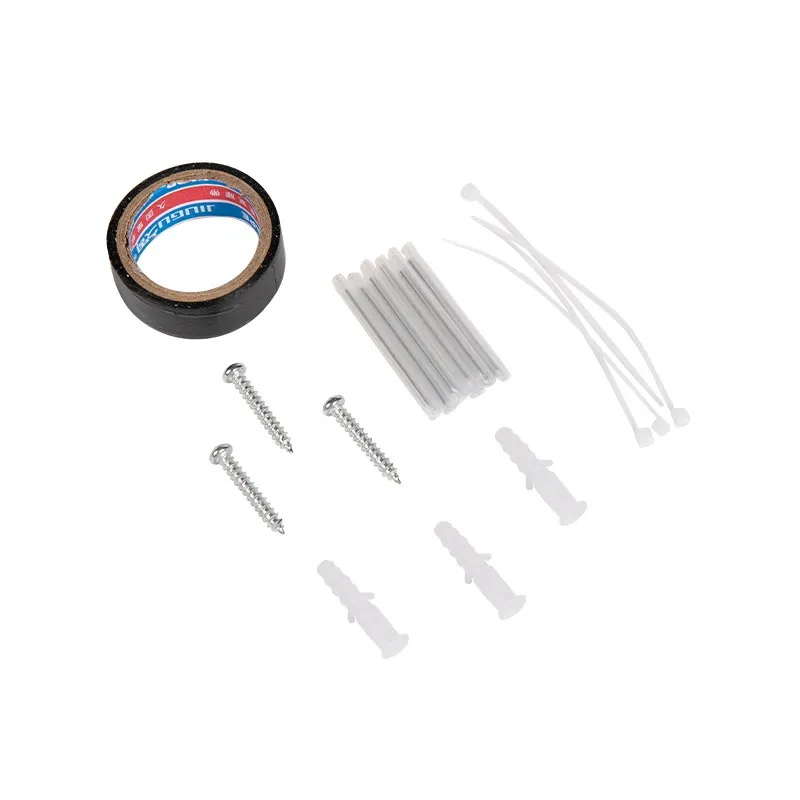

Standard Accessories
Screw: 3pcs
Expension bolt: 3pcs
Heat-shrink sleeve: 12pcs
Insulating tape：1pcs
Cable tie:3mm*10mm 4-6pcs
