Optical Suspension clamp

Suspension Clamp PS-130
Suspension Clamp PS-130
Suspension Clamp PS-130
Suspension Clamp PS-130
Suspension Clamp PS-130
Suspension Clamp PS-130

Suspension Clamp PS-130

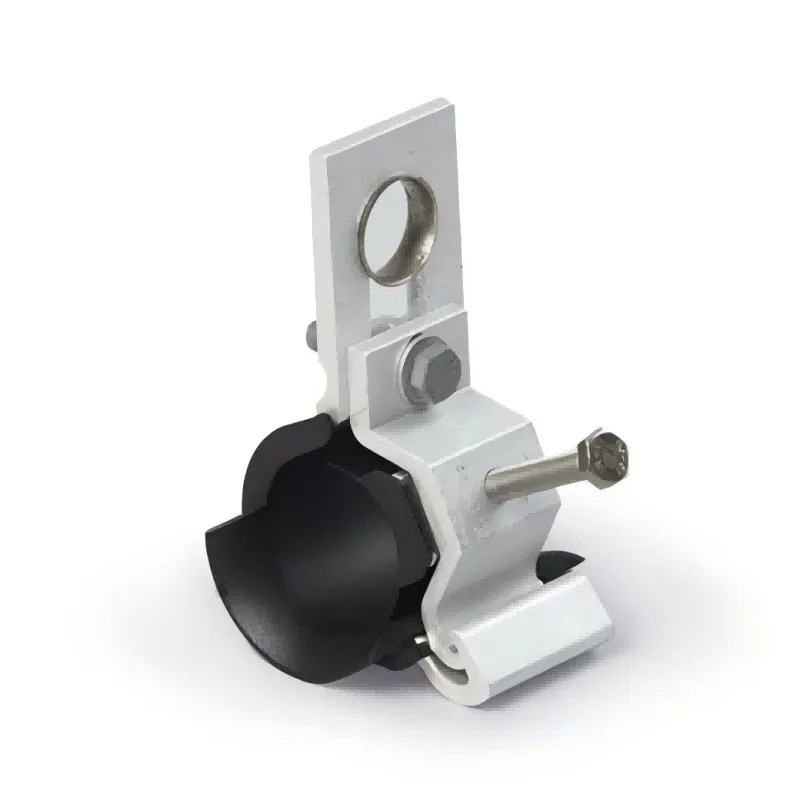

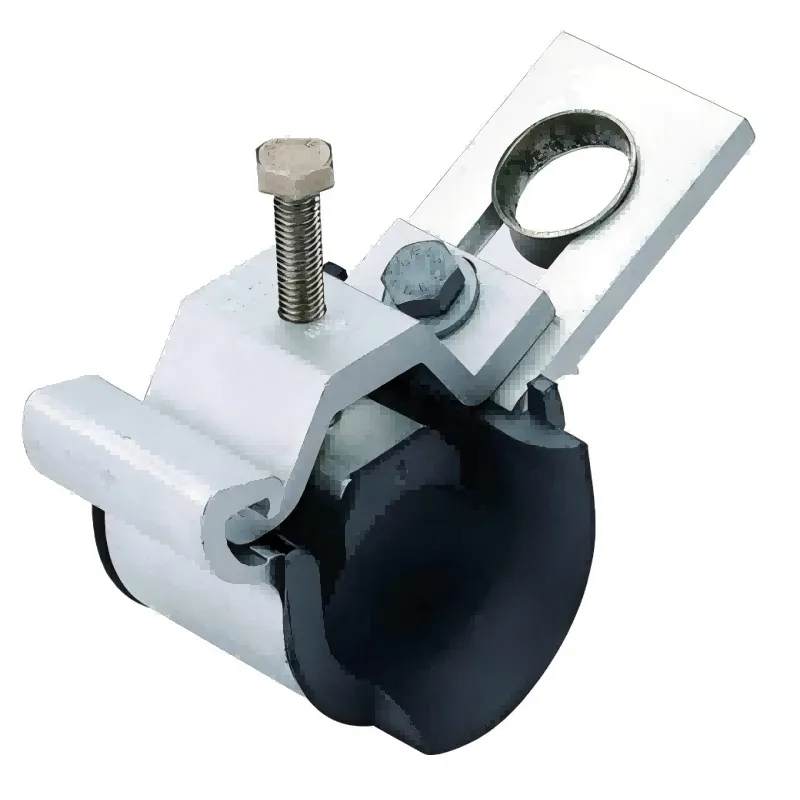

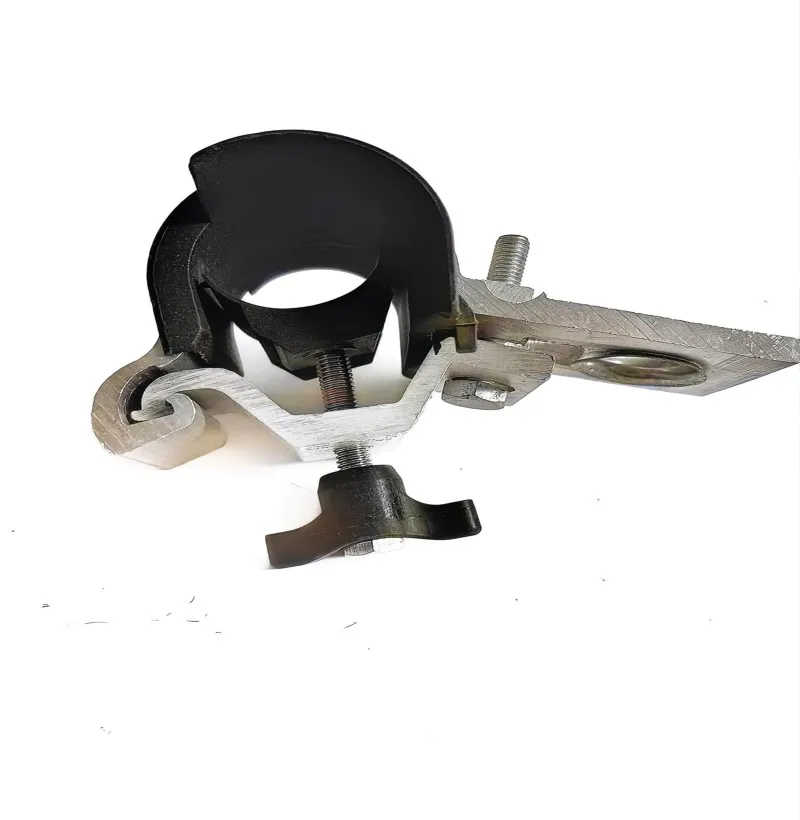

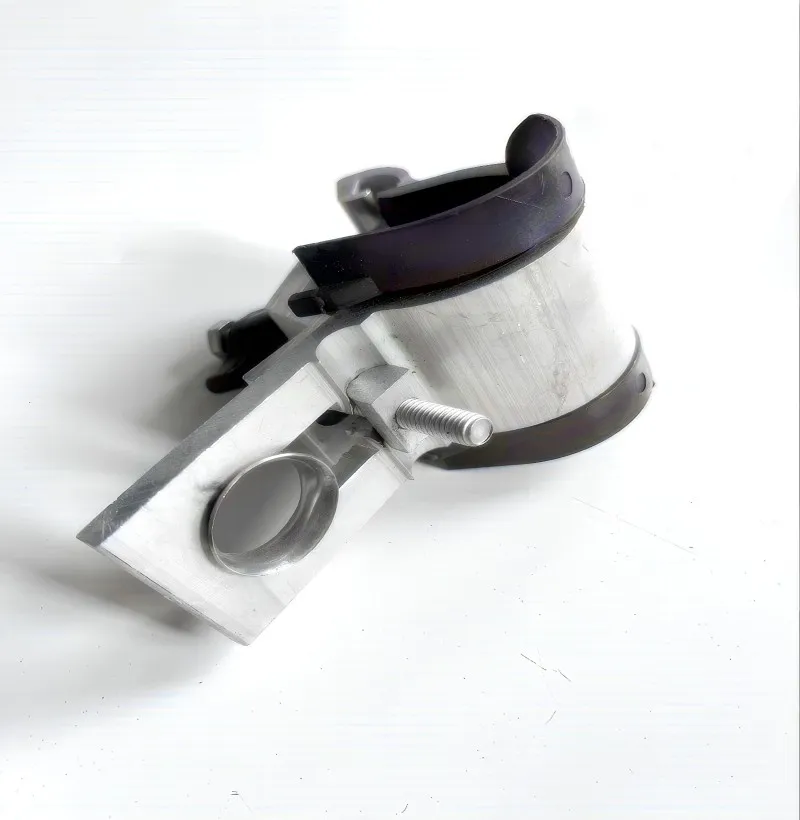

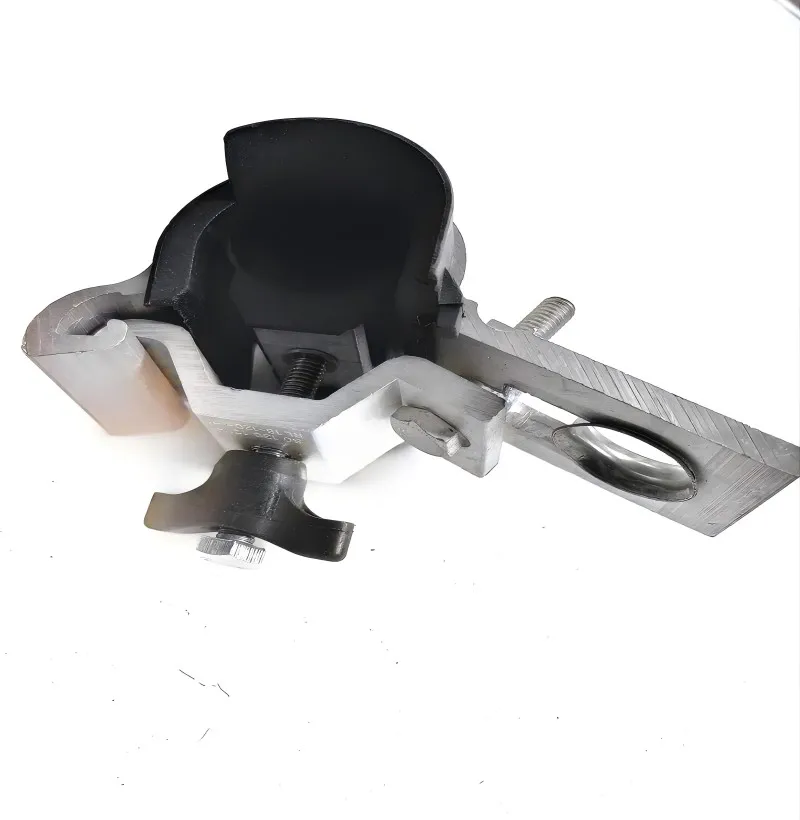

The PS-130 suspension clamp is designed for hanging SIP wires without a load-bearing core (SIP-4) on intermediate power transmission line supports with a rotation angle of up to 60°.

Share:

  • The clamp body is made of anti-corrosion aluminum alloy, internal inserts are made of weather-resistant plastic.

  • The wire is fixed in the clamp using a wing bolt.

  • The suspension  clamp PS-130 is mounted on a hook with a diameter of up to 21 mm.

     Suspension Clamp PS-130

Construction typesuspension clamp
AppicationSIP-4
Neutral carrier cross-section25 – 120 мм2
Breaking load10 kN
