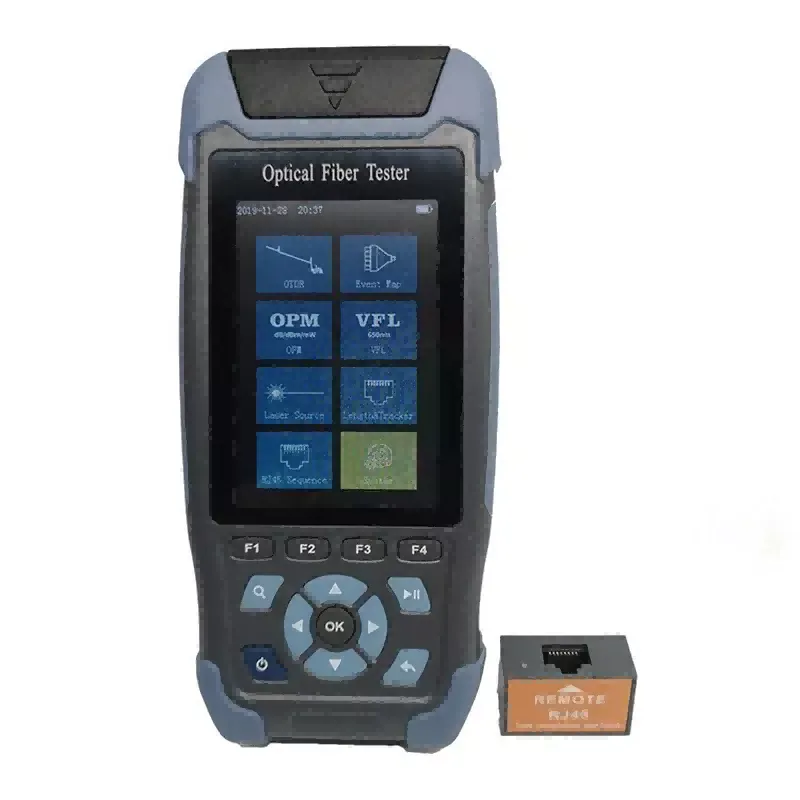

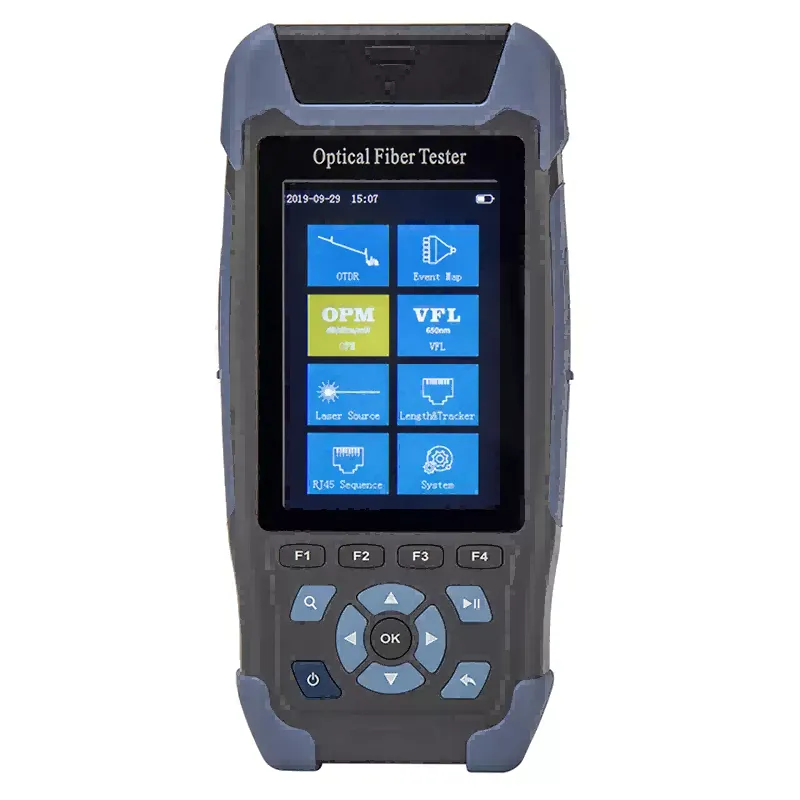

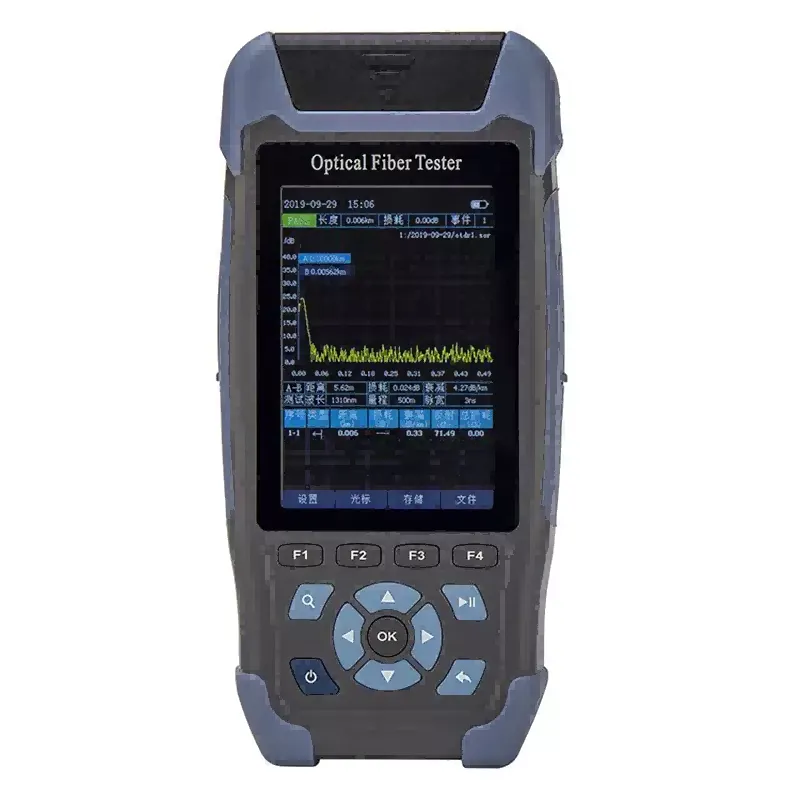

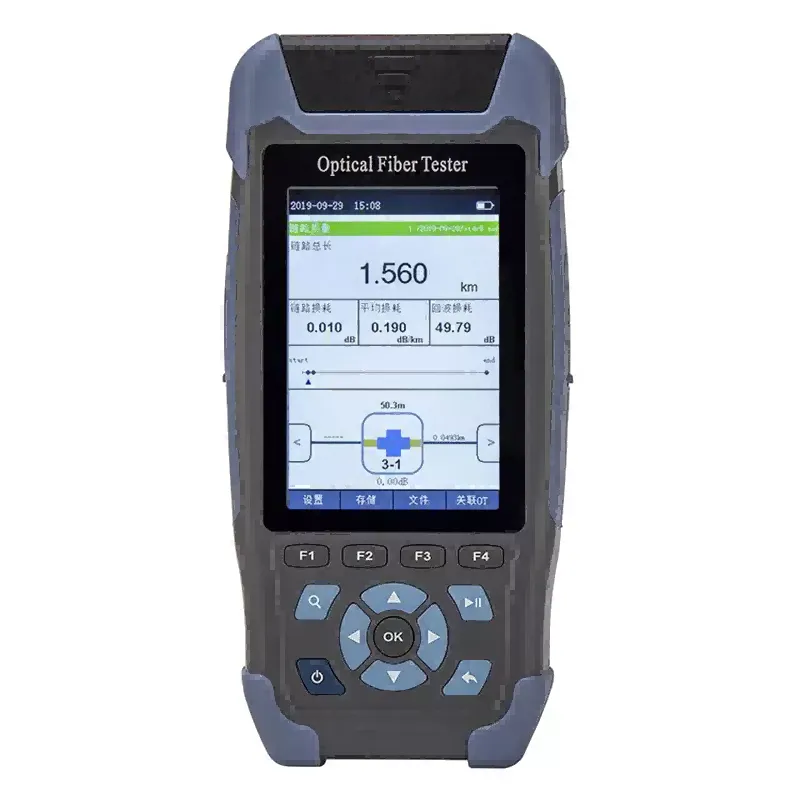

NK3200 Mini Pro Series Optical Time Domain Reflectometer adopts 3.5 inch color display screen. The UI operation  interface is simple and easy to operate. It integrates OTDR, Stable Light Source, Optical Power Meter, Visual Fault Location, Cable Sequence, Cable Length, Cable Tracker and  Flashlight. It adopts intelligent power saving management, 12 hours of super long measurement time to ensure the  field test and maintenance work efficiently.  NK3200 series are used to measure the length, loss,  connection quality and other parameters of all kinds of  optical fiber and cable. When there is optical signal in the  line, it can still be used. The maximum test power with light  is -5dBm. It can be widely used in engineering construction,  link maintenance test and emergency repair of communi cation system of optical fiber communication system.

Share:

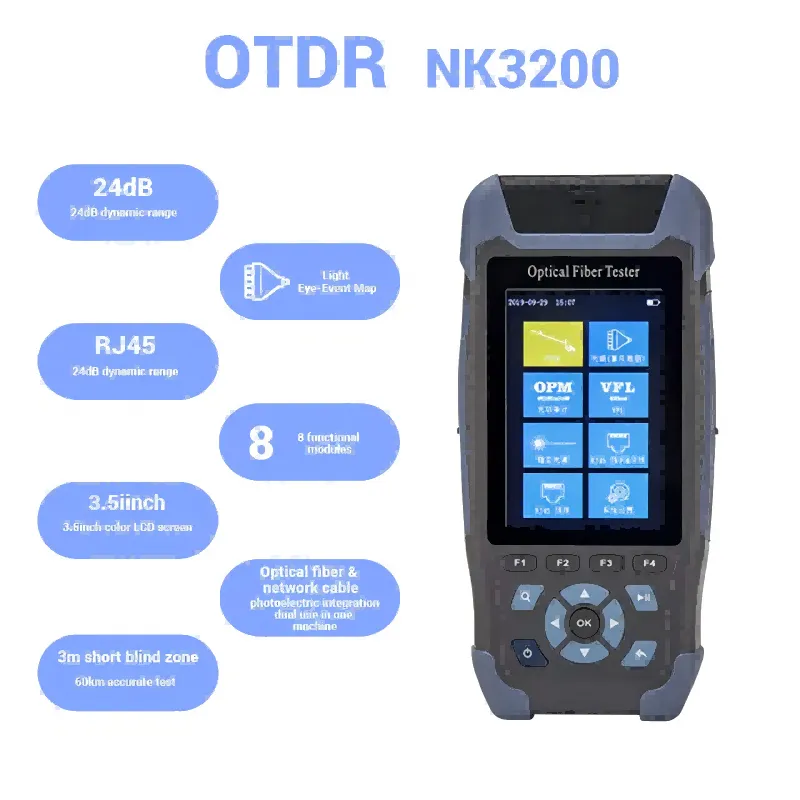

  • Fiber link with ≤-5dBm optical signal, easy to test.

  • 3m event blind area, easy test 3m jumper.

  • Long endurance, 12 hours of measurement time.

  • Hand-held design, easy to carry.

  • Brand new rubber sleeve, shockproof, fall proof.

  • USB, rechargeable with portable battery.

  • OTDR/LS/OPM/VFL/RJ45 Cable Sequence/Cable length/RJ45 tracker/Flashlight.

Mini Pro Optical Time Domain Reflectometer OTDR

Specifications

NK3200 series Mini Pro Optical Time Domain Reflectometer

ModelNK3200S1NK3200S2NK3200DNK3200F1(live test)NK3200-F2(live test)
TypeG.652 SM
Wavelength1310nm±20nm1550nm±20nm1310/1550±20nm1310nm±20nm1550nm±20nm
Dynamic Range24dB22dB24dB/22dB24dB22dB
Event Blind Zone3m
ATT Blind Zone8m
Test Range500m/1km/2km/4km/8km/16km/32km/64km
Pulse Width3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1μs/2μs/3μs/5μs/8μs/10μs
Ranging Accuracy±(1m+Sample interval+0.005%×Test distance)
Linearity±0.2dB/dB
Sample Points16k~128k
Sample Resolution0.05m~8m
Loss Resolution0.001dB

Loss Threshold

0.20dB
Range Resolution0.001m
Refractive Index1.00000~2.00000
Reflection Accuracy士3dB
File FormatSOR Standard File Format
Loss Analysis4-point method /5-point method
Laser Safety LevelClass Il

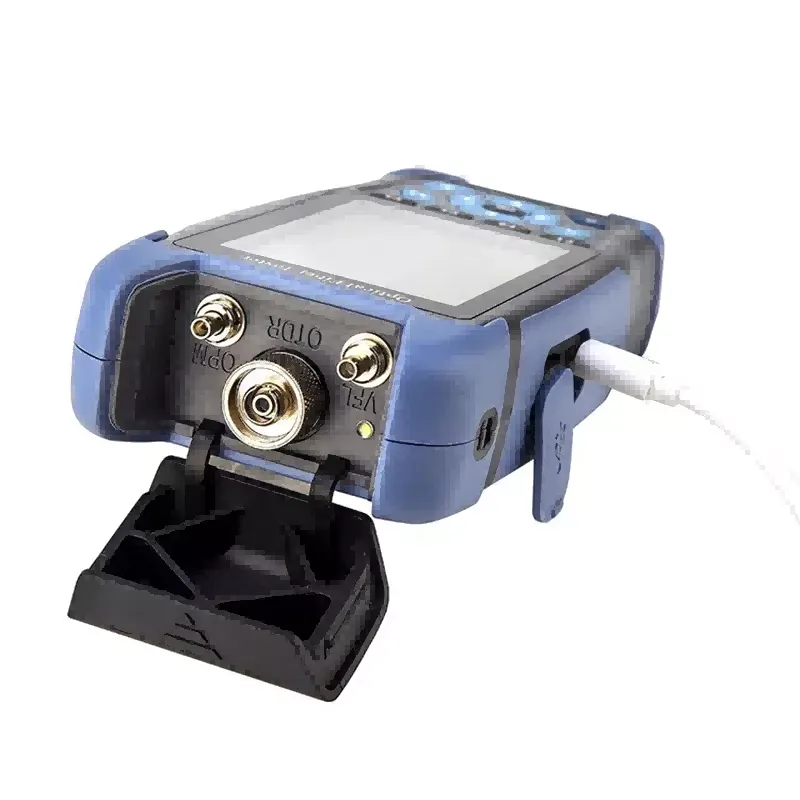

ConnectorFC/UPC(Interchangeable SC and ST)

Standard configuration:OTDR, Event Map, OPM, LS, VFL, RJ45 cable tracker(Additional purchase  tracker), RJ45 Cable Sequence&Length, Flashlight.

Note:NK3200-F1 can test fiber with 1490/1550nm signal (power ≤-5dBm)  NK3200-F2 can test fiber with 1310/1490nm signal (power ≤-5dBm)
