Patch Panels

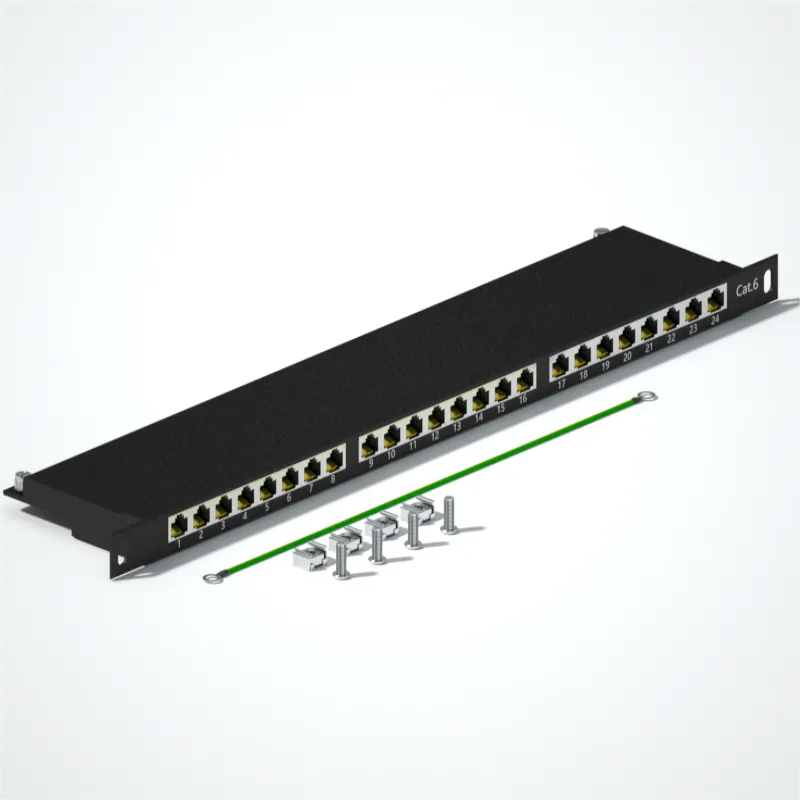

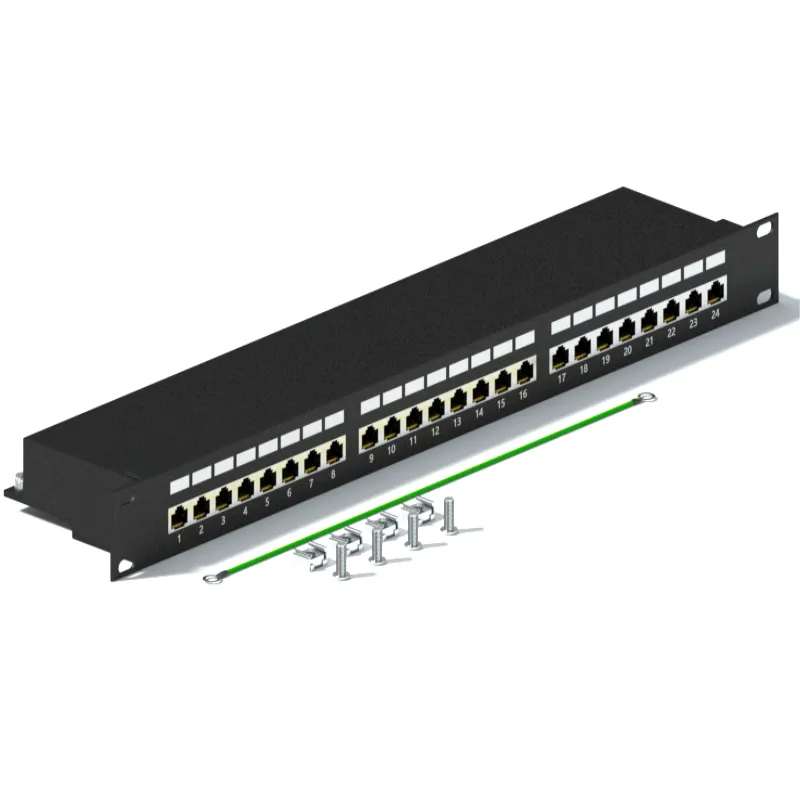

24-port Cat6 patch panel for high density and easy patching solutions in data centres. The Cat6 Ethernet patch panel is designed for use in 19 racks and ideal for 10/100/1000Base-T and 10GBase-T Ethernet applications. It bundles the networks together to connect incoming and outgoing lines and improve the organisation of a wired network. The clear numbering on the front and back of the network patch panel enables quick and easy identification of cable runs, and the detachable cable management bar keeps Ethernet cables neat and tidy.
Share:
Mount to Any EIA 19" Rack or Cabinet in Enterprise Networks and Data Center.
STP Couplers Snap In and Out of the Patch Panel for Easy Moves, Adds and Changes.

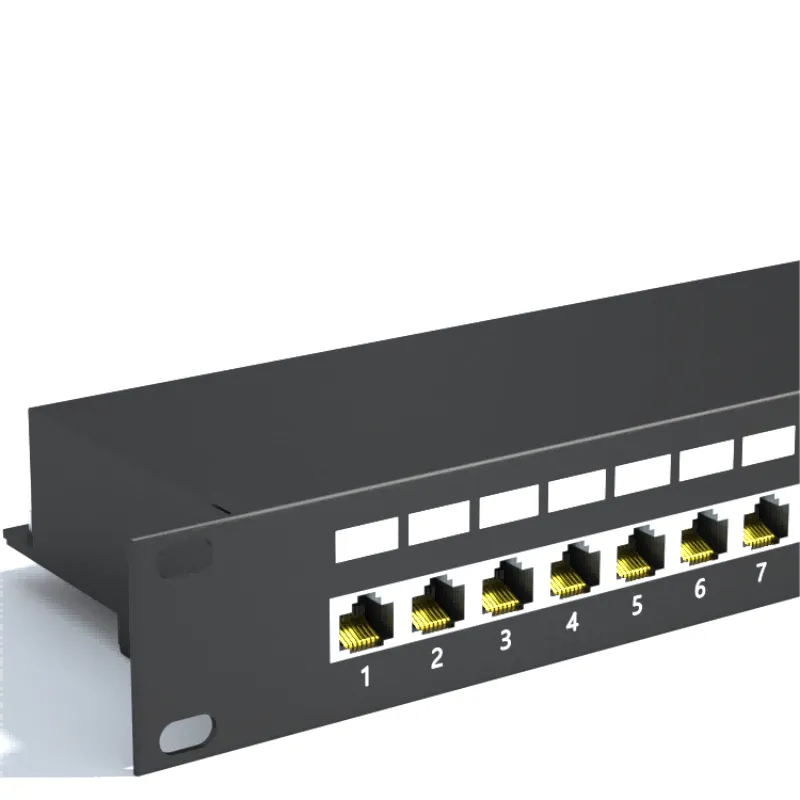

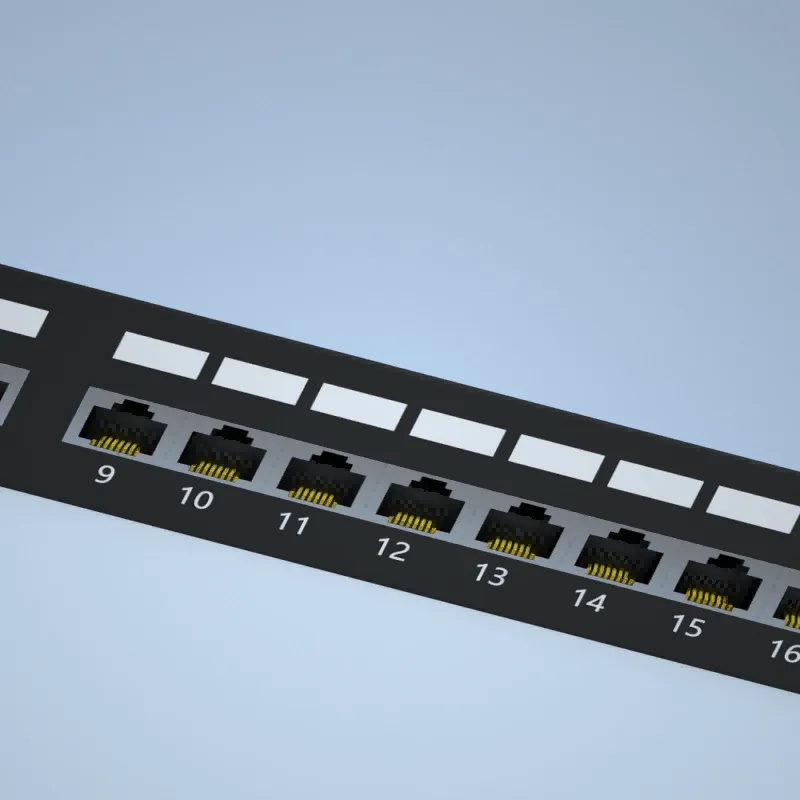

Can Be Clearly Identified with Optional Labels and Icons for Port Identification.
ISO/IEC11801 and TIA/EIA568 Standards at Swept Frequencies 1 to 500 MHz.
Backwards Compatible with 6/8p RJ45 STP Patch Cords with T568A/B Wiring Schemes.
Support POE/POE+/POE++ (IEEE 802.3af/at).
Specifications
1U 24 Ports Cat6 Shielded Feed-Through Patch Panel
Category Compatibility | Cat6a/Cat6 | Standard | IEEE 802.3af/at |
No. of Ports | 24 | No. of Rack Spaces | 1U |
Termination | Coupler | Shielding Type | Shielded |
Material | SPCC + ABS Plastics | Color | Black |
Type of Patch Panel | Flat | Wiring Scheme | T568A/T568B |
Approvals | RoHS Compliant | Operating Temperature | -25~75°C |
Inquiry
