MPO 0.9mm Fan-out patch cable,MPO-8 UPC (Female) to 8 LC UPC Simplex, 8 Fibers, Single Mode (OS2), LSZH, 0.35dB Max, Yellow

MPO 0.9mm Fan-out patch cable,MPO-8 UPC (Female) to 8 LC UPC Simplex, 8 Fibers, Single Mode (OS2), LSZH, 0.35dB Max, Yellow

Low insertion loss, high return loss MPO MTP based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies Economical solution for mass-termination of fiber Designed for low loss and Straight loss SM and MM applications Ruggedized round cable, oval cable and bare ribbon options available Color coded housings available to differentiate fiber type, polish type and/or connector grade Good in repeatability and exchange ability.

Inquire Now Next Product

Features Specification Ordering information Inquiry

1.US Conec MPO Connector with Optimal 0.35dB Low Insertion Loss

2.Corning ClearCurve® Fiber with 7.5mm Min. Bend Radius

3.Plenum (OFNP) Fire Safety-Rated for Use in Plenum Air Spaces

4.Color-Coded Connector Boots for Easy Identification

5.Typically Used for Patching Within a Cabinet

Fiber optic cable components are designed to organize connections between MPO cassette tapes. The cable assembly consists of 16 LSZH outer shell optical fibers, connected by 16 MPO connectors on both sides. In construction, use B-type exchange scheme (Key Up – Key Up).

The design quality ensures low connector loss and therefore has high connection performance.

MPO Harness breakout cable,MPO-8 APC (Female) to 4 LC UPC Duplex, 8 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Yellow

Specification

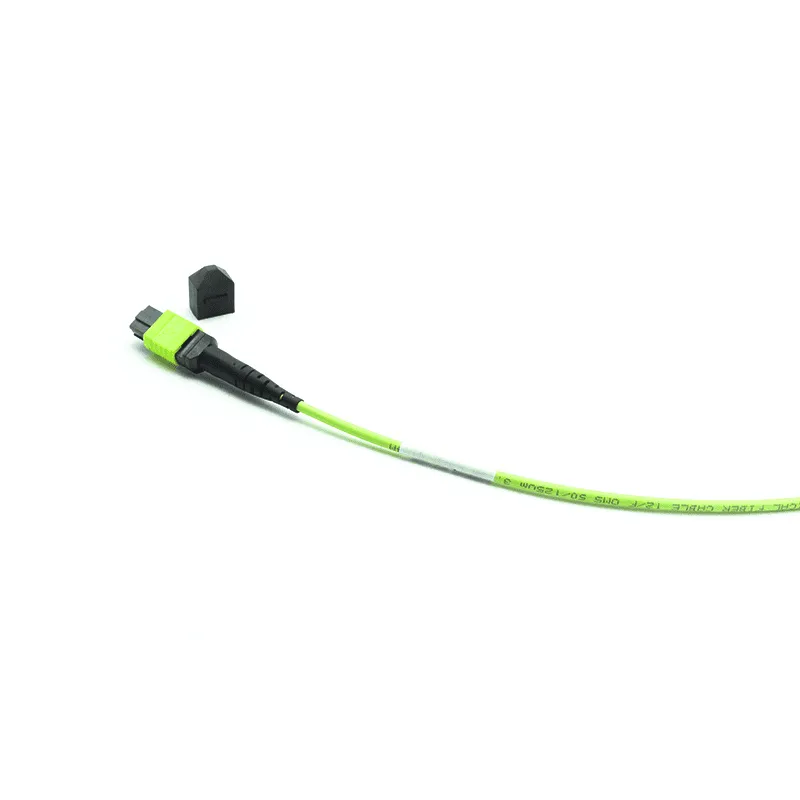

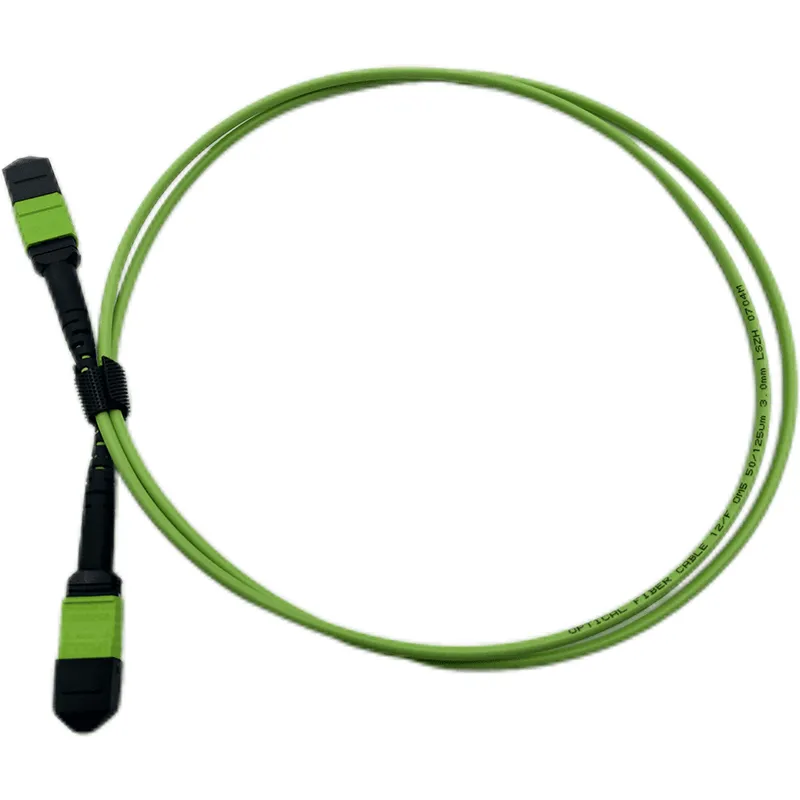

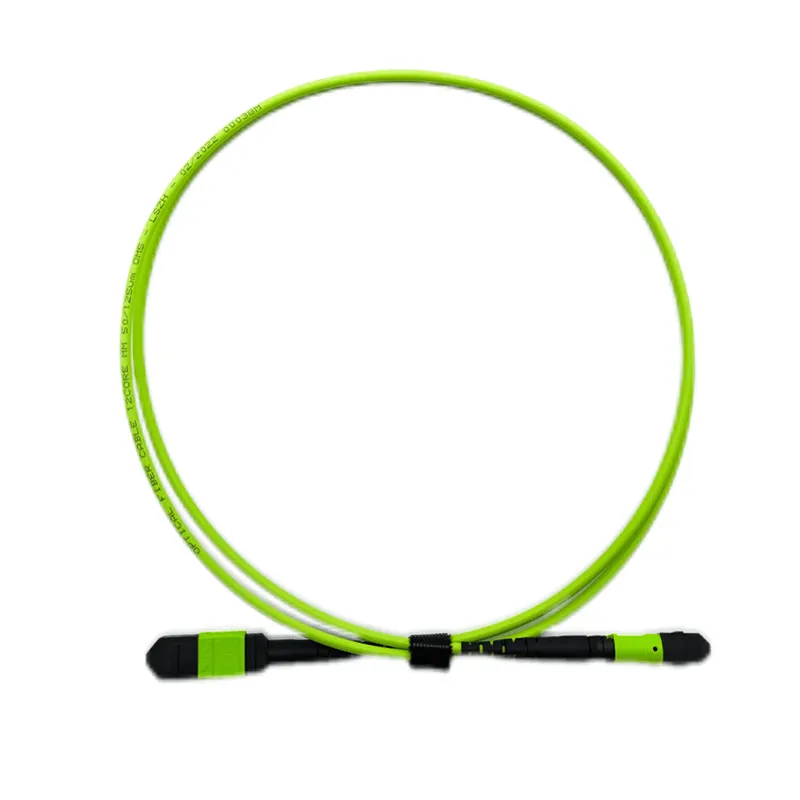

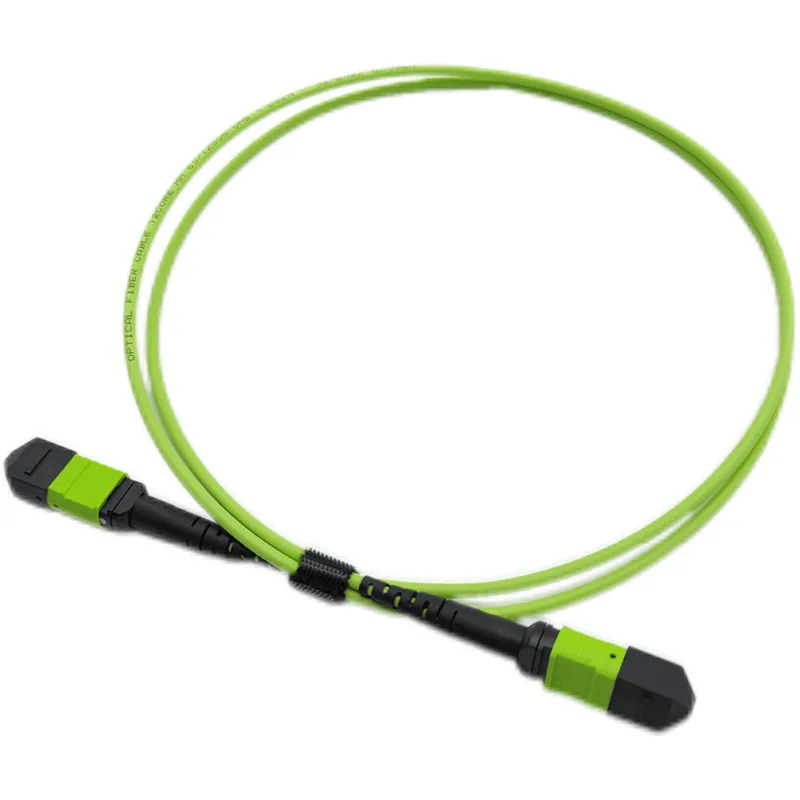

MPO Jumper, MPO-16 UPC (Female) to MPO-16 UPC (Female), 16 Fibers, Multimode (OM5), Plenum (OFNP), 0.35dB Max, Type A, Lime Green

Connector A	MPO Female	Connector B	MPO Female
Fiber Mode	OM5 50/125μm	Wavelength	850/1300nm
40G Ethernet Distance	440m at 850nm	100G Ethernet Distance	150m at 850nm
Glass Fiber	Corning	Fiber Grade	G.657.A1
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥20dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Polish Type	UPC to UPC	Minimum Bend Radius	7.5 mm
Polarity	Type A, B,C	Cable Length	Customized
Cable Outside Diameter (OD)	3.0mm	Cable Jacket	Plenum (OFNP)
Installation Tensile Load	66N	Tensile Strength (Long/Short Term)	80/240N
Storage Temperature	-40 to +85°C	Operating Temperature	-40 to +70°C

Per-terminated MPO Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

MPO Harness breakout cable,MPO-8 APC (Female) to 4 LC UPC Duplex, 8 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Yellow

Ordering information

MPO Jumper, MTP MPO-24 APC (Female) to MTP MPO-24 APC (Female), 24 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B, Yellow

①	Ferrule Type：UPC,APC	⑤	Fiber Count	4/8/12/16/24...(customized)
②	Connector Typpe:Male,Female	⑥	Cable Length(m):5m...(customized)
③	Cable Diameter: Φ0.9/2.0	⑦	Polarity	TypeA/B/C
④	Fiber Type：G657A1,G652D...,OM1~0M5	⑦	Polarity	TypeA/B/C
