Low insertion loss, high return loss MPO MTP based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies Economical solution for mass-termination of fiber Designed for low loss and Straight loss SM and MM applications Ruggedized round cable, oval cable and bare ribbon options available Color coded housings available to differentiate fiber type, polish type and/or connector grade Good in repeatability and exchange ability.
Share:
· With 8 fiber12-fiber and 24-fiber MPO/MTO connector standard.
· Available in OS1/2, OM2, OM3 and OM4.
· Available in FC,LC, SC, ST, MU, and MTP.
· Interface polished type has PC, UPC and APC.
· Support use in attaching directly to 40/100G transceivers.
· 100% factory tested, with test results included for each assembly.
· Polarity options are TIA style A, B, or C (Method B is standard).
· For transition from trunk backbone assemblies to fiber rack system.
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves.
· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex.
· Used in conjunction with frame (Zero-U) or Flush Mount 1RU panels, and direct connect into SAN equipment.
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling.
Specification

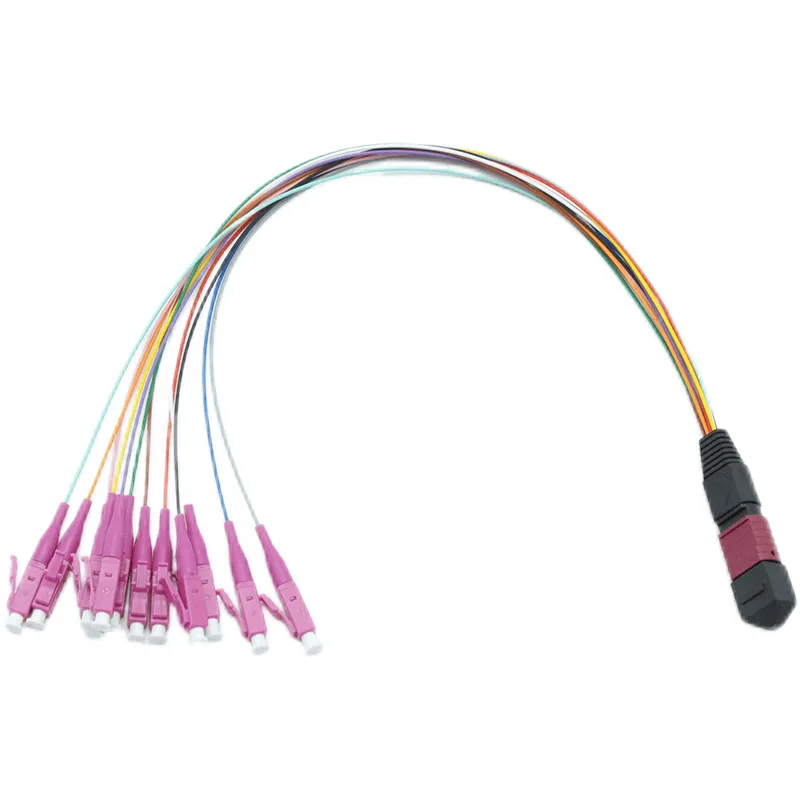

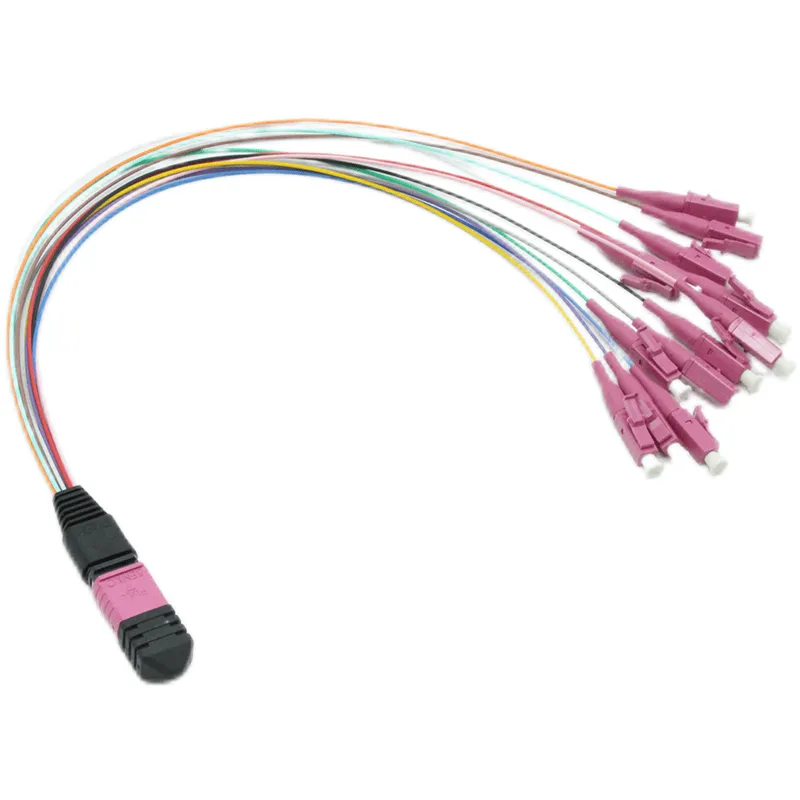

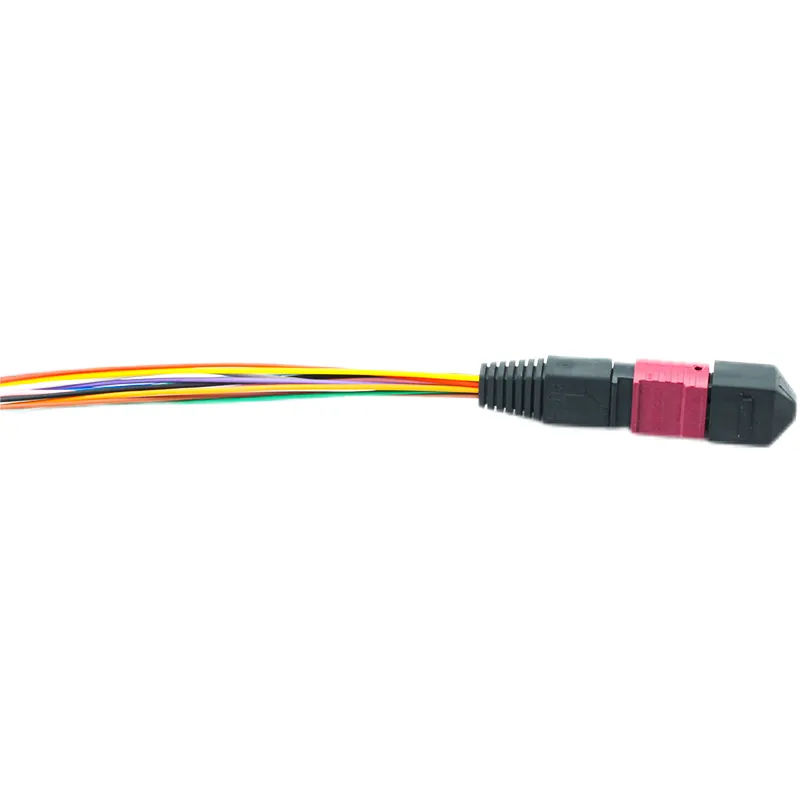

MPO 0.9mm Fan-out patch cable ,MPO-12 UPC (Female) to 12 LC UPC Simplex, 12 Fibers, Multimode (OM4), LSZH, 0.35dB Max,Magenta
| Connector A | MPO UPC | Connector B | LC UPC Simplex |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning | Fiber Grade | G.657.A1 |
| MTP Connector IL | 0.35dB Max (0.15dB Typ.) | LC Connector IL | ≤0.2dB |
| MTP Connector RL | ≥20dB | LC Connector RL | ≥30dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
| Cable Jacket | LSZH | Fiber Count | 12 Fibers |
| Cable Diameter (OD) | 0.9mm | Cable Length | Customized |
| Installation Tensile Load | 66N | Tensile Strength (Long/Short Term) | 80/240N |
| Storage Temperature | -40 to +85°C | Operating Temperature | -40 to +70°C |
Per-terminated MPO Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Ordering information
| ① | Ferrule Type：UPC,APC | ⑤ | Fiber Count | 4/8/12/16/24...(customized) |
| ② | Connector Typpe:Male,Female | ⑥ | Cable Length(m):5m...(customized) | |
| ③ | Cable Diameter: Φ0.9/2.0 | ⑦ | Polarity | TypeA/B/C |
| ④ | Fiber Type：G657A1,G652D...,OM1~0M5 | |||
