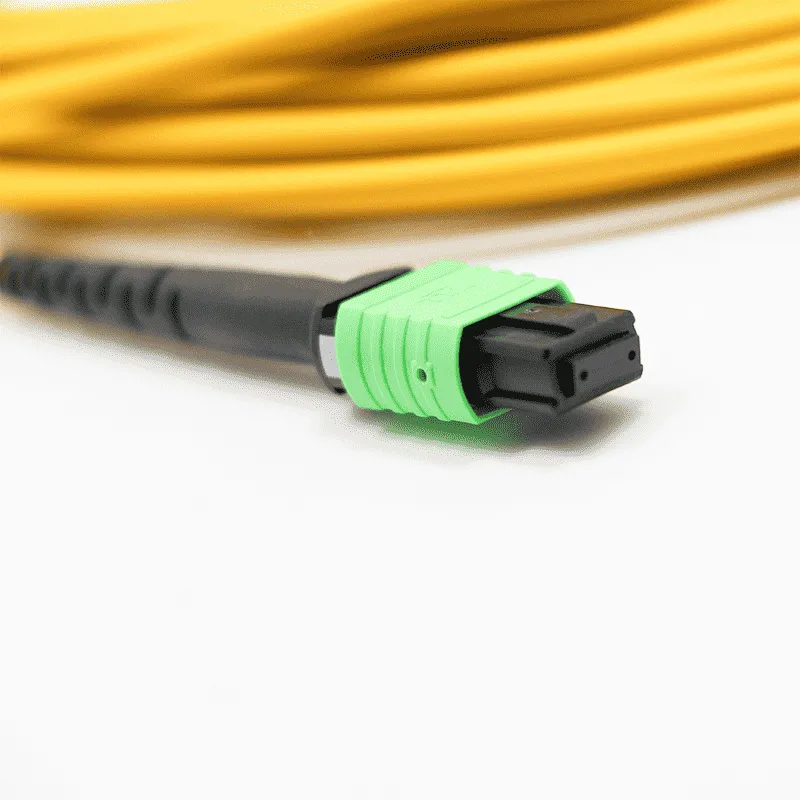

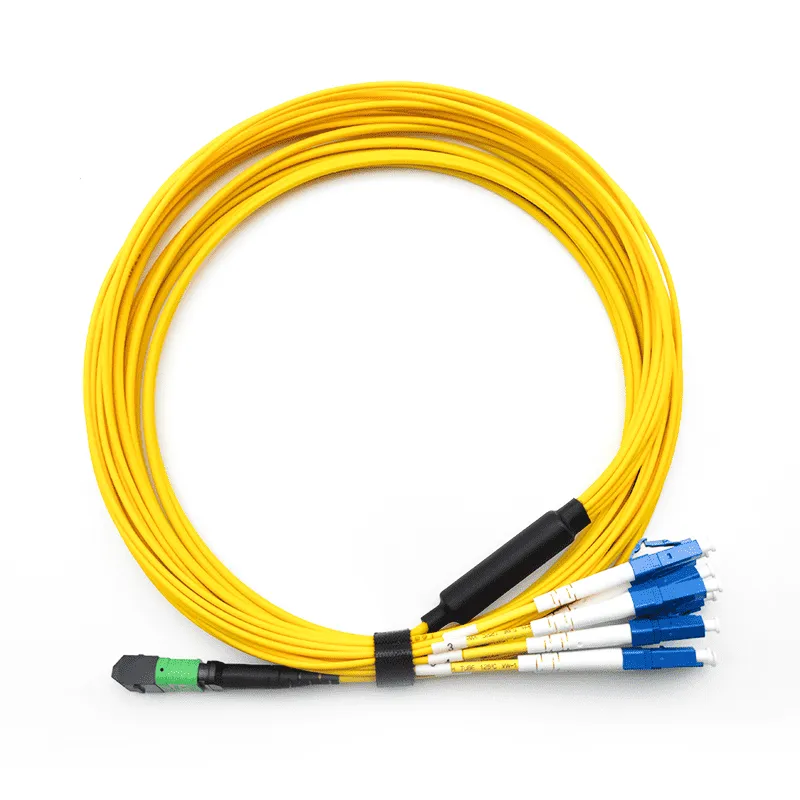

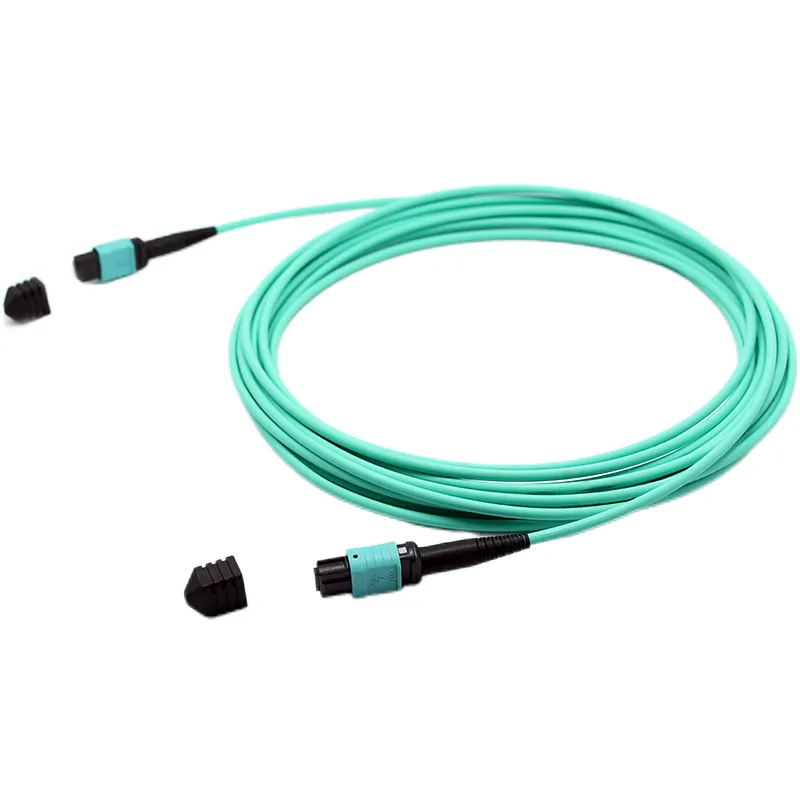

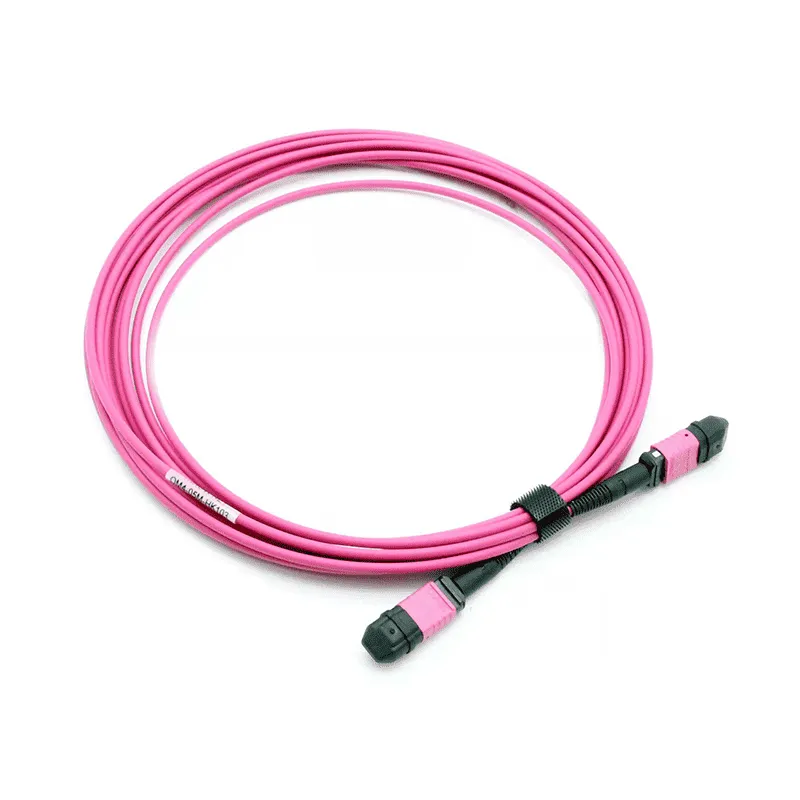

Low insertion loss, high return loss MPO MTP based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies Economical solution for mass-termination of fiber Designed for low loss and Straight loss SM and MM applications Ruggedized round cable, oval cable and bare ribbon options available Color coded housings available to differentiate fiber type, polish type and/or connector grade Good in repeatability and exchange ability.
Share:
1.MTP MPO Connector with Optimal 0.35dB Low Insertion Loss
2.Corning SMF-28® Ultra Fiber with 10mm Min. Bend Radius
3.Plenum (OFNP) Fire Safety-Rated for Use in Plenum Air Spaces
4.Color-Coded Connector Boots for Easy Identification
5.Typically Used for Patching Within a Cabinet
Fiber optic cable components are designed to organize connections between MPO cassette tapes. The cable assembly consists of 12 LSZH outer shell optical fibers, connected by 12 MPO connectors on both sides. In construction, use B-type exchange scheme (Key Up – Key Up).
The design quality ensures low connector loss and therefore has high connection performance.
Specification

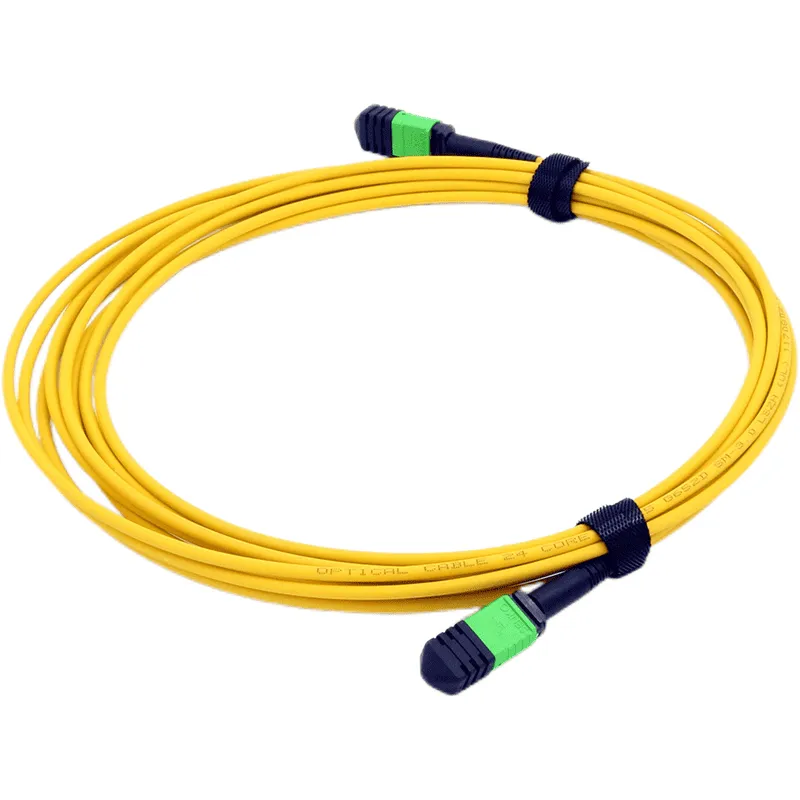

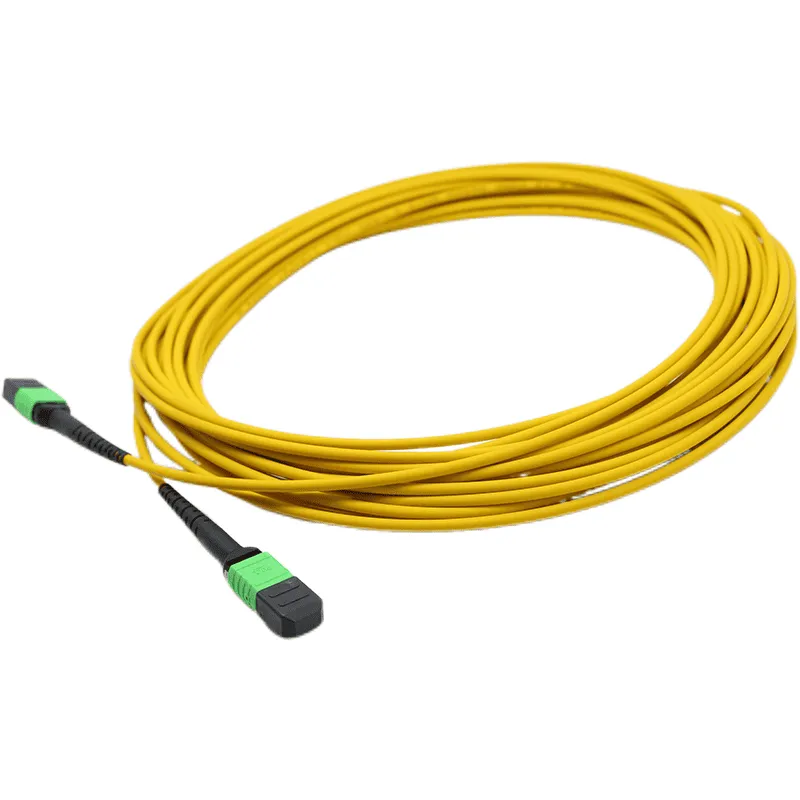

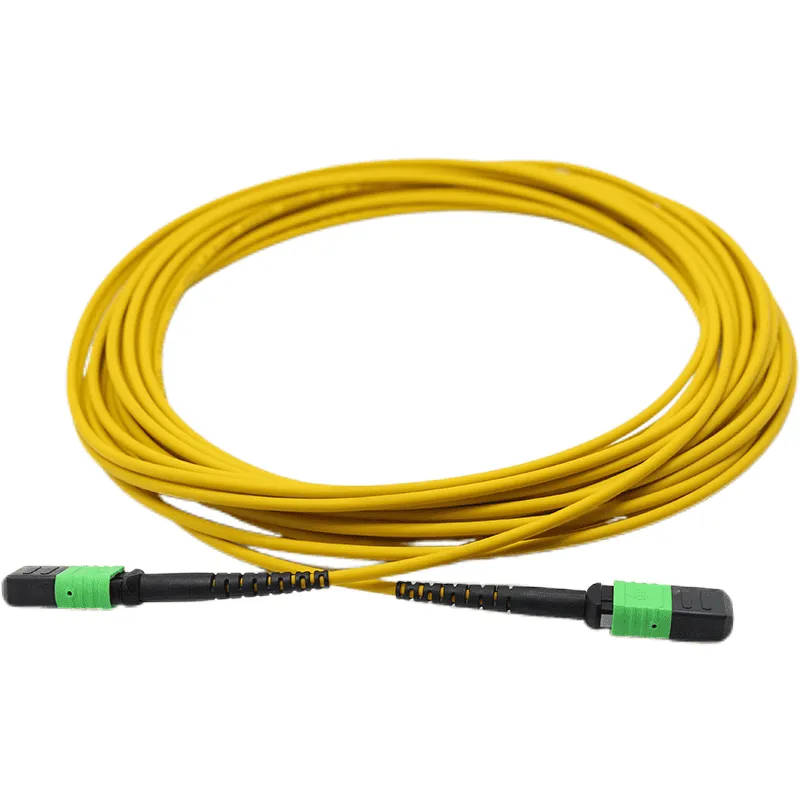

MPO Jumper, MTP MPO-12 APC (Female) to MTP MPO-12 APC (Female), 12 Fibers, Single Mode (OS2),0.35dB Max, Type B, Yellow
| Connector A | MPO Female | Connector B | MPO Female |
| Fiber Mode | OS2 9/125μm SM | Wavelength | 1310/1550nm |
| Glass Fiber | Corning | Fiber Grade | G.657.A1 |
| Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥60dB |
| Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
| Polish Type | APC to APC | Minimum Bend Radius | 10 mm |
| Polarity | Type A, B,C | Cable Length | Customized |
| Cable Outside Diameter (OD) | 3.0mm | Cable Jacket | Plenum (OFNP) |
| Installation Tensile Load | 66N | Tensile Strength (Long/Short Term) | 80/240N |
| Storage Temperature | -40 to +85°C | Operating Temperature | -40 to +70°C |

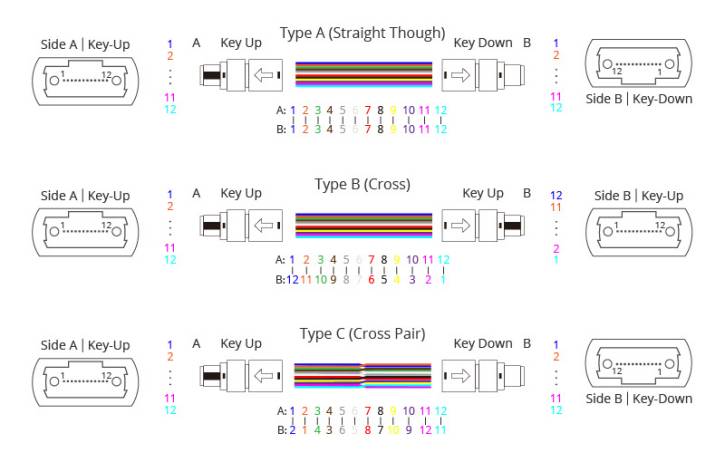

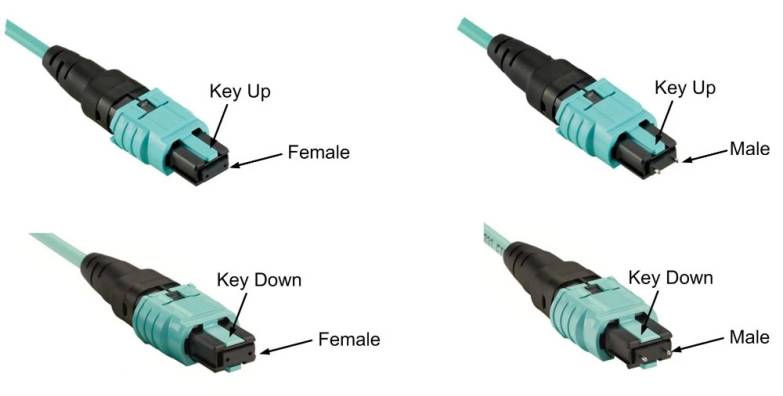

Per-terminated MPO Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Ordering information

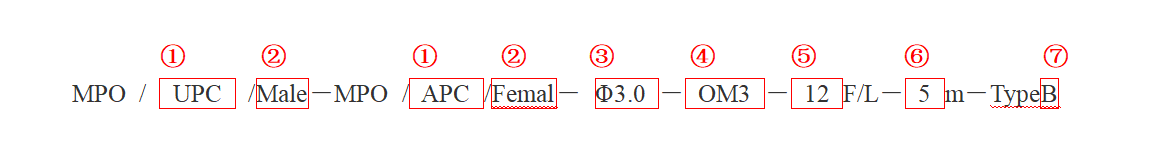

| ① | Ferrule Type：UPC,APC | ⑤ | Fiber Count | 4/8/12/16/24...(customized) |
| ② | Connector Typpe:Male,Female | ⑥ | Cable Length(m):5m...(customized) | |
| ③ | Cable Diameter: Φ0.9/2.0 | ⑦ | Polarity | TypeA/B/C |
| ④ | Fiber Type：G657A1,G652D...,OM1~0M5 | |||
