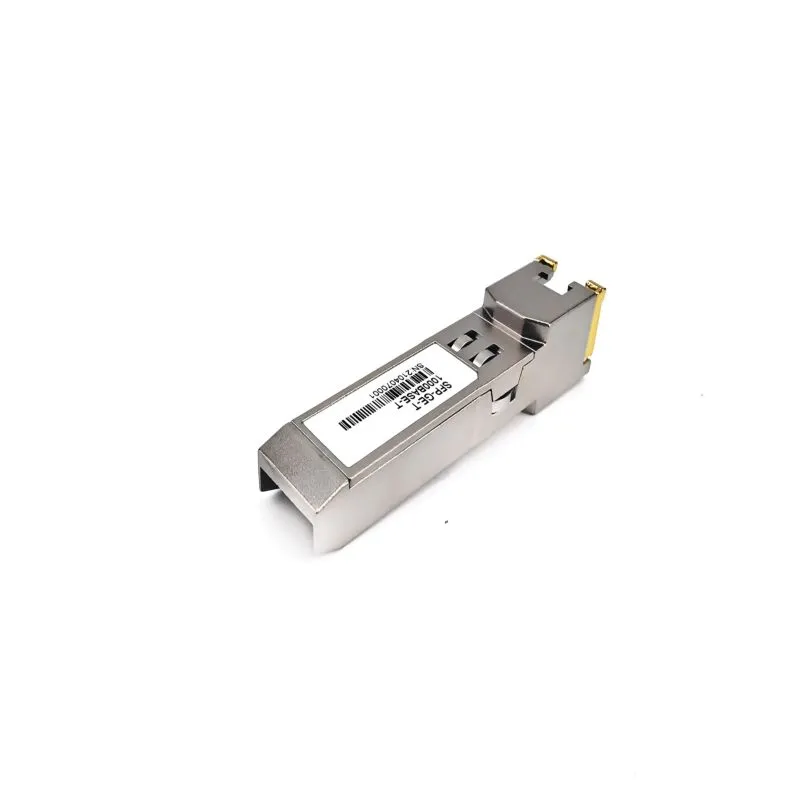

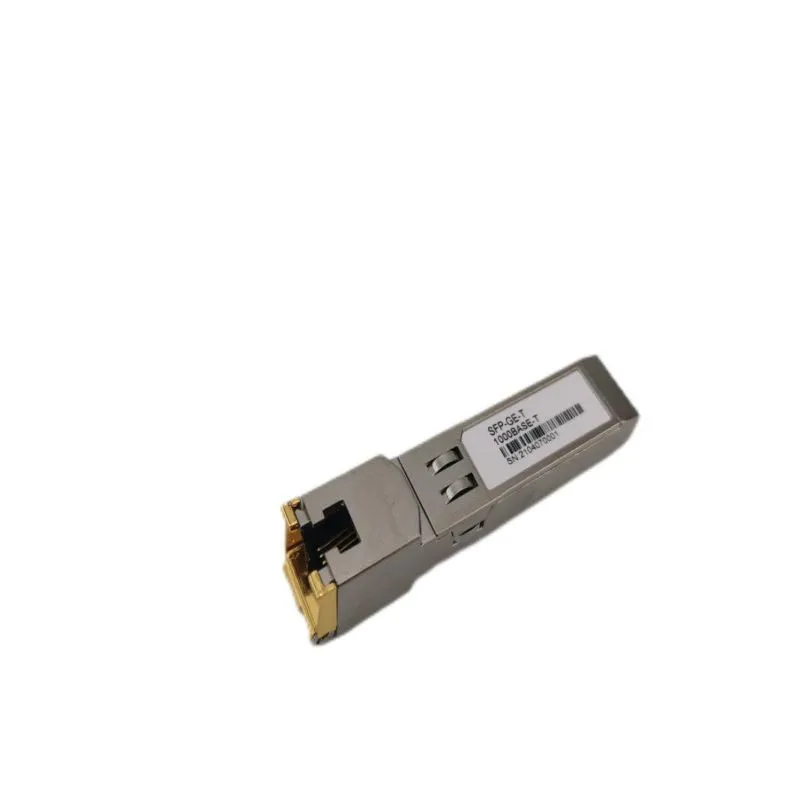

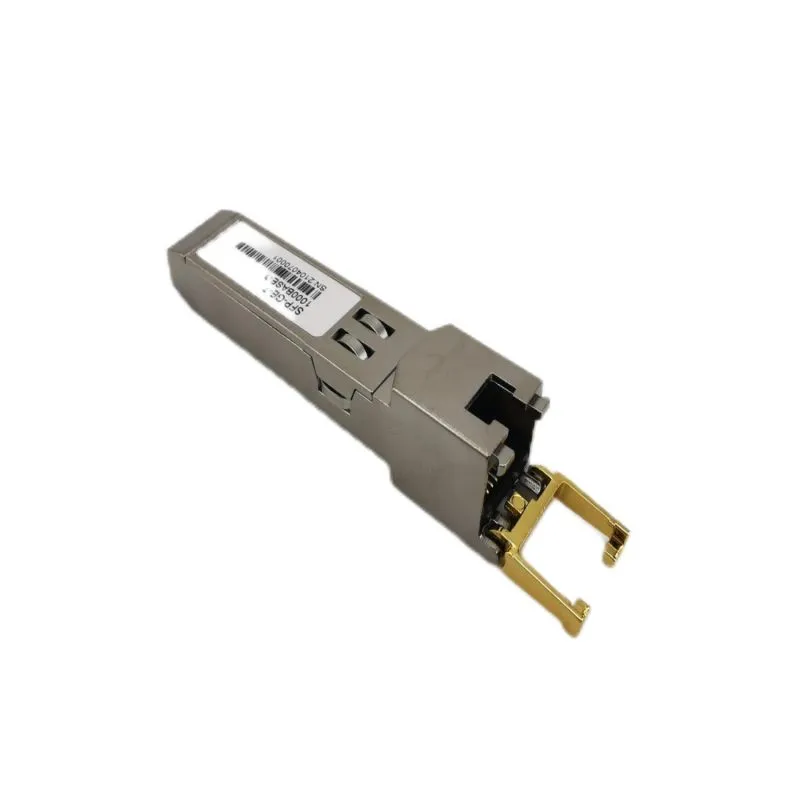

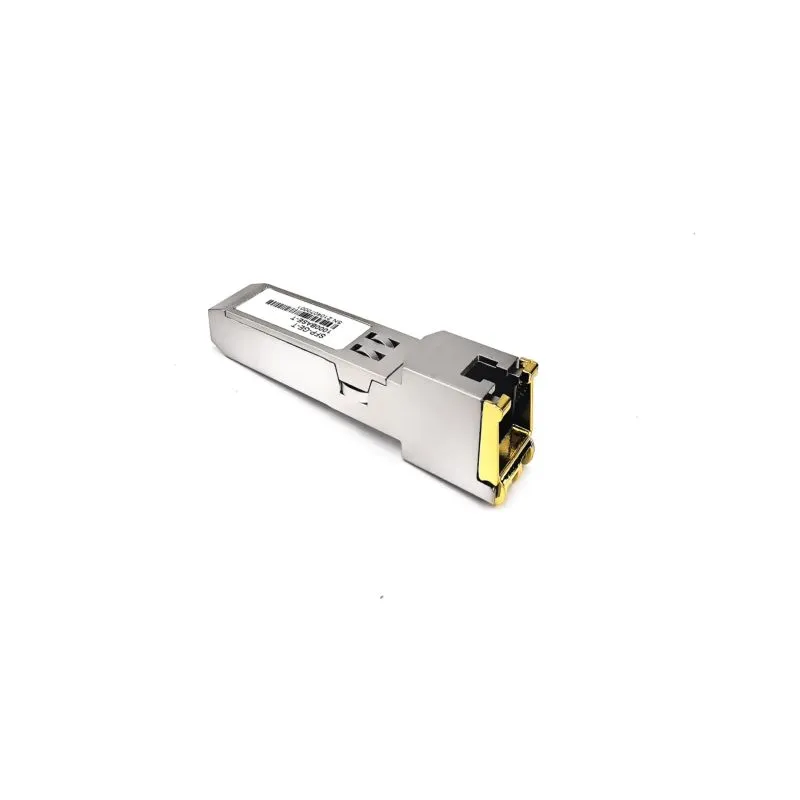

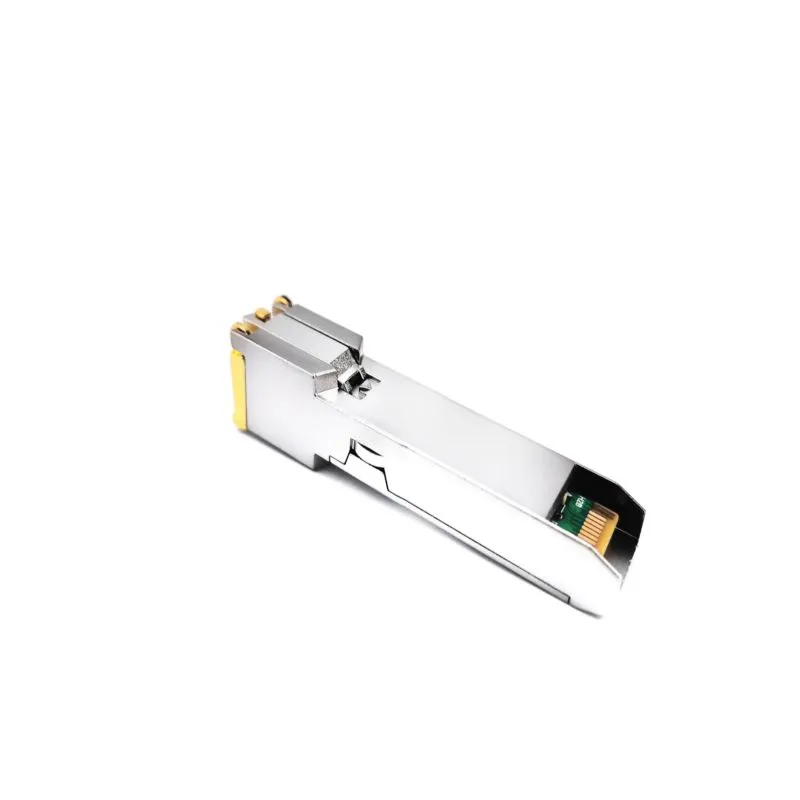

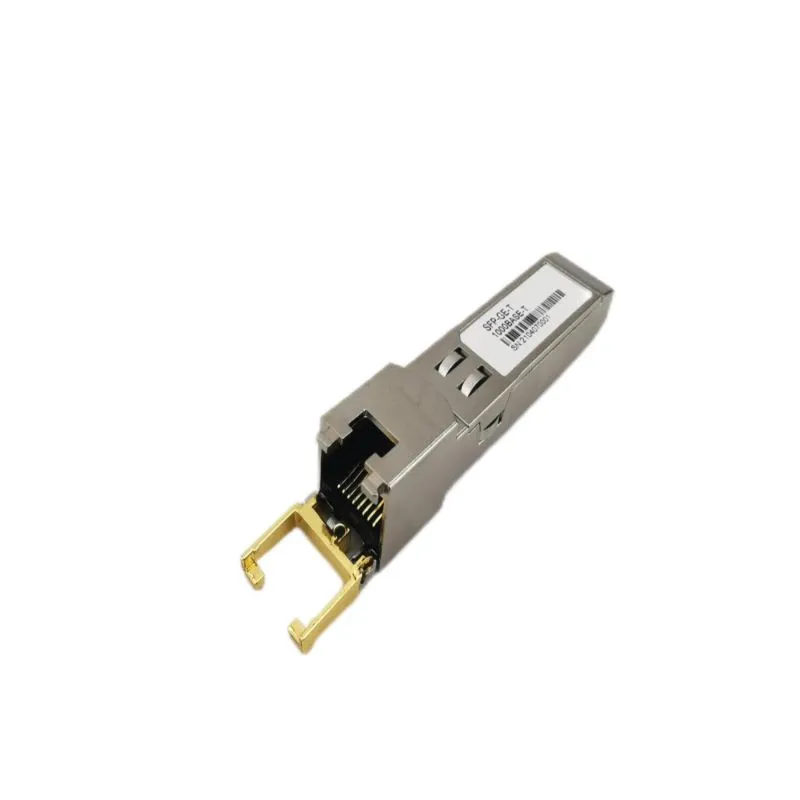

SFP transceiver module 1000BASE-T Copper RJ-45 Cisco Compatible

SFP Module Gigabit RJ-45 supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.

Share:

  • Compatible Cisco,Juniper,brocade, HPE, H3C, Dell,Huawei and ZTE switches.

  • Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance.

  • Max. Power Consumption 1.2W Allowing for Prolonged Service Life.

  • Commercial Temperature Range 0 to 70°C.

  • Compliant to IEEE Std 802.3 and 802.3ab Gigabit Ethernet.

Specification

Optical transceiver Cisco Compatible1000BASE-T Copper 100m RJ-45

ItemParameterItemParameter
Form FactorSFP SGMIIMax. Data Rate1000Mbps
MediaCat 6/Cat 6aMax. Cable Distance100m
ConnectorRJ-45Rx LOSNO
DOM SupportNoCommercial Temperature Range0 to 70°C (32 to 158°F)
Warranty5 YearsProtocolsMSA Compliant, IEEE STD 802.3
