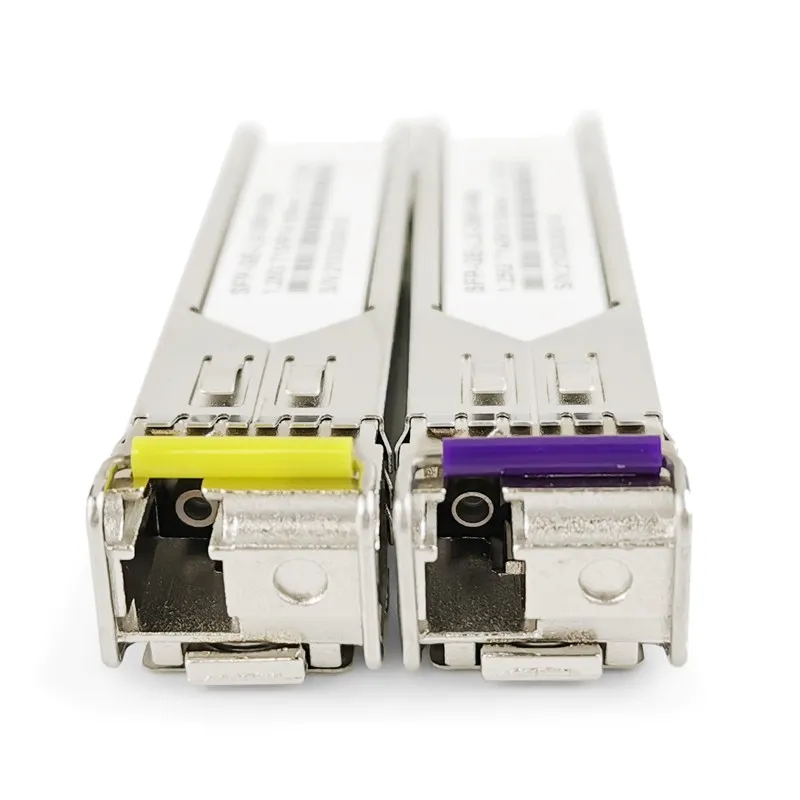

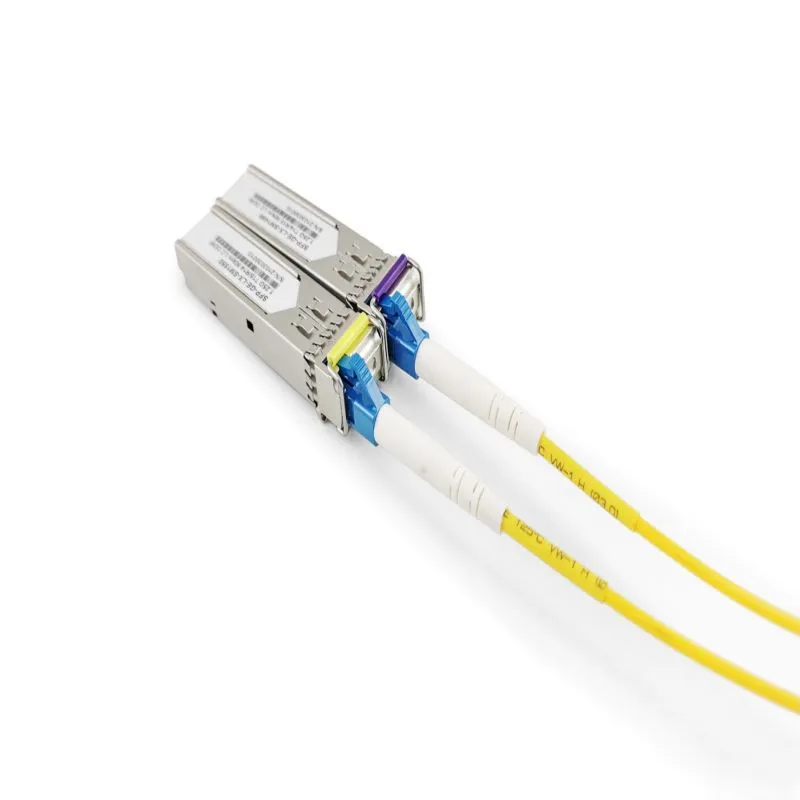

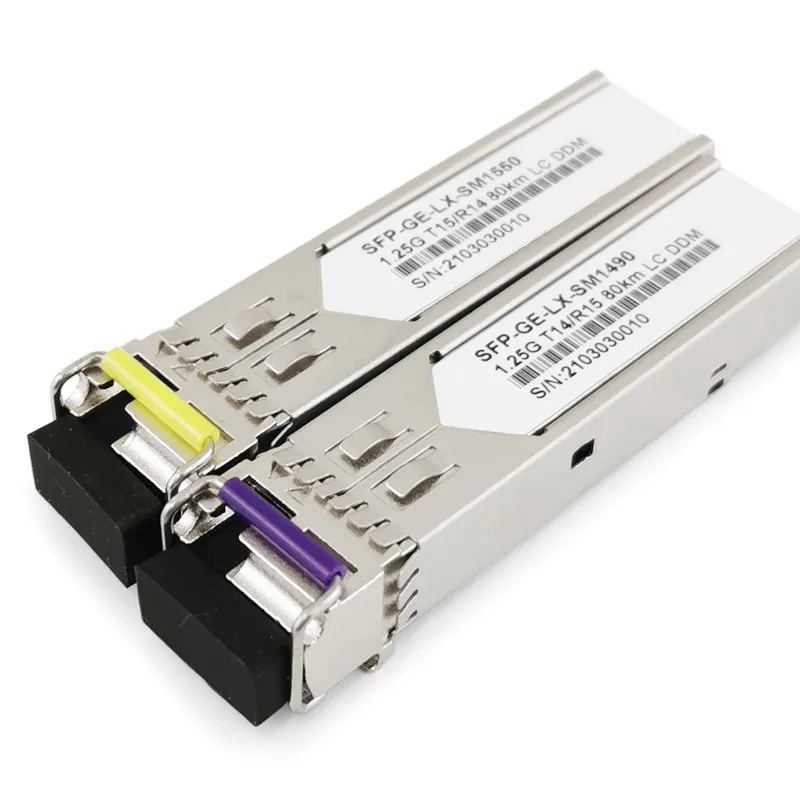

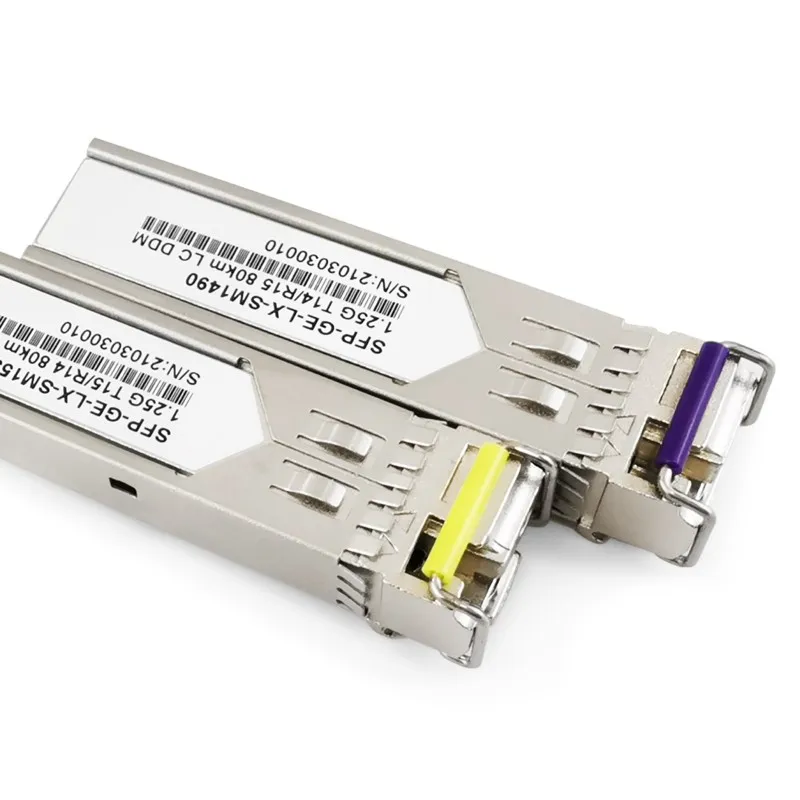

The Cisco-compatible SFP Module provides up to 80km of 1000Base-BX throughput over single-mode fiber (SMF) using 1550nm-TX/1490nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths.It provides 1.25G Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
Share:
Compatible Cisco,Juniper,brocade, HPE, H3C, Dell,Huawei and ZTE switches.
Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance.
Max. Power Consumption 1W Allowing for Prolonged Service Life.
Commercial Temperature Range 0 to 70°C.
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities.
Compliant to IEEE 802.3z Gigabit Ethernet.
Class 1 FDA Laser Safety and RoHS Compliant.
Specification
Cisco Compatible SFP 1.25G Simplex LC SMF Optical Transceiver
| Item | Parameter | Item | Parameter |
| Form Factor | SFP | Max. Data Rate | 1.25Gbps |
| Wavelength | 1550nm-TX/1490nm-RX | Max. Cable Distance | 80km |
| Connector | Simplex LC | Fiber | SMF |
| Transmitter Type | DFB Bidi | Receiver Type | PIN |
| DDM/DOM | Supported | TX Power | -0~ 5dBm |
| Receiver Sensitivity | < -26dBm | Commercial Temperature Range | 0 to 70°C |
