As the continuous growth of data center bandwidth and network connectivity, traditional duplex patch cables (such as LC cables) can not meet  with the requirements. To deal with the problem, MTP/MPO cables have entered the market, accommodating more fiber in one MTP/MPO connector, which is a practical solution for high-density cable systems in 40G/100G/400G data centers.

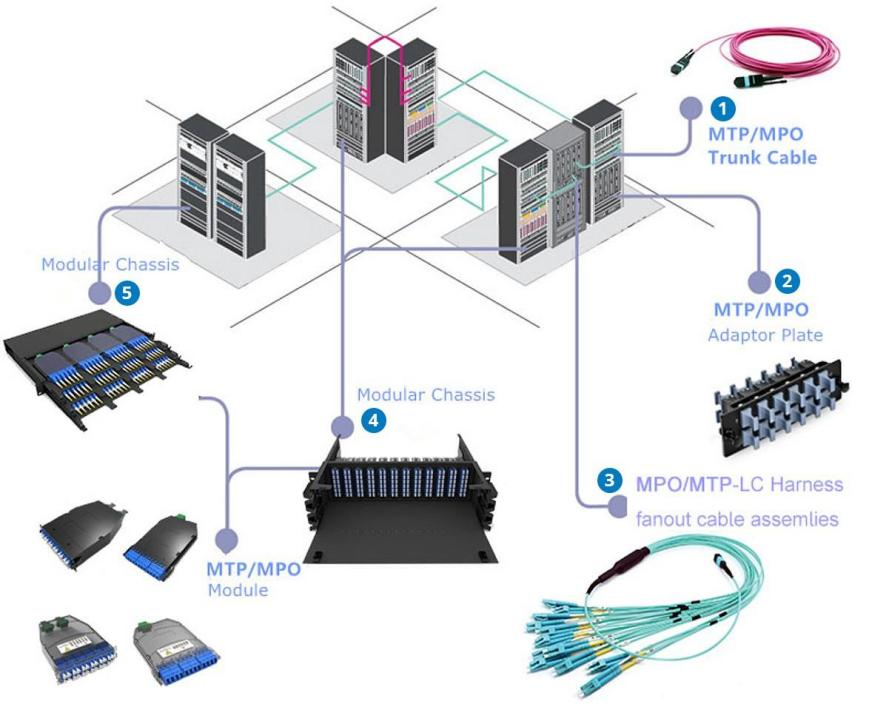

Applications

Advantages MPO System

1. Scalable Solution

MPO/MTP Fiber Patch cable/trunk cable is terminated with MPO/MTP connector on both ends. MPO/MTP Patch  cable/trunk cables connect MPO/MTP modules together as a permanent link. The Patch cable/trunk cables are  available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions.

2. High Density Installation

The effective utilization of rack space requires a port density of 96LC/1U. By using a special push-pull mechanism with a tail to fix the patch line, the convenient operation of the high-density port system is ensured.

3. Reliable Product Quality

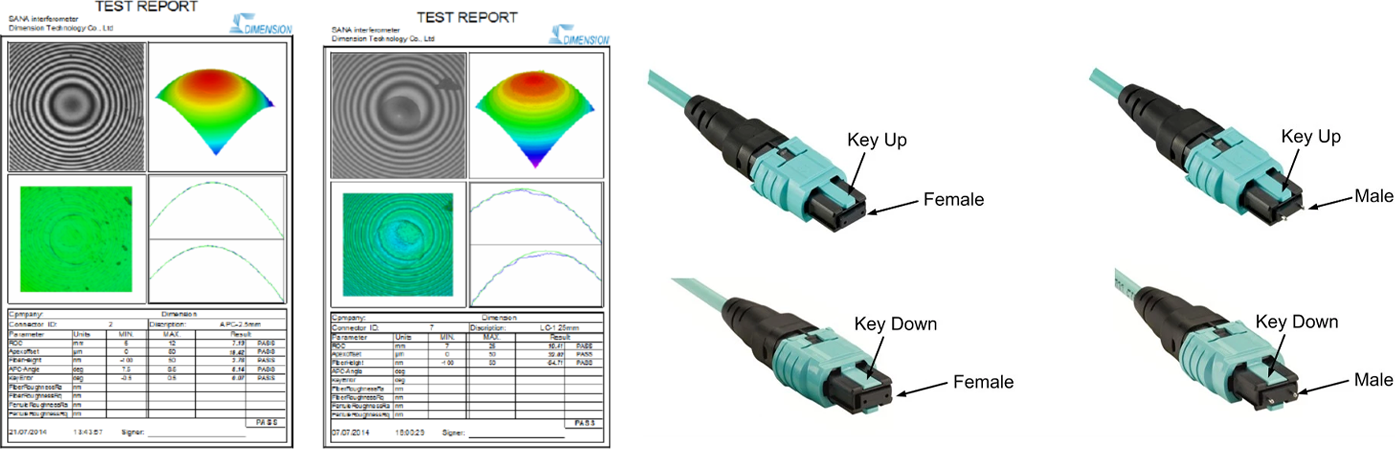

We have conducted strict 3D and other tests on the product, and its performance is reliable.

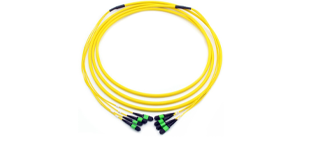

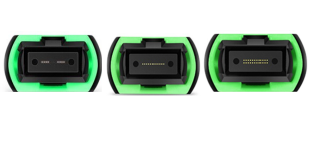

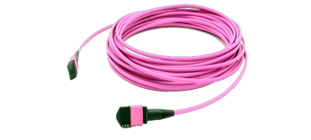

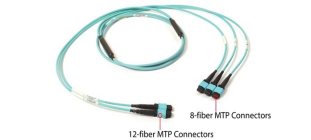

8F, 12F, 16F, 24F, 32F in one Connector	Standard 8-32F MPO/MTP trunk cable	MPO/MTP Conversion Cables	24-144F MPO/MTP Trunk cable

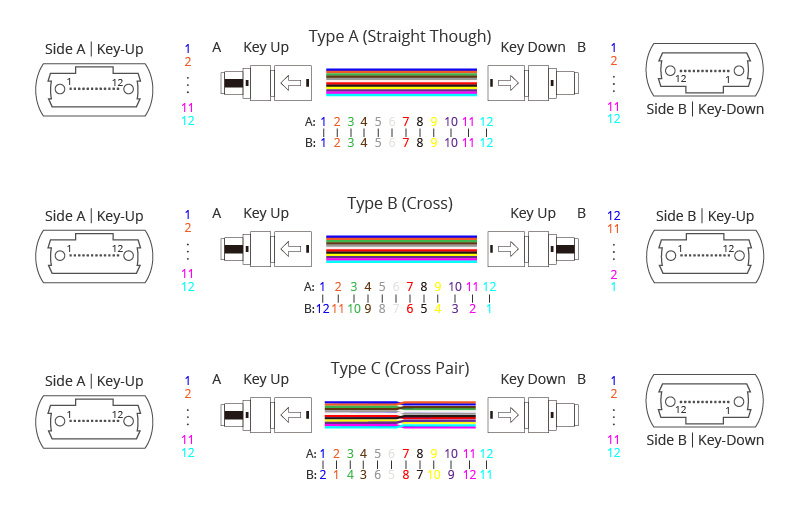

Pre-terminated MPO Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
