Surface Mount Boxes

Surface Mount Box 1 port RJ-45 Cat5e UTP unshielded white
Surface Mount Box 1 port RJ-45(1)
Surface Mount Box 1 port RJ-45(2)
Surface Mount Box 1 port RJ-45(3)
Surface Mount Box 1 port RJ-45(4)
Surface Mount Box 1 port RJ-45(5)

Surface Mount Box 1 port RJ-45 Cat5e UTP unshielded white

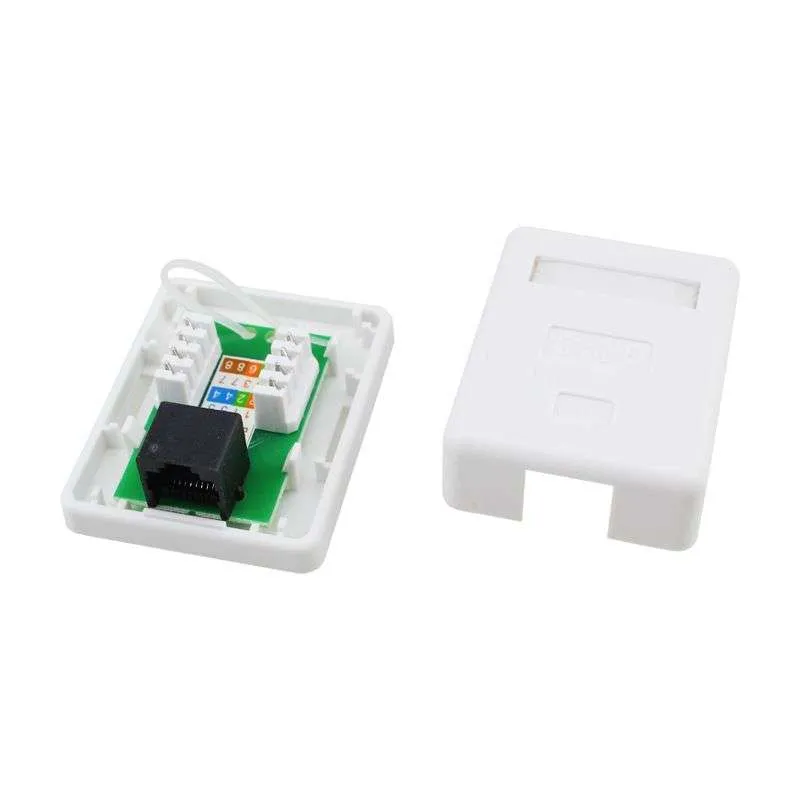

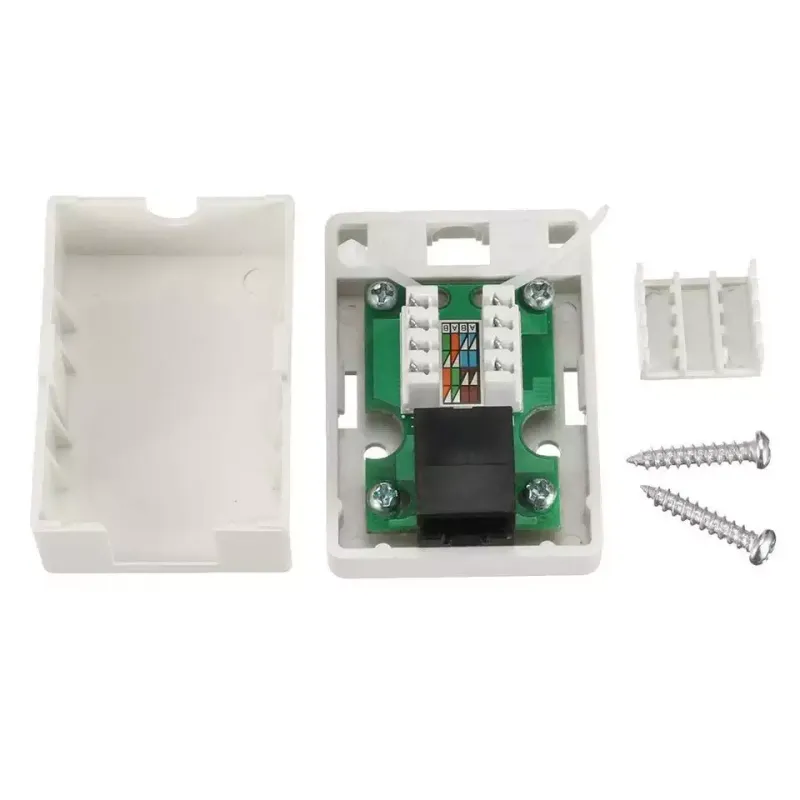

The Cat5e RJ45 Shielded Surface Mount Box features RJ45 female connectors as a fast, easy and cost-effective tool for expanding your Cat5e audio/video, voice or Ethernet network. The box offers a variety of mounting options using adhesive tape, screws, etc. Just snap open the top cover to terminate 22–26 AWG Cat6a copper cables using a standard 110 IDC punch down tool.

The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6a surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling.

Share:

  • Quick Cover Removal Provides Easy Access for Moves, Adds and Changes.

  • Pre-installed RJ45 Keystone Jacks for Quick Installation.

  • The Box Includes a Label Pocket to Meet TIA/EIA-606B Labeling Standards.

  • The Sticker Color Codes Combine Two Wirings of T568A & T568B.

  • Ideal for Home Theater, VoIP or Ethernet In-wall Wiring Install.

Specifications

Category CompatibilityCat5eStandardIEEE 802.3af/at
No. of Ports1Size65*50*27mm
TerminationCouplerShielding Typeunshielded UTP
Material ABS PlasticsColorwhite
ApprovalsRoHS CompliantOperating Temperature -25~75°C
