Surface Mount Boxes

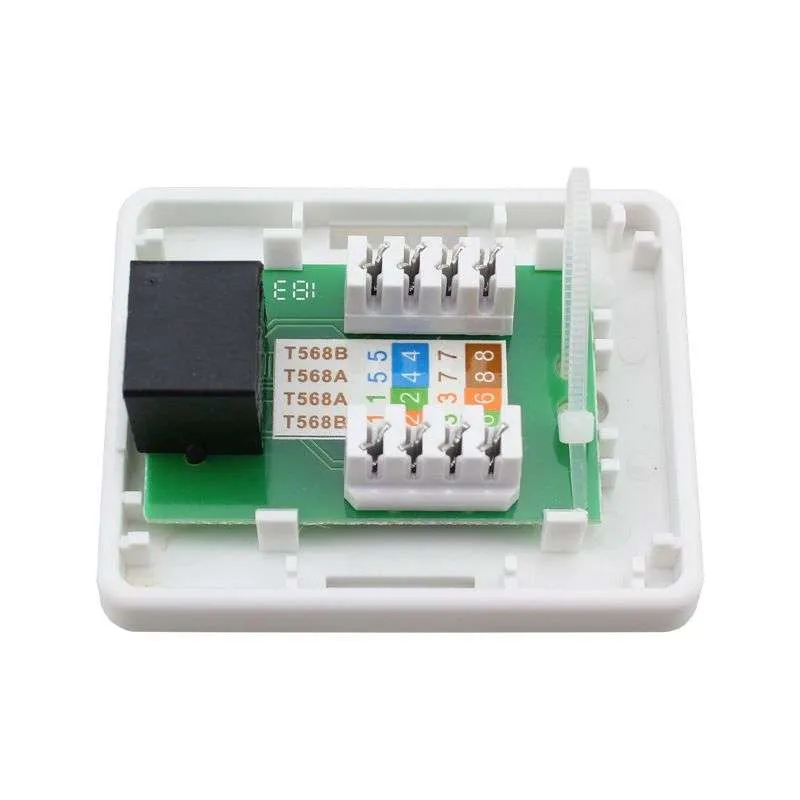

The Cat5e RJ45 Shielded Surface Mount Box features RJ45 female connectors as a fast, easy and cost-effective tool for expanding your Cat5e audio/video, voice or Ethernet network. The box offers a variety of mounting options using adhesive tape, screws, etc. Just snap open the top cover to terminate 22–26 AWG Cat6a copper cables using a standard 110 IDC punch down tool.
The termination blocks are color-coded for easy T568A or T568B wiring. Zip ties are included for neatly securing the cables to the Cat6a surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling.
Share:
Quick Cover Removal Provides Easy Access for Moves, Adds and Changes.
Pre-installed RJ45 Keystone Jacks for Quick Installation.
The Box Includes a Label Pocket to Meet TIA/EIA-606B Labeling Standards.
The Sticker Color Codes Combine Two Wirings of T568A & T568B.
Ideal for Home Theater, VoIP or Ethernet In-wall Wiring Install.
Specifications
Surface Mount Boxes 2 ports RJ-45 Cat5e FTP shielded white
Category Compatibility | Cat5e | Standard | IEEE 802.3af/at |
No. of Ports | 2 | Size | 70*60*27mm |
Termination | Coupler | Shielding Type | shielded FTP |
Material | ABS Plastics | Color | white |
Approvals | RoHS Compliant | Operating Temperature | -25~75°C |
